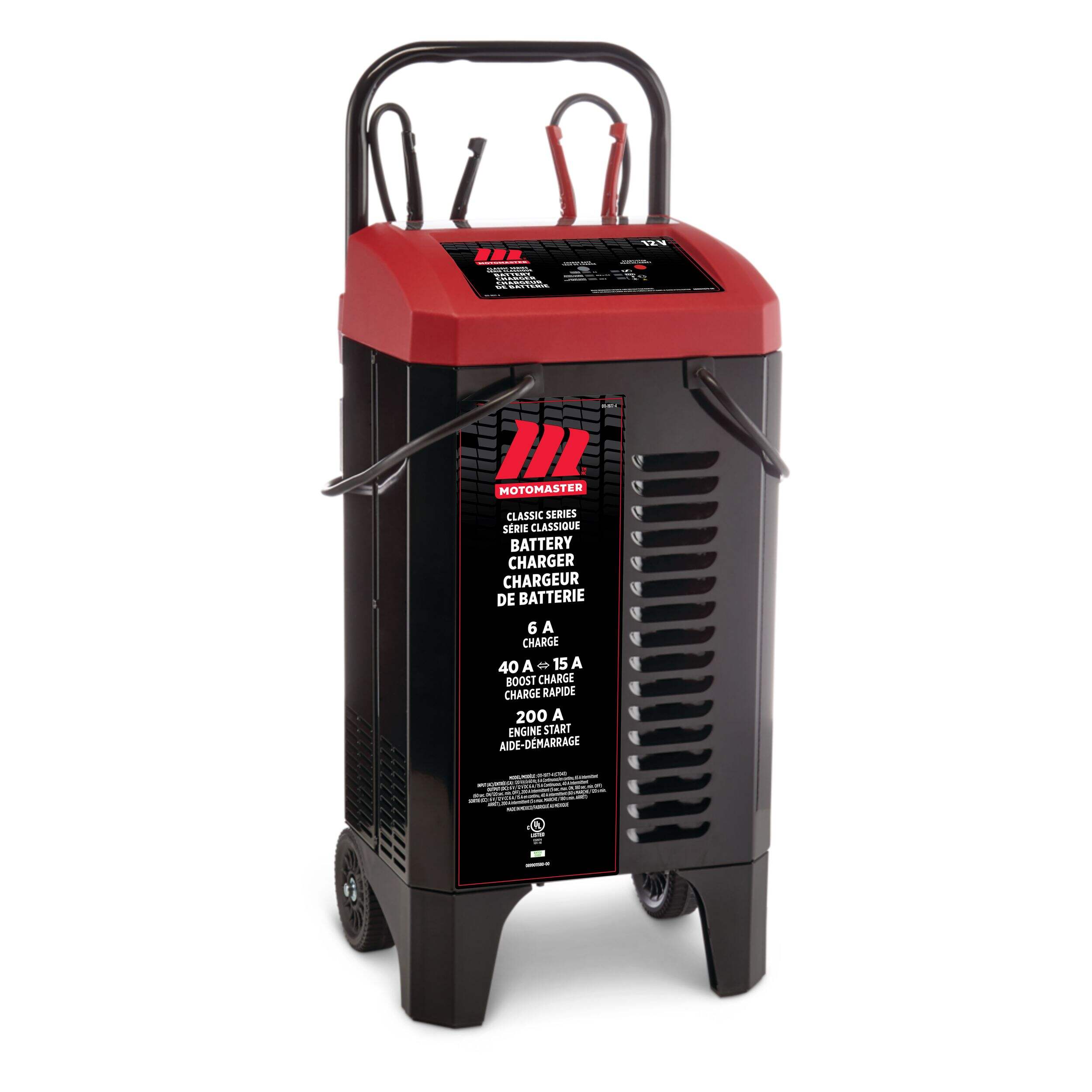

Jump start large vehicles or deeply discharged batteries the easy way with the MotoMaster Classic Series Wheeled Smart Battery Charger. This powerful battery charger is completely mobile, so you can move it to where it’s needed, making it ideal for automotive shops. With an automatic charging process, built-in protections for safety, and compatibility with all 12V lead acid batteries, this charger provides the power you need to keep batteries fully charged and functional.
- Features
- Specifications
- Resources

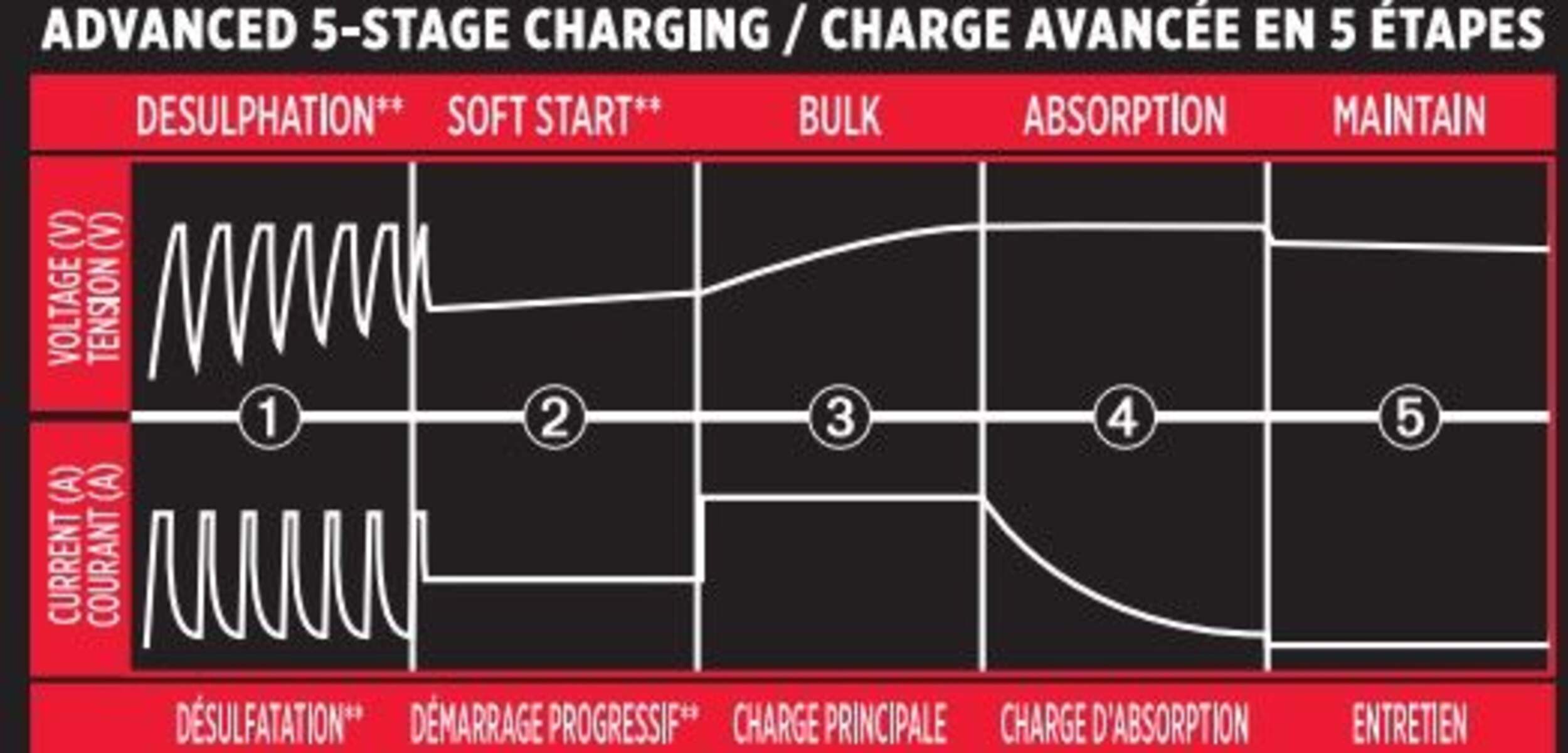

Features a fully automatic, microprocessor-controlled 5-step charging process for a safe, fast and thorough battery charge
15A charge mode for large capacity or deeply discharged batteries features an innovative 40A intermittent boost for up to 55% faster charging (compared to a standard 15A charge rate)
6A charge mode safely and precisely charges and maintains batteries
200A Engine Start mode provides powerful jump starting assistance to instantly start a vehicle with a dead battery
Suitable for all 12-volt lead acid battery chemistries including flooded (wet), maintenance-free, AGM and gel cell
Push-to-start manually starts charger for use on batteries as low as 0 volts
Built-in safety protections include reverse polarity, short circuit, open circuit, overheat, overcurrent and overcharge
Heavy-duty transformer and rugged, powder-coated steel case with retractable handle and compact wheels for easy storage
6 feet (1.8 m) power and battery cables provide 12 feet (3.6m) of total reach and special low-temp insulation keeps cables flexible even in cold temperatures
| Part Number | CT043 |
|---|---|
| Accessories List | No Accessories Included |
| Advanced Features | Automatic Shutoff, Battery Charge Indicator, Float Mode Monitoring, Over-Charge Protection, Reverse Hookup Protection, Spark-Proof, Thermal Overload Protection |
| Assembled Height (cm) | 59.00 cm |
| Assembled Height (ft) | 1.94 ft |
| Assembled Height (in) | 23.23 in |
| Assembled Length (cm) | 31.40 cm |
| Assembled Length (ft) | 1.03 ft |
| Assembled Length (in) | 12.36 in |
| Assembled Weight (kg) | 12.98 kg |
| Assembled Weight (lb) | 28.62 lb |
|---|---|
| Assembled Width (cm) | 31.10 cm |
| Assembled Width (in) | 12.24 in |
| Assembled Width (mm) | 311.00 mm |
| Battery Voltage Compatibility | 12V |
| Certifications | CEC, UL Listed |
| Charge Control | Smart Multi-Stage |
| Charge Time (Hr) | 0 h |
| Charging Rate Modes | Auto |
| Cord Length (cm) | 200.00 cm |
| Cord Length (ft) | 6.56 ft |
| Cord Length (in) | 78.74 in |
| Crank Assist Amperage (a) | 200 A |
| Display Type | LED |
| Input Voltage (V) | 120 V |
| Maximum Temperature (°C) | 0.00 °C |
| Maximum Temperature (°F) | 32.00 °F |
| Minimum Temperature (°C) | 0.00 °C |
| Minimum Temperature (°F) | 32.00 °F |
| Output Amperage (amps) | 200 A |
| Package Depth (cm) | 12.13 cm |
| Package Depth (in) | 4.78 in |
| Package Height (cm) | 60.96 cm |
| Package Height (in) | 24.00 in |
| Package Weight (kg) | 12.98 kg |
| Package Weight (lb) | 28.62 lb |
| Package Width (cm) | 31.12 cm |
| Package Width (in) | 12.25 in |
| Primary Colour | Black |
| Primary Material | Metal |
| Vehicle Type Compatibility | ATV, Automobile, Boat, Light Truck, Motorcycle, SUV, Tractor, Truck, UTV, Van |
Warranty
This product carries a 3 year exchange warranty redeemable at any Canadian Tire store.
Shop Related Products
- Weekly Deals
- Customers Also Viewed
- Top Trending Products
- More From This Brand
Weekly Deals
Review Highlights
List of Pros Highlights
Pros
List of Cons Highlights
Cons
Reviews
Customer Images and Videos
Filter Reviews
- purchase
- price
- battery
- for emergencies
- quality
- ease of use
- engine start
- for trucks
Rating
Locale
1 to 5 of 56 Reviews
1 – 5 of 56 Reviews
Most Recent
5 out of 5 stars.
Automatic battery Charger
3 months ago
⁸Works as advertised
Helpful?
1 out of 5 stars.
Do not buy
5 months ago
Terrible charger don't buy. It kicks out for no reason at all wont jump a vehicle that has no battery or a dead battery, no voltage reading or amperage reading so no way to tell what the state of tour battery is ......terrible
Helpful?
Response from CustomerSupport:
5 months ago
CustomerSupport
Thank you for your honest feedback. We're committed to providing the highest quality parts, and we're sorry to hear that this unit didn't meet your expectations. Our support team is here to help. Please feel free to contact us if you would like assistance or to explore a replacement option.
1 out of 5 stars.
Junk
a year ago
I bought this charger a long time ago and do not have the receipt any more but should have taken it back long ago as it has never worked. This is the second Motomaster charger that I’ve purchased and neither of them worked. I think Motomaster should get out of the battery charger business.
Helpful?
1 out of 5 stars.
Don't buy
a year ago
Bought 2 . One for a gift . Couldn't get it to work at all. Had an older model that still worked but wanted another for second shop. We returned both
Helpful?
1 out of 5 stars.
To much useless technology.
a year ago
It has so many prohibitive safety features. Along with a so called smart charge feature, which all make the charger very unreliable. You never know if it's actually charging. In addition the 200 amps setting is actually a 200 amps. The engineers that built this thing should not be employed.
No, I do not recommend this product.
Helpful?
1 – 5 of 56 Reviews
Questions
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 10 Questions
Most helpful answers
Q: Jaimerais savoir pourquoi le demarreur ne charge pas je viens de l'acheter et comme j'ai lu plus haut dans les questions-réponses il devrait s'allumer sur le cote droit du bouton rouge au premier niveau ...mais rien ne s'allume en mettant en prise.
2 years ago2 Answers
A: C'est vrait, ce chargeur doit s'allumer sur le cote droit du bouton rouge au premier niveau. Nous vous conseillons de contacter le service clientèle au 1-800-621-5485 afin que nous vous aiderons à résoudre le problème que vous avez eu.
2 years agoHelpful?
Q: How can I tell when my battery is charged
3 years ago2 Answers
A: When the battery is charging, the Charging LED (icon of battery with lightning bolt) will be illuminated yellow. When the battery is fully charged, the Charged/Maintaining LED (icon of battery with full bars) will be illuminated green.
3 years agoHelpful?
Q: How canu tell when your zero turn lawn mover is charged
3 years ago2 Answers
A: When the battery is charging, the Charging LED (icon of battery with lightning bolt) will be illuminated yellow. When the battery is fully charged, the Charged/Maintaining LED (icon of battery with full bars) will be illuminated green.
3 years agoHelpful?
Q: Is it normal that this charger produces a very loud buzzing sound (like an arc welder) as soon as you plug it in, and this sound continues as long as it is plugged in?
4 years ago2 Answers
A: The transformer inside the charger has the 120 volt line voltage present when plugged into the wall outlet. The lamination of the transformer and the cooling fan are making noise and will not affect the charging process. Please contact us at 800 528-6817 for further troubleshooting assistance.
4 years agoHelpful?
Q: CAN YOUR 200 MOTERMASTER CHARGER RUN FOR 15 MIN @ 200 AMP?
5 years ago2 Answers
A: You cannot use the 200 engine start mode for 15 minutes. The engine start mode is only available for few seconds.
5 years agoHelpful?
Q: I have 6x - 6v batteries in my golf cart. Can I use this to charge all 6 at the same time? Or only a pair of 6v at a time? Will it charge one 6v battery?
5 years ago2 Answers
A: This unit will not work for 6x - 6v batteries in a golf cart at the same time. This is a 12V battery charger, so you can only charge tow batteries in series at the time.
5 years agoHelpful?
Q: Bought a classic series battery charger 011-1977-4. States that this model has a desulfation mode for batteries. How do you know when the charger enters this mode when you are charging a battery.
5 years ago2 Answers
A: If the charger detects a sulfated battery, it will automatically switch to a special mode of operation designed for such batteries. Normal charging will resume after the battery is desulfated. Desulfation could take up to 10 hours. If desulfation fails, charging will abort and the red LED will blink.
5 years agoHelpful?
Q: Can this be used to charge 6volt deep-cycle batteries?
2 years ago1 Answer
A: This a 12V battery charger. It cannot be used on a 6V battery, however, it can be used to charge two of your 6V deep cycle batteries connected in series (to form a 12V bank).
2 years agoHelpful?
Q: Can this charger be used on deep cycle batteries ?
3 years ago1 Answer
A: Yes, this charger can be used on deep cycle standard and AGM batteries
2 years agoHelpful?
Q: Can a 6 volt lead acid battery be charged with this unit?
4 years ago1 Answer
A: This model is only compatible with 12V lead-acid batteries. For 6/12V charging, please check out our MotoMaster Eliminator Workshop Series 15/6A Wheeled Battery Charger (model 011-1981).
4 years agoHelpful?
