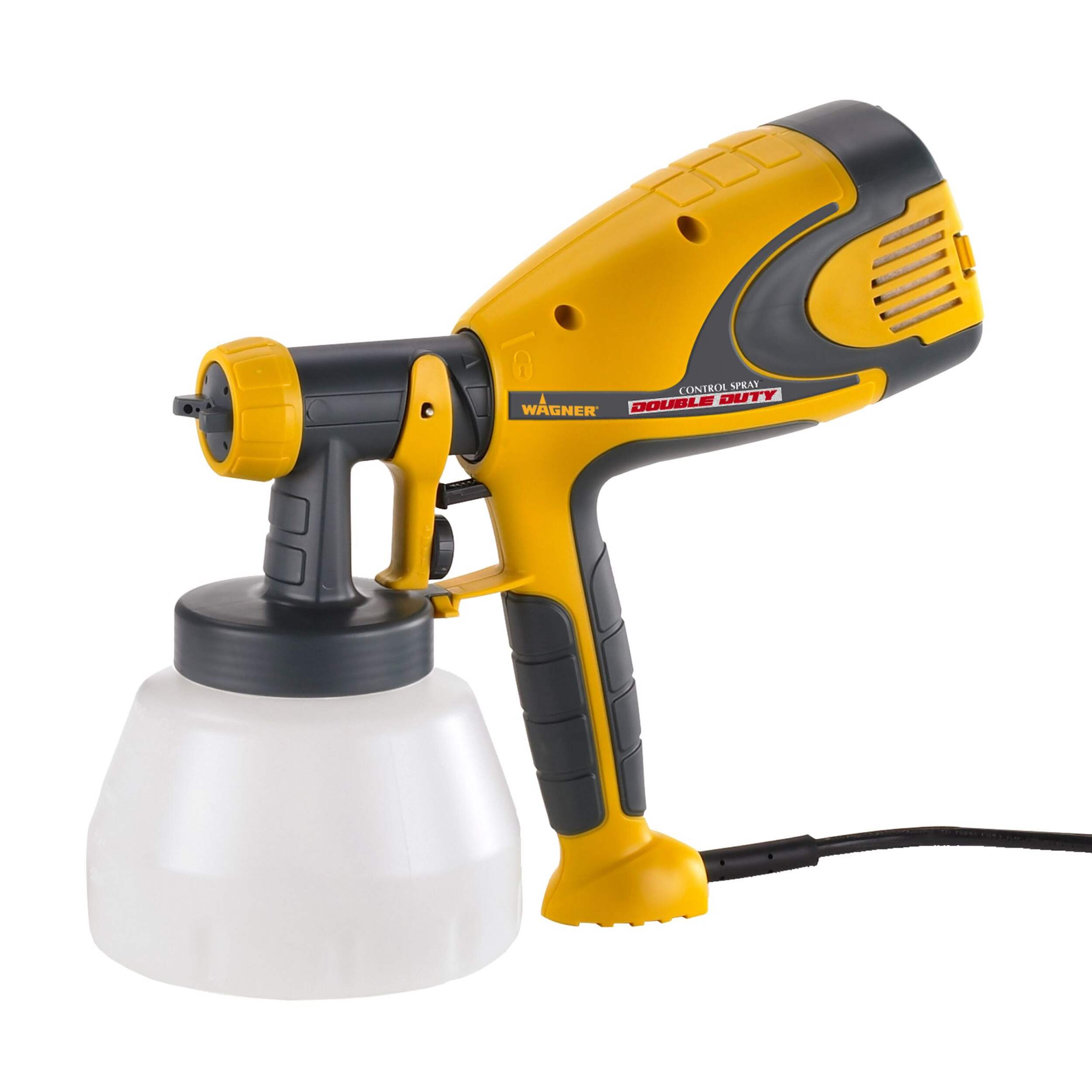

Wagner Control Spray Double Duty Handheld HVLP Paint Sprayer
#049-0397-2
$172.99
Top Rated
Unfortunately, this product is discontinued in your selected store and nearby stores.
You may be interested in these similar products shown below.Similar Items
Quebec residents: For information on maintenance and repair click here.
Similar Items
Product Details
Wagner Control Spray Double Duty uses high volume, low pressure air power technology to spray stains, sealers, urethanes, varnishes, and lacquers
Features three spray patterns, including vertical fan, horizontal fan and round pattern shapes to provide the best coverage
Suitable for medium to detail work
Wagner Model # 0518050
| Part Number | 0518050 |
|---|---|
| Accessories List | Nozzles |
| Assembled Height (cm) | 29.21 cm |
| Assembled Height (ft) | 0.96 ft |
| Assembled Height (in) | 11.50 in |
| Assembled Length (cm) | 35.56 cm |
| Assembled Length (ft) | 1.17 ft |
| Assembled Length (in) | 14.00 in |
| Assembled Weight (kg) | 2.72 kg |
| Assembled Weight (lb) | 6.00 lb |
| Assembled Width (cm) | 12.40 cm |
|---|---|
| Assembled Width (in) | 4.88 in |
| Assembled Width (mm) | 124.00 mm |
| Batteries Required Quantity | 0 |
| Certifications | UL Listed |
| Cord Gauge (ga) | 14ga |
| Cord Type | Corded |
| Enclosure Material | Plastic |
| Maximum Flow Rate (gal/hr) | 1.00 gal (US)/h |
| Maximum Flow Rate (l/hr) | 3.79 l/h |
| Maximum Spray Width (cm) | 15.24 cm |
| Maximum Spray Width (in) | 6.00 in |
| Minimum Spray Width (cm) | 7.62 cm |
| Minimum Spray Width (in) | 3.00 in |
| Motor Type | Not Applicable |
| Mount Style | Hand Held |
| Noise Level (dB) | 70 dB |
| Nozzle Diameter (mm) | 50.90 mm |
| Nozzle Diameter (po) | 2.00 in |
| Number of Accessories | 0 |
| Number of Spray Settings | 3 |
| Package Depth (cm) | 29.21 cm |
| Package Depth (in) | 11.50 in |
| Package Height (cm) | 17.78 cm |
| Package Height (in) | 7.00 in |
| Package Weight (kg) | 2.72 kg |
| Package Weight (lb) | 6.00 lb |
| Package Width (cm) | 35.56 cm |
| Package Width (in) | 14.00 in |
| Paint Type | Not Applicable |
| Primary Material | ABS Plastic |
| Product Capacity (gal) | 0.12 gal (US) |
| Product Capacity (l) | 0.47 l |
| Product Model Number | 0518050 |
| Product Use(s) | Lacquer, Paint, Residential |
| Pump Type | Direct Drive |
| Spray Gun Feed Type | Siphon Feed |
| Spray Gun Type | HVLP |
| Style of Spray Gun | Air Plasma |
| Tank Capacity (gal) | 0.12 gal (US) |
| Tank Capacity (l) | 0.47 l |
Warranty
- This product carries a 1 year exchange warranty redeemable at any Canadian Tire store.
Online Ordering
- Pick Up is free at most stores (some stores require a minimum order value before tax)
- Shipping fee is based on size and weight of products and distance from address to store
- Same-Day Delivery costs $9.99 per order
- Online Ordering Information
Returns
- Most products can be returned or exchanged at any Canadian Tire store within 90 days of purchase
- Some products are non-refundable and non-exchangeable
- The return policy outlined above may not apply to the product you are currently viewing. For complete details and eligibility, please refer to our Return Policy for exceptions.
Compare Similar Products
Only Show Differences | Currently Viewing | |||||
| Ratings | ||||||
| Accessories List | Nozzles | |||||
| Assembled Height (cm) | 29.21 cm | |||||
| Assembled Height (ft) | 0.96 ft |
Shop Related Products
- Weekly Deals
- Customers Also Viewed
- Top Trending Products
- More From This Brand
Review Highlights
List of Pros Highlights
Pros
List of Cons Highlights
Cons
Suitable Cons could not be generated at this time.
Reviews
Customer Images and Videos
Filter Reviews
- cleaning
- purchase
- ease of use
- finish
- satisfaction
- results
- instructions
- price
Rating
Locale
1 to 5 of 54 Reviews
1 – 5 of 54 Reviews
Most Recent
4 out of 5 stars.
Almost great.
2 years ago
It s comfortable to hold and the container holds a lot of paint, I found that it doesn’t spray much paint at time as I had to go over the area a couple of times to get it to cover. Not as effective as my old Lemberg .
Helpful?
Response from WagnerSprayTech:
2 years ago
WagnerSprayTech
Our Control Spray line of HVLP sprayers are designed for thin bodied materials, like stain, polyurethane or thinned paints. There are a few things you can do to paint/stain to ensure it sprays well.
1 - Stir the paint/stain with a mixer in a drill until its creamy smooth, about 1 min per gallon
2 - Strain the paint/stain before it goes into the sprayer
3 - Add a flow agent, like Floetrol or Paint Easy (this is not a thinner) for latex paint – Penetrol for oil based
4 - Or you can thin, even as little as 5% can make a big difference, water for water based materials and mineral spirit for oil based material. Up to 20% is fine.
Good luck with your projects.
1 - Stir the paint/stain with a mixer in a drill until its creamy smooth, about 1 min per gallon
2 - Strain the paint/stain before it goes into the sprayer
3 - Add a flow agent, like Floetrol or Paint Easy (this is not a thinner) for latex paint – Penetrol for oil based
4 - Or you can thin, even as little as 5% can make a big difference, water for water based materials and mineral spirit for oil based material. Up to 20% is fine.
Good luck with your projects.
4 out of 5 stars.
Good product, could use some minor tweaks
2 years ago
We purchased this sprayer to stain our deck. We were impressed with the time savings (50 to 75% of brush time). The unit itself could use improvements on the material quantity control, as it would continually vibrate out of position on low flow applications. We wrapped the thumb control with teflon tape to tighten it up.
Yes, I recommend this product.
Helpful?
Response from WagnerSprayTech:
2 years ago
WagnerSprayTech
Thanks for your review.
5 out of 5 stars.
Worth every penny
2 years ago
This sprayer was easy to fill, utilize and clean up. I highly recommend as a great time saver for outside painting projects.
Helpful?
Response from WagnerSprayTech:
2 years ago
WagnerSprayTech
Thank you for your review and recommendation. We're glad you found it so easy to work with.
5 out of 5 stars.
Wagner sprayer
3 years ago
Works really well just need to thin out paint correctly
Helpful?
Response from WagnerSprayTech:
3 years ago
WagnerSprayTech
Thank you for a great review ! We're glad the sprayer works well.
5 out of 5 stars.
Spray patterns and paint paint controls
3 years ago
I bought this gun to replace my older wagner gun that still worked but this gun has a lot more control settings ,the gun saves time and does a better job, clean up took longer then video showed
Yes, I recommend this product.
Helpful?
Response from WagnerSprayTech:
3 years ago
WagnerSprayTech
Thank you for a great review !
1 – 5 of 54 Reviews
Questions
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 10 Questions
Most helpful answers
Q: Has anyone used this sprayer for walls and ceilings indoors? Has anyone used this sprayer for walls and ceilings indoors? How messy was it and what kind of results did you have? Would you recommend this sprayer for wall and ceiling painting?
7 years ago3 Answers
A: The Control Spray DD is intended for thin bodied materials like stains and polyurethane, it will struggle with latex paint. Look at our Flexio line of HVLP for spraying your latex paints.
5 years agoHelpful?
Q: Can this sprayer be used to spray lacquer and other finishes?
2 years ago2 Answers
A: IT’s recommended that it’s used for stains, I have actually used it with latex paint, however it’s designed for thin materials , keep in mind that the parts are plastic so you may need to take the nozzle off and clean it between coats if the product you are using is too thick
2 years agoHelpful?
Q: Can you spray bed liner with this spray gun?
3 years ago2 Answers
A: I own this particular spray gun and I have used it with latex paint but I had to dilute it ,this spray gun is actually meant for staining,if the paint you are using is a rubberized paint I don’t think I would use it , all the parts and nozzle are plastic so you need to be careful with solvents ,the orifice will probably clog using a Bed liner paint , I would recommend using a air compressor with an air powered suction gun .
3 years agoHelpful?
Q: Can I spray a oil based marine paint with this gun to paint a aluminum boat
4 years ago2 Answers
A: Yes, you can. May have to dilute a little so paint is not so thick and it can run through sprayer…
4 years agoHelpful?
Q: Can I spray vehicle undercoat with wagner sprayers? either this one or the 150 model? Thanks
5 years ago2 Answers
A: I actually used it for undercoat and worked very well. Happy with it.
5 years agoHelpful?
Q: Does it require a compressor? Or is it electrical (just plug it in).
10 years ago2 Answers
A: Doesn't require a compressor. simply plug in an AC outlet.
10 years agoHelpful?
Q: would this sprayer work to cover my driveway with acrilic driveway sealer???
6 years ago1 Answer
A: No it will not. I would consult the driveway sealer manufacturer and ask them how it should be applied. Once you have that information you can call us at 1-800-328-8251 and we can see if we have a product that will work for your application.
6 years agoHelpful?
Q: What product do you use to clean the inside and head of the sprayer - when you're using oil base stain for decking?
6 years ago1 Answer
A: Oil based paints, stains and finishes should be cleaned up using mineral spirits.
6 years agoHelpful?
Q: Can you spray paint furniture with this tool?
7 years ago1 Answer
A: Sure you can, if you're using latex paint you'll need to thin it about 10-20% with water. Our Flexio HVLP sprayers have more power so latex sprays even better! For more info reach us at 800-328-8251.
7 years agoHelpful?
Q: paint sprayers just wondering what the differ between 0490397-2 double duty paint sprayer and 04903498 does the double duty can that spray paint or not just want to know what the differ is between the two it dont tell you to much info about them Thank you John
11 years ago1 Answer
A: The 0490398 Wagner Paint Ready is best suited for latex wall paint indoors for exterior latex painter the 0490395 Wagner 6.6 GPH Power Painter Plus is the preferred latex sprayer for exterior latex.
11 years agoHelpful?
