MotoMaster
MotoMaster Lawn Mower / ATV Jack with Hydraulic Pump, 300-lb
#009-1534-6
$229.99
Exclusive
Buy Online :
- FREEAvailable
- Unavailable
- Available
Pick up at Leduc, AB
3 In Stock
Pick up available 08:00 a.m., Jan 04
Quantity updated to 1
Also Find It in Store:Auto Wall
Only 3 left
at Leduc, AB
Add to Registry
Quebec residents: For information on maintenance and repair click here.
Similar Items
Product Details
The MotoMaster Lawn Mower Jack with Hydraulic Pump is designed for effortless lifting and maintenance of lawn mowers and small equipment. Featuring a powerful hydraulic pump, it smoothly raises up to 300 lbs, allowing easy access for cleaning and repairs. Its sturdy construction and secure locking mechanism ensure stability and safety while in use. Ideal for DIYers and professionals, this lawn mower jack provides a reliable, convenient solution for maintaining your equipment.
- Features
- Specifications
- Resources
Portable design allows for use in various locations
Five-position width adjustment fits wheels from 36.5 to 51'' (93 to 129.5 cm) wide
One-handed/six-position wheel saddle depth adjustment for different size tires
Minimal assembly required, allowing quick setup out of the box
Slow-descending function for added safety
Descend speed: 8-15 sec with 300-lb load, 12-19 sec with 250-lb load, 25-30 sec with 150-lb load, 80-100 sec with 50-lb load, 5-7 min with no load
When the product is without load, manual pressure may be added to the saddle to increase the descend speed

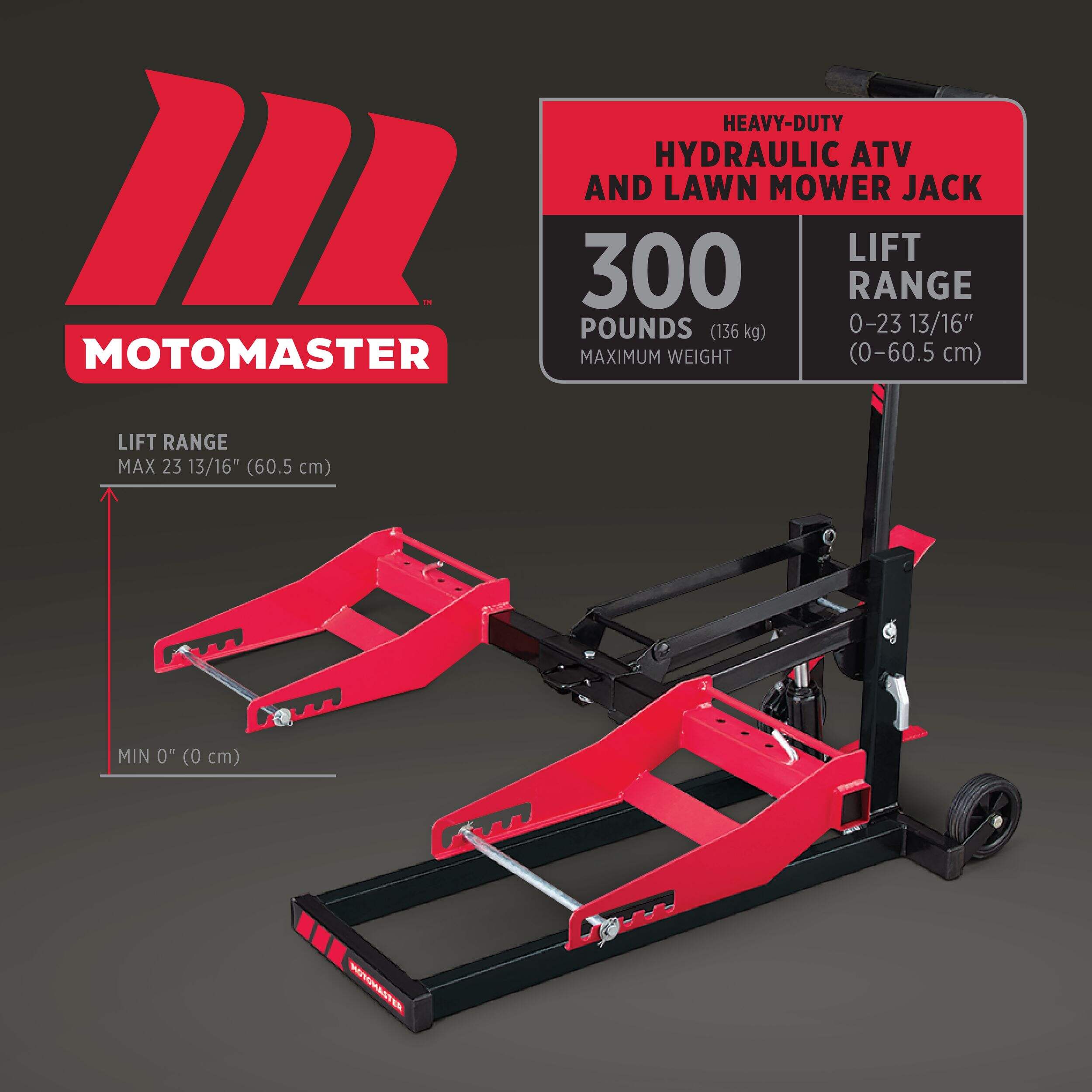

Lift range: 0 - 24'' (0 - 61 cm)
Backed by MotoMaster’s commitment to quality and reliability
| Part Number | DJ-RLML-002 |
|---|---|
| Accessories List | Casters, Handle |
| Advanced Features | Adjustable Height, Overload Protection |
| Assembled Height (cm) | 110.60 cm |
| Assembled Height (ft) | 3.63 ft |
| Assembled Height (in) | 43.54 in |
| Assembled Length (cm) | 101.00 cm |
| Assembled Length (ft) | 3.31 ft |
| Assembled Length (in) | 39.76 in |
| Assembled Weight (kg) | 31.50 kg |
| Assembled Weight (lb) | 69.45 lb |
|---|---|
| Assembled Width (cm) | 99.00 cm |
| Assembled Width (in) | 38.98 in |
| Assembled Width (mm) | 990.00 mm |
| Certifications | No Certifications |
| Duty Rating | Standard Duty |
| Finish | Powder Coated |
| Handle Length (cm) | 75.00 cm |
| Handle Length (in) | 29.53 in |
| Maximum Lift Height (cm) | 60.50 cm |
| Maximum Lift Height (in) | 23.82 in |
| Maximum Weight Capacity (g) | 136000.00 g |
| Maximum Weight Capacity (kg) | 136.00 kg |
| Maximum Weight Capacity (lb) | 299.83 lb |
| Minimum Lift Height (cm) | 0.00 cm |
| Minimum Lift Height (in) | 0.00 in |
| Number of Pieces | 1 |
| Package Depth (cm) | 106.00 cm |
| Package Depth (in) | 41.73 in |
| Package Height (cm) | 19.00 cm |
| Package Height (in) | 7.48 in |
| Package Weight (kg) | 35.50 kg |
| Package Weight (lb) | 78.26 lb |
| Package Width (cm) | 53.00 cm |
| Package Width (in) | 20.87 in |
| Primary Colour | Black |
| Primary Material | Steel |
| Product Use(s) | Lawn Mower, ATVs |
| Pump/Lift Type | Hydraulic |
| Type of Lift/Stand | Bottle Jack |
| Vehicle Type | Lawn Mower |
Warranty
This product carries a 1 year exchange warranty redeemable at any Canadian Tire store.
Compare Similar Products
Only Show Differences | Currently Viewing | |||||
| Ratings | ||||||
| Accessories List | Casters, Handle | Casters, Handle | Handle | No Accessories Included | No Accessories Included | |
| Advanced Features | Adjustable Height, Overload Protection | Adjustable Height, Locking, Includes Crank/Handle, Overload Protection | Easy Adjustments, Includes Crank/Handle, Heavy Duty | No Advanced Features | Portable | |
| Assembled Height (cm) | 110.60 cm |
Shop Related Products
- Weekly Deals
- Customers Also Viewed
- Top Trending Products
- More From This Brand
Weekly Deals
Review Highlights
List of Pros Highlights
Pros
List of Cons Highlights
Cons
Suitable Cons could not be generated at this time.
Reviews
Customer Images and Videos
Filter Reviews
- setup
- purchase
- quality
- instructions
- ease of use
- satisfaction
- returns
- price
Rating
Locale
1 to 5 of 106 Reviews
1 – 5 of 106 Reviews
Most Recent
4 out of 5 stars.
Atv or lawntractor lift
2 months ago
Easy to use,easy to put together. Work well with big or smaller wheels
Helpful?
5 out of 5 stars.
Lawn mower jack
3 months ago
Great jack should have had one long time ago and very reasonable price
Helpful?
2 out of 5 stars.
Lawn tractor lift
3 months ago
Doesn't lift front of lawn tractor past 3 inches
Helpful?
5 out of 5 stars.
Excellent addition to my garage!
3 months ago
This jack is solid and works very well. It feels safe and reliable. My only minor complaint is that the instructions aren't the greatest at identifying pieces. Once you get the first few steps completed, it goes fairly smoothly.
Helpful?
5 out of 5 stars.
A Good Buy
4 months ago
Works like a charm. Easy to operate.
Helpful?
1 – 5 of 106 Reviews
Questions
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 13 Questions
Most helpful answers
Q: Can I use this for my easy turn rider?
4 years ago4 Answers
A: It has adjustable wheel base size, the widest it will go is a standard Yamaha 650 atv wheelbase.
4 years agoHelpful?
Q: I purchased mine last May (2022), it won't lift, seems the release lever is constantly open (spring snapped?). How long is the warranty on this item?
2 years ago3 Answers
A: I don't know about warranty length, but I use it a few times a year to lift my riding mower so I an change my blades from cutting to mulching. No issues whatsoever.
2 years agoHelpful?
Q: This device looks like it will only elevate one end of my Tractor and to raise up my push lawn mower would be dodgy having only two wheel wells to secure the four wheels of my machine. Am I correct ?
2 years ago3 Answers
A: Yes
2 years agoHelpful?
Q: I have a Sear lawn tractor LT1000. The width from the outside of one tire to the outside of the other is 35.5 inches. Is there any flexibility for it to fit on this jack? The minimum width stated is 36.5 inches.
3 years ago3 Answers
A: Your Sears lawn tractor will fit on this Motomaster Lawn Jack. The ATV/Lawn Jack has 5 settings, with the minimal setting with a width of 36.5 inches. You would not use the minimum setting fore you lawn mower. You would use the one or two settings above the minimum for a more comfortable fit for your tractor wheel base. The jack is flexible
3 years agoHelpful?
Q: can this be used for zero turn lawn tractors
4 months ago2 Answers
A: Probably is long as it doesn't exceed the weight, the jack isn't overbuilt, so I wouldn't trust it with additional weight over its rating. You'd also likely have to back it on, as the deck would likely be in the way if you put it on forward.
4 months agoHelpful?
Q: Is that weight capacity considering that 1 set of wheels are on the ground? What happens with a 400 lb mower?
9 months ago2 Answers
A: We are able to lift our John Deer ride on mower and our four wheeler
8 months agoHelpful?
Q: Can I use this for my golf cart?
4 years ago2 Answers
A: We do not expect this MotoMaster Lawnmower/ATV Jack will be compatible for your golf cart. This jack has a rated capacity of 300-lb and we would not recommend it for a vehicle with a Curb Weight of more than 500-lb. We expect your golf cart likely weighs closer to 1,000-lb Curb Weight - including all fluids and batteries. For your application, we would prefer to recommend a traditional trolley jack and axle stand combination.
4 years agoHelpful?
Q: Does it fold up for storage?
6 years ago1 Answer
A: No.
6 years agoHelpful?
Q: How are the measurements calculated. It states the jack fits 36.5 - 51 is this the inside or outside measurement. My cub cadet zero turn is 30 inside the tires, 38 outside measurement. Five position width adjustment fits wheels from 36.5 to 51''
7 years ago1 Answer
A: The MotoMaster Lawn Mower/ATV Jack, 300-lb (0091534) has a minimum outer width measurement of 36.5” to fit the applicable vehicle application. The Maximum outer width that will work for this Jack is 51”. Your vehicle should fit on this Jack well as the 38” outside measurement is within this range.
6 years agoHelpful?

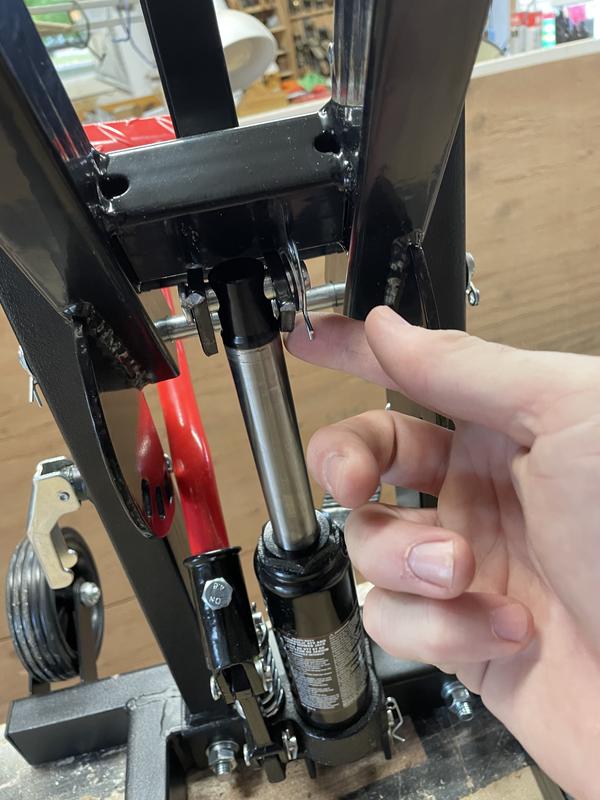

Q: One reviewer said the O ring broke, was it because he used more than the 300lbs capacity?
7 years ago1 Answer
A: Rest assured, this MotoMaster Lawn Mower/ATV Jack undergoes rigorous independent third-party random testing where the product is subjected to load capacities that exceed the stated capacity on the product, among other tests. This product has successfully passed the most recent testing. Therefore, we cannot confirm the consumer’s root cause of any product failure was due to overloading.
7 years agoHelpful?
1 - 10 of 13 Questions
