Mastercraft 115V/230V MIG 180i Inverter Welder

#058-1927-4
Mastercraft 115V/230V MIG 180i Inverter Welder
$799.99
Exclusive
Buy Online :
Pick up at Leduc, AB
3 In Stock
Get it Today !

Pick up available 11:00 a.m., Jan 03

Quantity updated to 1
New digital payments available on checkout page:
Also Find It in Store:

Only 3 left

at Leduc, AB
Aisle 22
Add to Registry

Quebec residents: For information on maintenance and repair click here.

Mastercraft
Mastercraft

Mastercraft 115V/230V MIG 180i Inverter Welder

$799.99

Product Details

This durable Mastercraft 115V/230V MIG 180i Inverter Welder is a lightweight welding unit designed for portability and efficient operation. With a consistent weld arc and voltage control, this versatile inverter welding unit has thermal overload protection that helps keep you safe. The compact size and lightweight design make this the perfect welder for job sites and projects on the go. The welder includes a grounding cable, clamp, contact tip, drive roller, and more.

  • Combines the versatility of MIG and flux core welding with lightweight inverter technology

  • Dual Voltage Technology works with both 115V and 230V input (1 Phase)

  • DC power creates a smooth, stable weld arc

  • Infinite wire speed and voltage control lets you adjust the output to your needs

  • Perfect for use in the workshop, in the field or at home

  • Can use 0.030", 0.035" flux-cored wire and 0.023", 0.030", 0.035" MIG wire

  • Duty cycle: 40% at 90A (115V), 20% at 160A (230V)

  • Weld metal thickness: 18 gauge-3/8" (1.2-9.5mm)

  • Includes: Mastercraft Inverter MIG 180i Welder, 6' (1.8 m) grounding cable and clamp, 6' (1.8 m) MIG/Flux core torch, 6' (1.8 m) gas hose, gas regulator, 2' (0.6 m) 15A plug adaptor, contact tip (0.030") and drive roller (0.023"-0.030"/0.035")

Part Number MIG 182i
Minimum Weldable Thickness (in) 0.02 in
Maximum Weldable Thickness (in) 0.25 in
Minimum Weldable Thickness (mm) 0.60 mm
Maximum Weldable Thickness (mm) 6.30 mm
Input Voltage (V) 230 V
Output Amperage (amps) 160 A
Duty Cycle 40
Welding Process Flux-cored, Inverter, MIG, Wire Feed
Output Voltage (V) 22 V
Certifications CSA Listed
Assembled Height (in) 17.72 in
Assembled Weight (lb) 38.58 lb
Primary Material Metal
Primary Colour Blue
Polarity DC
Accessories List Nozzles, Other, Tips, Torch
Number of Pieces 1
Power Source Hardwired/Plug In
Display Type Digital
Advanced Features Continuous Operation, Versatile welding range
Input Hertz (Hz) 60 Hz
Assembled Width (in) 23.62 in
Assembled Length (in) 12.60 in
Warranty
  • 3 yr repair warranty. This product has replaceable parts. For details contact MASTERCRAFT Customer Support at 1-800-689-9928
User Manual
  • View user manuals and additional product information

Download

Online Ordering
  • Pick Up is free at most stores (some stores require a minimum order value before tax)
  • Shipping fee is based on size and weight of products and distance from address to store
  • Same-Day Delivery costs $9.99 per order
  • Online Ordering Information
Returns
  • Most products can be returned or exchanged at any Canadian Tire store within 90 days of purchase
  • Some products are non-refundable and non-exchangeable
  • The return policy outlined above may not apply to the product you are currently viewing. For complete details and eligibility, please refer to our Return Policy for exceptions.

Compare Similar Products

Only Show Differences
Ratings
Minimum Weldable Thickness (in)0.02 in0.05 in0.02 in0.04 in0.02 in
Maximum Weldable Thickness (in)0.25 in0.19 in1.00 in0.19 in0.25 in
Minimum Weldable Thickness (mm)0.60 mm1.20 mm0.51 mm1.00 mm0.51 mm

Reviews

Rating Snapshot

Select a row below to filter reviews.
8 reviews with 5 stars.
4 reviews with 4 stars.
3 reviews with 3 stars.
5 reviews with 2 stars.
4 reviews with 1 star.

Overall Rating

3.3
12 out of 16 (75%) reviewers recommend this product

Review this product

Select to rate the item with 1 star. This action will open submission form.
Select to rate the item with 2 stars. This action will open submission form.
Select to rate the item with 3 stars. This action will open submission form.
Select to rate the item with 4 stars. This action will open submission form.
Select to rate the item with 5 stars. This action will open submission form.
Adding a review will require a valid email for verification

Customer Images and Videos

Filter Reviews

  • price
  • purchase
  • satisfaction
  • quality
  • returns
  • metal
  • instructions
  • functional
1 to 5 of 24 Reviews
1 – 5 of 24 Reviews

MiG 180 welder

11 months ago
Affordable,priced unit for a hobbyist that does the job. Simple easy to read instructions. Works great
Helpful?

Lots of time into this welder, works great.

a year ago
I'm a bit of a jack of all trades and a hobby blacksmith. While I don't do it professionally, I do a fair amount of metal work. I bought this puppy 5 or 6 years ago or so, maybe longer, because it seemed like the best bang for the buck, and about the limit that I wanted to spend on a mig. Honestly I think some of the negative reviews might be people that just don't really know what they're doing, but I have run into the situation where the wire runs after you let go of the trigger. While I'm not going to pretend that's not a problem, I can't even fathom how it would flash you. Are these guys literally flipping up there helmet as they're letting go of the trigger? And if it's "look away tacking", just put your helmet on dude that's what they're for. That said, I'll admit the whip is pretty low quality. I haven't tried looking for a replacement, because honestly it's not that big of a deal at all. I've had that issue maybe about a dozen times in the many hours I've spent with this machine. It runs out about 4 - 6 inches of wire, then stops feeding on it's own (I didn't have to shake it). It didn't flash me because I wear a helmet, and it didn't ruin my work because I have faster reflexes than a tortoise and just lifted the gun up when I was done the bead ... which is another thing I don't understand from those reviews, if you're done the bead why are you still holding it there? Weird. Anyway, I just recently built myself a new forge and mobile stand, using this for every single weld. I didn't take any pictures of the welds themselves, but the pic of the forge should hopefully be enough to give you the idea that this thing works just fine. Especially if you can get it on sale I still think this unit is pretty good. People talking about the lincolns, you're almost comparing two different things due to the price difference. Will it be better if you spend twice as much? Almost certainly. Will this thing do the trick if it's the top model in the price range you're looking at? Evidence says absolutely. Last thing last, I've used flux core and solid. Probably a couple spools of flux and much more solid. Both are fine. Gas works great, the regulator it comes with is perfect. Great range of adjustment on wire speed and voltage. I only ever ran it on 220v. Thickest material I welded was probably only 1/4" as far as I can recall, never had penetration issues.

Yes, I recommend this product.

Helpful?

Nice welder machine for beginners

2 years ago
Amazing welding machine for dyi exhaust repairs. I was able to weld my new mufflers and 4'' tips thanks to this bad boy using Lincoln's 0.030'' flux core wire.
Helpful?

Welder

2 years ago
I rated it a 1 start because you can’t give them a 0. Even turning up the wire speed the wire doesn’t come out quick enough. Worst part is when you take it back, you get store credit. Wouldn’t recommend this welder at all.
Helpful?

180 mig welder

3 years ago

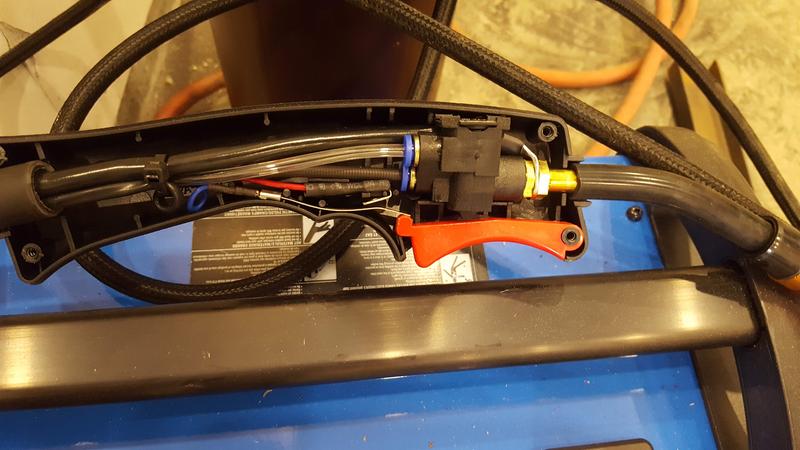

People say this welder has a flaw in the torch where it keeps feeding wire after you let go of the trigger !!! All you have to do is leave the wire in the weld puddle for the split second after you let go of the trigger wire is still hot so it will burn the wire to finish the weld

Yes, I recommend this product.

Helpful?
1 – 5 of 24 Reviews

Questions

1 - 10 of 23 Questions

Q: Does it cut? If so up to what gauge?

3 years ago
2 Answers
  • A: Sorry this is a welder meg if you want to cut metal you need a plasma cutter here’s the link https://www.canadiantire.ca/en/pdp/mastercraft-115v-230v-power-cut-40i-plasma-cutter-0581929p.html?loc=plp

    3 years ago
    Helpful?

Q: Has the gun/hose been upgraded or redesigned in the past couple years since it came out?

3 years ago
2 Answers
  • A: No ,works just fine,everything it’s okay

    3 years ago
    Helpful?

Q: Is this welder electrically cold until the trigger is activated?

3 years ago
2 Answers
  • A: Yes

    3 years ago
    Helpful?

Q: Can this welder be set up to weld aluminum with the proper wire, gas, etc?

4 years ago
2 Answers
  • A: Yes, although I haven't used it to weld aluminum as yet. Go on Youtube for some information videos on how to do that.

    4 years ago
    Helpful?

Q: Does this welder use a standard gun? Reading the reviews the only complaint is the trigger. Can it be easily upgraded  with a Lincoln or Miller?

4 years ago
2 Answers
  • A: Had the same problem with the trigger. Do not buy this. After having it stick a few times in dangerous situations it started to scare me. I got through t Being flashed and then the display went the next time I tried to do a few tack welds. This machine should be recalled before someone is blinded or electrocuted.

    4 years ago
    Helpful?

Q: Is the wire supposed to come out slow at first and then speed up after about a second, or is mine a dud

5 years ago
2 Answers
  • A: check for tension adjustment on spool and on wire

    3 years ago
    Helpful?

Q: How much does it weigh? What is the wire drive feed made of? Amperage range? Open circuit voltage (OCV)? Welding thickness range with Gas? Please provide downloadable Owners Manual

5 years ago
2 Answers
  • A: Weight with package is 14.3kg, machine weigh is 11.45kg. Wire drive feed motor is metal, inside gear and cover is plastic. Output amperage range is 120V: 30-140A; 230V: 30-180A Open circuit voltage (OCV) is 54V. Welding thickness with gas could be maximum 6.4mm.

    5 years ago
    Helpful?

Q: Peut on la branché dans un prise murale 110 v comme dans la maison?

a year ago
Translate with Google
1 Answer
  • A: Oui, l'article est bi-tension et un adaptateur 120V est fourni dans la boîte. L'utilisateur peut utiliser cet adaptateur pour se brancher sur une prise de 110 V.

    Anonymousa year ago
    Helpful?
    Translate with Google

Q: Does this welder take an 8” spool or only 4”?

2 years ago
1 Answer
  • A: Thanks for reaching out! This welder can use either a 4" or 8" spool.

    a year ago
    Helpful?

Q: What is the part number for replacement gauges and hose?

2 years ago
1 Answer
  • A: canadian tire doesnt have a listing for either they are standard sizes , you can get them at a decent price at princess auto

    2 years ago
    Helpful?
