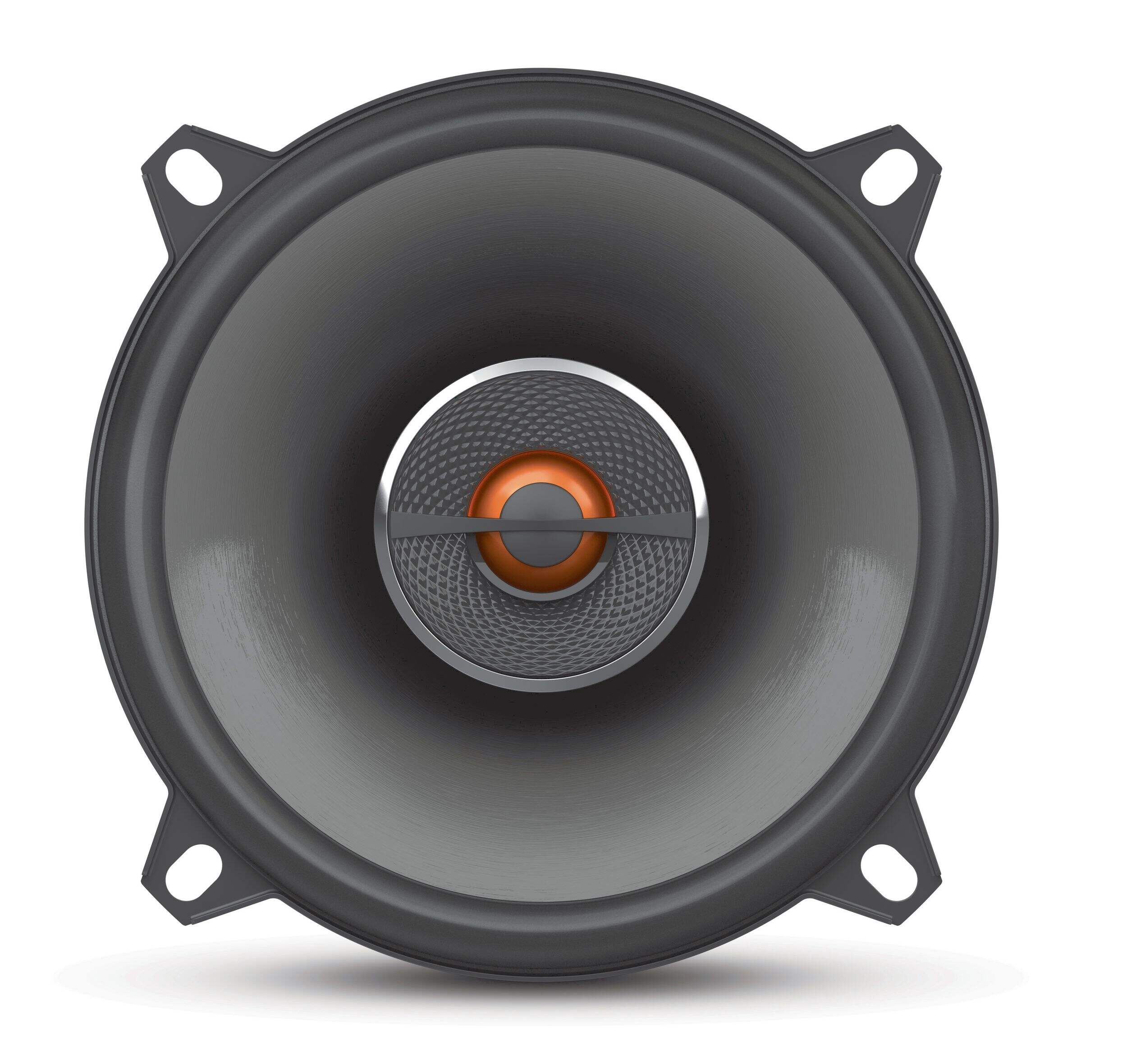

JBL 5-1/4-in GX502 Coaxial Speaker Front_Flat

Toggle Image Magnification

JBL

JBL 5-1/4-in GX502 Coaxial Speaker

#074-0167-8

View Product Details

View Similar Items

$129.99

Top Rated

Unfortunately, this product is discontinued in your selected store and nearby stores.

You may be interested in these similar products shown below.

Quebec residents: For information on maintenance and repair click here.

JBL

JBL 5-1/4-in GX502 Coaxial Speaker

$129.99

Product Details

JBL 5-1/4" GX502 Coaxial Speaker features Plus One™ polypropylene woofer cones that provide more overall speaker-cone area for higher sensitivity, increased low frequency output and greater musical character
Edge-driven soft dome tweeter delivers a smooth high-frequency response and an increased power handling for highs and mids, which equates to more lifelike sound from vocals, cymbals, brass instruments and pianos
Features low-impedance, 3-ohm voice coils that pull more power from the amplifier, which means a clearer, richer sound for the listener
Frequency response from 65 Hz up to 21 kHz delivers the full-range response associated with exceptional sound
Individually voiced to ensure a consistent JBL sound signature for the finest listening experience
Size: 5.25" (13 cm)
Power handling, continuous average: 45W, 135W peak
Nominal impedance: 2.3 ohms
Sensitivity (2.83V/m): 91dB
Product Dimensions: 5 W x 3 D x 5" H (13 x 7.5 x 13 cm)
Package Weight: 4 lbs (1.8 kg)
Package Dimensions: 12.5 W x 4 D x 7" H (32 x 10 x 18 cm)

Part Number	GX502
Package Depth (cm)	17.60 cm
Package Depth (in)	6.93 in
Package Height (cm)	10.39 cm
Package Height (in)	4.09 in
Package Weight (kg)	1.72 kg
Package Weight (lb)	3.79 lb
Package Width (cm)	31.60 cm
Package Width (in)	12.44 in

Warranty

This product carries a 1 year exchange warranty redeemable at any Canadian Tire store.

Online Ordering

Pick Up is free at most stores (some stores require a minimum order value before tax)
Shipping fee is based on size and weight of products and distance from address to store
Same-Day Delivery costs $9.99 per order
Online Ordering Information

Returns

Most products can be returned or exchanged at any Canadian Tire store within 90 days of purchase
Some products are non-refundable and non-exchangeable
The return policy outlined above may not apply to the product you are currently viewing. For complete details and eligibility, please refer to our Return Policy for exceptions.

	Only Show Differences	Currently Viewing JBL 5-1/4-in GX502 Coaxial Speaker $129.99	JBL Tower X Marine Speaker System, with 2 Way Compression Horn Tower Speaker RGB, 6-in $1,099.99	JBL Apex PA1502 Marine 2-Channel Amplifier, Weather Resistant , High-Performance and Multi-Application $310.99	Clarion 6.5-in Marine RGB Coaxial Speakers with Black & White Sport Grilles $279.99	Kenwood KFC-1653MRB 150W Marine Speakers, Black, 6-in $174.99
Ratings
Package Depth (cm)	17.60 cm
Package Depth (in)	6.93 in
Package Height (cm)	10.39 cm

Shop Related Products

Weekly Deals
Customers Also Viewed
Top Trending Products
More From This Brand

Reviews

Rating Snapshot

Select a row below to filter reviews.

3 reviews with 5 stars.

1 review with 4 stars.

0 reviews with 3 stars.

0 reviews with 2 stars.

0 reviews with 1 star.

Overall Rating

4.8

4 out of 4 (100%) reviewers recommend this product

Review this product

Select to rate the item with 1 star. This action will open submission form.

Select to rate the item with 2 stars. This action will open submission form.

Select to rate the item with 3 stars. This action will open submission form.

Select to rate the item with 4 stars. This action will open submission form.

Select to rate the item with 5 stars. This action will open submission form.

Adding a review will require a valid email for verification

Filter Reviews

satisfaction
for speakers
fit
for the car
purchase
bass
subwoofer
clarity

1 to 4 of 4 Reviews

1 – 4 of 4 Reviews

5 out of 5 stars.

Sounds great!

6 years ago

Best sounding speakers I've bought so far, would recommend.

Yes, I recommend this product.

Originally posted on jbl.com

5 out of 5 stars.

8 years ago

[This review was collected as part of a promotion.] The sound quality is top notch. I love richness of the sound.

Yes, I recommend this product.

Originally posted on jbl.com

4 out of 5 stars.

Great sound, just needs more bass

9 years ago

If you are looking to buy these speakers by them for the sound. Not the bass. I am super happy with them but I also had to purchase a subwoofer for the additional bass I was looking for

Yes, I recommend this product.

Originally posted on jbl.com

5 out of 5 stars.

10 years ago

It fits great in my little Renault Twingo car. It is very clear and strong sound, very good bass and high sound's are great ! And of course, they look just amazing !

Yes, I recommend this product.

Originally posted on jbl.com

Questions

1 - 6 of 6 Questions

Q: How many watts RMS can these things handle I don't want to blow them withy amp

5 years ago

Originally posted on jbl.com

1 Answer

A: Our JBL GX 502 has an RMS of 45W at 2.3 ohms.
5 years ago

Q: I would like to know the diameter of the speaker and the size of the hole requiring for a flush mount.

6 years ago

1 Answer

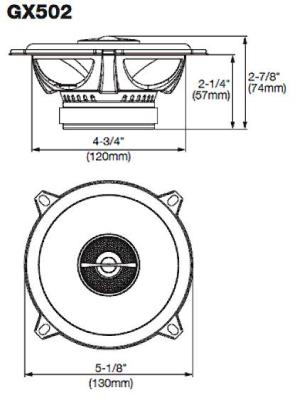

A: Please see below image which details the dimensions for the speaker.
6 years ago
Helpful?

Q: Hi, will this fit speaker in Wagnor ??

7 years ago

Originally posted on jbl.com

1 Answer

A: We would like to work with you directly. Please submit a case request at https://www.jbl.com/support-contact.html and the Customer Service Team will be more than happy to assist you.
7 years ago

Q: would these speakers work good with the kenwood kac-m3004 amp? it is a 600 watt max power. 4 ohms 50 watt x 4, i am installing on my 2005 harley davidson ultra classic

7 years ago

1 Answer

A: The GX502 will work with the Kenwood amp. I have attached the spec sheet for the GX series of speakers for reference.
7 years ago
Helpful?

Q: An important info is missing. To know if the speakers fit in a certain car the radius of the back mgnet must be specified

7 years ago

Originally posted on jbl.com

1 Answer

A: The magnet diameter of the JBL GX502 speaker is exactly 3".
7 years ago

Q: will this speaker fit in my Suzuki Swift 2001 model?

8 years ago

Originally posted on jbl.com

1 Answer

A: Hi thank you for your question I sorry to inform you that we do not have data about which driver units are used in which cars. You should contact your dealer to get this data. or dismount the driver to see if there is physical space for the replacement unit. also you should make sure the the new driver has the same impedance as the original one. if you have further questions please contact our help-desk.
