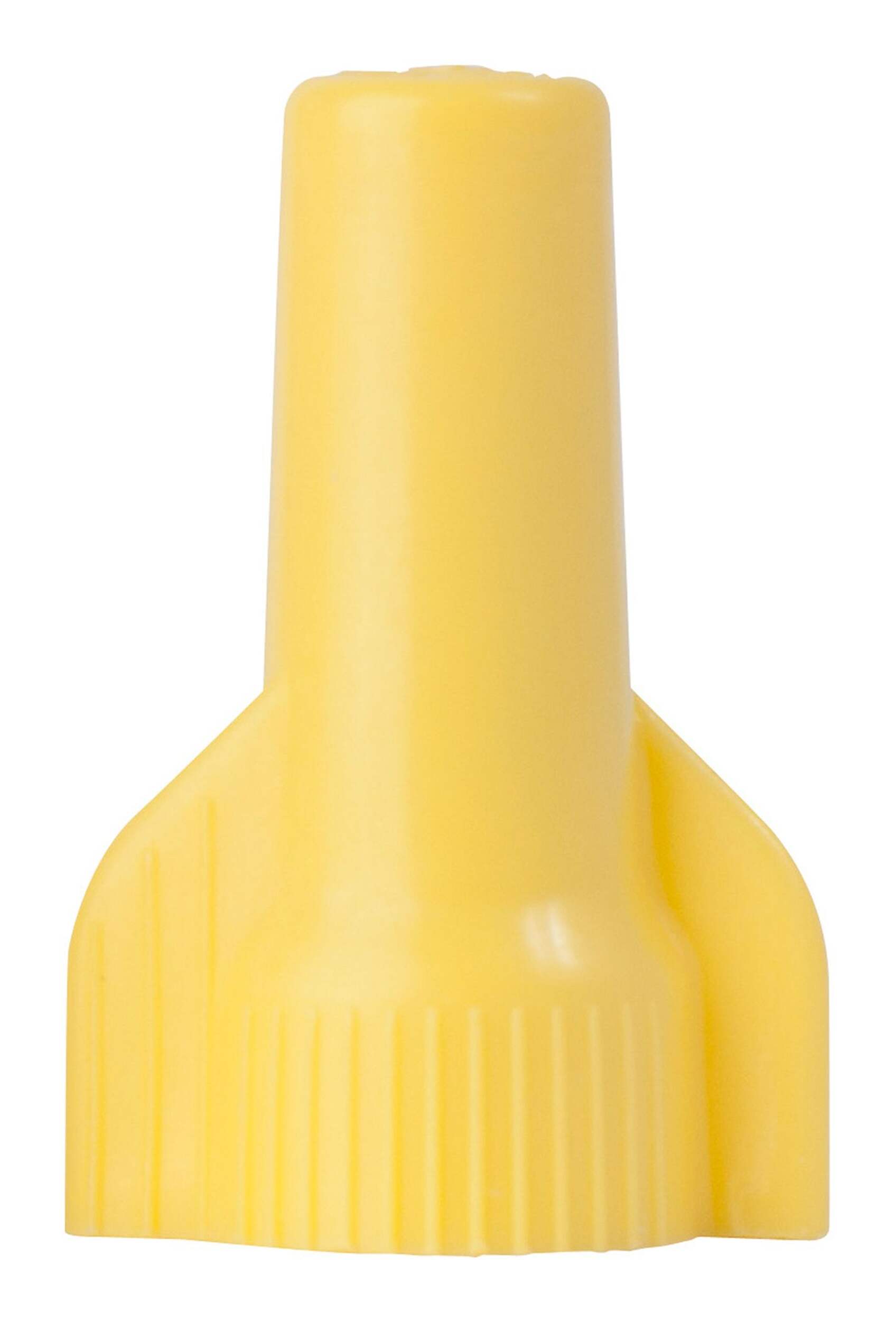

GARDNER BENDER ULTRA WingGuard Yellow Twist-on Wire Connector, 25-pk
15
- 15
- 100
- FREEAvailable
- Available
- Available
Pick up available 08:00 a.m., Dec 04
Quebec residents: For information on maintenance and repair click here.
Similar Items
Product Details
GB's WingGard twist-on wire connectors offer unsurpassed quality and durability in a high-leverage, easy-on, wing-type design. These hardworking connectors offer a wide range of connection options essentially ensuring that one size can do the job of multiple standard connectors. The swept wings provide added turning torque and reduce the strain of multiple applications. The thermoplastic shell provides strength and resistance to chemicals while a long skirt prevents exposure of bare wire. The zinc-plated square wire-spring inside instantly adjusts to the shape and size of the splice upon insertion ensuring a long-lasting connection that resists corrosion and exceeds UL standards for dielectric strength and wire pullout force.
Yellow Wire Connectors are 105°C rated to withstand high installation pressures
Range: #22 to #10, with no pre-twisting
Approved for circuits up to 600V and lighting fixtures and signs up to 1000V
For copper wire only
Includes 25 per pack
| Part Number | 25-084 |
|---|---|
| Advanced Features | No Advanced Features |
| Amp Capacity (a) | 24 A |
| Assembled Height (cm) | 1.80 cm |
| Assembled Height (ft) | 0.06 ft |
| Assembled Height (in) | 0.71 in |
| Assembled Length (cm) | 0.79 cm |
| Assembled Length (ft) | 0.03 ft |
| Assembled Length (in) | 0.31 in |
| Assembled Weight (g) | 2.27 g |
| Assembled Weight (ml) | 2.27 ml |
|---|---|
| Assembled Weight (oz) | 0.08 oz |
| Assembled Width (cm) | 2.62 cm |
| Assembled Width (in) | 1.03 in |
| Assembled Width (mm) | 26.16 mm |
| Certifications | UL Listed |
| Colour | Yellow |
| Consumer Pack Size | 15 |
| Electrical Connector Type | Connector |
| Female/Male Outlet | Not Applicable |
| Maximum Operating Temperature (°C) | 105.00 °C |
| Maximum Operating Temperature (°F) | 221.00 °F |
| Minimum Operating Temperature (°C) | 0.00 °C |
| Minimum Operating Temperature (°F) | 32.00 °F |
| Mount Style | Threaded |
| Number of Ports | 1 |
| Package Depth (cm) | 7.37 cm |
| Package Depth (in) | 2.90 in |
| Package Height (cm) | 0.76 cm |
| Package Height (in) | 0.30 in |
| Package Weight (kg) | 0.05 kg |
| Package Weight (lb) | 0.10 lb |
| Package Width (cm) | 7.37 cm |
| Package Width (in) | 2.90 in |
| Plug Type | Twist |
| Primary Material | Non-Metallic |
| Product Use(s) | Industrial |
| Voltage (V) | 600 V |
| Wire AWG Capability | 22 to 10 |
| Wire Types Accommodated | Copper |
