Product Details
The CURT A25™ 5th wheel hitch offers smoother, quieter towing for your home-away-from-home, combining the patented technology of our A-series™, an easier mounting system and the power of a 25K 5th wheel hitch. This 5th wheel hitch uses a patented cast yoke to allow for unimpeded head movement, while providing exceptional stability for the trailer. The yoke has a set of poly-torsion inserts to suppress shock loads and reduce excessive noise, and the head features high-strength, interlocking jaws to give the trailer stability and the freedom to pivot and swivel as needed.
- Features
- Specifications
- Resources

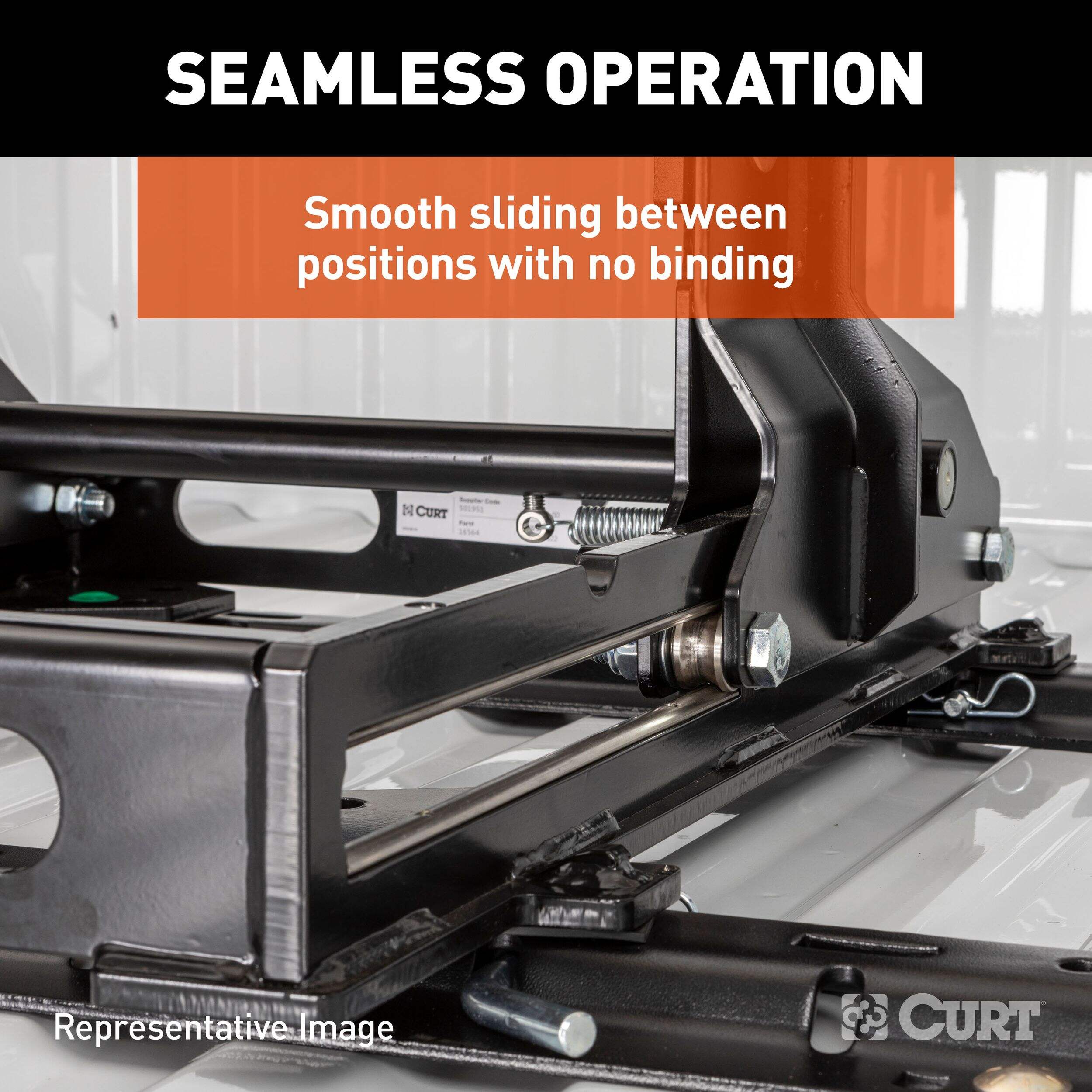

Provides 12" (30.48 cm) of travel in the truck bed
Fits Ram pickups with the OEM truck bed puck system (year range specific)
Quarter-turn anchoring system provides quick installation and removal
Adjustable anchors to eliminate chucking between the legs and puck system

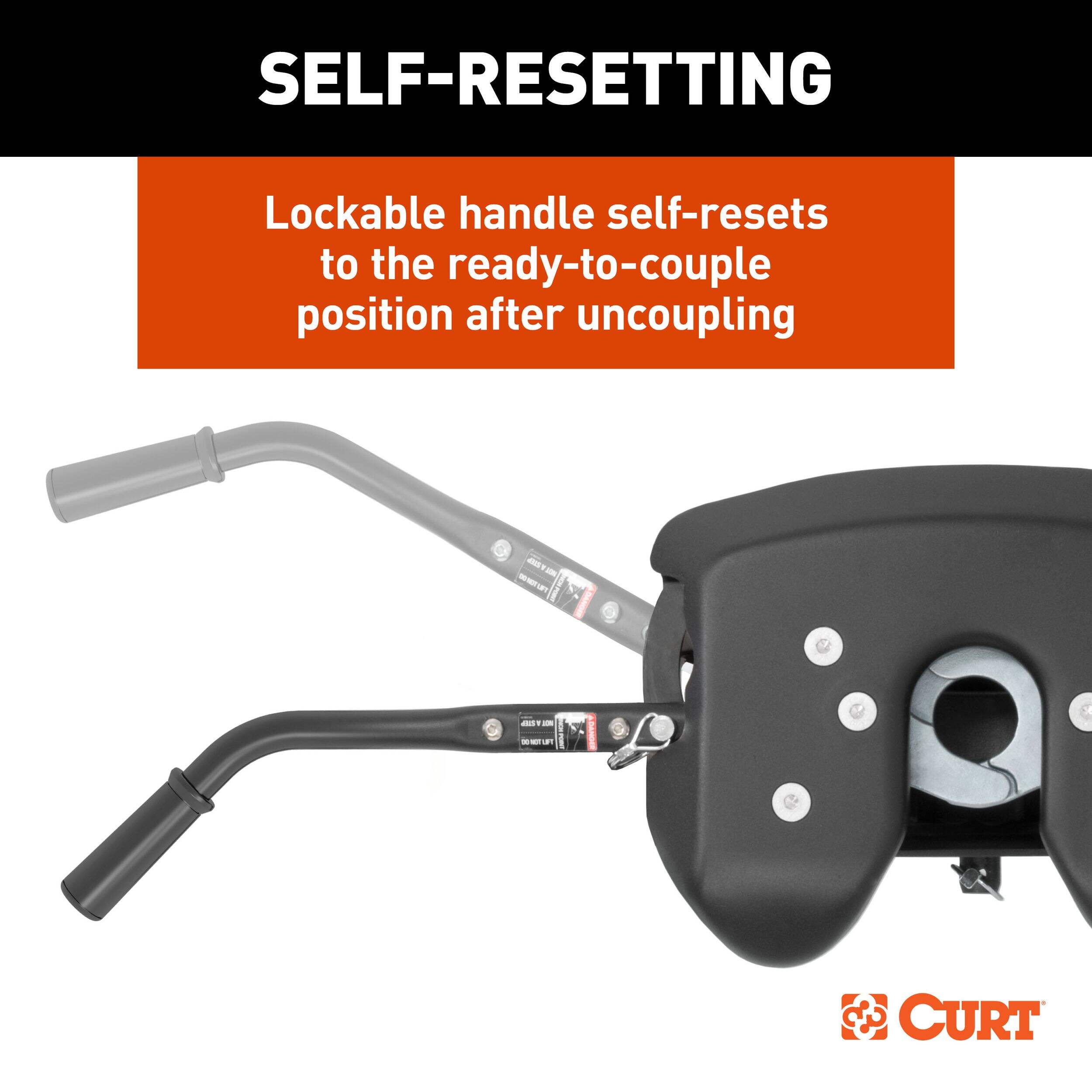

Lockable handle self-resets to the ready-to-couple position after uncoupling
Cast yoke with poly-torsion inserts to suppress shock loads and reduce noise
Fully articulating torsion head for controlled coupling and stable towing
High-strength, interlocking jaws fully wrap the kingpin to minimize noise
Extra-wide head opening for easier coupling
Fast, one-pin head removal makes moving the hitch easy
Three-position coupling indicator is clearly visible from the truck cab
Compatible with kingpin extension boxes, including common pivoting pin boxes
Includes a polyethylene lube plate to eliminate messy grease deposits
Tested for safety in accordance with SAE J2638
Patent# 8,827,298
| Part Number | 16058 |
|---|---|
| Accessories List | Mounting Hardware |
| Advanced Features | Adjustable |
| Gross Towing Weight (lbs & kgs) | 11339.81 kg |
| Gross Towing Weight (lbs & kgs) | 24999.97 lb |
| Manufacturer Part Number | 16058 |
| Material Thickness (cm) | 1.00 cm |
| Material Thickness (in/cm) | 0.39 in |
| Mounting Hole Quantity | 2 |
| Package Depth (cm) | 111.00 cm |
| Package Depth (in) | 43.70 in |
|---|---|
| Package Height (cm) | 35.56 cm |
| Package Height (in) | 14.00 in |
| Package Weight (kg) | 148.81 kg |
| Package Weight (lb) | 328.06 lb |
| Package Width (cm) | 153.54 cm |
| Package Width (in) | 60.45 in |
| Primary Colour | Black |
| Primary Material | Steel |
| Product Length (cm) | 111.76 cm |
| Product Length (in) | 44.00 in |
| Product Width (cm) | 154.95 cm |
| Product Width (in) | 61.00 in |
Warranty
This product carries a 1 year exchange warranty redeemable at any Canadian Tire store.
