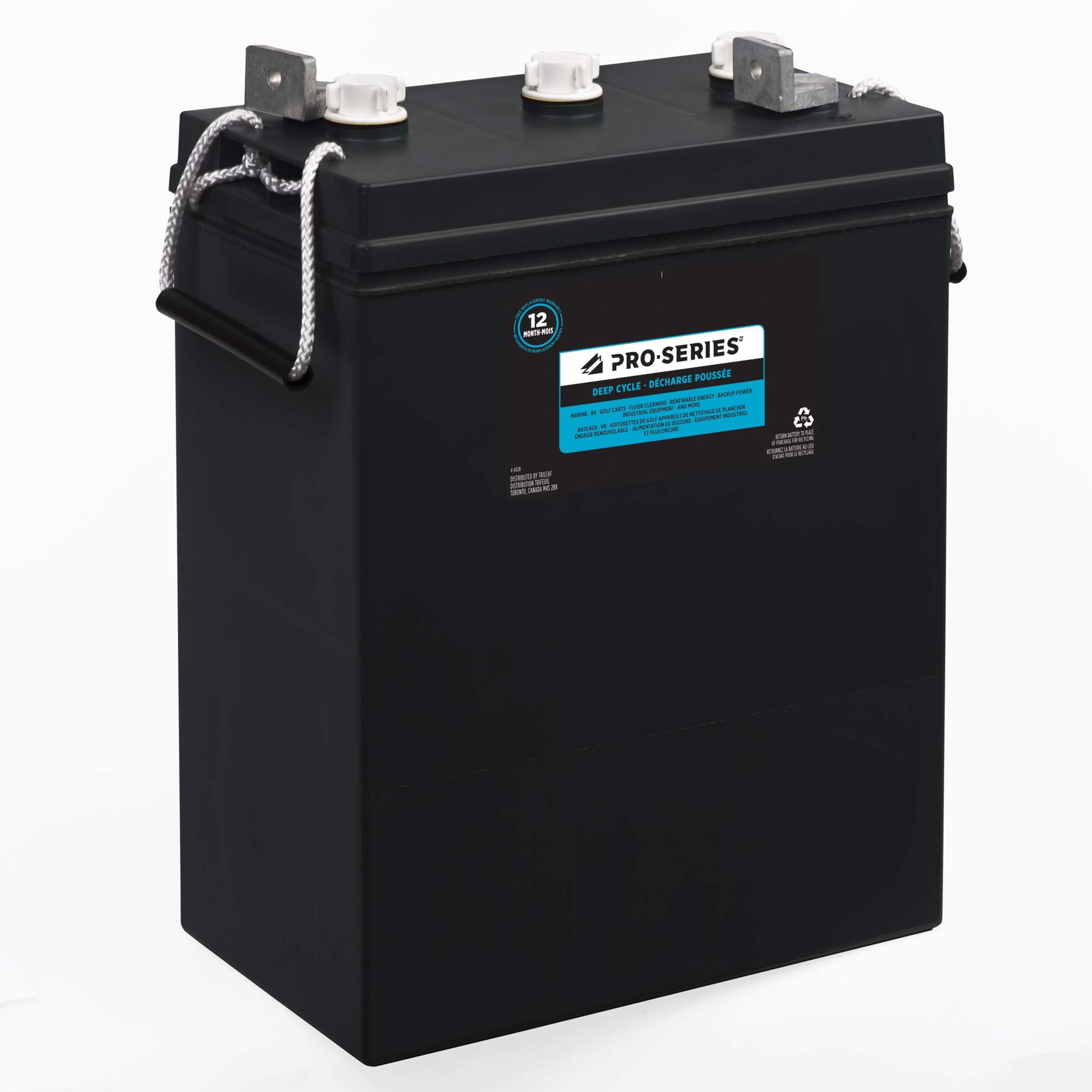

Pro-Series Commercial Group Size 903 6-Volt Deep Cycle Battery
- FREEAvailable
- Unavailable
- Unavailable
Out of stock at Leduc, AB
Quebec residents: For information on maintenance and repair click here.
Need Installation Help?
Auto Services are available at your store
Product Details
- Features
- Specifications
- Resources
Pro-Series Group 903 6-Volt Commercial Battery is a heavy-duty power battery for floor scrubbers, sweepers and more
Group Size: 903
Voltage (nominal): 6
Amp Hour Capacity (20 Hour): 370
Reserve Capacity Minutes @ 75A: 190
Maximum Overall Dimensions (L x W x H): 11-3/4" L x 7" W x 14-3/8" H (298 x 178 x 419 mm)
Approximate Weight: 111 lbs (50.3 kg)
Polarity: Right Hand Positive
Terminal Type:" L" type terminal w/ 5/16" diameter hole
Please return your old lead-acid battery to Canadian Tire for recycling. Virtually 100% of the content can be recycled and used in the manufacture of new lead-acid batteries.
| Part Number | MP903 |
|---|---|
| Industry Group Size # | 903 |
| Battery Type | Wet/Flooded |
| Battery Use | Deep Cycling, Standby |
| Battery Voltage (Nominal) | 6 |
| Cold Cranking Amps (CCA) | 0 A |
| Cranking Amps (CA) | 0 A |
| Reserve Capacity (RC) | 1 min |
| Maximum Length (in) | 11.71 in |
| Maximum Width (in) | 7.00 in |
| Maximum Height (Excluding Posts) (in) | 14.74 in |
|---|---|
| Accessories List | Carry Handle |
| Advanced Features | No Advanced Features |
| Amp Hours (10 Hour Rate) | 0.00 Ah |
| Amp Hours (20 Hour Rate) | 370.00 Ah |
| Amp Hours (5 Hour Rate) | 0.00 Ah |
| Battery Capacity (@25AMP) | 0 A |
| Battery Capacity (@75AMP) | 190 min |
| Battery Weight | 44.2 kg |
| Battery Weight (lb) | 97.4 lb |
| Common Applications | Back Up Power, Farm Equipment, Floor Scrubber Sweeper, Fish Finder, Marine |
| Electrolyte Level | Serviceable |
| Manufacturer Part Number | MP903 |
| Maximum Height (Excluding Posts) (mm) | 375 mm |
| Maximum Height (Including Posts) (in) | 16.47 in |
| Maximum Height (Including Posts) (mm) | 419 mm |
| Maximum Length (mm) | 298 mm |
| Maximum Width (mm) | 178 mm |
| Polarity | Right Hand Positive |
| Terminal Type | Other |
| UN Classification | UN2794 Batteries Wet Filled With Acid |
| Venting Design | Vented |
Warranty
1 yr exchange
Shop Related Products
- Weekly Deals
- Customers Also Viewed
- Top Trending Products
- More From This Brand
Review Highlights
Reviews
Questions
Q: What are the voltage settings for bulk, absorption and float charging?
9 months agoA: Bulk - Charge at constant current (not exceeding 110 Amps) until terminal voltage reaches 6.9 to 7.05 Volts. Absorption - Maintain constant voltage of 6.9 to 7.05 Volts. (Do not exceed 24 hours continuously in this stage.) Float - Maintain a consistent voltage of 6.75 Volts. Equalization - Recommended at least once per week. Maintain a constant current of 11 to 18 Amps. Charge until a level or declining voltage is measured, then continue charging at this rate for 2 additional hours. (Never exceed 6 hours continuously in this stage.)
9 months agoHelpful?
Q: Who is the Original Equipment Manufacturer? Where was this battery made?
a year agoA: The battery is manufactured in the USA.
a year agoHelpful?
Q: What is the 20 Hour discharge rate?
a year agoA: 370 Amp hours
a year agoHelpful?
Q: What type of cap do these batteries have...screw in or 1/4 turn bayonet? And what are the charge parameter settings?
3 years agoA: Hello, This battery has screw on caps. The charging parameters for 50 % discharged battery (~6.1 Volts) is 72 mins @ 50 amps | 114 mins @ 30 amps | 155 mins @ 20 amps | 306 mins @ 10 amps.
3 years agoHelpful?
