MotoMaster Battery Monitor/Battery Status Indicator, 12V, LED Display
#011-1952-2
$14.99
Exclusive
Buy Online :
- FREEAvailable
- Available
- Available
Pick up at Leduc, AB
4 In Stock
Pick up available 09:00 a.m., Apr 07
Quantity updated to 1
Also Find It in Store:Aisle 19
Only 4 left
at Leduc, AB
Add to Registry
Quebec residents: For information on maintenance and repair click here.
Product Details

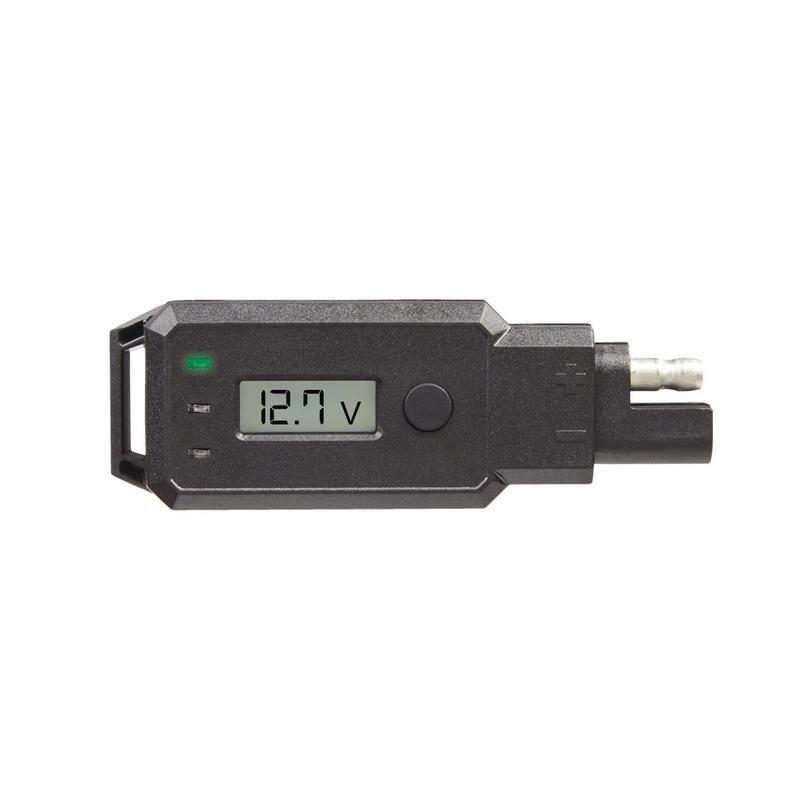

The MotoMaster 12V Battery Status Indicator is designed for easy battery testing. Simply plug it into your battery's quick connect charging lead and press a button to display the battery's voltage. The battery status LED display (range: 3-16 V) features a colour-coded system to indicate whether the battery is Good, requires Charge Soon or Charge Now.
MotoMaster 12V Battery Status Indicator plugs into your battery's quick connect charging lead (sold separately) to allow you to quickly and easily test your battery's state of charge
A simple button press displays the battery's voltage
Colour-coded LEDs provide an indication of Good, Charge Soon or Charge Now
Display range is 3 to 16 volts
Compatible with 011-1948 MotoMaster Ring Terminal Lead and most other manufacturers' battery charging leads that use an SAE quick connector
| Part Number | 4837-02 |
|---|---|
| Accessories List | No Accessories Included |
| Advanced Features | Battery Tester |
| Assembled Height (cm) | 3.00 cm |
| Assembled Height (ft) | 0.10 ft |
| Assembled Height (in) | 1.18 in |
| Assembled Length (cm) | 19.30 cm |
| Assembled Length (ft) | 0.63 ft |
| Assembled Length (in) | 7.60 in |
| Assembled Weight (kg) | 0.10 kg |
| Assembled Weight (lb) | 0.22 lb |
|---|---|
| Assembled Width (cm) | 10.90 cm |
| Assembled Width (in) | 4.29 in |
| Assembled Width (mm) | 109.00 mm |
| Battery Voltage Compatibility | 12V |
| Certifications | No Certifications |
| Charge Control | Multi-Stage |
| Charge Time (Hr) | 0 h |
| Charging Rate Modes | Auto |
| Cord Length (cm) | 0.00 cm |
| Cord Length (ft) | 0.00 ft |
| Cord Length (in) | 0.00 in |
| Crank Assist Amperage (a) | 0 A |
| Display Type | LED |
| Input Voltage (V) | 115 V |
| Maximum Temperature (°C) | 40.00 °C |
| Maximum Temperature (°F) | 104.00 °F |
| Minimum Temperature (°C) | -20.00 °C |
| Minimum Temperature (°F) | -4.00 °F |
| Output Amperage (amps) | 0 A |
| Package Depth (cm) | 22.60 cm |
| Package Depth (in) | 8.90 in |
| Package Height (cm) | 1.60 cm |
| Package Height (in) | 0.63 in |
| Package Weight (kg) | 0.04 kg |
| Package Weight (lb) | 0.09 lb |
| Package Width (cm) | 14.00 cm |
| Package Width (in) | 5.51 in |
| Primary Colour | Black |
| Primary Material | Plastic |
| Vehicle Type Compatibility | Automobile |
Warranty:
- This product carries a 1 year exchange warranty redeemable at any Canadian Tire store.
Online Ordering:
Pick Up is free at most stores (some stores require a minimum order value before tax)
Shipping fee is based on size and weight of products and distance from address to store
Same-Day Delivery costs $9.99 per order
Same-Day Delivery and Ship to Home are unavailable for tires and wheels
Returns:
Most products can be returned or exchanged at any Canadian Tire store within 90 days of purchase
Some products are non-refundable and non-exchangeable
Special order hard parts and specific application automotive parts must be returned to original store of purchase
The return info outlined above may not apply to the product you are currently viewing. For complete details and exceptions, please refer to our Return Policy.
Shop Related Products
- Weekly Deals
- Customers Also Viewed
- Top Trending Products
- More From This Brand
Frequently Bought Together
+++
$210.9$239.96
Review Highlights
Reviews
Customer Images and Videos
Filter Reviews
- battery
- functional
- ease of use
- large
- for emergencies
- instructions
- parking
- product features
Rating
Locale
1 to 5 of 16 Reviews
1 – 5 of 16 Reviews
Most Recent
1 out of 5 stars.
Does not function.
16 days ago
Voltage at Monitor terminals throughout test: 12.8V.
Monitor response: 12.7V-Green, 12.6V-Amber, 12.5V-Red, OFF.
No documentation.
Promptly returned.
Disappointing.
Helpful?
4 out of 5 stars.
battery status indicator
4 months ago
Good product. Display could be larger and easier to read . Easy to use
Helpful?
1 out of 5 stars.
Tension 0,5 volt trop bas!
a year ago
Le voltmètre indique une tension de 0,5 volt de moins que la réalité.
J'ai comparé les lecture avec avec un multimètre numérique et le voltmètre d'une pince ampèremétrique et les 2 instruments donne exactement les même valeur et le testeur donne une lecture de 0,5 volt de moins.
J'ai vu après l'achat que d'autres personnes on exactement le même problème avec une lecture trop basse.
Ne pas acheter cet item...
Translate with GoogleNo, I do not recommend this product.
Helpful?
2 out of 5 stars.
Optomistic voltage reading
a year ago
Alway reads .5 volt lower than what battery voltage is used on a fishing boat to check trolling batteries always said they were 50% despite being brand new motormaster natilus deepcycle battery (and fully charged ) from crapytire at same time but after it got wet it started actually ready proper voltage but not it stoped working
Helpful?
4 out of 5 stars.
Voltage
a year ago
Handy for checking bike battery voltage
Helpful?
1 – 5 of 16 Reviews
Questions
Start typing your question and we'll check if it was already asked and answered.
1 - 8 of 8 Questions
Most helpful answers
Q: If I attach this product to each of my batteries connected in parallel will it provide an accurate reading for each battery?
3 years ago4 Answers
A: Batteries connected in parallel will have the same voltage unless one or more are defective. If you connect 4x6V in parallel, you will have a 6V pack with more amps; a meter will read 6V-ish. The meter should show that. To get 12V you need to connect two batteries in series, in which case you will get the sum of the voltages. Parallel connect two sets of two in series gives you 12V with more Amps.
a year agoHelpful?
Q: Is this unit waterproof and able to be left connected all the time? Thank you
a year ago2 Answers
A: I would say no to both. I wouldn't want to get it wet and it's not in-line, that is, you unplug your solar panel or whatever and plug this in in its place. So it wouldn't be practical to leave it plugged in all the time.
a year agoHelpful?
Q: Can I use this on a lithuim lifepo4 battery that reads over 13 volts ? Thanks
3 years ago2 Answers
A: Sorry I don't know much about a lifepo4 battery? I think it may work though.
3 years agoHelpful?
Q: There are 3 leds, It says, Charge, Weak or Discharge. I had the bottom led lighting RED for a 12.3 volts. The same bottom light is now GREEN at 12.9. So if RED is discharged and GREEN charge, what are the 2 other light say ? Can they go GREEN & RED ?
4 years ago1 Answer
- Translate with Google
A: This product is able to quickly check the charge status of 12V battery and LCD displays battery voltage with 3 levels – 1) Red LED: When the voltage is less than or equal to 12.4V (discharged level), 2) Orange/Yellow LED: 12.4V-12.6V (low level), 3) Green LED: When the voltage is greater than or equal to 12.6V (full level). Additionally, please note that Green and Red will not light in one LED light.
4 years agoHelpful?
Q: I did connect the Status indicator to a battery with the clips from my Solar Panel. To get a reading the black clip is on the positive of the battery and the red is on the negative. Why ?
4 years ago1 Answer
- Translate with Google
A: Because the polarity of SAE connector of your solar panel clamps is wire opposite to MotoMaster.
4 years agoHelpful?
Q: What is input voltage 115V applied to this 12V MotoMaster tester ? Confused when reading it's detail spec sheet. Please clarify
5 years ago1 Answer
A: This product is strictly for use with 12-volt (nominal) lead-acid batteries. It simply plugs into the SAE eyelet lead (not included) connected to your battery to give a quick and accurate readout of battery state of charge.
5 years agoHelpful?
Q: Mine reads 12.3v. And the top light is lit up red... what does red mean? The picture shows the top light being green... should come with some sort of little instruction page
5 years ago1 Answer
A: A battery at 12.3V requires charging (thus the red LED). Fully charged would be 12.6V+ (which would yield a green LED).
5 years agoHelpful?
Q: Does this device remain on (i.e. is it constantly drawing battery power) or does it shut off completely until the switch is turned on? I am planning on installing this on my boat and would like to leave it permanently installed so I can always check.
5 years ago1 Answer
A: Anytime a connection is made, it provides a reading for about 5 seconds. If left connected permanently, it is always OFF and only turns ON (for about 5 seconds) when the reading button is pressed. This is a perfect device for your application - pair it with a set of ring terminal leads and you've got a quick, simple and economical battery gauge.
5 years agoHelpful?
