MotoMaster
MotoMaster Hydraulic Engine Crane, 2-Ton
#009-1086-2
$369.99
Exclusive
Unfortunately, this product is discontinued in your selected store and nearby stores.
You may be interested in these similar products shown below.Similar Items
Quebec residents: For information on maintenance and repair click here.
Similar Items
Product Details
- Features
- Specifications
- Resources
MotoMaster Hydraulic Engine Crane is ideal for raising, lowering and transporting heavy loads
Features six heavy-duty castors for easy maneuverability (4 swivel and 2 rigid)
Heavy duty steel construction
Folds for easy storage; 51" (129.5 cm) legs detach for compact storage in built-in slots
Lift range from 15-1/2 to 72" (39.4 to 183 cm)
Capacity: 2 ton (2000 kg)
Four boom lengths with corresponding capacities of: 0.5, 1, 1.5, and 2 ton
Can be used in conjunction with 1500 lb Engine Leveler (not included)
May not be exactly as shown
| Part Number | DJ-SC-001 |
|---|---|
| Package Depth (cm) | 152.00 cm |
| Package Depth (in) | 59.84 in |
| Package Height (cm) | 27.00 cm |
| Package Height (in) | 10.63 in |
| Package Weight (kg) | 85.00 kg |
| Package Weight (lb) | 187.39 lb |
| Package Width (cm) | 68.50 cm |
| Package Width (in) | 26.97 in |
Warranty
This product carries a 1 year exchange warranty redeemable at any Canadian Tire store.
Compare Similar Products
Only Show Differences | Currently Viewing | |||||
| Ratings | ||||||
| Package Depth (cm) | 152.00 cm | 28.00 cm | 10.00 cm | 11.00 cm | 23.00 cm | |
| Package Depth (in) | 59.84 in | 11.02 in | 3.94 in | 4.33 in | 9.06 in | |
| Package Height (cm) | 27.00 cm | 13.00 cm | 60.00 cm | 4.00 cm | 15.50 cm |
Shop Related Products
- Weekly Deals
- Customers Also Viewed
- Top Trending Products
- More From This Brand
Weekly Deals
Review Highlights
List of Pros Highlights
Pros
List of Cons Highlights
Cons
Suitable Cons could not be generated at this time.
Reviews

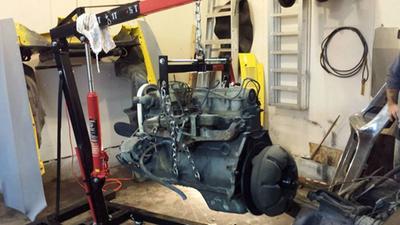

Customer Images and Videos
Filter Reviews
- purchase
- price
- setup
- engine performance
- quality
- satisfaction
- instructions
- installation
Rating
Locale
1 to 5 of 17 Reviews
1 – 5 of 17 Reviews
Most Recent
1 out of 5 stars.
Release valve
3 years ago
There are a number of references to the "release valve" but it is not in the parts list or shown on the diagram. Where is it? What does it look like?..
Helpful?
1 out of 5 stars.
Honeycomb welding
8 years ago
Mine came with rust flakes, honeycombe welding and what looks like could possibly be painted over rust on the main hoist arm, have tried contacting Canadiantire, waiting for reply to see if it is safe to use.
No, I do not recommend this product.
Helpful?
4 out of 5 stars.
Hoist
9 years ago
This hoist is great for pulling engines out of cars or trucks. IT is also on sale now.
Yes, I recommend this product.
Helpful?
4 out of 5 stars.
Good Hoist for the money
9 years ago
Needed to move a porsche 944 engine. The hoist took about an hour to assemble. The instructions are not very clear but it is pretty straight forward. Bought the hoist on sale, it is a very good price for quality. Works well, the paint on the legs might need to be scrapped off to be able to fit them into the base.
Yes, I recommend this product.
Helpful?
5 out of 5 stars.
Great piece of equipment
9 years ago
Look I'm weary of these cheaper type tools. I read all the reviews prior to buying . My main concern was height vs load. I used this unit on an aircraft. All the performance was as stated. The lift went together easily and without a hitch. Wheels and storage method work well. Overall I'm very happy with the purchase.
Yes, I recommend this product.
Helpful?
1 – 5 of 17 Reviews
Questions
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 13 Questions
Most helpful answers
Q: What is the maximum height of the boom? I'm trying to decide if it'll go up high enough to be able to lift the fifth wheel hitch out of my truck.
15 years ago4 Answers
A: It's worth noting that 6 feet is the minimum height at the maximum weight of 2 tons, at 500 pounds the boom is at it's maximum extension but the height is greater at roughly 90 inches or 7 1/2 feet.
13 years agoHelpful?
Q: The total weight of the Engine Crane ?
17 years ago3 Answers
A: I had to carry mine and swing it assembled myself, and I would guess the weight to be somewhere around 100 lbs or 50 metric. You can take off the leg extensions and it is easier to balance. They pop off with a quick release pin. Just takes seconds to re and re the legs.
Anonymous14 years agoHelpful?
Q: Engine Crane When crane is folded for storage, how big is the foot print? In other words, how far does it protrude away from a wall?
18 years ago3 Answers
A: Depends on how much you dismantle it. The legs are about five feet long. Take them off and the unit base is about 2 1/2 feet, but the lift arm goes out about 4 feet. Sooooooo take that off and then you might as well dismantle the base and stack it all under a foot of space. Should take about five minutes to take apart.
Anonymous14 years agoHelpful?
Q: What is the shipping size fro crane #09-1086-2? What type of vehicle do I need for pick-up? is it fully assembled or in boxes?
11 years ago2 Answers
A: The product comes in 2 boxes. One is about 30" x 36" x 6" deep. The other is about 14" x 70" x 8" deep. They are both heavy and will need two people (or one very strong person) to lift. So, to state the obvious, it does NOT come assembled.
11 years agoHelpful?
Q: what is the width of engine hoist #09-1086-2
12 years ago2 Answers
A: Not sure of the exact width, but approximately 30 inches.
11 years agoHelpful?
Q: Could this crane be used to lift the engine out of a Dodge Ram w/5.7 litre engine
13 years ago2 Answers
A: The crane will certainly lift the engine without problem. It's up to you to ensure that you have sufficient lift space above the truck to get the engine over the radiator, or pull out the radiator and front grill and bumper and pull the engine straight out the front.
11 years agoHelpful?
Q: in the longest extension setting (1/2 Ton), does the chain extend beyond the front wheels? If so, how far beyond the wheels?
10 years ago1 Answer
A: In the longest extension setting (1/2 Ton), the chain doesn't extend beyond the front wheels.
10 years agoHelpful?
Q: i have this hoist need cylinder. Where i can get from and what is part #?
10 years ago1 Answer
A: Unfortunately, there are no replacement parts for this product, It carries a one year exchange warranty for any manufacturing defects.
10 years agoHelpful?
Q: What is the maximum reach distance? On the fully extended position, what is the horizontal distance from the hydraulic jack to the chain. IE , if the jack was up against a bumper of the vehicle, how far is the horizontal distance to the chain?
11 years ago1 Answer
A: The maximum reach distance is about 1050mm when 1/2ton extended position.
11 years agoHelpful?
Q: Quelle est la longueur maximale de la flèche ?
12 years ago1 Answer
- Translate with Google
A: Il y a 4 trous pour différentes longueurs et capacités : Trou 1= 855mm de long, capacité 2 tons Trou 2= 1015 mm, capacité 1,5 tons Trou 3= 1175 mm, capacité 1 ton Trou 4= 1335mm, capacité 0,5 ton
12 years agoHelpful?
1 - 10 of 13 Questions
