MotoMaster
MotoMaster 2,500-lb 2-Speed Trailer Winch
#040-5934-2
$69.99
Exclusive
Unfortunately, this product is discontinued in your selected store and nearby stores.
You may be interested in these similar products shown below.Similar Items
Quebec residents: For information on maintenance and repair click here.
Similar Items
Product Details
Load your boat or ATV the easy way with this MotoMaster 2,500-lb 2-Speed Trailer Winch. This two-speed winch allows flexibility for loading and unloading at different speeds. It features high-carbon steel gears that resist wear and drilled winch drums for use with winch straps. With a zinc-plated finish for superior corrosion resistance even in salt water, the gear winch has a weight capacity of 2,500 lbs.
- Features
- Specifications
- Resources
This MotoMaster 2-Speed Trailer Winch features easy two-speed operation and a 2,500-lb weight capacity
Zinc-plated finish for supperior corrosion resistance, even in salt water
Winch drums are drilled for use with winch straps
High carbon SAE 1050 steel gears to resist wear and last longer
Winch has a 2,500 lb capacity
| Part Number | TW-2500 |
|---|---|
| Accessories List | No Accessories Included |
| Advanced Features | Non-Slip Grip |
| Assembled Height (cm) | 30.00 cm |
| Assembled Height (ft) | 0.98 ft |
| Assembled Height (in) | 11.81 in |
| Assembled Length (cm) | 25.00 cm |
| Assembled Length (ft) | 0.82 ft |
| Assembled Length (in) | 9.84 in |
| Assembled Weight (kg) | 4.50 kg |
| Assembled Weight (lb) | 9.92 lb |
|---|---|
| Assembled Width (cm) | 15.50 cm |
| Assembled Width (ft) | 0.51 ft |
| Assembled Width (in) | 6.10 in |
| Assembled Width (mm) | 155.00 mm |
| Batteries Required Quantity | 0 |
| Cord Gauge (ga) | Not Applicable |
| Cord Length (ft) | 0.00 ft |
| Cord Length (m) | 0.00 m |
| Cord Type | Not Applicable |
| Horsepower (HP) | 0 HP |
| Maximum Weight Capacity (g) | 1134000.00 g |
| Maximum Weight Capacity (kg) | 1134.00 kg |
| Maximum Weight Capacity (lb) | 2500.04 lb |
| Motor Type | Not Applicable |
| Number of Pieces | 1 |
| Package Depth (cm) | 25.50 cm |
| Package Depth (in) | 10.04 in |
| Package Height (cm) | 18.50 cm |
| Package Height (in) | 7.28 in |
| Package Weight (kg) | 4.75 kg |
| Package Weight (lb) | 10.47 lb |
| Package Width (cm) | 16.00 cm |
| Package Width (in) | 6.30 in |
| Primary Colour | Silver |
| Primary Material | Metal |
| Product Model Number | TW-2500 |
| Pull Capacity (kg) | 1134.00 kg |
| Pull Capacity (lb) | 2500.04 lb |
Warranty
This product carries a 1 year exchange warranty redeemable at any Canadian Tire store.
Compare Similar Products
Only Show Differences | Currently Viewing | |||||
| Ratings | ||||||
| Accessories List | No Accessories Included | No Accessories Included | No Accessories Included | No Accessories Included | No Accessories Included | |
| Advanced Features | Non-Slip Grip | No Advanced Features | No Advanced Features | No Advanced Features | No Advanced Features | |
| Assembled Height (cm) | 30.00 cm | 16.00 cm | 12.50 cm | 14.50 cm | 11.50 cm |
Shop Related Products
- Weekly Deals
- Customers Also Viewed
- Top Trending Products
- More From This Brand
Weekly Deals
Review Highlights
List of Pros Highlights
Pros
List of Cons Highlights
Cons
Reviews
Customer Images and Videos
Filter Reviews
- returns
- purchase
- quality
- functional
- weight
- defect
- volume
- price
Rating
Locale
1 to 5 of 20 Reviews
1 – 5 of 20 Reviews
Most Recent
4 out of 5 stars.
same as above
2 years ago

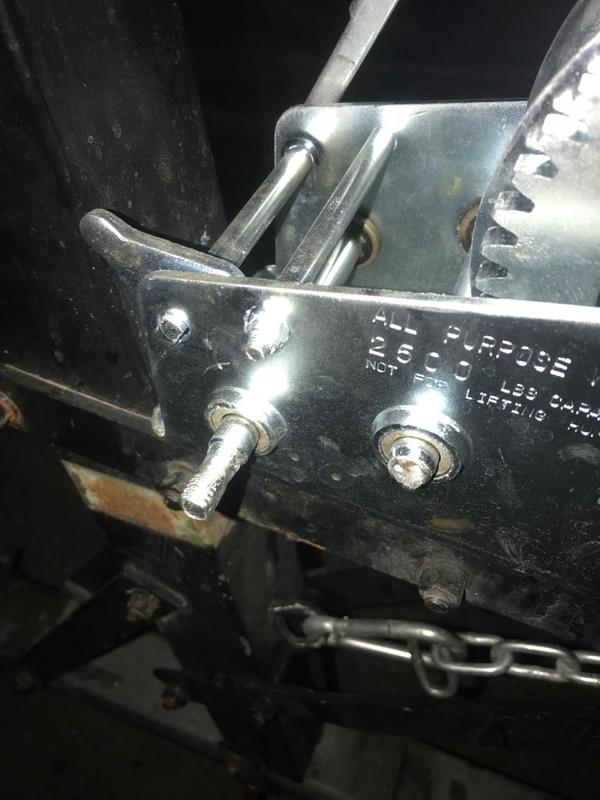

Had to widen holes to bolt on to the trailer .
Helpful?
1 out of 5 stars.
Junk
3 years ago
Winch gears easily stripped out on my first one, . I returned it and on the replacement the gears are already showing signs of premature wear after a few uses. the handle is a sloppy fit and the steel used for the crank shaft is soft and poor quality… making it impossible to tighten the handle nut tight enough to hold it steady.
No, I do not recommend this product.
Helpful?
1 out of 5 stars.
Manufacturing defect
3 years ago
Piece of garbage for the handle of the unit. After a week of use the handle became loose. The slot in handle is manufactured way to large for the shaft on the winch and will fail within a couple uses. It's the second one I owned of this unit and the first failed the same way too. Thought I would try it again on the second unit but it was worse than the first one. Returned back and got a Reese unit.
Helpful?
5 out of 5 stars.
Great winch
3 years ago
My winch was broken so i bought this one seems great so far
Yes, I recommend this product.
Helpful?
1 out of 5 stars.
Cheap pieces of steel.
3 years ago

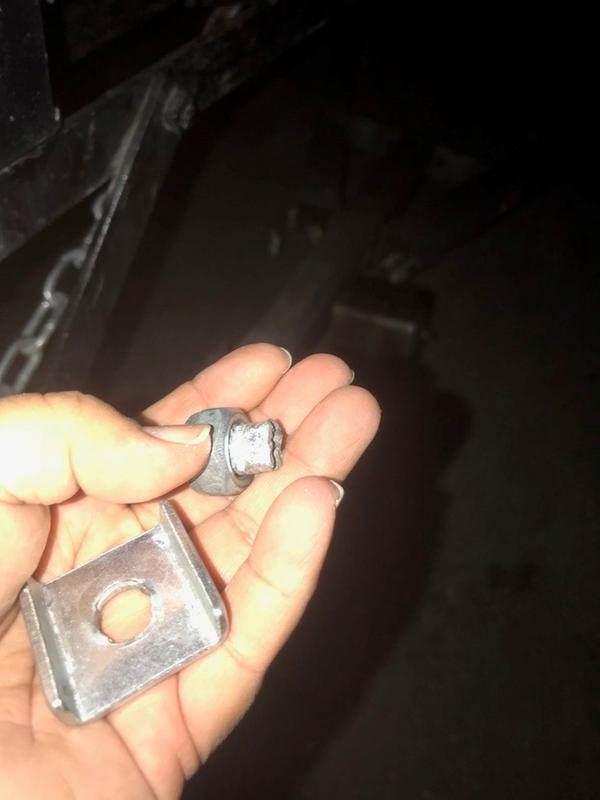

I purchased one winch, it broke. Got a replacement and it has broken off both handle positions. Do not buy this piece of junk. Had to give it one star because I can’t give zero.
No, I do not recommend this product.
Helpful?
1 – 5 of 20 Reviews
Questions
Start typing your question and we'll check if it was already asked and answered.
1 - 7 of 7 Questions
Most helpful answers
Q: Is this a two way winch?
4 years ago2 Answers
A: Yes. Switch lever to enable cranking in / or out. Make sure lever is not in neutral position because will back off loose while towing your boat. I would not recommend this unit due to my crank handle twisted off while putting boat on trailer. Thankfully i was able to move handle to other gear position.
4 years agoHelpful?
Q: Don't see how it's "free-wheeling" without a spinning handle....unless one removes the handle ????
8 years ago2 Answers
A: This winch is on a sales rain check for me, I don't have experience with this winch so I shouldn't answer your question, but I will as I have experience with many similar winches. In my opinion, the lever that is 'flipped' up or down allowing one to crank the cable in or out may likely have sort of a 'neutral' position in the middle. The crank is used to relieve cable tension allowing the lever to be moved into this 'neutral' or 'free wheeling position. If there is tension on the cable and one lets go of the handle, the handle would spin freely as the cable unwinds and not stop until tension is off the cable - so keep your body parts away from the spinning handle! One might control the handle when free wheeling but be careful. Just my opinion.
8 years agoHelpful?
Q: Does it come with mounting hardware? Bolts & nuts to assemble on trailer?
10 years ago2 Answers
A: I just picked one up - no hardware in my box...
8 years agoHelpful?
Q: Hello Everyone, Is this a 2 speed or 1 speed winch? Do you need to unbolt the handle to change speeds? Is it like the picture? The picture shows that it is a 2 speed winch with a handle shaft that slides into one of two gear positions, is this true?
5 years ago1 Answer
A: – It is a 2-speed winch, and yes, you do need to unbolt the handle to change speeds. Please see the image attached: Lastly, yes, it is true. It is a 2-speed winch with a handle shaft that slides into one of the two gears.
5 years agoHelpful?
Q: Does this come with cable? does not show in pic and does not say.
7 years ago1 Answer
A: This winch does not come with the strap, you can use sku 040-2932, it is 20ft long and had a clasp on the end for attachment to boats.
7 years agoHelpful?
Q: what is the bolt pattern and dimensions of this winch I need to know if it will mount in place of my old winch.
8 years ago1 Answer
A: The 2,500 lb 1 Speed trailer winch features a 39mm x 10.2mm adjustable screw hole with a 56mm gap and an additional 10.2mm diameter screw hole. Please see the image below:
8 years agoHelpful?
Q: Left hand configuration? The picture shows the handle on the right hand side of the winch. Can the winch be reconfigured so that the handle is on the left?
15 years ago1 Answer
A: Unfortunately, the crank handle on this winch is fixed and not reversible.
12 years agoHelpful?
