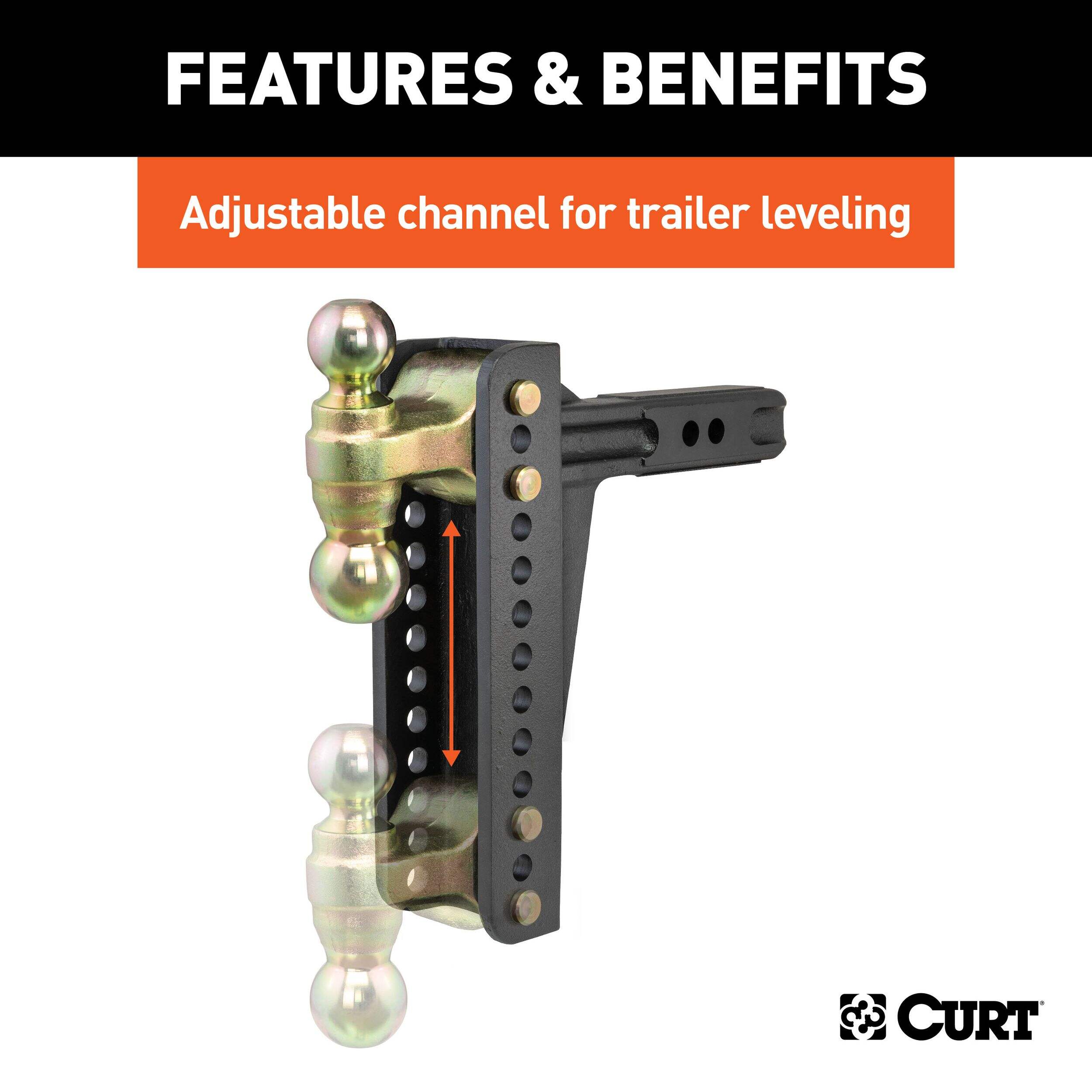

What if there was a hitch ball mount that eliminated the need for all other ball mounts? Whichever trailer you wanted to tow, this universal ball mount could be adapted to fit the job. Imagine never having to buy another ball mount for your hitch ever again. Sound too good to be true? With the CURT adjustable channel mount, that's exactly what you get. The adjustable channel mount is a highly versatile hitch ball mount option. It features a standard receiver hitch shank, a multi-level channel and a standardized trailer ball attachment, allowing you to easily tow various types of trailer without requiring you to keep an arsenal of ball mounts on hand. It also features a highly durable construction built to withstand the elements, and built-in anti-rattle features for smooth, quiet towing. The dual-ball head of this channel mount offers versatile towing options. It features standard 2" and 2-5/16" diameter trailer balls to fit two different size trailer couplers. The entire head securely attaches to the adjustable shank using the included hitch pins and clips, and these hitch pins can also be replaced with a hitch lock set for additional security. This adjustable channel mount comes with a 2" shank to fit any 2" x 2" receiver hitch. The shank has two hitch pin holes to adjust the length of the ball mount from 11" to 12". This provides extra clearance, as needed, for the rear bumper, a spare tire or other obstructions. The channel mount is set with a series of vertical holes to mount the included dual-ball. The holes are spaced 1" apart, allowing the ball mount to perfectly suit the trailer for smooth, stable towing. This deep drop channel mount offers a maximum drop of 10-1/8" and it can also flipped for a maximum rise of 9-1/8". For safety you can be confident in, each CURT adjustable channel mount design undergoes strict testing procedures. This model is constructed from high-strength forged steel and rated for a maximum gross trailer weight capacity of 10,000 lbs.

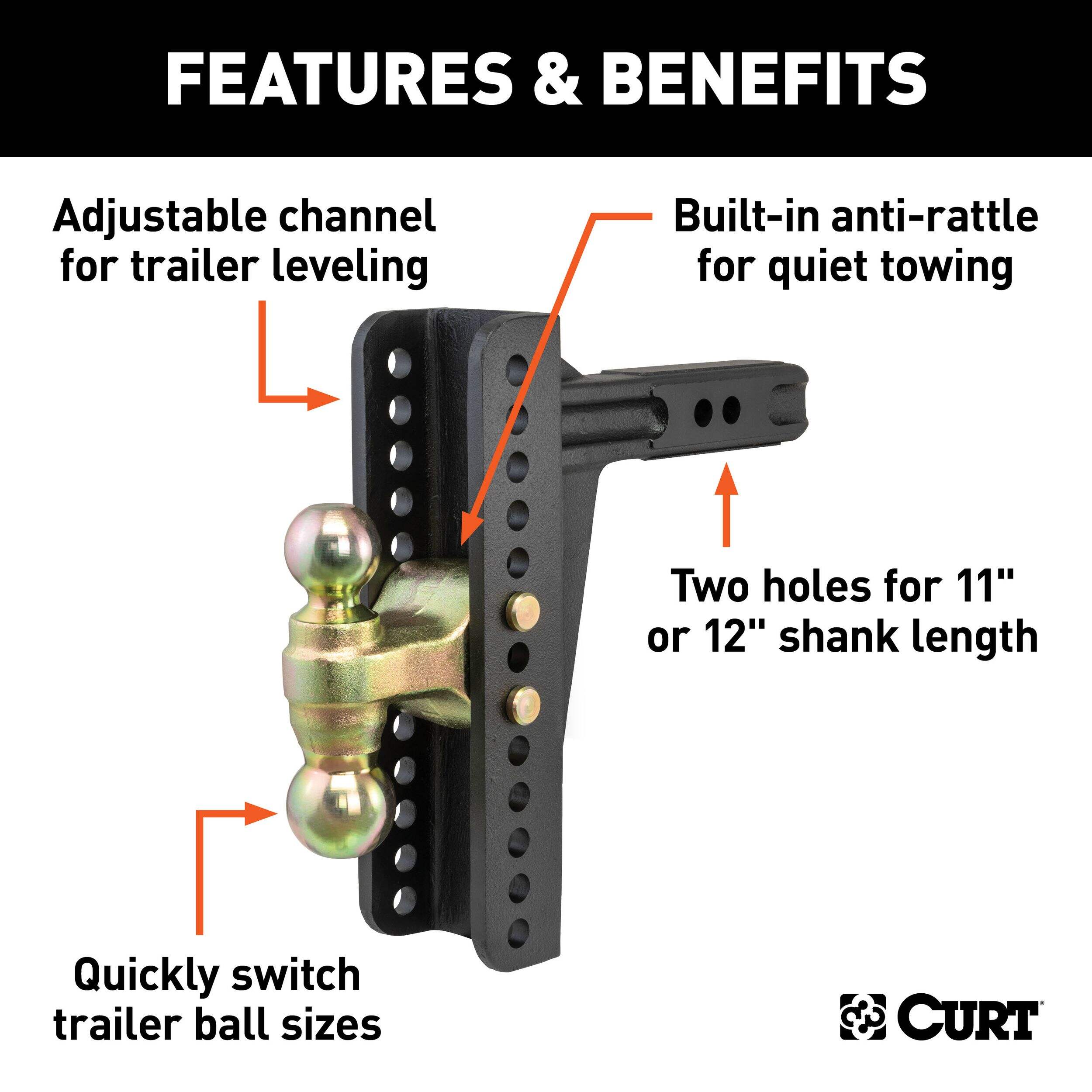

CURT Adjustable Channel Mount offers you the convenience of towing a variety of heavyweight trailers
Mounts on trailer hitches with 2" x 2" receiver tube opening
Shank can be flipped for max rise of 9-1/8" and drop of 10-1/8"
Features two different trailer ball sizes to accommodate two different coupler sizes
2" ball rated for 10,000 lbs. and 2-5/16" ball rated for 14,000 lbs.
Two hitch pin holes provide shank lengths of 11" or 12"
Built-in anti-rattle helps promote quiet towing
Made with sturdy steel construction for superior strength
Protected by a highly durable carbide powder coat finish to protect against rust, scratches, and UV damage
Includes pins & clips
| Part Number | 45926 |
|---|---|
| Accessories List | No Accessories Included |
| Advanced Features | No Advanced Features |
| Coupler Ball Size | 2-5/16", 2" |
| Finish | Black, Powder Coated |
| Number of Keys | 0 |
| Number of Pieces | 2 |
| Package Depth (cm) | 43.18 cm |
| Package Depth (in) | 17.00 in |
| Package Height (cm) | 12.70 cm |
| Package Height (in) | 5.00 in |
|---|---|
| Package Weight (kg) | 0.23 kg |
| Package Weight (lb) | 0.50 lb |
| Package Width (cm) | 33.02 cm |
| Package Width (in) | 13.00 in |
| Pieces Included | Pin |
| Pin Diameter (in) | 1/2" |
| Pin Style | Dog-Bone |
| Primary Colour | Black |
| Primary Material | Steel |
| Product Use(s) | Not Applicable |
| Receiver Size | 3" Square |
| Tongue Weight Rating Capacity (kg) | 9525.44 kg |
| Tongue Weight Rating Capacity (lb) | 20999.98 lb |
| Type of Hitch Class | Class IV, Class V |
| Type of Towing Security Purpose | Hitch Ball Mount |
