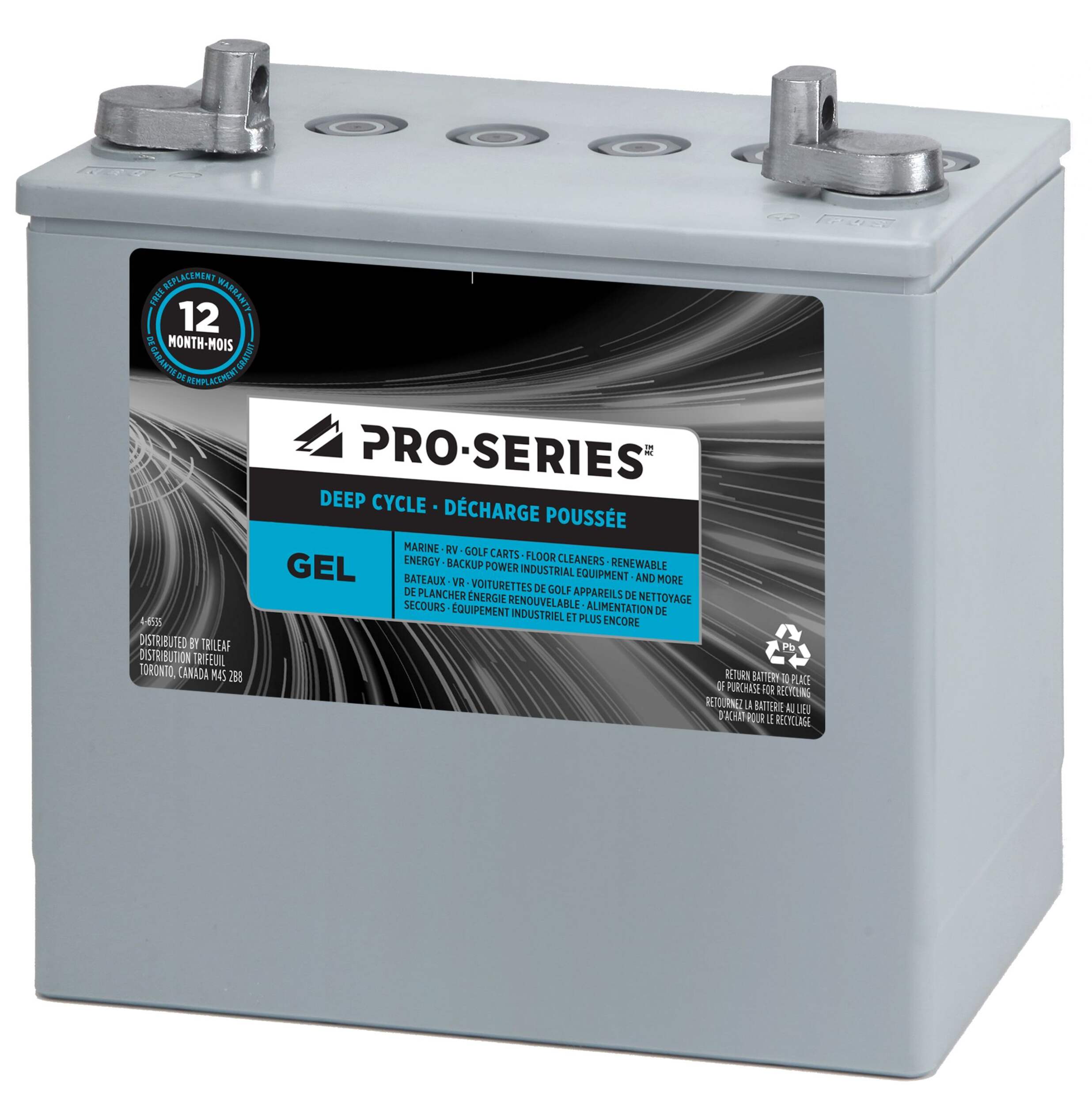

PRO-SERIES Gel Group Size 22NF Battery
- FREEAvailable
- Unavailable
- Unavailable
- 1 In Stock
Out of stock at Leduc, AB
Quebec residents: For information on maintenance and repair click here.
Need Installation Help?
Auto Services are available at your store
Similar Items
Product Details
- Features
- Specifications
- Resources
PRO-SERIES Gel Group Size 22NF is a sealed Valve Regulated Lead Acid (VRLA) Battery that is maintenance free
Group Size: 22NF
Voltage (nominal): 12
Marine Cranking Amps (@ 0°C): 470
Reserve Capacity Minutes @ 25A: 77
Amp Hour Capacity (20 Hour): 51
Maximum Overall Dimensions (L x W x H): 9" L x 5-1/2" W x 9-1/4" H (228 x 140 x 235 mm)
Approximate Weight: 37.5 lbs (17.0kg)
Terminal Type: Offset post w/ horizontal hole, stainless steel 5/16" bolt and hex nut
Polarity: Right Hand Positive
Please return your old lead-acid battery to Canadian Tire for recycling. Virtually 100% of the content can be recycled and used in the manufacture of new lead-acid batteries.
| Part Number | MP22NF-GEL |
|---|---|
| Accessories List | No Accessories Included |
| Advanced Features | Non Spillable |
| Amp Hours (10 Hour Rate) | 0.00 Ah |
| Amp Hours (20 Hour Rate) | 51.00 Ah |
| Amp Hours (5 Hour Rate) | 0.00 Ah |
| Battery Capacity (@25AMP) | 82 min |
| Battery Capacity (@75AMP) | 0 A |
| Battery Type | Gel |
| Battery Use | Deep Cycling, Standby |
| Battery Voltage (Nominal) | 12 |
|---|---|
| Battery Weight | 17.0 kg |
| Battery Weight (lb) | 37.5 lb |
| Cold Cranking Amps (CCA) | 210 A |
| Common Applications | Back Up Power, Solar, Medical Equipment, Sump Pump, Wheelchair and Mobility, Emergency Lighting |
| Cranking Amps (CA) | 300 A |
| Electrolyte Level | Non-Serviceable |
| Industry Group Size # | 22NF |
| Manufacturer Part Number | MP22NF-GEL |
| Marine Cranking Amps (MCA) | 300 A |
| Maximum Height (Excluding Posts) (in) | 8.14 in |
| Maximum Height (Excluding Posts) (mm) | 207 mm |
| Maximum Height (Including Posts) (in) | 8.14 in |
| Maximum Height (Including Posts) (mm) | 207 mm |
| Maximum Length (in) | 8.96 in |
| Maximum Length (mm) | 228 mm |
| Maximum Width (in) | 5.50 in |
| Maximum Width (mm) | 140 mm |
| Package Depth (cm) | 14.00 cm |
| Package Depth (in) | 5.51 in |
| Package Height (cm) | 23.50 cm |
| Package Height (in) | 9.25 in |
| Package Weight (kg) | 17.01 kg |
| Package Weight (lb) | 37.50 lb |
| Package Width (cm) | 22.80 cm |
| Package Width (in) | 8.98 in |
| Polarity | Right Hand Positive |
| Reserve Capacity (RC) | 77 min |
| Terminal Type | Other |
| UN Classification | UN2800 Batteries Wet Non Spillable |
| Venting Design | Sealed Valve Regulated |
Warranty
1 yr exchange
