Mastercraft

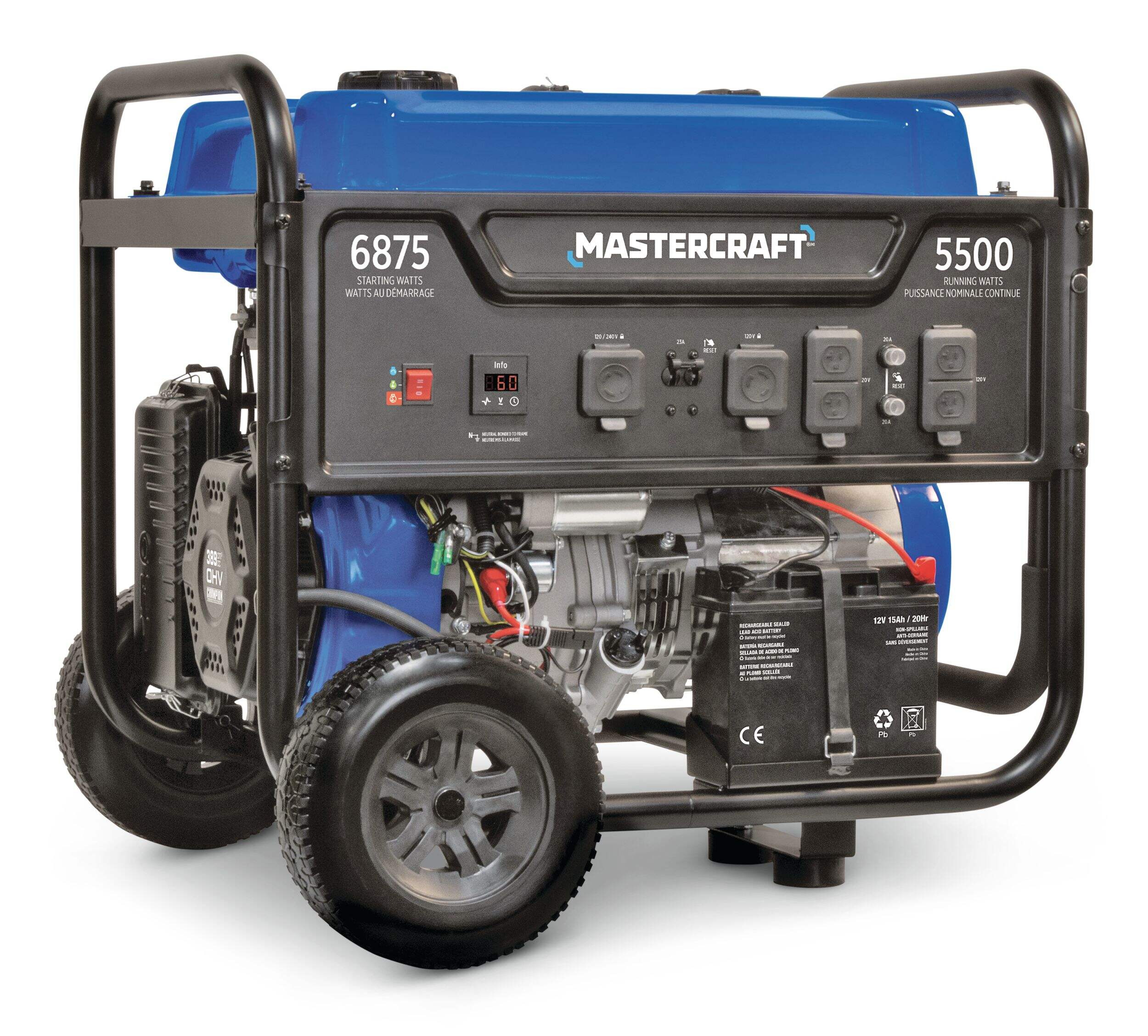

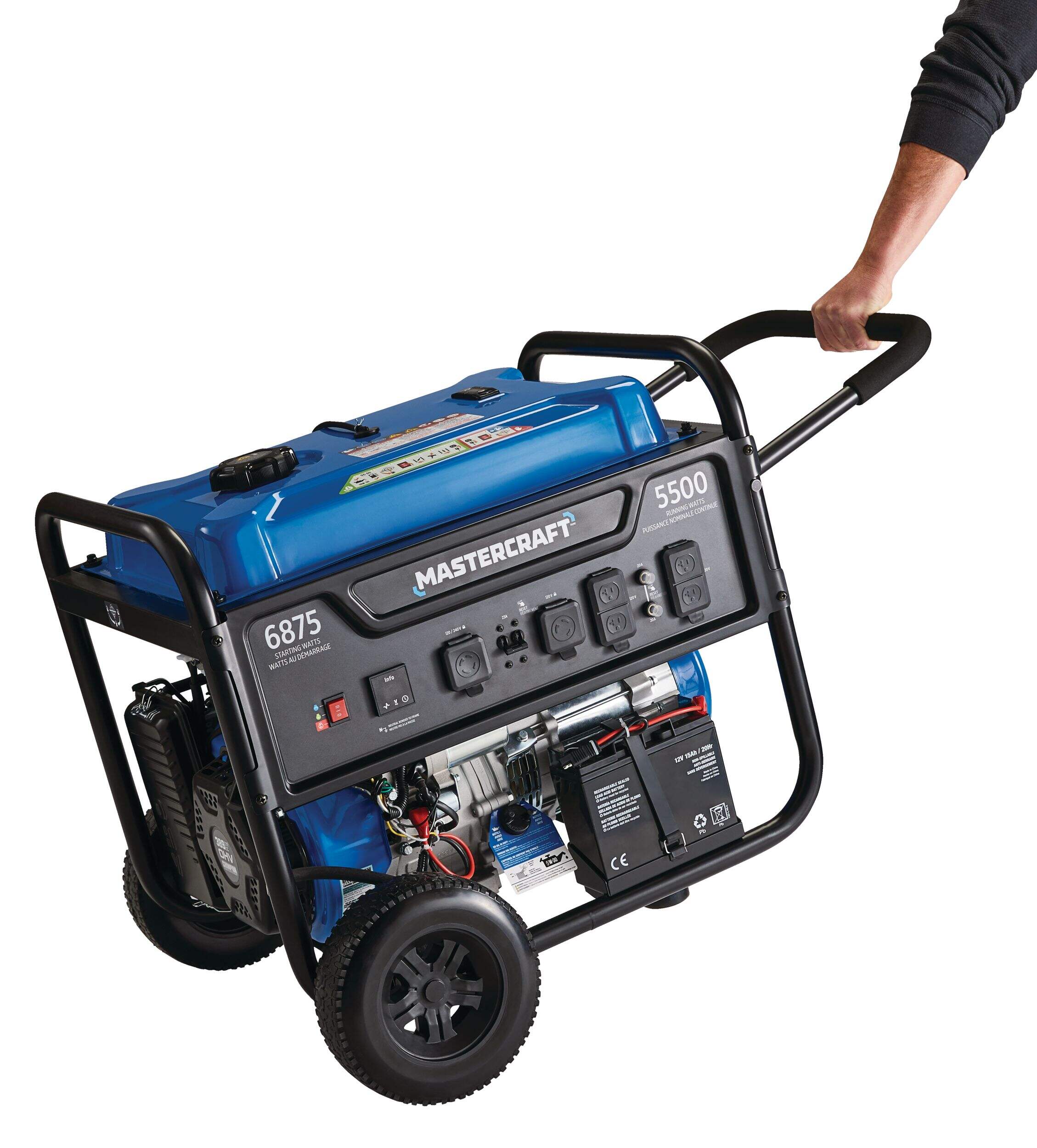

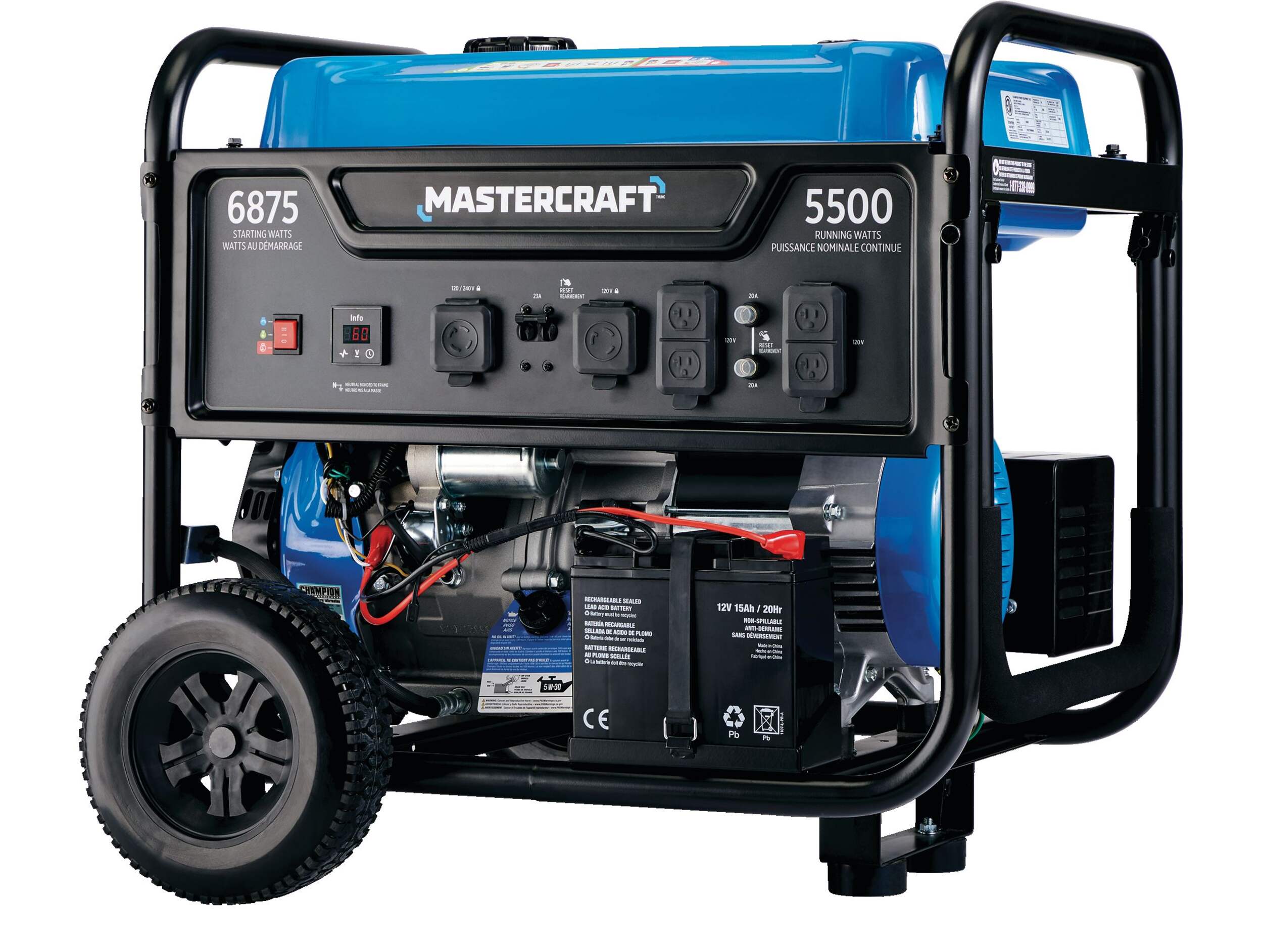

Mastercraft 5500/6875 Watt Open Frame Portable Generator with Electric Start
#055-0216-8
$999.99
Top RatedExclusive
Unfortunately, this product is discontinued in your selected store and nearby stores.
You may be interested in these similar products shown below.Similar Items
Quebec residents: For information on maintenance and repair click here.
Product Details
Mastercraft 5500W Open Frame Generator with Electric Start is powered by a 389cc OHV gas engine
Provides 6875W of starting power and 5500W of continuous power
Extended run fuel tank provides 10 hours runtime at 50% load
Noise Level: 68dBA at 23' (7 m)
Electric start includes battery
Digital Intelligauge displays frequency, volts, and runtime
Volt Guard protects against power surges and cold start provides easy starting in cold weather
Recommended replacement spark plug sold separately (CT SKU#018-4956)
| Part Number | 100687 |
|---|---|

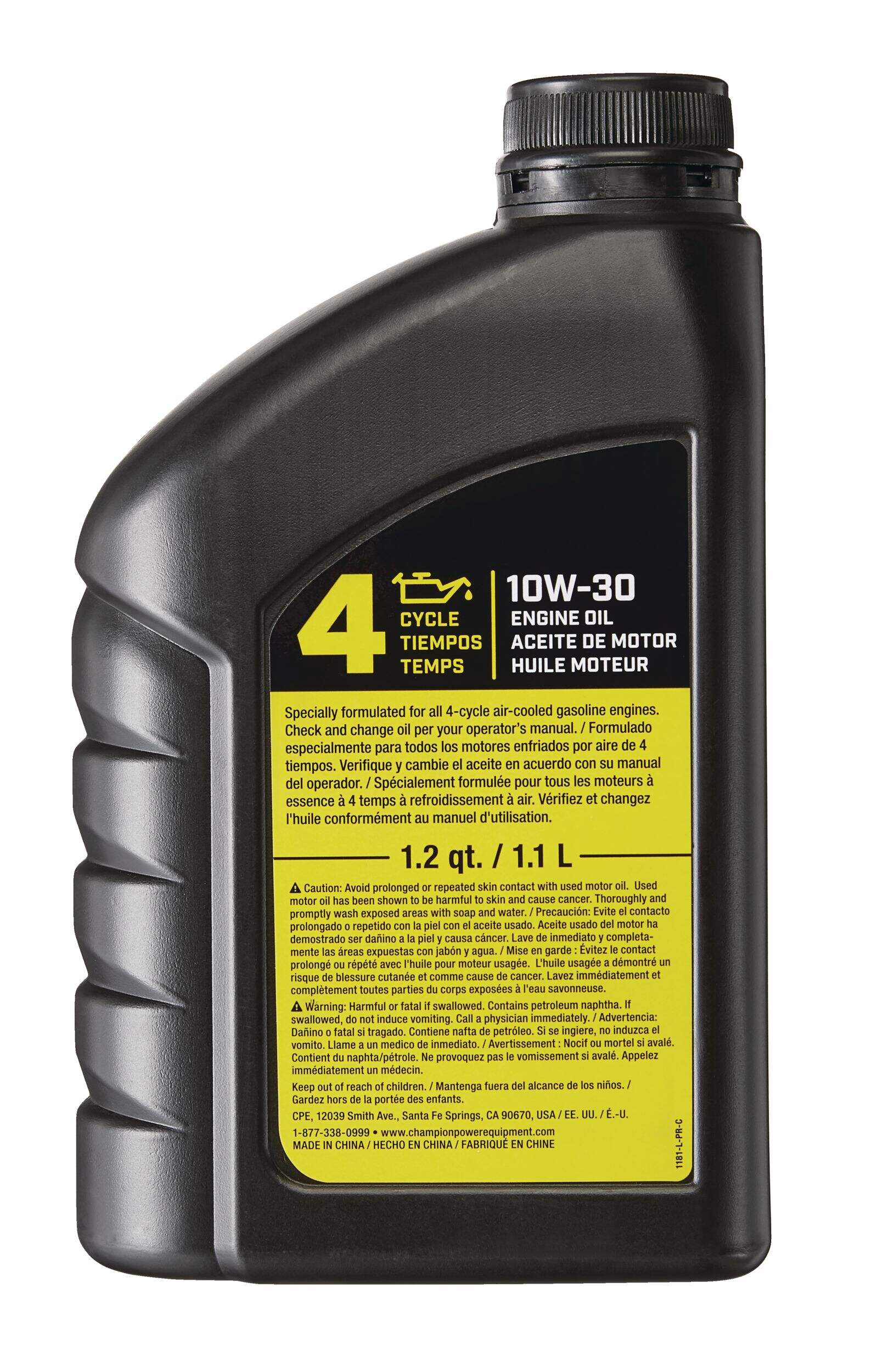

| Accessories List | Battery, Oil, Portability Kit, Smart Charger |
| Advanced Features | No Advanced Features |
| Assembled Depth (cm) | 68.80 cm |
| Assembled Depth (ft) | 2.26 ft |
| Assembled Depth (in) | 27 1/8 in |
| Assembled Height (cm) | 62.00 cm |
| Assembled Height (ft) | 2.03 ft |
| Assembled Height (in) | 24.41 in |
| Assembled Weight (kg) | 69.00 kg |
| Assembled Weight (lb) | 152.1 lb |
|---|---|
| Assembled Width (cm) | 53.00 cm |
| Assembled Width (in) | 20.87 in |
| Assembled Width (mm) | 530.00 mm |
| Certifications | No Certifications |
| Fuel Tank Capacity (gal) | 6.1 gal (US) |
| Fuel Tank Capacity (l) | 23.10 l |
| Generator Start Type | Automatic Electric w/ Recoil backup |
| Generator Type | Portable |
| Half Load Run Time (h) | 10 h |
| Noise Level (dB) | 74 dB |
| Number of 120V Outlets | 6 |
| Number of 240V Outlets | 1 |
| Package Depth (cm) | 81.50 cm |
| Package Depth (in) | 32.09 in |
| Package Height (cm) | 64.00 cm |
| Package Height (in) | 25.20 in |
| Package Weight (kg) | 53.40 kg |
| Package Weight (lb) | 117.73 lb |
| Package Width (cm) | 55.00 cm |
| Package Width (in) | 21.65 in |
| Product Model Number | 100687 |
| Starting Watts (W) | 6875 W |
| Wheels Diameter (cm) | 24 1/8 cm |
| Wheels Diameter (in) | 9 1/2 in |
Warranty
- This product carries a 3 year repair only warranty redeemable at any Canadian Tire store.
Online Ordering
- Pick Up is free at most stores (some stores require a minimum order value before tax)
- Shipping fee is based on size and weight of products and distance from address to store
- Same-Day Delivery costs $9.99 per order
- Online Ordering Information
Returns
- Most products can be returned or exchanged at any Canadian Tire store within 90 days of purchase
- Some products are non-refundable and non-exchangeable
- The return policy outlined above may not apply to the product you are currently viewing. For complete details and eligibility, please refer to our Return Policy for exceptions.
Compare Similar Products
Only Show Differences | ||||||
| Ratings | ||||||
| Accessories List | Battery, Oil, Portability Kit, Smart Charger | Battery, Battery Charger, Engine Oil, RV Adapter Plug, Wheels | Battery | Battery, Engine Oil, Mobility Kit, Oil Funnel | Battery, Engine Oil, Mobility Kit, Oil Funnel | |
| Advanced Features | No Advanced Features | No Advanced Features | Battery Operated | No Advanced Features | Automatic Shutoff | |
| Assembled Depth (cm) | 68.80 cm | 78.74 cm | 67.40 cm | 68.83 cm | 84.00 cm |
Shop Related Products
- Weekly Deals
- Customers Also Viewed
- Top Trending Products
- More From This Brand
Weekly Deals
Review Highlights
List of Pros Highlights
Pros
List of Cons Highlights
Cons
Suitable Cons could not be generated at this time.
Reviews
Customer Images and Videos
Filter Reviews
- starting
- purchase
- price
- satisfaction
- batteries
- setup
- value
- installation
Rating
Locale
1 to 5 of 35 Reviews
1 – 5 of 35 Reviews
Most Recent
5 out of 5 stars.
Loads of power !!
2 years ago
Works great, starts easy, loads of power for all the tools on site, and a lot quieter than we were expecting.
Helpful?
4 out of 5 stars.
Money well spent.
2 years ago
Good value for the money.
Helpful?
5 out of 5 stars.
Love it
2 years ago
Very nice generator!! Love it
Helpful?
5 out of 5 stars.
Two thumbs up!
2 years ago
Excellent little machine runs my furnace with no issues and very good on fuel
Yes, I recommend this product.
Helpful?
5 out of 5 stars.
generatrice demareur electrique
2 years ago
tres belle machine et fonctionelle assez silencieuse avec ses roues tres maniable une bonne achat je suis satisfait
Translate with GoogleYes, I recommend this product.
Helpful?
1 – 5 of 35 Reviews
Questions
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 28 Questions
Most helpful answers
Q: Can I hook this generator to my main panel box to power the necessities in my house during a power outage or do I have to plug each item in separately to the generator?
4 years ago4 Answers
A: Yes, I have hooked this unit up to my main panel with a special breaker interlock kit to prevent back feeding power out onto the grid. This way I can select breakers to power up anything in the house. This is very handy because I can even run the hot water tank or well pump provided that I don’t have to many other things also powered up at the same time. Many appliances can be run intermittently such as a fridge. A separate transfer panel is another way to do it but it’s not as flexible because it will only power up 6 or 8 circuits but simple to use and safe. Talk to an electrician.
4 years agoHelpful?
Q: Are all the 120v outlets wired to the same winding?
2 years ago3 Answers
A: Thanks all. I decided just to use a 240 plug and split the power into 120v receptacles that way.
2 years agoHelpful?
Q: Hello. I need this generator to power a meter-base transfer switch. Is the 4-wire L14-30 outlet GFCI protected? Also,does this unit have a voltage regulator?
4 years ago3 Answers
A: All generators have a voltage regulator. On this unit it is under the blue circular cap on the opposite side of the engine, looks like a quarter circle. They are not GFCI plugs however.
3 years agoHelpful?
Q: Will the Volt Guard be sufficient enough to safely charge a phone, tablet, or laptop?
4 years ago3 Answers
A: Yep! These types of generators
3 years agoHelpful?
Q: I am having trouble installing the wheels, axel doesn't seem long enough to go through wheel and the mount on the generator. Please advise.
4 years ago3 Answers
A: I had my generator put together at Canadian Tire before I pick it up.
4 years agoHelpful?
Q: Are all the 120v outlets eiref to the same winding?
2 years ago2 Answers
A: Each outlet has its own breaker. I’m not sure on windings. It works excellent though. Reliable and easy to start
2 years agoHelpful?
Q: Does the exhaust mufflerhave a flange on it mastercraft portable generator (5500/6875
3 years ago2 Answers
A: This generator only has a exhaust flange located between the engine and exhaust pipe that leads to a muffler.
3 years agoHelpful?
Q: Is his generator a 20 amp or 30 amp. I can't seem to get the picture clear enough to see and the description doesn't say?
3 years ago2 Answers
A: 20 amp
3 years agoHelpful?
Q: As a newbie, I am confused about the 120/240v L14 outlet. Does it automatically determine the voltage or is there a switch? I tried it on my through wall transfer switch and blew my furnace.
3 years ago2 Answers
A: The L14 puts out is 4 wire receptacle. It outputs both 120 and 240 at the same time. There are 2 hot wires, a neutral and a ground wire. Between the two hots is 240 volts. Between either of the hots and neutral is 120 volts.
3 years agoHelpful?
Q: Will this generator work with an auto-start controller to charge solar batteries?
3 years ago2 Answers
A: I have no idea, in fact I have not started this generator since I purchased it. Sorry.
3 years agoHelpful?
