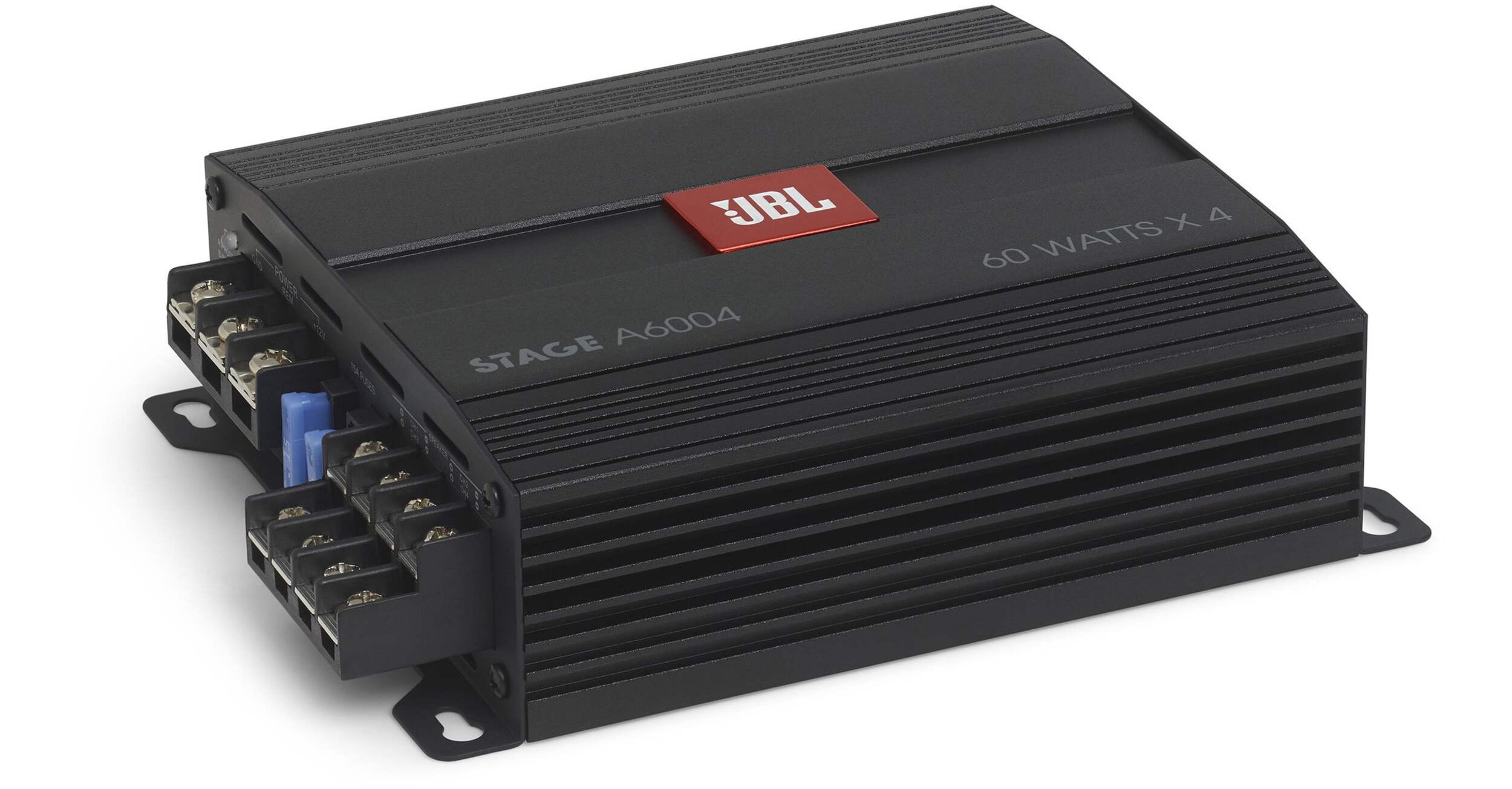

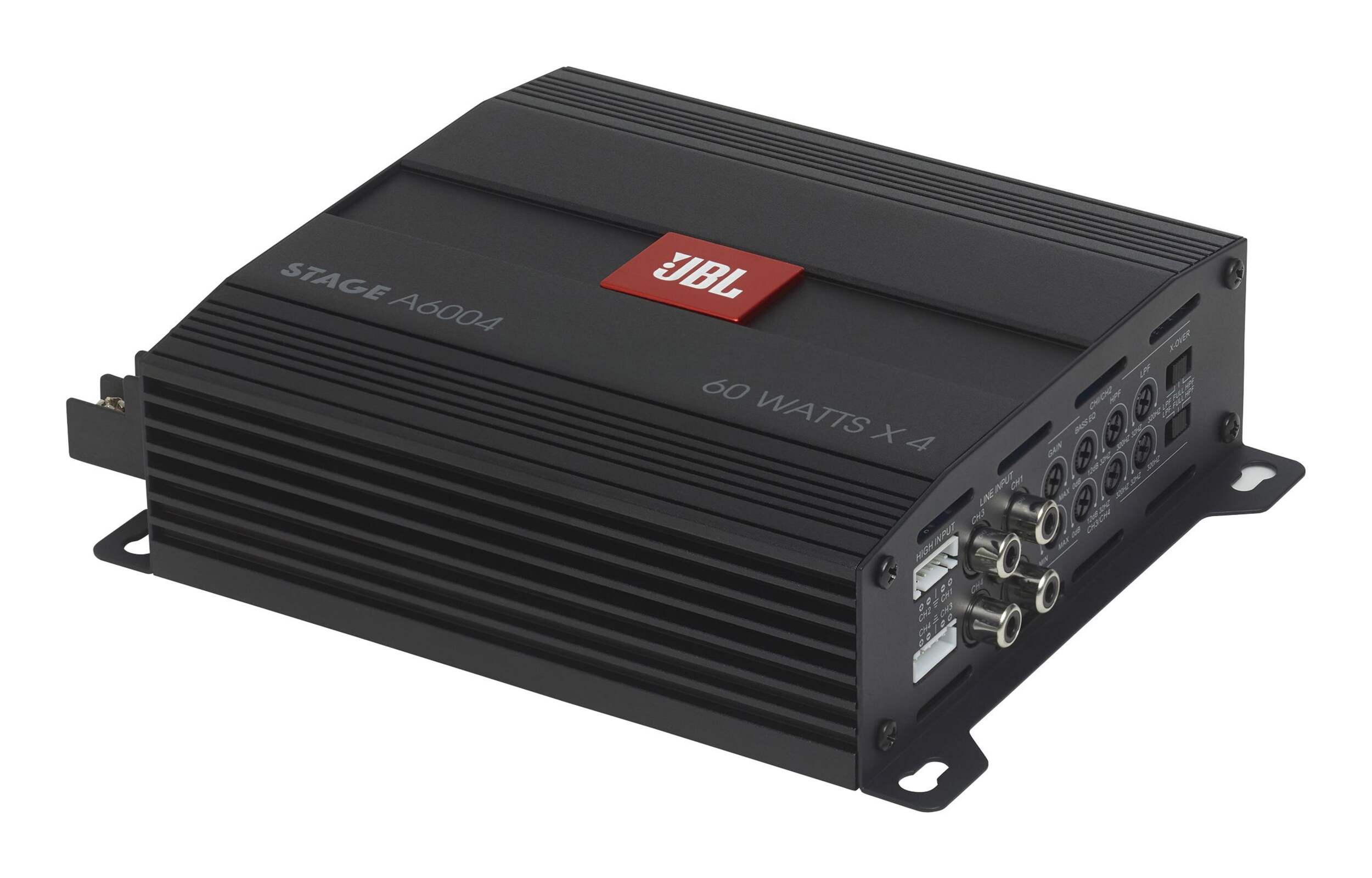

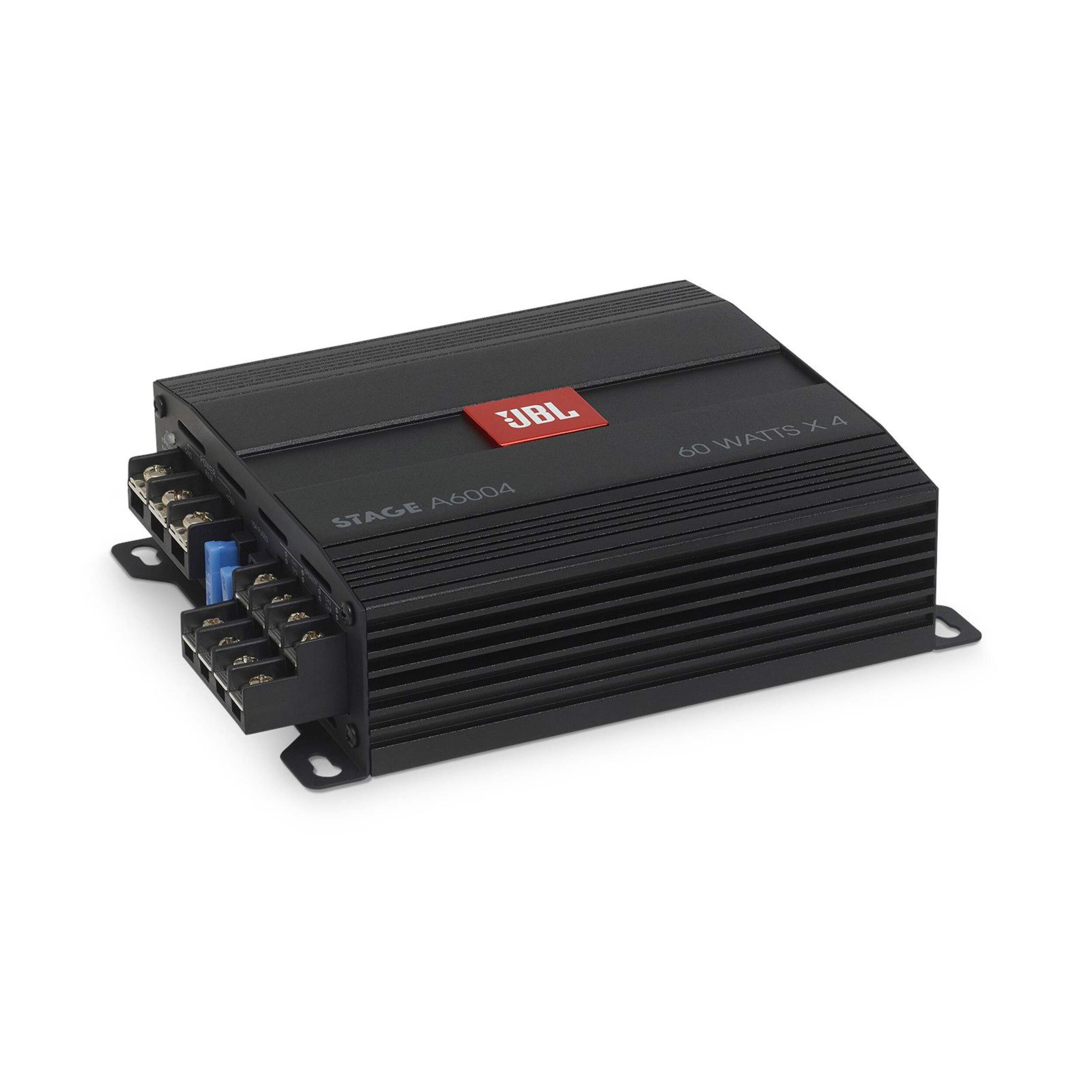

JBL Stage 4-Channel 560W Amplifier
Unfortunately, this product is discontinued in your selected store and nearby stores.
You may be interested in these similar products shown below.Quebec residents: For information on maintenance and repair click here.
Product Details
JBL Stage Amps are available in a variety of configurations, delivering the right power and number of channels for full-range and subwoofer applications. For more than four decades, JBL has made the audio experience a lot more satisfying for the car audio enthusiast. With a broad array of loudspeakers, amplifiers and subwoofers available, you can drive with ease and exhilaration. These compact amps are equipped with all the important inputs and user controls including a bass EQ as well as LPF and HPF crossover controls for tailoring sound to suit the characteristics of different vehicles. The Stage Amps are easily installed and amazingly reliable – and once they turn on, they’ll make a transducer sit up and sing.
- Features
- Specifications
- Resources
With it becoming more and more difficult to find spacious locations for amplifier mounting, Stage has been developed in a small compact form factor to allow more location versatility

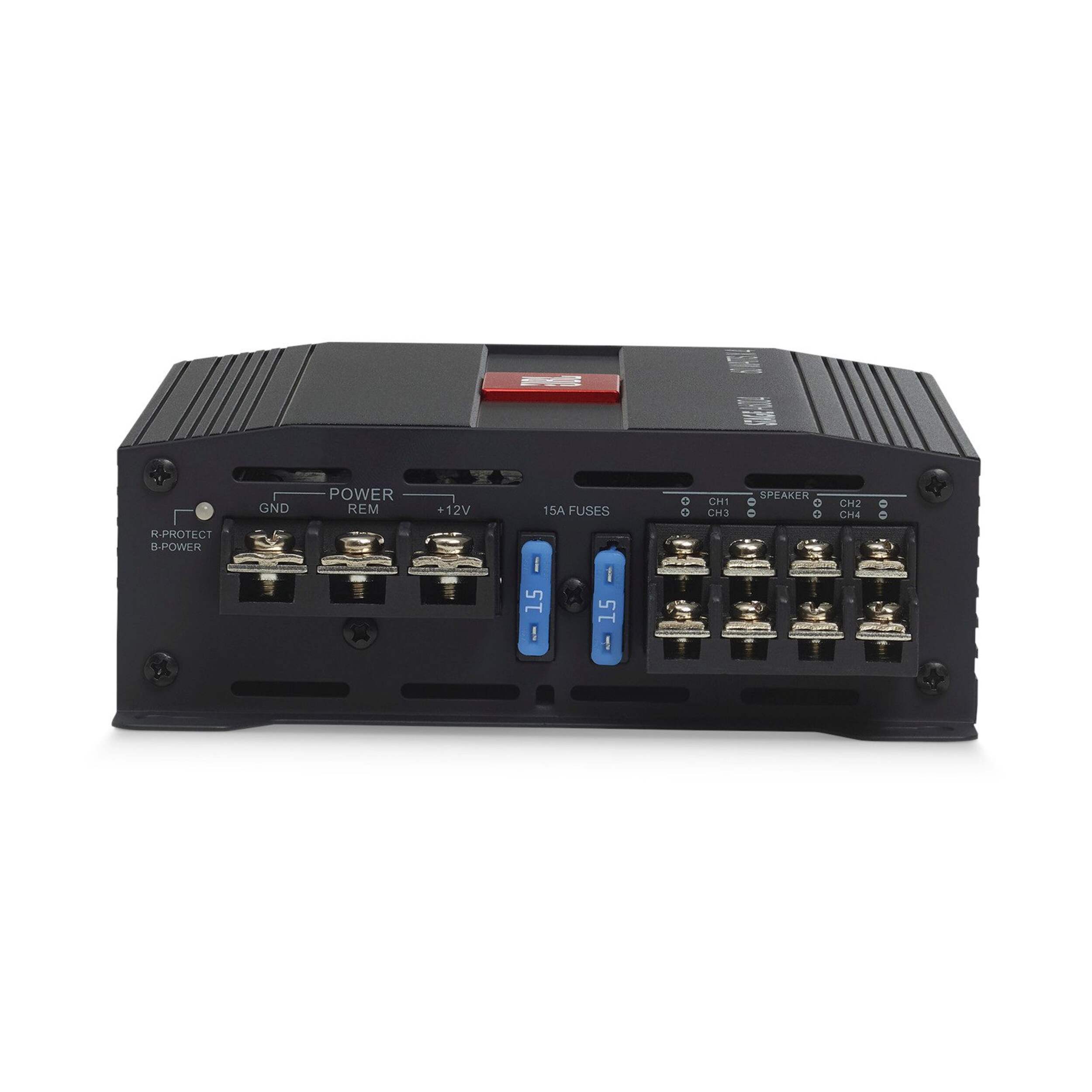

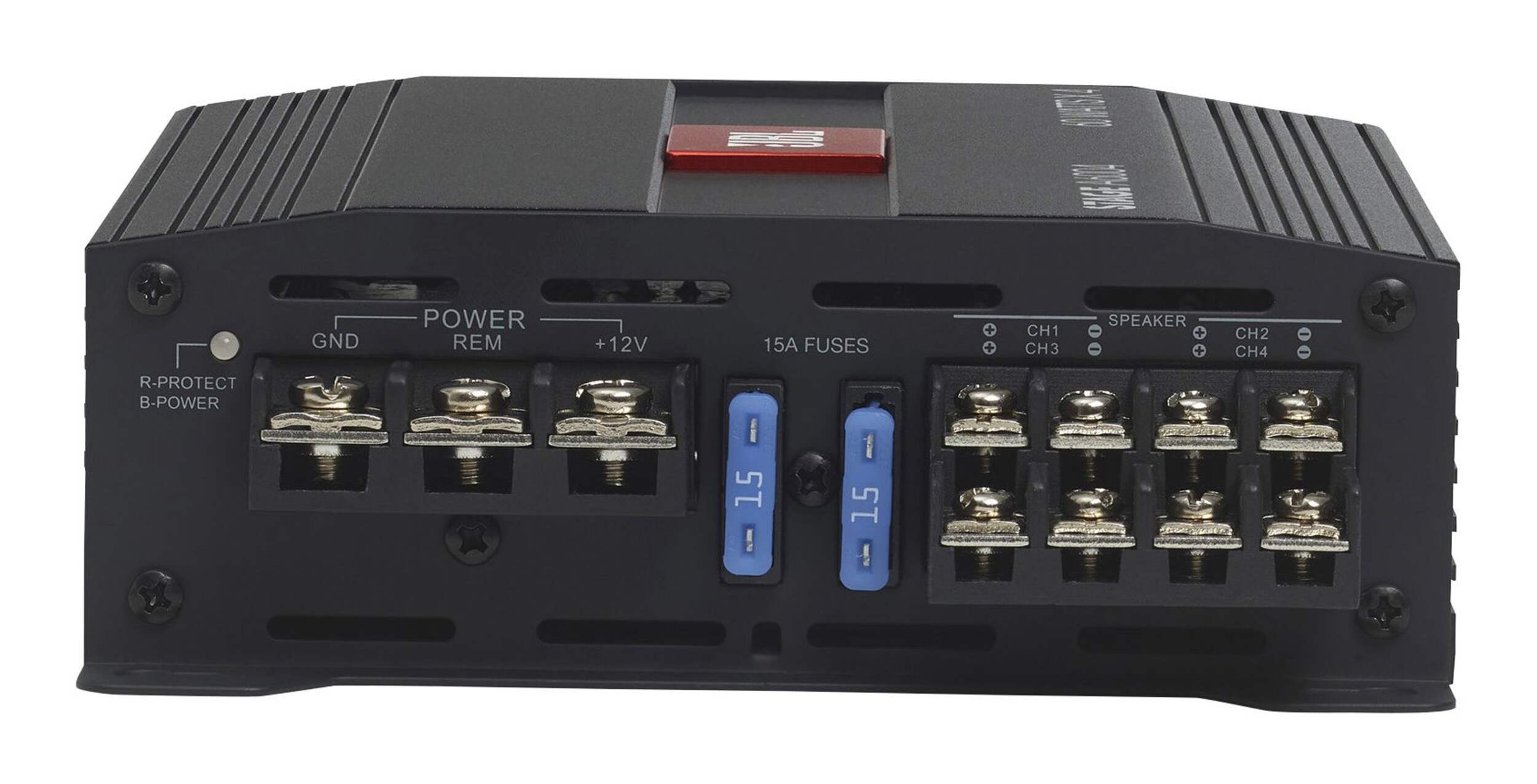

Stage amplifier has on-board circuitry to protect them from shorts, temperature, overvoltage and undervoltage. An LED indicator is included on all four models to let you know when one of these conditions exists
JBL is one of the greatest audio brands in the world. This is not a coincidence given the arduous testing and quality control. We take our craft seriously and want every consumer to have a world-class experience that lasts and lasts

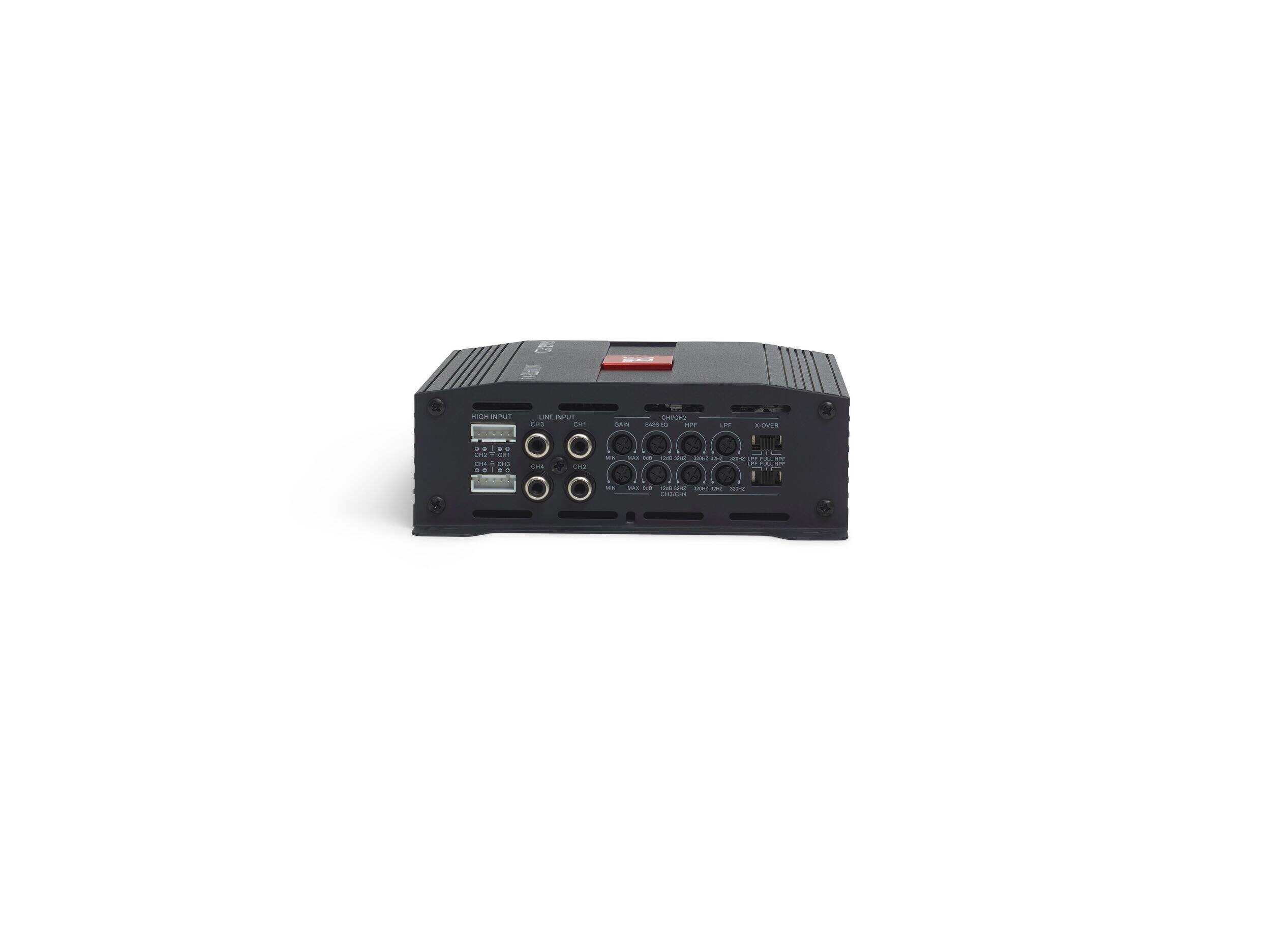

When low-level inputs are used, this control adjusts the input sensitivity between 200mVrms and 5.0Vrms. When High-level inputs are used, this control adjusts the input sensitivity between 0.5Vrms and 15Vrms
This provides an available bass boost at 45Hz of 6dB or 12dB, serving as a great tool to optimize subwoofer and loudspeaker performance based on location and enclosure type
RMS power @ 4 ohms - 60W x 4, RMS power @ 2 ohms - 70W x 4, RMS bridged power @ 4 ohms - 140W x 2, Total peak power - 1000W
| Part Number | STAGEA6004AM |
|---|---|
| Colour | Black |
| Package Depth (cm) | 26.00 cm |
| Package Depth (in) | 10.24 in |
| Package Height (cm) | 9.49 cm |
| Package Height (in) | 3.74 in |
| Package Weight (kg) | 1.61 kg |
| Package Weight (lb) | 3.55 lb |
| Package Width (cm) | 18.99 cm |
| Package Width (in) | 7.48 in |
Warranty
This product carries a 1 year exchange warranty redeemable at any Canadian Tire store.
Compare Similar Products
Only Show Differences | Currently Viewing | |||||
| Ratings | ||||||
| Colour | Black | |||||
| Colour Group | Black | |||||
| Package Depth (cm) | 26.00 cm |
Shop Related Products
- Weekly Deals
- Customers Also Viewed
- Top Trending Products
- More From This Brand
Weekly Deals
Review Highlights
Reviews
Filter Reviews
- noise level
- size
- small
- use with amplifier
Yes, I recommend this product.
Originally posted on jbl.com
Good power in a small size!
Yes, I recommend this product.
Originally posted on jbl.com
Questions
Q: Would this work with 4 JBL stage 3 9637F speakers?
2 years agoA: Thanks for your inquiry. Yes, our JBL Stage Amplifier A6004 will be able to power 4 JBL stage 3 9637F speakers. We also suggest the JBLO Club A754 as this amp brings more power to the 4 speakers.
2 years ago
Q: This amplifier is compatible with buick enclave 2008?
5 years agoA: There are some variations to the audio systems that came with the Enclave. Some versions of the Enclave included a 10 speaker system, in this case the JBL Stage 4 Channel amplifier would not be compatible. If your vehicle is equipped with the 6 speaker system, the JBL amplifier can added to the existing audio system.
5 years agoHelpful?
Q: What current does this take to turn on? My Sony head unit (.4A max) had issues turning this amp on.
5 years agoA: We would like to get more information to help you out, please contact us so we can assist you: https://bit.ly/2zwFkYM
5 years ago
Q: Hi there! I am thinking about installing this amp into my 2018 Toyota C-HR Hybrid! I recently changed the factory speakers to A. Stage 602 E rear and B. Stage 600 C front. My questions are: A. Will it make the difference? B. Do you suggest it?
6 years agoA: We would like to work with you directly to help you with your issue. Please submit a case request at https://www.jbl.com/support-contact.html and the Customer Service Team will be more than happy to assist you.
6 years ago
