Wago
Wago

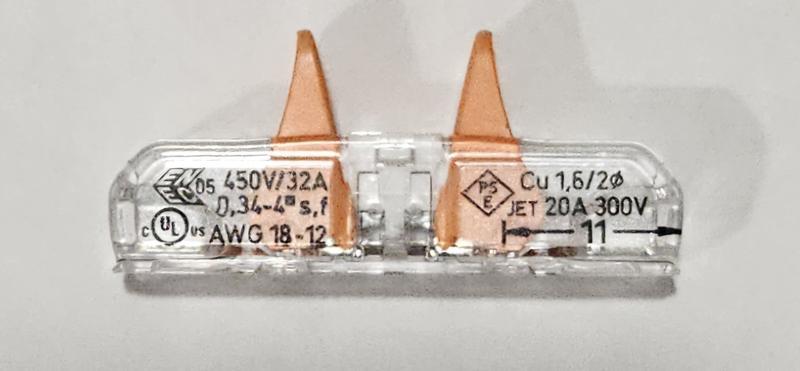

Wago 2-Conductor Splicing Connectors, 10-pk

$13.99

Product Details

The Wago 2-Conductor Splicing Connectors, 10-pk, offer a simple and efficient solution for connecting two conductors. These connectors are designed for ease of use: pull the lever up, insert the conductor, and push the lever back down. They accommodate conductors ranging from 0.14 to 4 sq MM (12-24 AWG) and provide a secure grip with over 50 lbs of pullout force, ensuring a reliable connection every time. The compact design makes them ideal for tight spaces, and the connectors feature 2 test ports for convenient testing of connections.

  • Connects solid, stranded and fine-stranded copper conductors from 20-12 AWG

  • Slim design minimizes dimensions for installation in tight spaces

  • Tool free connection and disconnection thanks to the convenient lever technology

  • Easy to use: lift the lever up, insert conductor, push the lever back down

  • Perfect for extending a ground wire that has been cut short

  • Pack of 10

  • Quickly install devices with higher levels of power consumption

  • Safely install long cable runs with larger conductor cross sections

  • Mounting carrier for installation conforms to standards

Part Number 221-2401K000006
Accessories List No Accessories Included
Advanced Features Corrosion Resistant, Heat Shrinkable, Insulated, Transparent Housing
Amp Capacity (a) 20 A
Assembled Height (cm) 0.89 cm
Assembled Height (ft) 0.03 ft
Assembled Height (in) 0.35 in
Assembled Length (cm) 3.55 cm
Assembled Length (ft) 0.12 ft
Assembled Length (in) 1.40 in
Assembled Weight (g) 2.40 g
Assembled Weight (ml) 2.40 ml
Assembled Weight (oz) 0.08 oz
Assembled Width (cm) 0.81 cm
Assembled Width (in) 0.32 in
Assembled Width (mm) 8.10 mm
Certifications UL Listed
Colour Orange
Consumer Pack Size 10
Electrical Connector Type Connector
Female/Male Outlet Not Applicable
Maximum Operating Temperature (°C) 105.00 °C
Maximum Operating Temperature (°F) 221.00 °F
Minimum Operating Temperature (°C) -60.00 °C
Minimum Operating Temperature (°F) -76.00 °F
Mount Style Push In
Number of Ports 5
Package Depth (cm) 1.91 cm
Package Depth (in) 0.75 in
Package Height (cm) 16.50 cm
Package Height (in) 6.50 in
Package Weight (kg) 0.05 kg
Package Weight (lb) 0.10 lb
Package Width (cm) 7.36 cm
Package Width (in) 2.90 in
Plug Type Not Applicable
Primary Material Polycarbonate
Product Use(s) Appliances, Automotive, Ceiling Fans, Industrial, Lighting, Marine, RVs, Plumbing
Voltage (V) 600 V
Wire AWG Capability 22 to 12
Wire Types Accommodated Copper
