Wagner Control Pro 130 Power Tank Airless Paint Sprayer

#049-0698-6
Wagner Control Pro 130 Power Tank Airless Paint Sprayer
$329.99
Top Rated
Buy Online :
Pick up at Leduc, AB
7 In Stock

Pick up available 08:00 a.m., Jan 04

Quantity updated to 1
New digital payments available on checkout page:
Also Find It in Store:

Only 7 left

at Leduc, AB
Aisle 47
Add to Registry

Quebec residents: For information on maintenance and repair click here.

Wagner
Wagner

Wagner Control Pro 130 Power Tank Airless Paint Sprayer

$329.99

Product Details

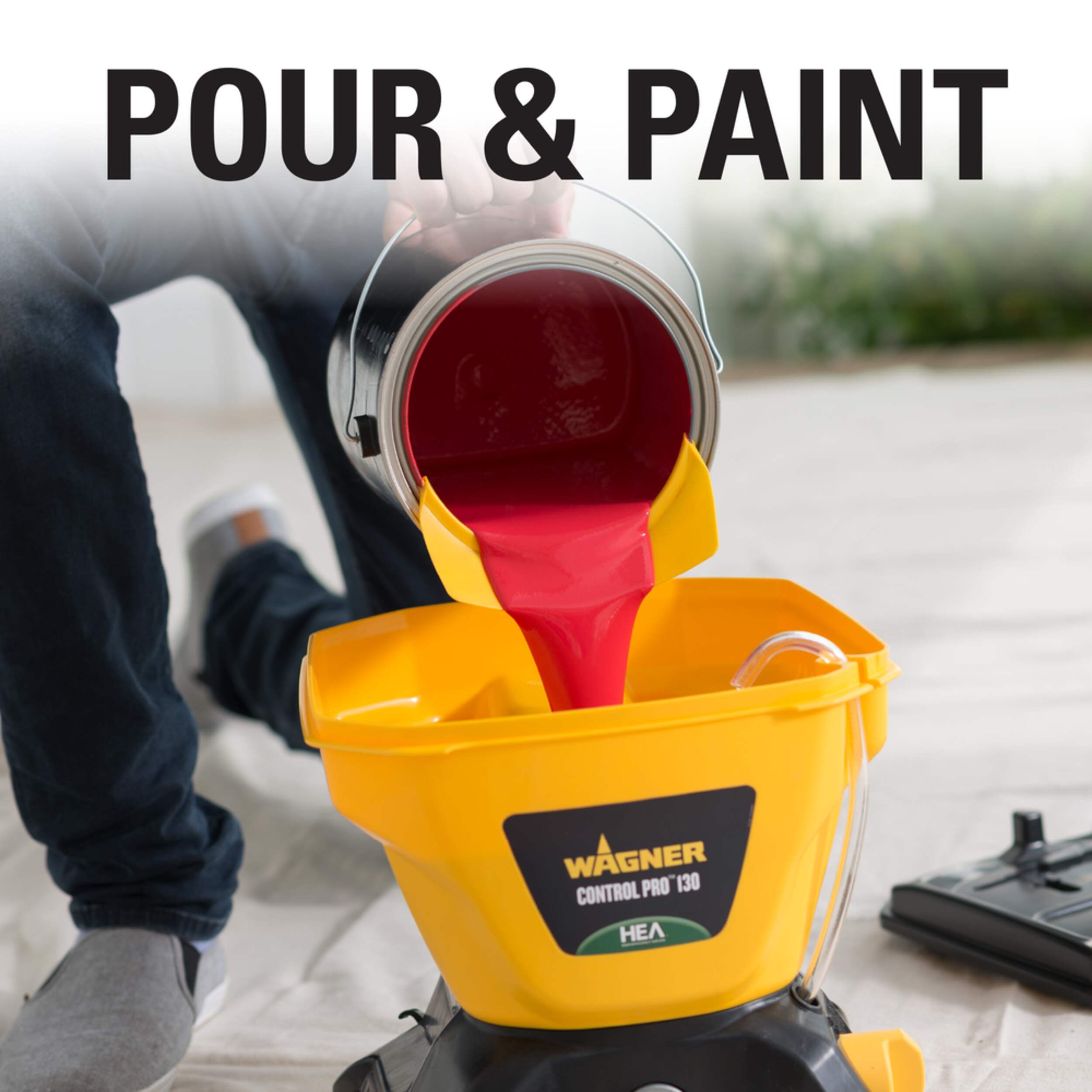

The Wagner Control Pro 130 Power Tank Airless Paint Sprayer is an essential tool for any DIY enthusiast or professional painter. This stationary airless paint sprayer holds up to 1.5 gallons of material in its tank, enabling continuous painting without constant refills. It ensures a smooth, consistent finish with up to 55% less overspray than traditional models. The integrated handles and tip storage enhance usability and organization, making cleanup quick and effortless.

  • Delivers a professional finish when painting or staining big projects

  • Gravity fed for fast, no mess priming and cleaning

  • Forgiving spray pattern with feathered edge

  • Features HEA (High Efficiency Airless) technology

  • Includes a 25' (7.6 m) hose to reach tall areas

  • Ideal for big interior and exterior spray jobs

  • Simply rinse and flush the system for easy clean up

  • Wagner Model # 0580678

  • Includes a 515 HEA spray tip, which is perfect for latex paints

Part Number 2435698
Accessories List No Accessories Included
Advanced Features No Advanced Features
Assembled Height (cm) 30.48 cm
Assembled Height (ft) 1.00 ft
Assembled Height (in) 12.00 in
Assembled Length (cm) 30.48 cm
Assembled Length (ft) 1.00 ft
Assembled Length (in) 12.00 in
Assembled Weight (kg) 4.32 kg
Assembled Weight (lb) 9.52 lb
Assembled Width (cm) 33.02 cm
Assembled Width (ft) 1.08 ft
Assembled Width (in) 13.00 in
Assembled Width (mm) 330.20 mm
Batteries Required Quantity 0
Battery Platform None
Certifications ETL Listed, UL Listed
Cord Type Corded
Enclosure Material Plastic
Maximum Flow Rate (gal/hr) 14.27 gal (US)/h
Maximum Flow Rate (l/hr) 54.00 l/h
Maximum Spray Width (cm) 30.00 cm
Maximum Spray Width (in) 11.81 in
Minimum Spray Width (cm) 15.00 cm
Minimum Spray Width (in) 5.91 in
Motor Type Not Applicable
Mount Style Cart Mount
Noise Level (dB) 85 dB
Nozzle Diameter (mm) 0.38 mm
Nozzle Diameter (po) 0.01 in
Number of Accessories 0
Number of Spray Settings 3
Package Depth (cm) 35.00 cm
Package Depth (in) 13.78 in
Package Height (cm) 33.00 cm
Package Height (in) 12.99 in
Package Weight (kg) 4.54 kg
Package Weight (lb) 10.01 lb
Package Width (cm) 35.00 cm
Package Width (in) 13.78 in
Paint Type Latex
Primary Material ABS Plastic
Product Capacity (gal) 1.50 gal (US)
Product Capacity (l) 5.67 l
Product Model Number 2435698
Product Use(s) Commercial, Paint, Residential
Pump Type Piston
Spray Gun Feed Type Siphon Feed
Spray Gun Type Hand Held
Style of Spray Gun Airless Spray Gun
Tank Capacity (gal) 1.80 gal (US)
Tank Capacity (l) 6.80 l
Warranty
  • This product carries a 1 year exchange warranty redeemable at any Canadian Tire store.
User Manual
  • View user manuals and additional product information

Download

Online Ordering
  • Pick Up is free at most stores (some stores require a minimum order value before tax)
  • Shipping fee is based on size and weight of products and distance from address to store
  • Same-Day Delivery costs $9.99 per order
  • Online Ordering Information
Returns
  • Most products can be returned or exchanged at any Canadian Tire store within 90 days of purchase
  • Some products are non-refundable and non-exchangeable
  • The return policy outlined above may not apply to the product you are currently viewing. For complete details and eligibility, please refer to our Return Policy for exceptions.

Compare Similar Products

Only Show Differences
Ratings
Accessories ListNo Accessories Included
Advanced FeaturesNo Advanced FeaturesFilter, Multi-Directional Spray, Variable SpeedFilter, Multi-Directional Spray, Variable SpeedNo Advanced FeaturesCordless, Filter, Variable Speed
Assembled Height (cm)30.48 cm

Review Highlights

List of Pros Highlights
List of Cons Highlights
Suitable Cons could not be generated at this time.

Reviews

Rating Snapshot

Select a row below to filter reviews.
322 reviews with 5 stars.
78 reviews with 4 stars.
14 reviews with 3 stars.
9 reviews with 2 stars.
22 reviews with 1 star.

Overall Rating

4.5
365 out of 397 (92%) reviewers recommend this product

Review this product

Select to rate the item with 1 star. This action will open submission form.
Select to rate the item with 2 stars. This action will open submission form.
Select to rate the item with 3 stars. This action will open submission form.
Select to rate the item with 4 stars. This action will open submission form.
Select to rate the item with 5 stars. This action will open submission form.
Adding a review will require a valid email for verification

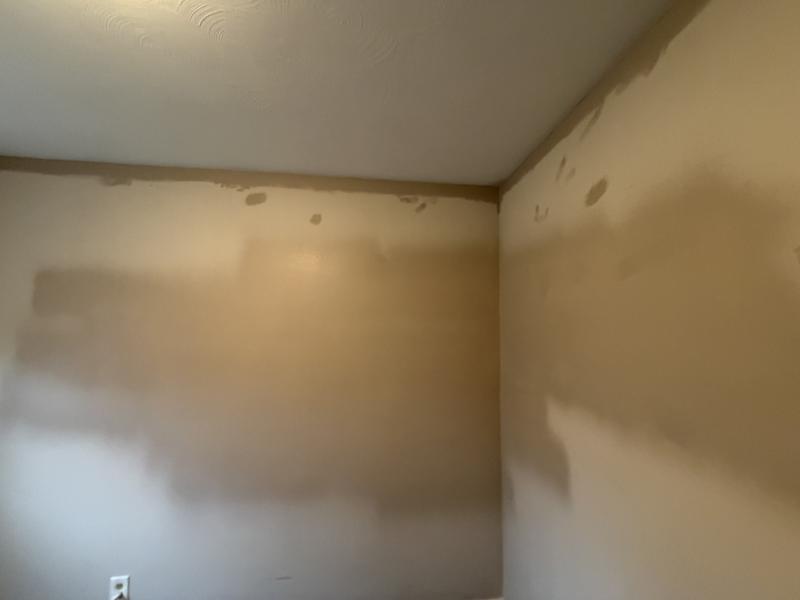

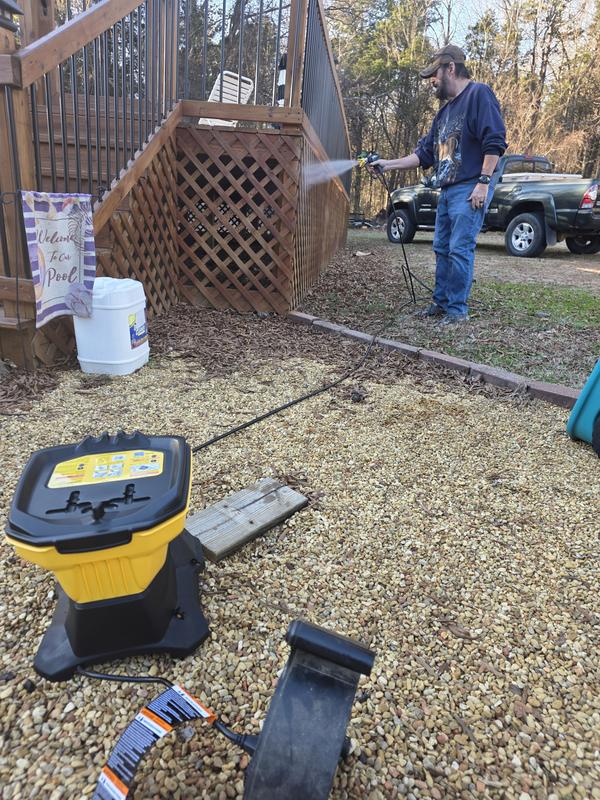

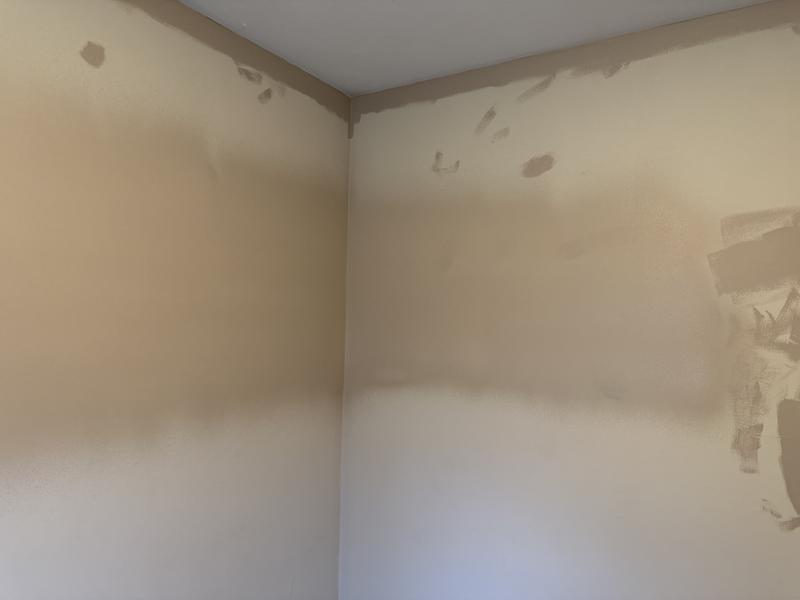

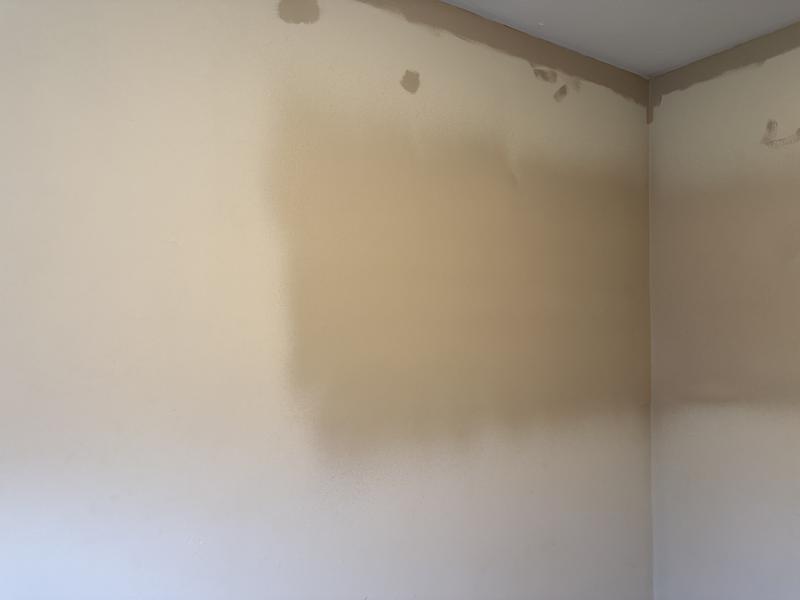

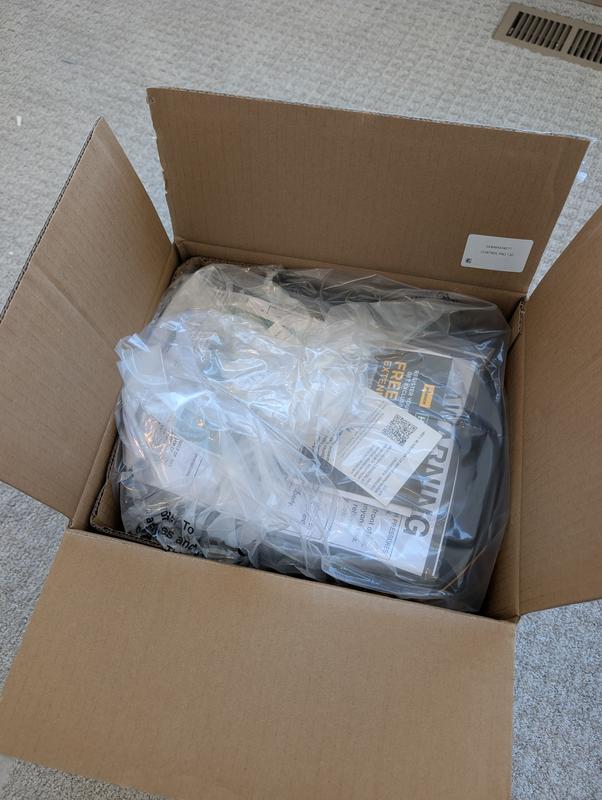

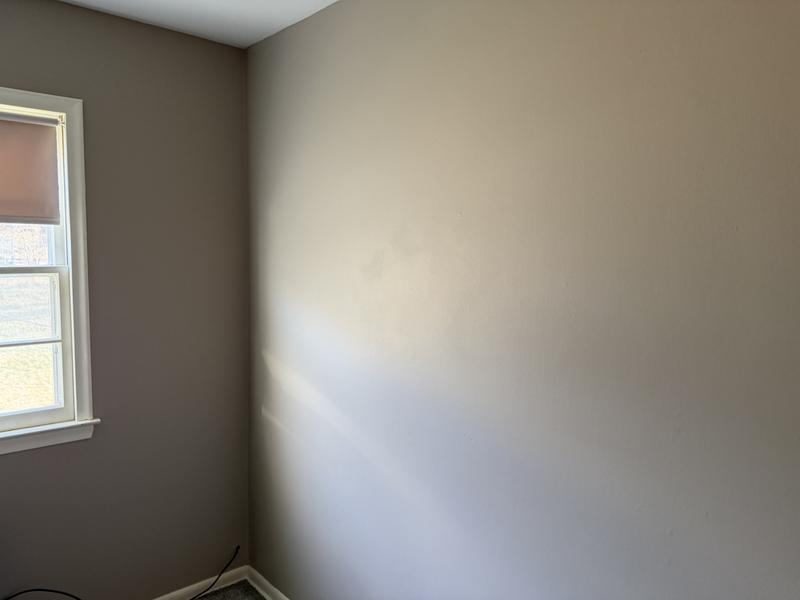

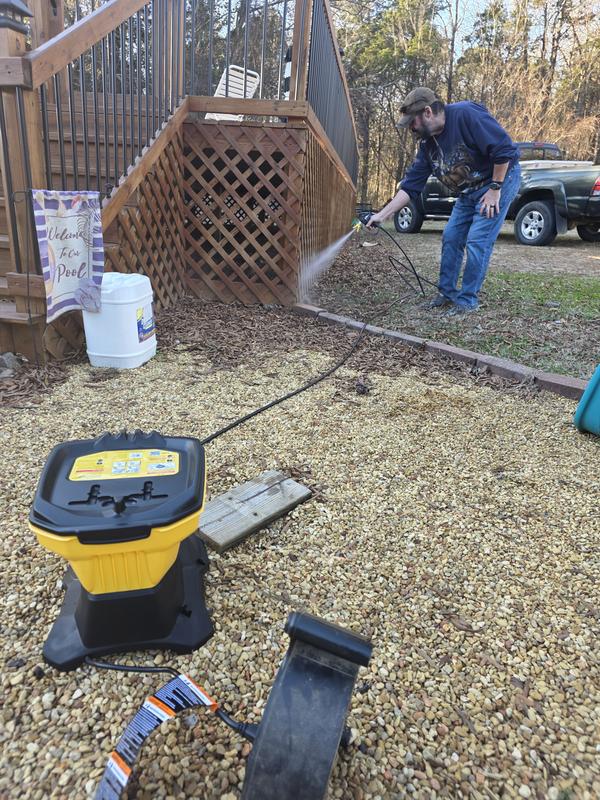

Customer Images and Videos

Filter Reviews

  • purchase
  • cleaning
  • ease of use
  • satisfaction
  • price
  • large
  • instructions
  • finish
1 to 5 of 445 Reviews
1 – 5 of 445 Reviews

Super easy to set up, use and clean!

11 days ago
I had started painting my shed with rollers and brushes. A friend suggested I look at this sprayer. I spent 2 days brushing the grooves in the siding. then it only took about 45 minutes total spraying to finish priming. in all, I think I have about 3 hours of spraying to finish painting my shed!

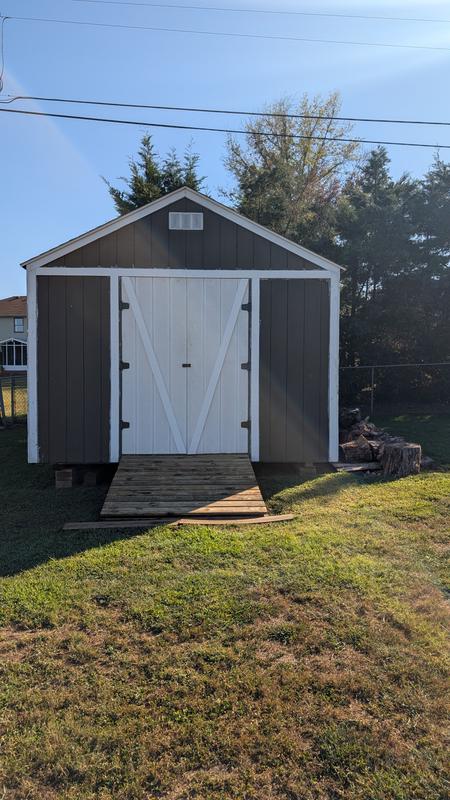

  • Before priming

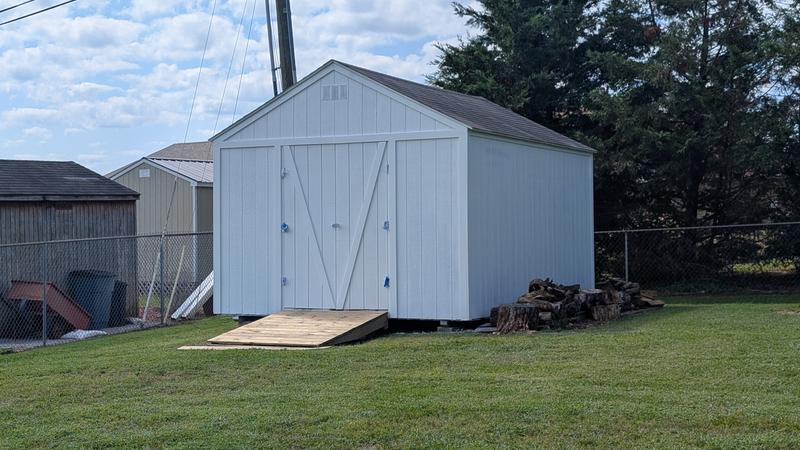

  • After

Originally posted on wagnerspraytech.com

A capable machine...with reservations

11 days ago
I bought this unit to paint a 10'x20' wood utility shed that would have been difficult to paint with conventional brush/roller methods. Initial set up is not difficult. This sprayer works quite well but there is a definite learning curve. (I should add that I have a lot of experience with automotive type spray/gun painting.) I used a very high quality exterior paint from a professional paint store recommended for outdoor applications. What I quickly learned is I had to thin the paint much more than I would normally do...actually a bit more than recommended by the paint maker. This sprayer plugs up very easily, so thorough mixing and straining is the order of the day. Once I found what the sprayer was capable of (which was a bit frustrating) the job progressed nicely. I strongly recommend starting out with a small batch initially so the paint viscosity can be more easily adjusted. This sprayer is capable of very nice work and you can cover a lot of area quickly. There are a couple cons with this machine. The hose to the gun is not very good...it is a rigid springy plastic that always tries to coil itself back up. It works...but a better quality hose would be appreciated. Second, cleanup is no fun. I painted my shed on a unusually warm fall day so that caused paint to dry rather quickly. You have to clean up every speck of dried paint or it will plug the gun nozzle. The many little nooks and crannies all over this unit makes clean up very tedious. Overall I like the sprayer...for the price range it's capable of good quality work but it's not something I would want to use every day.

Yes, I recommend this product.

Originally posted on wagnerspraytech.com

Unit is easy to set up and use.

14 days ago
I bought this as I needed to get some exterior work painted before the weather turned on me. It worked great and sped the process up tremendously. And the coverage was great. Also able to paint right up to the trim with minimal overspray.

Yes, I recommend this product.

Originally posted on wagnerspraytech.com

Impressive Paint Sprayer - Perfect for the DIYer!

15 days ago
[This review was collected as part of a promotion.] I recently used my Wagner Control Pro 130 Paint Sprayer to paint some interior rooms and a hallway in my daughter’s house that she recently purchased. Once set up and priming is done, the Wagner Control Pro 130 Paint Sprayer performed excellently with a smooth even finish laying down the paint nicely with little overcoating. The generous 1.5 gallon paint hopper allows you to work efficiently without a lot of stops to refill. In my case, I do not have a spray paint shield so I did the area where the ceiling and wall meet with brush and roller as well as the wall base. As with any paint sprayer, overspray is an issue and The Wagner Control Pro 130 Paint Sprayer is no exception, so be sure to shut off the HVAC and cover anything you do not want painted. Cleanup is a bit tedious and messy with a bit of paint loss in the process. However, this is a small price to pay for how efficient and effective the spraying process is over hand rolling and I assume the cleanup process would be about the same for any paint sprayer. Bottom Line - The Wagner Control Pro 130 Paint Sprayer performed flawlessly and provided professional results at a fraction of the cost of other commercial type paint sprayers. I look forward to my next project with my Wagner Control Pro 130 Paint Sprayer. As with any power tool, be sure to read and follow the enclosed use and safety instructions before use.

Yes, I recommend this product.

Originally posted on wagnerspraytech.com

Good sprayer for small jobs

20 days ago
Works great! Takes a little work to get it primed. Would be nice to have control over the amount of paint coming out and also a swivel connection on the gun but overall works very well
Helpful?
Response from WagnerSprayTech:
15 days ago
WagnerSprayTech
Hello BillB,
Thank you for contacting Wagner Spray Tech! We are thrilled to learn that your Wagner Control Pro 130 has been a good fit for your project. Our U.S. based Product Support Team can assist you with some helpful hints to better control the paint flow. Please contact us Monday through Friday between 8am and 4:30pm CST (1-800-328-8251 or customerservice@wagner-group.com).
Best regards,
Lindsay M.
Product Support Supervisor
Wagner Spray Tech WagnerSprayTech
1 – 5 of 445 Reviews

Questions

1 - 9 of 9 Questions

Q: Can this be used to spray Red oxide primer & rust paint? (Tremclad, Rustoleum, Krylon) If so, does it require thinning?

9 months ago
2 Answers
  • A: Depends on the spray tip you choose. I used it for sold stain on a fense, the typical stain tip had too small of an opening to not clog repeatedly, if the rust paint is thin the stain tip may be fine, but it will clog if you try to use too small of a tip.

    8 months ago
    Helpful?

Q: can you use this to spray rhino liner and or fluid film for undercoating?

10 months ago
2 Answers
  • A: I have only used my sprayer for latex paints.

    10 months ago
    Helpful?

Q: I use this to paint but can I also use this to spray my garden with weed killer? (4L vinegar/1 cup salt/1 tbsp soap)

a year ago
2 Answers
  • WagnerSprayTech

    A: That's fine except for the salt. Salt is very corrosive and we do not suggest putting it through the machine.

    a year ago
    Helpful?

Q: Is this unit supposed to come with the Inlet Filter? I just bought the sprayer and taking it fresh out of the box and there is no Inlet Filter included.

2 years ago
2 Answers
  • A: I used mine just out off the box’s but I did use. Filter cloth over the sprayer before I pour the paint in that work just grate hope this helps you out

    2 years ago
    Helpful?

Q: Can I use trimclad old based primer for steel with this paint sprayer?

2 years ago
2 Answers
  • A: I only used laytex paint on my garage I don’t know if you can use use oil base primer

    2 years ago
    Helpful?

Q: Does this sprayer package include a special nozzle for spraying stain...

3 years ago
2 Answers
  • A: No only comes with one nozzle but you can get other nozzles for it. I bet it would spray stain though. The paint i used was very thick and went threw very easy.

    3 years ago
    Helpful?

Q: Can I use this paint sprayer to apply Thompson Waterseal - clear wood sealer on an exterior wooden fence ? Also , how do I clean up the connecting hose, and how much paint cleaner solvent is needed for each clean-up?

a year ago
1 Answer
  • WagnerSprayTech

    A: Yes you can easily spray water seal with the Control Pro 130 and the included 515 tip. A smaller tip might be preferable in order to control the amount of application. Check with Thompson's tech for the proper airless sprayer tip size. If you're using water based products, clean up is easy with a garden hose. If you're using oil-based products you should have two gallons of mineral spirits on hand, just in case. But you can clean the entire kit with less than a gallon.

    a year ago
    Helpful?

Q: I am going to be finishing the interior of a log home with Benjamin Moore Stays Clear acrylic polyurethane. It requires 1500 - 2000 psi and a tip size of .011-.015. Is it a good idea to spray polyurethane? Can this sprayer handle this product?

a year ago
1 Answer
  • WagnerSprayTech

    A: Yes, this is the perfect sprayer for your project. Less overspray than traditional airless tools and it still gets the job done fast. Make sure to cover or remove anything you don't want polyurethane on. Good luck with your project.

    a year ago
    Helpful?

Q: Has anyone tried to spray driveway sealer with this type of gun

2 years ago
1 Answer
  • WagnerSprayTech

    A: Thank you for reaching out to us. Driveway Sealer or Asphalt Sealer is not recommended to be use with the Control Pro 130 or any consumer paint sprayer. Please give our product support team a call at 1-800-328-8251 if you need further assistance.

    2 years ago
    Helpful?
