Tundra Tested
Tundra Tested 12V Winch Kit, 2000-lb
#140-0008-0
$109.99
Exclusive
Unfortunately, this product is discontinued in your selected store and nearby stores.
You may be interested in these similar products shown below.Similar Items
Quebec residents: For information on maintenance and repair click here.
Similar Items
Product Details
The Tundra Tested 12V Winch Kit, with a 2000 lb rated line pull, is powered by a Permanent Magnet 1.0HP, 12V DC motor. It comes equipped with 50' of 5/32" steel cable with a snap hook and has a 153:1 gear reduction ratio. The sealed handlebar mounted switch provides easy access, and the kit includes a mounting plate for convenient installation. The winch is also equipped with a 4-way roller fairlead to safeguard your vehicle from scratches, and a pull and turn free spooling clutch.
- Features
- Specifications
- Resources
Tundra Tested Winch features a 2,000 lbs (907.1 kg) rated line pull
Features a Permanent Magnet 1.0HP (0.75 kW), 12V DC motor
50' (15.2m) of 5/32" steel cable with snap hook
153:1 gear reduction ratio
Sealed handlebar mounted switch allows for easy access
Includes a mounting plate for easy installation
Equipped with a 4 way roller fairlead to protect your vehicle from being scratched
Pull and turn free spooling clutch
| Part Number | CM2000-A |
|---|---|
| Accessories List | Hook, Mounting Plate, Other, Remote Control |
| Advanced Features | No Advanced Features |
| Assembled Height (cm) | 10.50 cm |
| Assembled Height (ft) | 0.34 ft |
| Assembled Height (in) | 4.13 in |
| Assembled Length (cm) | 28.50 cm |
| Assembled Length (ft) | 0.94 ft |
| Assembled Length (in) | 11.22 in |
| Assembled Weight (kg) | 8.18 kg |
| Assembled Weight (lb) | 18.03 lb |
|---|---|
| Assembled Width (cm) | 10.50 cm |
| Assembled Width (in) | 4.13 in |
| Assembled Width (mm) | 105.00 mm |
| Batteries Required Quantity | 0 |
| Battery Voltage (V) | 12 V |
| Cable Length (ft) | 49.87 ft |
| Cable Length (m) | 15.20 m |
| Cord Gauge (ga) | Not Applicable |
| Cord Length (ft) | 0.00 ft |
| Cord Length (m) | 0.00 m |
| Cord Type | Not Applicable |
| Horsepower (HP) | 1 HP |
| Maximum Weight Capacity (g) | 909000.00 g |
| Maximum Weight Capacity (kg) | 909.00 kg |
| Maximum Weight Capacity (lb) | 2004.00 lb |
| Motor Type | Brushed |
| Number of Pieces | 1 |
| Package Depth (cm) | 32.00 cm |
| Package Depth (in) | 12.60 in |
| Package Height (cm) | 13.50 cm |
| Package Height (in) | 5.31 in |
| Package Weight (kg) | 8.40 kg |
| Package Weight (lb) | 18.52 lb |
| Package Width (cm) | 20.00 cm |
| Package Width (in) | 7.87 in |
| Primary Colour | Grey |
| Primary Material | Metal |
| Product Model Number | CM2000-A |
| Pull Capacity (kg) | 909.00 kg |
| Pull Capacity (lb) | 2004.00 lb |
Warranty
This product carries a 1 year exchange warranty redeemable at any Canadian Tire store.
Compare Similar Products
Only Show Differences | Currently Viewing | |||||
| Ratings | ||||||
| Accessories List | Hook, Mounting Plate, Other, Remote Control | Hook | Mounting Plate, Hook, Remote Control, Spooling Clutch | Mounting Plate, Hook, Remote Control, Spooling Clutch | Mounting Plate, Hook, Remote Control, Spooling Clutch | |
| Advanced Features | No Advanced Features | Permanent Magnet | No Advanced Features | No Advanced Features | No Advanced Features | |
| Assembled Height (cm) | 10.50 cm | 11.70 cm | 27.50 cm | 34.80 cm | 27.50 cm |
Shop Related Products
- Weekly Deals
- Customers Also Viewed
- Top Trending Products
- More From This Brand
Review Highlights
List of Pros Highlights
Pros
List of Cons Highlights
Cons
Suitable Cons could not be generated at this time.
Reviews
Customer Images and Videos
Filter Reviews
- price
- installation
- purchase
- for emergencies
- quality
- value
- satisfaction
- ease of use
Rating
Locale
1 to 5 of 69 Reviews
1 – 5 of 69 Reviews
Most Recent
3 out of 5 stars.
THE PRO'S & CON'S
a year ago

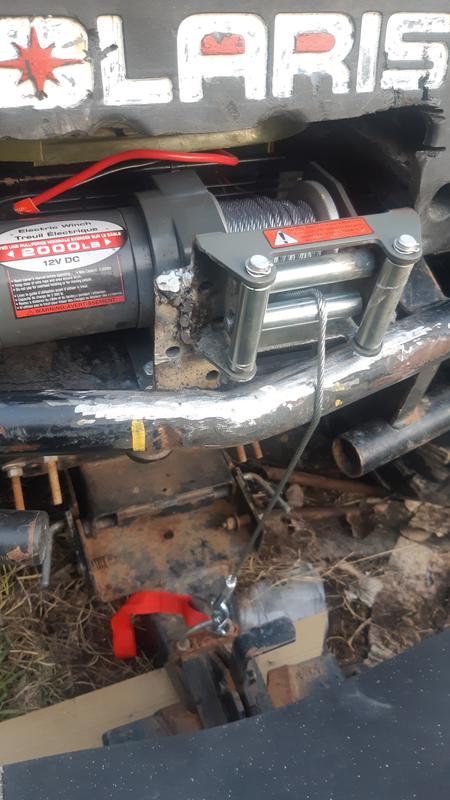

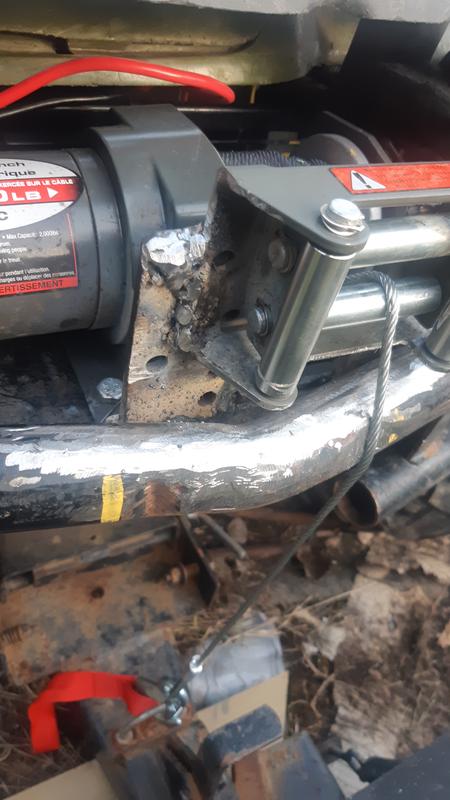

Mounting bracket is way to small so had to mount base plate to original base plate. Other than that works grate, easily installed. Definitely worth the money especially if you get at sale price like i did for $69.99.
Helpful?
5 out of 5 stars.
bon produit
a year ago
j ai acheté se produit a rabais super, tous est inclus pour l installation il ne manque rien, fameux facile a pluger meme les fils sont identifiés bravo super achat
Translate with GoogleYes, I recommend this product.
Helpful?
5 out of 5 stars.
Très satisfait
2 years ago
5 out of 5 stars.
très bon
2 years ago
4 out of 5 stars.
works like it should
2 years ago
Great lil winch works great
Helpful?
1 – 5 of 69 Reviews
Questions
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 40 Questions
Most helpful answers
Q: How fast is it? Est-ce que c'est rapide?
4 years ago4 Answers
- Translate with Google
A: Veuillez consulter le document ci-joint pour plus de détails sur la vitesse
4 years agoHelpful?
Q: bonjour est ce quil y a reculon si non est til possible inverser courant sil nest pas gronder sur la moto
2 years ago3 Answers
- Translate with Google
A: Le moteur du treuil peut être activé et désactivé à l'aide d'un mini-interrupteur.
2 years agoHelpful?
Q: What size gauge to use for positive and what size gauge to use for negative
2 years ago2 Answers
A: 4 guage would be plenty
2 years agoHelpful?
Q: how to get cable past rollers as it won't pull through the rollers
2 years ago2 Answers
A: Hi , I do not understand your question , tf your winch is new it is the hook that will not pass between the rollers , There is 2 ways you can pass the hook through the rollers , in both cases you must move the cable out electrikly or by free wheeling ( the knob on the side of the drum must be pulled out and turned 90 degrees for free wheeling ) 1- Unwind all your cabel unlock the end and pass it through the rollers lock the end , Where gloves reingage the knob to inrolle the cable in , Make sure that the cable does never crise cross this would damage the cable when you pull something heavy , When it happens and it will , Undwind a bit place the cable and rewind ... 2- Pull the knob out same as above pull the cable out about 4 inches , Undo the snap ring at one end of the top roller pull it out pass the hook and replace the roller and snap ring , You are ready to use your winch Have fun , Georgesg
2 years agoHelpful?
Q: Jusqu'à quelle température la plus basse il peut fonctionner ?
2 years ago2 Answers
- Translate with Google
A: il fonctionne tres bien jusqu'a environ -25
2 years agoHelpful?
Q: Does it come with remote
3 years ago2 Answers
A: Nope, A wired switch
3 years agoHelpful?
Q: Doe it fit on Honda rubicon 2022
3 years ago2 Answers
A: You’ll need the correct mounting bracket, the one that coed with the winch is a universal one and may not fit.
3 years agoHelpful?
Q: Can I reverse winding rotation by changing polarity on this winch with a switch (dpdt) and have it function both ways? Thanks
4 years ago2 Answers
A: I don't know if you can do that. But you don't need to, since it already functions both ways. You can automatically wind or unwind the winch just by pressing the IN or OUT button.
4 years agoHelpful?
Q: Is this waterproof or at least resistant? On a atv not being waterproof is not practical at all
4 years ago2 Answers
A: I modified it to rotate the chute on my tractor snow blower and used it all last winter with no problems. I inspected it this spring and there are no signs of water infiltration. So, I would say it is water proof.
4 years agoHelpful?
Q: What are the demensions of the mounting plate for this winch?
7 years ago2 Answers
A: Approximatley between 1mm and 38209 miles. :) I hope this helps! :D
5 years agoHelpful?
1 - 10 of 40 Questions
