Mastercraft 3/4-HP Shallow-Well Electric Jet Pump with Digital Control
#062-3593-2
$369.99
Exclusive
Buy Online :
- FREEAvailable
- Available
- Available
Pick up at Leduc, AB
3 In Stock
Pick up available 08:00 a.m., Dec 31
Quantity updated to 1
Also Find It in Store:Hardware Wall
Only 3 left
at Leduc, AB
Add to Registry
Quebec residents: For information on maintenance and repair click here.
Similar Items
Product Details
The Mastercraft 3/4-HP Shallow-Well Electric Jet Pump is a dependable solution for providing fresh water to rural homes, cottages, or farms. Powered by a robust 3/4-HP motor, this pump can draw enough water to meet your household needs. Whether you’re washing dishes at the cottage, irrigating your garden, or filling livestock troughs, this permanently installed shallow-well jet pump is a reliable and efficient water source.
Maximum flow rate: 600 GPH (2,271 L/h)
Built-in pressure gauge for easy pressure monitoring
Stainless-steel construction
Maximum head height: 25' (7.6m)
Built-in thermal overload protection prevents the motor from overheating by switching off the pump before damage is caused
Electronic pressure control automatically regulates water delivery and pressure levels, eliminating the need for a water tank
For permanent installation
Tape, a rigid pipe, cement, a foot valve, an adjustable pipe wrench, a screwdriver, a hacksaw and a tape measure (sold separately) may be needed in order to install this pump
Designed for durability and long-lasting performance
| Part Number | JSS200PC |
|---|---|
| Flow Rate (l/min) | 37.85 l/min |
| Maximum Operating Temperature (°C) | 35.00 °C |
| Power Source(s) | Electric |
| Outlet Valve Type | NPT |
| Pump type | Well Pump |
| Switch Type | Automatic |
| Accessories List | No Accessories Included |
| Advanced Features | Self-Priming |
| Assembled Height (cm) | 45.00 cm |
| Assembled Height (in) | 17.72 in |
|---|---|
| Assembled Length (cm) | 38.50 cm |
| Assembled Length (in) | 15.16 in |
| Assembled Weight (kg) | 8.7 kg |
| Assembled Weight (lb) | 19.18 lb |
| Assembled Width (cm) | 24.00 cm |
| Assembled Width (in) | 9.45 in |
| Batteries Required Quantity | 0 |
| Certifications | CSA Listed |
| Primary Material | Stainless Steel |
Warranty
- This product carries a 3 year exchange warranty redeemable at any Canadian Tire store.
Online Ordering
- Pick Up is free at most stores (some stores require a minimum order value before tax)
- Shipping fee is based on size and weight of products and distance from address to store
- Same-Day Delivery costs $9.99 per order
- Online Ordering Information
Returns
- Most products can be returned or exchanged at any Canadian Tire store within 90 days of purchase
- Some products are non-refundable and non-exchangeable
- The return policy outlined above may not apply to the product you are currently viewing. For complete details and eligibility, please refer to our Return Policy for exceptions.
Compare Similar Products
Only Show Differences | ||||||
| Ratings | ||||||
| Flow Rate (l/min) | 37.85 l/min | |||||
| Maximum Operating Temperature (°C) | 35.00 °C | 35.00 °C | 35.00 °C | 35.00 °C | 35.00 °C | |
| Power Source(s) | Electric | Electric | Electric | Electric | Electric |
Shop Related Products
- Weekly Deals
- Customers Also Viewed
- Top Trending Products
- More From This Brand
Weekly Deals
Review Highlights
List of Pros Highlights
Pros
List of Cons Highlights
Cons
Suitable Cons could not be generated at this time.
Reviews
Customer Images and Videos
Filter Reviews
- purchase
- price
- installation
- returns
- noise level
- opening
- satisfaction
- quality
Rating
Locale
1 to 5 of 48 Reviews
1 – 5 of 48 Reviews
Most Recent
5 out of 5 stars.
Pump
5 months ago
My second one my first one lasted 6 years. Good pump for the price
Helpful?
5 out of 5 stars.
Works for me
8 months ago

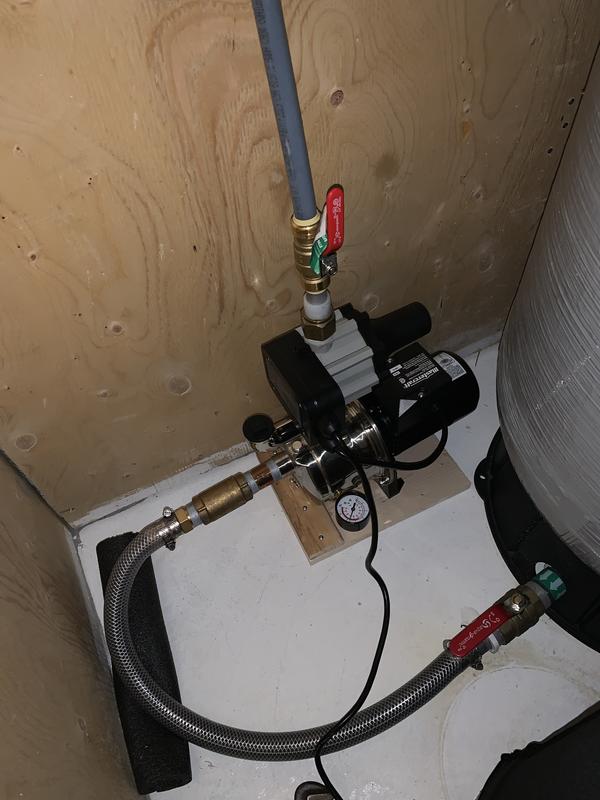

We are on a rural pipeline with “city water” but no pressure. We use this to suck out of a storage tank. I think my first one lasted about 4 years. It still pumps but was leaking around a seal. I just purchased another one. They are small. They run whenever you run water which takes some getting used to. Once it’s pumping you can open another faucet and not see a drop in pressure. If you have any drips in your house you will know because it will constantly cut in. I like this. It’s not for everyone though. We keep a spare in our family incase one breaks when a store is closed or not in stock.
Helpful?
5 out of 5 stars.
Mastercraft 3/4-HP Shallow-Well Electric Jet Pump
a year ago
This is a good pump. No issues after using it for about 2 months now. Easy to connect and install. Provides consistent water pressure. It's a fair price compared to other available products.
Helpful?
4 out of 5 stars.
Cottage pump
a year ago
Great pump for a cottage
Helpful?
1 out of 5 stars.
CANADIAN TRIE PRESSURE PUMP
a year ago
DON'T WASTEYOUR MONEY loud and don't put out much pressure
Helpful?
1 – 5 of 48 Reviews
Questions
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 88 Questions
Most helpful answers
Q: Do I need a tank for this pump? new cottage owner here, so trying my hand at some light handy work. I removed the old pump and tank and nothing but rusty water. So I am looking into a tankless unit.
4 years ago3 Answers
A: If you're using the pump to pump water from one place to another, then no tank is needed. If it's for a domestic water supply, we suggest using a tank for a stable water supply.
4 years agoHelpful?
Q: Can you reduce the pressure on these pumps?? Mine goes up to 60 and it blows off my relief valve on the hotwater tank.thought it might be my tank but replaced the hotwater tank and still it blows off.
10 months ago2 Answers
A: Our pump runs at 40lbs. There is a small screw on the end of the control panel. But it doesn’t make any difference.
10 months agoHelpful?
Q: Is it normal on this pump that the pressure gauge only shows pressure when the pump is cycled on? When it kicks out the gauge reads 0? Also having issue where pump loses pressure and prime if it sits for a few hours without use. No leaks, new foot valve.
a year ago2 Answers
A: The picture in the add has the pump connected to a pressure tank, not required as pump delivers same pressure that is more than any tank I had before.
a year agoHelpful?
Q: How do I change the gauge? Is it as simple as unscrewing the old one and screwing in a new one?
2 years ago2 Answers
A: Yes it is! Turn off the pump let the pressure go down, then unscrew the gauge and screw the new one in
2 years agoHelpful?
Q: it's been a couple years without issue, but now and it has decided to "fault". The pressure gauge needle is on the wrong side of the stop. Water flows through, but it throws the fault after 2 mins. .any ideas other than there may be a broken pipe?
2 years ago2 Answers
A: Make sure your connections are tight, valves are closed, plugs are tight, nothing is leaking plus check your intake to make sure it is clean & fully functioning.
2 years agoHelpful?
Q: Is this pump plug in and go, or does it require to be hard wired in? Can't seem to find this information from anything I am reading about it. We have the Bur-Cam model and it is corded.
2 years ago2 Answers
A: It plugs in to a normal 115amp outlet. A few things to note about this pump: (1) it’s pumps about 10am/min under perfect conditions so is fairly weak for a 3/4hp pump; (2) the “swing” between cut-in and cut-out pressure is 25lbs to 60lbs which is not standard; (3) there is no adjustment for the cut-in or cut-off pressures so you’re stuck with that swing. The 25lbs cut-off is too low for my configuration…both my shower diverters howl when the pressure drops below 30lbs and the flow I’m getting is barely enough to build pressure when a tap is open. I’m going to replace this weak pump with a 3/4hp or 1hp Red Lion pump which have 16gpm and 23gpm ratings respectively as soon as possible. I put in a 3/4hp Red Lion pump for my sprinkler system and it rocks AND I can adjust the CI and CO pressures as needed. Good luck!
2 years agoHelpful?
Q: Have had pump for 6yrs with little to no issues. Now getting lots of air in the water for several days now? Checked for leaks in the plumbing and recently replaced the foot valve...all good. Is there a diaphragm in the pump that may need to be replaced?
3 years ago2 Answers
A: I don’t think the units are serviceable. But I would try to prime it again before disconnecting
3 years agoHelpful?
Q: What is the PSI of this pump?
4 years ago2 Answers
A: Turns on when pressure drops to approximately 25psi and keeps going as long as there's flow up to approximately 40 psi. Works well for softener and iron regenerator only notice a minimal drop in pressure in sink faucets due to low flow aerator so it takes a bit more time for pump to turn on. Make sure to use good Teflon tape and don't try to over tighten the fitting better to tighten when it leaks then breaking the neck
4 years agoHelpful?
Q: Mastercraft Well Jet Pump 062-3593-2 Serial # 010454 Is there a minimum and maximum size of water line to run off the pump? How about the number of elbows on the line? Will this effect the pressure?
4 years ago2 Answers
A: Bends or elbows in pipes cause a reduction in the available pressure head at the discharge end of the pipe. Even running through a length of straight pipe reduces the available pressure head, which can be quite noticeable when using a long, small-diameter pipe.
4 years agoHelpful?
Q: Mastercraft Well Jet Pump 062-3593-2 Serial Number 010454 This pump stops working after one minute if more than one tap is turned on. It then requires a reset. It also requires a reset after 6-8 hours of not turning on any taps or flushing. Suggestions?
4 years ago2 Answers
A: This sounds suspiciously like an input flow issue. For the multiple taps running concurrently, it sounds like the input flow is not able to keep up with the demand. For the 6-8 hours requiring reset, once again, sounds like the pump is losing its prime. Check the input pipe and footer for leaks
4 years agoHelpful?
1 - 10 of 88 Questions
