Mastercraft
Mastercraft Full Autoranging Digital Multimeter with 11 Functions and Auto Power Off After 15 mins, Blue
#052-0052-2
$73.99
Exclusive
Buy Online :
- FREEAvailable
- Available
- Available
Pick up at Leduc, AB
Get it Today !9 In Stock
Pick up available 10:30 a.m., Mar 24
Quantity updated to 1
Also Find It in Store:
9 In Stock at Leduc, AB
Aisle 54
Add to Registry
Quebec residents: For information on maintenance and repair click here.
Similar Items
Product Details
The Mastercraft Full Autoranging Digital Multimeter offers 11 functions, including DC/AC voltage, current, resistance, continuity, diode testing, capacitance, and frequency. Its auto-ranging feature automatically determines component values, making it efficient and easy to use. The multimeter also includes a large backlit LCD screen, overload protection for safety, and test lead input indication technology to ensure correct lead placement. It powers off automatically after 15 minutes for energy efficiency.
Lightweight construction makes it easy to carry to jobsites
DC voltage - 400m, 4V, 40V, 400V, 600V
AC voltage - 4V, 40V, 400V, 600V
DC current - 400µA, 4m, 40mA, 400mA, 4A, 10A
AC current - 400µA, 4m, 40mA, 400mA, 4A, 10A
Resistance - 400, 4k, 40k, 400k, 4M, 40M
Frequency - 9.999Hz ,99.99Hz, 999.9Hz, 9.999kHz, 99.99kHz, 999.9kHz, 9.999MHz
Capacitance - 40n, 400n,4u,40u,400u,1000uF
Duty cycle test 5-95%
Testing parameters: diode test, continuity test, NCV test
Digital display size is 1.1" (2.8 cm), requires 1 9V battery (not included)
Full auto-ranging: automatically finds the range value of the component being tested
Large backlit LCD screen
Overload protection for added safety
Test lead input indication technology
| Part Number | 9901 |
|---|---|
| Accessories List | Batteries Included |
| Advanced Features | Audible Alert, Auto Ranging, Backlit, Data Hold, DC Polarity Indicator |
| Assembled Height (cm) | 18.50 cm |
| Assembled Height (ft) | 0.61 ft |
| Assembled Height (in) | 7.28 in |
| Assembled Length (cm) | 8.90 cm |
| Assembled Length (ft) | 0.29 ft |
| Assembled Length (in) | 3.50 in |
| Assembled Width (cm) | 6.10 cm |
| Assembled Width (in) | 2.40 in |
|---|---|
| Assembled Width (mm) | 61.00 mm |
| Batteries Required Quantity | 1 |
| Battery Type/Battery Size | 9V |
| Category Rating | CAT IV |
| Display Type | Digital, LCD |
| Grade Rating | Residential/DIY |
| Measures | AC/DC Voltage, Amperage, Resistance, Continuity, DC Current |
| Number of Ranges | 43 |
| Package Depth (cm) | 24.50 cm |
| Package Depth (in) | 9.65 in |
| Package Height (cm) | 6.50 cm |
| Package Height (in) | 2.56 in |
| Package Weight (kg) | 0.50 kg |
| Package Weight (lb) | 1.10 lb |
| Package Width (cm) | 16.50 cm |
| Package Width (in) | 6.50 in |
| Primary Colour | Blue |
| Primary Material | ABS Plastic |
| Tester Type | Multimeter |
| Voltage Rating (V) | 600 V |
Warranty:
- This product carries a 1 year exchange warranty redeemable at any Canadian Tire store.
Online Ordering
- Pick Up is free at most stores (some stores require a minimum order value before tax)
- Shipping fee is based on size and weight of products and distance from address to store
- Same-Day Delivery costs $9.99 per order
- Online Ordering Information
Returns
- Most products can be returned or exchanged at any Canadian Tire store within 90 days of purchase
- Some products are non-refundable and non-exchangeable
- The return policy outlined above may not apply to the product you are currently viewing. For complete details and eligibility, please refer to our Return Policy for exceptions.
Compare Similar Products
Only Show Differences | ||||||
| Ratings | ||||||
| Accessories List | Batteries Included | Batteries Included | Batteries Included | Batteries Included | Batteries Included | |
| Advanced Features | Audible Alert, Auto Ranging, Backlit, Data Hold, DC Polarity Indicator | |||||
| Assembled Height (cm) | 18.50 cm | 5.20 cm | 17.50 cm | 11.50 cm | 19.00 cm |
Shop Related Products
- Weekly Deals
- Customers Also Viewed
- Top Trending Products
- More From This Brand
Weekly Deals
Frequently Bought Together
+++
$266.96$281.96
Review Highlights
List of Pros Highlights
Pros
List of Cons Highlights
Cons
Suitable Cons could not be generated at this time.
Reviews
Customer Images and Videos
Filter Reviews
- price
- purchase
- quality
- ease of use
- product features
- value
- functional
- large
Rating
Locale
1 to 5 of 122 Reviews
1 – 5 of 122 Reviews
Most Recent
5 out of 5 stars.
Multimetre numerique
11 days ago
Marchandise conforme à l'image fonction pile 9 volts bon affichage se transporte et manipule bien je le recommande
Translate with GoogleHelpful?
1 out of 5 stars.
Not great
a month ago
Don’t like it. Voltage moves all over the place
Helpful?
Response from Canadian Tire:
a month ago
Customer Service with AI Support
Thanks for your review. If you have more questions, then please contact us at this phone number: 1-800-689-9928.
1 out of 5 stars.
Expensive and will stop working
a month ago
At the regular price you can get professional grade one.
I almost didn't use it and it is starting to turn off by itself after 5 years - even with fresh battery
No, I do not recommend this product.
Helpful?
Response from Canadian Tire:
a month ago
Customer Service with AI Support
Thanks for your review! If you have more questions, then please contact us at this phone number: 1-800-689-9928.
4 out of 5 stars.
Does the job
a month ago
I used it initially to test resistance on a heater motor then voltage at the plug in. Works fine. These less expensive ohm meters are fine for most jobs at home. Mechanics would likely prefer more sophisticated devices. I did not care for the bulky leads that only had a very short probe that really didn’t protrude far enough out of the housing. It makes it difficult to test terminals in deeper recesses.
Helpful?
1 out of 5 stars.
Inconsistent measurement of low AC
2 months ago
Can't get correct measurement of 24Vac - measurement inconsistant compared to another multimeter
No, I do not recommend this product.
Helpful?
Response from Canadian Tire:
2 months ago
Customer Service with AI Support
I apologize for the inconvenience you have experienced with the MASTERCRAFT Mastercraft Full Autoranging Digital Multimeter with 11 Functions and Auto Power Off After 15 mins, Blue. We appreciate your feedback as it helps us continuously improve our products.
If you have not already tried returning the product, we recommend taking it to your nearest store for further assistance. For more information or additional support, please contact our call center at 1-800-689-9928.
1 – 5 of 122 Reviews
Questions
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 52 Questions
Most helpful answers
Q: multimeter acceessories where can i purchase temperature test lleads
18 years ago4 Answers
A: Just purchased one at Canadian Tire 52-0037-0 if it is not available, it is a k type thermocouple that hooks to a straight through adapter that plugs into the meter
11 years agoHelpful?
Q: Where can I find the product which uses AAA battery? Some says, 9V battery is used for this product; however, on features, it is written that AAA battery is used.
14 years ago3 Answers
A: 9 volt battery was used on the older version of 052-0052-2 as per google search. Newer version of 052-0052-2 uses 2xAAA batteries as clearly stated on packaging.
9 years agoHelpful?
Q: How fast does continuity tone respond? Some of my more expensive meters take what seems like forever to generate a tone during continuity testing. You can short the leads together and count to 3 or 4 before the tone appears. Nearly useless. How's this one?
15 years ago3 Answers
A: thankfully it responds immediately. and, i know what you mean. i have some meters that require undisturbed contact for almost 3 seconds before it responds. aggravating, to say the least
13 years agoHelpful?
Q: How does temperature probe connect? The temp probe says on the package it is for this meter but it comes with two flat blades that can't plug into the meter anywhere I can see. Is there an adapter available?
16 years ago3 Answers
A: It should be in yellow on the front of the meter.
15 years agoHelpful?
Q: Does this meter give true RMS readings?
16 years ago3 Answers
A: The latest one in Blue color claims to show True RMS. Older models with same SKU do not, I have both. RMS means Root Mean Square and it is the integration over each AC cycle to show the energy value of the voltage or current. Most meters can show only an average and this is fine unless you measure the current of a dimmer or pulse width controlled load which is not a sinusoid. Then it is an error to show the average. Look up "crest factor" for more help on this. AC Power factor also plays a role in energy and power measurement and this meter could not help in this matter.
9 years agoHelpful?
Q: Where do you put the 9 volt battery provided?
a year ago2 Answers
A: You have to take the screws out of the back and separate the complete meter in 2 halves.
11 months agoHelpful?
Q: Is there an instruction pamphlet for this item? There were no instructions in the box when purchased.
4 years ago2 Answers
A: Yes there’s a user manual
4 years agoHelpful?
Q: Can this tester be used to measure car battery voltage and current?
10 years ago2 Answers
A: You can use this to measure the voltages of most batteries, including a car battery. Measuring current, however, is completely different and you really should know what you are doing before attempting any measurement. A car battery can deliver hundreds of amps and will blow the fuse in the meter instantly; alternately, measuring house AC current could electrocute you if you touch the leads. This is too short a space to explain everything. My advice is get some education.
10 years agoHelpful?
Q: Where do I find the temperature probe 52-0037 ? Where do I find the temperature probe 52-0037 ? That item does not compute in your website ... And my local store does not have a clue what it is ???
10 years ago2 Answers
A: When you search the Canadian Tire site for 52-0037 you get no results. When you search 052-0037-0 the product comes up.
9 years agoHelpful?

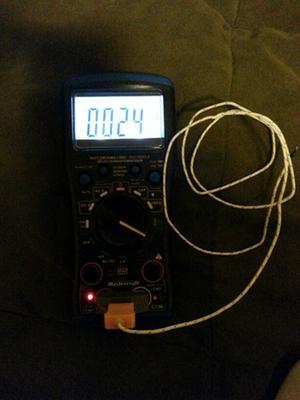

Q: How does the LED backlight turn on? I bought the most recent version 052-0052-5. The LED came on at one point, but I don't know how it was done or how to repeat.
11 years ago2 Answers
A: Just hold down the far right blue button until it lights
10 years agoHelpful?
1 - 10 of 52 Questions
