MRCOOL
This do-it-yourself mini split heat pump system makes heating and cooling a breeze. The simple installation process with pre-charged line set means you can get it set up in just a few hours using basic tools, while still delivering impressive performance. The energy star rated design is 20.5 percent efficient, enough to handle areas up to 1000 square feet. Built to last with durable construction and gold fin condenser, it offers auto, heat, cool, fan, dry and sleep modes plus handy features like follow me remote control and smartphone control app. A limited lifetime compressor warranty backs this straightforward system that effortlessly balances efficiency, comfort and simplicity.
MRCOOL Ductless DIY Mini Split Heat Pump Complete System is a powerful single-zone system that has the capability of heating and cooling an area up to 1000 sq ft (92.9 sq m)
Comes complete with a 24K condenser, 24K air handler, and a 25 ft. line set pre-charged with R-410A refrigerant
Can achieve an outstanding 20.5 SEER efficiency rating allowing it to be Energy Star certified
System has many operating modes to select from to suit the needs of the user, including heat, cool, auto, fan-only, dry (dehumidification), and sleep

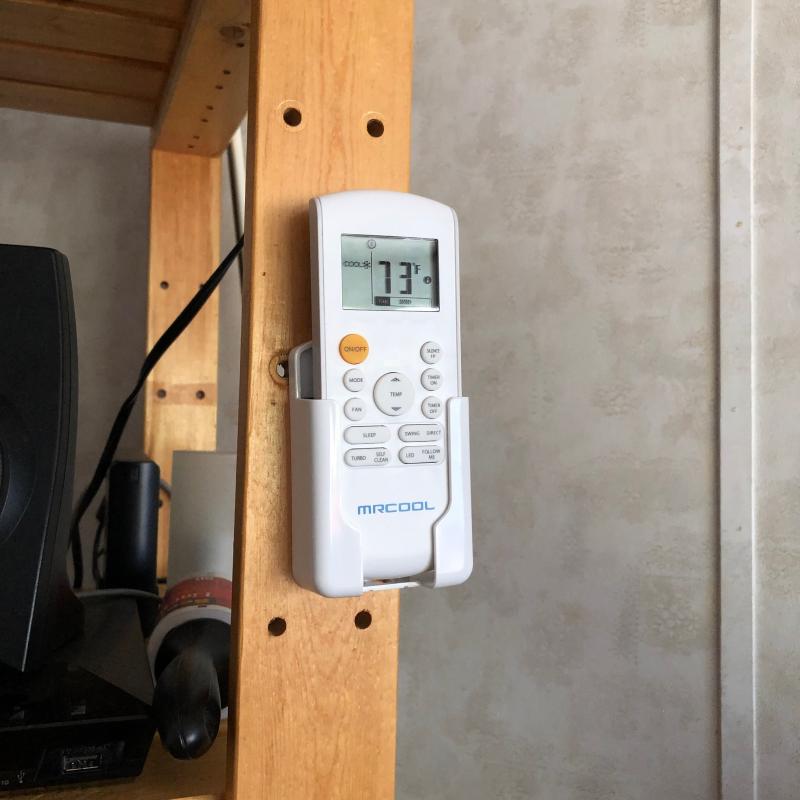

Also has the Follow Me function that adjusts the temperature of the room based on the temperature being read by the hand-held remote control
Features the convenience of being able to operate its modes and functions with your smartphone by using the Smart HVAC app
Gold Fin® condenser is built to resist long term corrosion
Variable-speed DC inverter compressor technology cuts operating costs
| Part Number | DIY-24-HP-WM-230C25 |
|---|---|
| Air Conditioner Type | Split System Heat Pump |
| Area Coverage (sq ft) | 999.97 ft² |
| Cooling Power (btu/hr) | 23,100/22,600 |
| Number of Speeds | 4 |
| Minimum Window Opening Height (in) | 0.00 in |
| Maximum Window Opening Height (in) | 0.00 in |
| Minimum Window Opening Width (in) | 0.00 in |
| Maximum Window Opening Width (in) | 0.00 in |
| Certifications | UL Listed, Energy Star |
| Primary Colour | White |
|---|---|
| Maximum Run Time (h) | 24 h |
| Noise Level (dB) | 49 dB |
| Wireless Standard Compatibility | Bluetooth, Wi-Fi |
| Smart System Compatibility | Amazon Alexa, Google Assistant |
| Advanced Features | Auto Defrost, Remote Control Operated, Shutoff Timer, Oscillating, Replaceable Filter, Indicator Light |
| Accessories List | Drain Hose, Mounting Hardware, Remote Control |
| Thermostat Type | Adjustable Thermostat |
| Filter Type | No Filter |
| Indicator Light Type | Temperature |
| Energy Efficiency Ratio | 20.50 |
| Maximum Air Flow Capacity (CFM) | 606 ft³/min |
| Heating Seasonal Performance Factor (HSPF) | 10.5 |
| Dehumidification Rate (l/hr) | 0.00 l/h |
| Voltage (V) | 230 V |
| Wattage Rating (w) | 0 W |
| Control Type | Digital |
| Cord Length (in) | 300.00 in |
| Outlet Type | 1-15P/5-15P |
| Batteries Required Quantity | 0 |
| Enclosure Material | Plastic |
| Minimum Operating Temperature (°C) | -25.00 °C |
| Maximum Operating Temperature (°C) | 50.00 °C |
| Minimum Temperature (°C) | -10.00 °C |
| Maximum Temperature (°C) | 30.00 °C |
| Product Use(s) | Heat Pump |
| Assembled Height (in) | 42.52 in |
| Assembled Length (in) | 48.00 in |
| Assembled Width (in) | 40.00 in |
| Assembled Weight (lb) | 265.79 lb |
| Package Height (in) | 42.52 in |
| Package Depth (in) | 48.00 in |
| Package Width (in) | 40.00 in |
| Package Weight (lb) | 265.79 lb |
| Accessories List | Drain Hose, Mounting Hardware, Remote Control |
| Advanced Features | Auto Defrost, Remote Control Operated, Shutoff Timer, Oscillating, Replaceable Filter, Indicator Light |
| Air Conditioner Type | Split System Heat Pump |
| Area Coverage (sq ft) | 999.97 ft² |
| Area Coverage (sq m) | 92.90 m² |
| Assembled Height (cm) | 108.00 cm |
| Assembled Height (ft) | 3.54 ft |
| Assembled Height (in) | 42.52 in |
| Assembled Length (cm) | 121.92 cm |
| Assembled Length (ft) | 4.00 ft |
| Assembled Length (in) | 48.00 in |
| Assembled Weight (kg) | 120.56 kg |
| Assembled Weight (lb) | 265.79 lb |
| Assembled Width (cm) | 101.60 cm |
| Assembled Width (in) | 40.00 in |
| Assembled Width (mm) | 1016.00 mm |
| Batteries Required Quantity | 0 |
| Battery Type/Battery Size | AAA |
| Certifications | UL Listed, Energy Star |
| Control Type | Digital |
| Cooling Power (btu/hr) | 23,100/22,600 |
| Cord Length (cm) | 762.00 cm |
| Cord Length (ft) | 25.00 ft |
| Cord Length (in) | 300.00 in |
| Dehumidification Rate (gal/hr) | 0.00 gal (US)/h |
| Dehumidification Rate (l/hr) | 0.00 l/h |
| Enclosure Material | Plastic |
| Energy Efficiency Ratio | 20.50 |
| Filter Type | No Filter |
| Heating Seasonal Performance Factor (HSPF) | 10.5 |
| Indicator Light Type | Temperature |
| Maximum Air Flow Capacity (CFM) | 606 ft³/min |
| Maximum Operating Temperature (°C) | 50.00 °C |
| Maximum Operating Temperature (°F) | 122.00 °F |
| Maximum Run Time (h) | 24 h |
| Maximum Temperature (°C) | 30.00 °C |
| Maximum Temperature (°F) | 86.00 °F |
| Maximum Window Opening Height (cm) | 0.00 cm |
| Maximum Window Opening Height (in) | 0.00 in |
| Maximum Window Opening Width (cm) | 0.00 cm |
| Maximum Window Opening Width (in) | 0.00 in |
| Minimum Operating Temperature (°C) | -25.00 °C |
| Minimum Operating Temperature (°F) | -13.00 °F |
| Minimum Temperature (°C) | -10.00 °C |
| Minimum Temperature (°F) | 14.00 °F |
| Minimum Window Opening Height (cm) | 0.00 cm |
| Minimum Window Opening Height (in) | 0.00 in |
| Minimum Window Opening Width (cm) | 0.00 cm |
| Minimum Window Opening Width (in) | 0.00 in |
| Noise Level (dB) | 49 dB |
| Number of Speeds | 4 |
| Outlet Type | 1-15P/5-15P |
| Package Depth (cm) | 121.92 cm |
| Package Depth (in) | 48.00 in |
| Package Height (cm) | 108.00 cm |
| Package Height (in) | 42.52 in |
| Package Weight (kg) | 120.56 kg |
| Package Weight (lb) | 265.79 lb |
| Package Width (cm) | 101.60 cm |
| Package Width (in) | 40.00 in |
| Primary Colour | White |
| Product Use(s) | Heat Pump |
| Replaceable/Rechargeable Battery | Replaceable Battery |
| Smart System Compatibility | Amazon Alexa, Google Assistant |
| Sustainability | Energy Star Certified |
| Thermostat Type | Adjustable Thermostat |
| Voltage (V) | 230 V |
| Wattage Rating (w) | 0 W |
| Wireless Standard Compatibility | Bluetooth, Wi-Fi |
