MotoMaster
MotoMaster Positioning Jacks, 2500-lbs
#009-1090-0
$229.99
Exclusive
Unfortunately, this product is discontinued in your selected store and nearby stores.
You may be interested in these similar products shown below.Similar Items
Quebec residents: For information on maintenance and repair click here.
Similar Items
Product Details

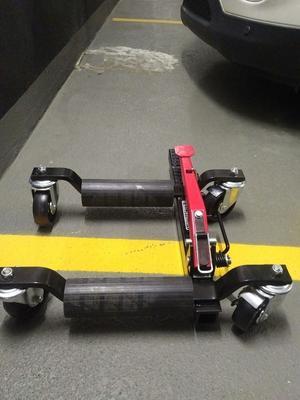

MotoMaster Positioning Jacks contains a pair of 1,250 lbs (567 kg) automotive positioning jacks
Fits tires up to 9'' (23 cm) wide and 32'' (81 cm) in diameter
Two oversized 23-7/8" x 21-1/4" (60.5 x 54 x 31 cm) positioning jacks
Four heavy-duty 4'' (10.2 cm), non-marring swivel castors for easy manoeuvrability
Ideal for moving disabled vehicles
Unlike vehicle dollies, the positioning jack's lifting functionality allows you to move the vehicle without using a floor jack
| Part Number | 0091090 |
|---|---|
| Accessories List | Casters |
| Advanced Features | Easy Assembly, Locking Wheels |
| Assembled Height (cm) | 26.00 cm |
| Assembled Height (ft) | 0.85 ft |
| Assembled Height (in) | 10.24 in |
| Assembled Length (cm) | 60.50 cm |
| Assembled Length (ft) | 1.98 ft |
| Assembled Length (in) | 23.82 in |
| Assembled Weight (kg) | 26.80 kg |
| Assembled Weight (lb) | 59.08 lb |
|---|---|
| Assembled Width (cm) | 54.50 cm |
| Assembled Width (in) | 21.46 in |
| Assembled Width (mm) | 545.00 mm |
| Certifications | ANSI Certified |
| Consumer Pack Size | 1 |
| Finish | Powder Coated |
| Maximum Lift Height | 0.00 in |
| Maximum Lift Height (cm) | 0.00 cm |
| Maximum Weight Capacity (g) | 567000.00 g |
| Maximum Weight Capacity (kg) | 567.00 kg |
| Maximum Weight Capacity (lb) | 1250.02 lb |
| Minimum Lift Height (cm) | 0.00 cm |
| Minimum Lift Height (in) | 0.00 in |
| Number of Pieces | 2 |
| Package Depth (cm) | 60.50 cm |
| Package Depth (in) | 23.82 in |
| Package Height (cm) | 23.00 cm |
| Package Height (in) | 9.06 in |
| Package Weight (kg) | 38.50 kg |
| Package Weight (lb) | 84.88 lb |
| Package Width (cm) | 47.50 cm |
| Package Width (in) | 18.70 in |
| Primary Colour | Black |
| Primary Material | Steel |
| Type of Lift/Stand | Transmission Jack |
Warranty
This product carries a manufacturer warranty. Please visit or contact your local Canadian Tire store for details. This product carries a manufacturer warranty. Please visit or contact your local Canadian Tire store for details.
User Manual
View user manuals and additional product information
Online Ordering:
Pick Up is free at most stores (some stores require a minimum order value before tax)
Shipping fee is based on size and weight of products and distance from address to store
Same-Day Delivery costs $9.99 per order
Same-Day Delivery and Ship to Home are unavailable for tires and wheels
Returns:
Most products can be returned or exchanged at any Canadian Tire store within 90 days of purchase
Some products are non-refundable and non-exchangeable
Special order hard parts and specific application automotive parts must be returned to original store of purchase
The return info outlined above may not apply to the product you are currently viewing. For complete details and exceptions, please refer to our Return Policy.
Compare Similar Products
Only Show Differences | Currently Viewing | |||||
| Ratings | ||||||
| Accessories List | Casters | |||||
| Advanced Features | Easy Assembly, Locking Wheels | |||||
| Assembled Height (cm) | 26.00 cm |
Shop Related Products
- Weekly Deals
- Customers Also Viewed
- Top Trending Products
- More From This Brand
Weekly Deals
Review Highlights
Reviews
Customer Images and Videos
Filter Reviews
- purchase
- quality
- parking
- satisfaction
- warranty
- setup
- portable
- large
Rating
Locale
1 to 5 of 21 Reviews
1 – 5 of 21 Reviews
Most Recent
5 out of 5 stars.
Works great! Great value!
5 years ago
I purchased these jacks to move a classic car short notice.
At a considerable less amount of money compared to other brands, I wasn't anticipating too good of quality?
I was over thrilled at the product when it arrived and its ability to move the vehicle is fantastic. These dollies are a huge time saver when wanting to move vehicles in and out of a storage position.
I hope that Canadian Tire continues to keep these in their product line up. A great product for a great price!!
Yes, I recommend this product.
Helpful?
5 out of 5 stars.
Excellent. Perfect for moving a 4x4.
5 years ago
Makes moving a Land Rover by myself super simple! Great for moving the truck into tight spaces.
Yes, I recommend this product.
Helpful?
4 out of 5 stars.
Cric de positionnement
5 years ago
Très utile pour changer les pneus. C'est un peu lourd. Je suis satisfait.
Translate with GoogleHelpful?
5 out of 5 stars.
Great quality
6 years ago
Let me start by saying, these are not hydraulic, which has been mentioned on previous reviews. I was very impressed with the castors. They are large, and made of poly, not cheap plastic, which would eventually crack, no doubt. They are heavy, meaning robust, which is what you need. I moved two cars by myself, which should indicate, the ability of these dolly's, to do the job. One pointer: Make sure you position the dolly, about two inches away from the outside of the wheel. I found as I stepped on the pedal, the dolly would migrate close to the tire and wheel, which could create a wear issue. Really happy I purchased these, and are really worth the extra money.
Yes, I recommend this product.
Helpful?
5 out of 5 stars.
Great for changing tires
6 years ago
Had them for a year now. I use them to change my winter/ summer tires.
I find the 17 inch wheels on my suv heavy so I simply put the wheels on the lifts and wheel them in place...NO LIFTING...works great !
Helpful?
1 – 5 of 21 Reviews
Questions
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 14 Questions
Most helpful answers
Q: Is there a wheel lock so the car doesnt move? Are there wheel locks? I have a grade in my garage as most of the world does, so is this just for warehouses or will it work for a regular garage on an incline?
11 years ago3 Answers
A: Agreed. 2 Wheel locks on each jack. Wouldn't rely on them to hold the weight of the car on a surface that isn't perfectly flat.
7 years agoHelpful?
Q: Just wondering with the positioning jacks how close the 9 inch tire width is. My tires are approx 10 inches wide so I don’t know if there is a bit of tolerance or is 9 inch absolute width it will take Thx
6 years ago1 Answer
A: This Positioning Dolly Pair has a 9-inch usable width that corresponds to the size of the rollers. If you have tires that measure 10” or greater, it is possible they will rub against the static frame of the dolly while in use and be result in a rather frustrating experience. Fortunately, we recognize many vehicles are equipped with larger tires and have heard our customers: in February 2020, we will be launching a new larger 12-inch size for the positioning dolly pair. Regrettably, this does not help you now but we wanted to be sure you were aware these are coming.
6 years agoHelpful?
Q: Is there a downloadable product manual available for the MECHANICAL version of the positioning jack?
7 years ago1 Answer
A: Please contact our office at 1-800-387-8803 to request a copy of the manual
7 years agoHelpful?
Q: Not as Advertised Why do you advertise this as a hydraulic jack set?
9 years ago1 Answer
A: The product has been improved after taking the customer reviews into account. The new product has a ratchet mechanism with 1,250lbs/each capacity.
9 years agoHelpful?
Q: Are there bearings in the wheels?
9 years ago1 Answer
A: Yes, there are needle bearings in the wheels.
9 years agoHelpful?
Q: j'ai besoin du manuel ou je peux le rtrouver j'ai besoin du manuel pour remplir l'huile car je ne c'est pas comment Article #009-1090-0
9 years ago1 Answer
- Translate with Google
A: S'il vous plaît contactez Service à la clientèle Canadian Tire 1-800-565-3356
9 years agoHelpful?
Q: can I use two jacks on front, and move the vehicle, then the back or do I need a jack on each tire?
10 years ago1 Answer
A: You can use two by placing them under the front and released the parking (emergency ) break, if you were to move the rear and leave the front tires on the ground and you have a front wheel drive car you would have to place the car in neutral to free wheel the front otherwise you will drag your tires and cause undue stress onto your cars drive train and steering. 4 jacks it high recommended for maximum mobility and monurvorbility.
10 years agoHelpful?
Q: How wide of a tire can this support?
11 years ago1 Answer
A: Fits tires up to 11" (29 cm) wide
11 years agoHelpful?
Q: J'urtilise Huile à Cric Motomaster ISO AW32 Les Crics se vident tous seul même s'il y a aucun poids dessus Que dois je faire?
11 years ago1 Answer
- Translate with Google
A: Cet article est une garantie de remplacement de 1 an honorée dans tout magasin Canadian Tire.
11 years agoHelpful?
Q: Quel type d'huile doit -on utiliser (Viscosité)? J'ai acheteé cette article il y a déjà 3 ans je m'en serts pour remiser une voiture chaque hiver, Au printemps lors qu'il est temps de sortir la voiture de sa position les crics ne fonctionnent plus car l'huile c'est répandu au sol.
11 years ago1 Answer
- Translate with Google
A: Vérifier l'huile hydraulique: enlever le bouchon d'huile (n ° 19) sur la pompe, verser le reste de l'huile de la pompe, et ajouter plus de 75% du niveau d'huile selon les besoins. Ne pas utiliser de liquide de frein ou de tout autre liquide impropre et éviter de mélanger différents types d'huile lors de l'ajout de l'huile hydraulique. Seulement la bonne qualité de l'huile de vérin hydraulique (par exemple n ° 32) peut être utilisé. Rappel: Il est recommandé de remplacer le pétrole se faire par des techniciens qualifiés.
11 years agoHelpful?
1 - 10 of 14 Questions
