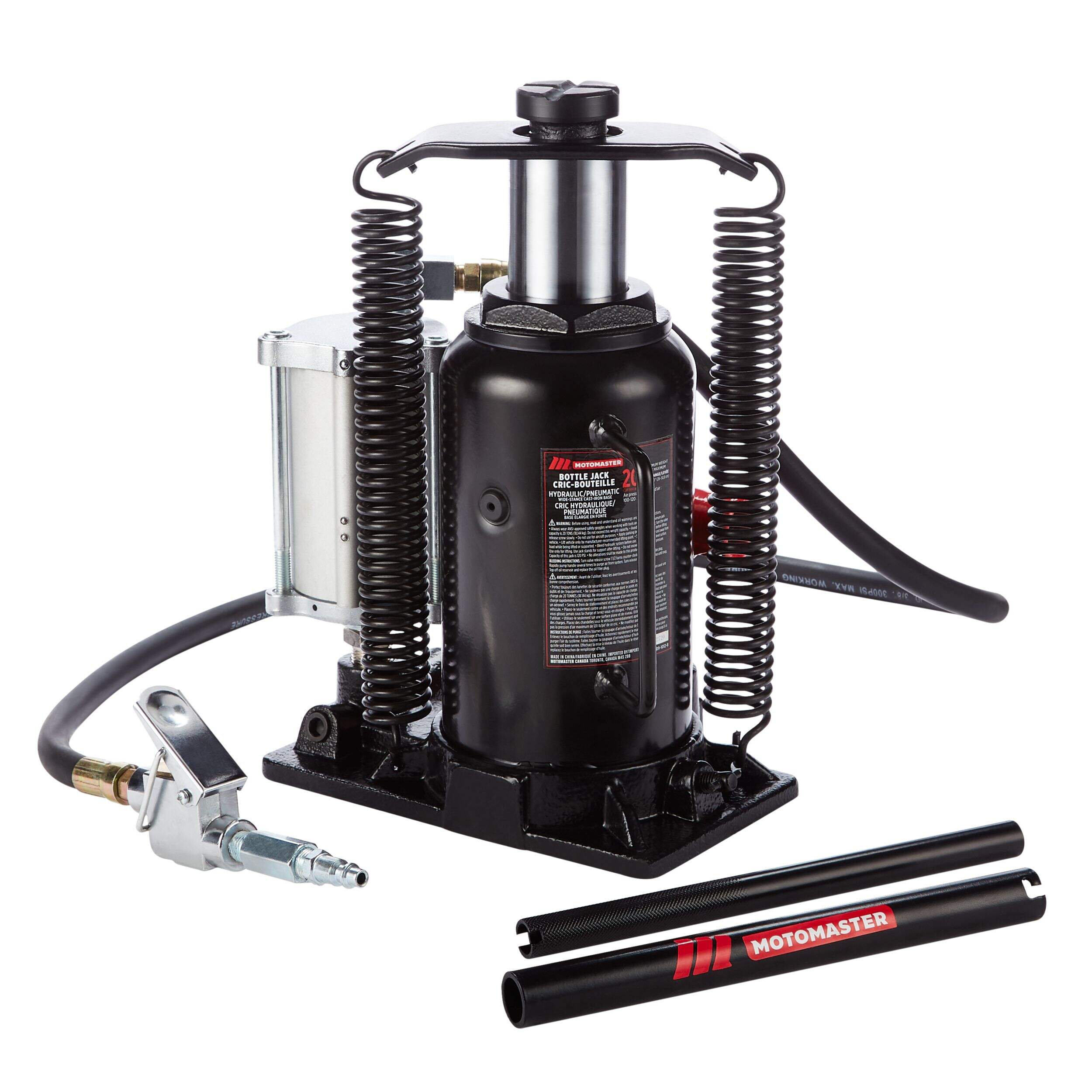

MotoMaster Pneumatic/Hydraulic Bottle Jack with Quick Connector, 20-Ton
- FREEAvailable
- Available
- Available
Pick up available 08:00 a.m., Dec 04
Only 5 left
Quebec residents: For information on maintenance and repair click here.
Similar Items
Product Details
The MotoMaster Pneumatic/Hydraulic Bottle Jack combines durability with functionality for efficient lifting of heavy vehicles. Designed with a polished cylinder and piston for consistent operation, it features an extension screw for quick height adjustments and overload protection valves to maintain hydraulic integrity. With a quick connector and remote control for added safety, this jack is a versatile tool.
- Features
- Specifications
- Resources
- Videos
Allows for smooth and easy lifting with hydraulic or pneumatic operation to assist with heavier loads
Suitable for passenger cars, SUV/vans, light trucks and trucks
Dual hydraulic and pneumatic operation for smooth and efficient lifting
Compact, powerful TurboMotor raises the load to desired height effortlessly, efficiently and safely
Fingertip remote control for added safety without sacrificing manual operation
Integrated bypass protects the hydraulic system from damage through over-pumping and provides added safety
Wide-stance, ductile cast-iron base provides greater stability
Drop forged steel construction provides non-abrasive, leak-free performance with reinforced critical stress points for quality and durability
Screw Extension: 3-5/16" (8.4 cm)
Hydraulic Lift: 6 ½" (16.5 cm)
Lift Range: 10 ¼ - 20" (26 - 50.8cm)
Maximum Weight Capacity: 20 Tons (40,000 lbs)
Also available in: 12-Ton (CT# 009-1011, sold separately)
| Part Number | DJ-AJ-002 |
|---|---|
| Accessories List | Handle |
| Advanced Features | Adjustable Height, Heavy Duty |
| Assembled Height (cm) | 26.00 cm |
| Assembled Height (ft) | 0.85 ft |
| Assembled Height (in) | 10.24 in |
| Assembled Length (cm) | 25.00 cm |
| Assembled Length (ft) | 0.82 ft |
| Assembled Length (in) | 9.84 in |
| Assembled Weight (kg) | 15.60 kg |
| Assembled Weight (lb) | 34.39 lb |
|---|---|
| Assembled Width (cm) | 19.00 cm |
| Assembled Width (in) | 7.48 in |
| Assembled Width (mm) | 190.00 mm |
| Certifications | ANSI Certified |
| Duty Rating | Standard Duty |
| Finish | Powder Coated |
| Handle Length (cm) | 43.50 cm |
| Handle Length (in) | 17.13 in |
| Maximum Lift Height (cm) | 50.80 cm |
| Maximum Lift Height (in) | 20.00 in |
| Maximum Weight Capacity (g) | 18144000.00 g |
| Maximum Weight Capacity (kg) | 18144.00 kg |
| Maximum Weight Capacity (lb) | 40000.63 lb |
| Minimum Lift Height (cm) | 26.00 cm |
| Minimum Lift Height (in) | 10.24 in |
| Number of Pieces | 1 |
| Package Depth (cm) | 29.50 cm |
| Package Depth (in) | 11.61 in |
| Package Height (cm) | 30.00 cm |
| Package Height (in) | 11.81 in |
| Package Weight (kg) | 17.00 kg |
| Package Weight (lb) | 37.48 lb |
| Package Width (cm) | 19.50 cm |
| Package Width (in) | 7.68 in |
| Primary Colour | Black |
| Primary Material | Steel |
| Product Use(s) | Automotive |
| Pump/Lift Type | Hydraulic |
| Type of Lift/Stand | Bottle Jack |
| Vehicle Type | Car, SUV, Light-Duty Truck, Truck |
Warranty
This product carries a 1 year exchange warranty redeemable at any Canadian Tire store.
Compare Similar Products
Only Show Differences | |||||
| Ratings | |||||
| Accessories List | Handle | Handle | No Accessories Included | No Accessories Included | |
| Advanced Features | Adjustable Height, Heavy Duty | Adjustable Height, Includes Crank/Handle | Overload Protection | Overload Protection | |
| Assembled Height (cm) | 26.00 cm | 24.00 cm | 16.50 cm | 24.20 cm |
Shop Related Products
- Weekly Deals
- Customers Also Viewed
- Top Trending Products
- More From This Brand
Weekly Deals
Frequently Bought Together
Review Highlights
Pros
Cons
Reviews
Filter Reviews
- purchase
- price
- satisfaction
- quality
- speed
- stability
- repairs
- packaging
Failed after warranty expired
No, I do not recommend this product.
Originally posted on MotoMaster Pneumatic/Hydraulic Bottle Jack with Quick Connector, 12-Ton
do better
Effortless jacking
Originally posted on MotoMaster Pneumatic/Hydraulic Bottle Jack with Quick Connector, 12-Ton
The air motor is worth it in a garage setting.
Jack
Questions
Q: what is the recommended size of air compressor to run jack ?
4 years agoA: Pneumatic bottle jacks including this MotoMaster item have minimal air requirements and do not require continuous air. You will require an air tool compressor with 1/4 NPT Connection to operate this jack in pneumatic mode. A 2-Gallon tank and 1 Cubic Meter per Minute pump - or larger - will be sufficient.
4 years agoHelpful?
Q: Hi, is it possible to install an adequate gauge on the jack to monitor the hydrolic pressure? Thanks
4 years agoOriginally posted on MotoMaster Pneumatic/Hydraulic Bottle Jack with Quick Connector, 12-Ton
A: I don't thing you can install anything on the Hydraulic side.
4 years agoHelpful?
Q: The 20 ton pneumatic hydraulic bottle jack at Canadian tire. What type of compressor do you need to make a shop press? that will be powerful enough to press billets.
4 years agoOriginally posted on MotoMaster Pneumatic/Hydraulic Bottle Jack with Quick Connector, 12-Ton
A: This 20-ton hydraulic bottle jack has capacity for 40,000-lbs. Regrettably, we do not have expertise in building shop presses for pressing billets and cannot advise. However, if you determine that 10-tons is sufficient for your application, we have a MAXIMUM 10-ton Shop Press available that may suit your needs, available as Product #009-0221 from your local Canadian Tire.
4 years agoHelpful?
Q: Quel genre de compresseur doit-on avoir pour faire fonctionner le cric pneumatique (débit d'air, cv)
5 years agoOriginally posted on MotoMaster Pneumatic/Hydraulic Bottle Jack with Quick Connector, 12-Ton
- Translate with Google
A: Veuillez connecter un compresseur d'air qui fournit au moins 7 CFM et 100-120PSI pour faire fonctionner ce vérin pneumatique.
5 years agoHelpful?
Q: Comment fait-on pour remplir l'huile hydraulique dans ce cric??
5 years agoOriginally posted on MotoMaster Pneumatic/Hydraulic Bottle Jack with Quick Connector, 12-Ton
- Translate with Google
A: L'huile hydraulique peut être remplie en suivant les instructions ci-dessous. 1. Placez le cric en position verticale, abaissez complètement le vérin et retirez le bouchon de remplissage d'huile de l'orifice de remplissage. 2. A l'aide d'un équipement de ravitaillement ou autre, remplissez le bord inférieur du trou de remplissage avec de l'huile hydraulique de haute qualité pour cric. Ensuite, remettez le bouchon de remplissage d'huile en place. 3. Purgez l'air du système hydraulique comme décrit dans le manuel.
5 years agoHelpful?
Q: Can it be used in a horizontal application? Thanks
6 years agoOriginally posted on MotoMaster Pneumatic/Hydraulic Bottle Jack with Quick Connector, 12-Ton
A: No, this item is not designed for horizontal use. If you are looking for a multi-directional operation, we would suggest considering our MotoMaster Multi-Directional Bottle Jacks available from your local Canadian Tire as Product #09-1532 or 09-1533 in 12-ton or 20-ton capacities. Regrettably, we do not have a combination of multi-direction + pneumatic jack.
6 years agoHelpful?
Q: J'aimerais recevoir un manuel d'instruction pour ajouter de l'huile à mes jack 20 tonnes Canadian Tire .Je ne sais pas quelle vice est la bonne vice pour la purge et l'ajout d'huile. Merci de votre obligeance.
7 years agoOriginally posted on MotoMaster Pneumatic/Hydraulic Bottle Jack with Quick Connector, 12-Ton
- Translate with Google
A: Veuillez contacter notre service à la clientèle pour recevoir le manuel par courrier ou par courrier électronique en appelant le 1-800-387-8803 ou vous pouvez également nous contacter par courrier électronique à l'adresse suivante: customerservice@canadiantire.ca.
7 years agoHelpful?
Q: Does the pneumatic motor require the compressed air to contain lubricating oil? If the compressed air supply is from an oilless compressor what is the procedure to add an appropriate amount of oil to the air line and at what frequency?
7 years agoOriginally posted on MotoMaster Pneumatic/Hydraulic Bottle Jack with Quick Connector, 12-Ton
A: The compressed air line for this Pneumatic/Hydraulic jack is not required to including lubricating tool oil. The Bottle Jack includes lubricating grease inside the air motor, which is added during the assembly. The grease supplied is enough to last the lifecycle of the product without the need to add again.
7 years agoHelpful?
Q: What is the weight of the 20 ton jack
7 years agoOriginally posted on MotoMaster Pneumatic/Hydraulic Bottle Jack with Quick Connector, 12-Ton
A: The 20 ton jack weighs approximately 37.5lbs (17kg)
7 years agoHelpful?
Q: where can I get a seal kit for 20 ton air jack
7 years agoOriginally posted on MotoMaster Pneumatic/Hydraulic Bottle Jack with Quick Connector, 12-Ton
A: we encourage you to contact the customer service number listed on the product instruction manual: 1-888-942-6686.
7 years agoHelpful?
