MotoMaster Galvanized Trailer, 5-ft x 7-ft

#040-2214-4
MotoMaster Galvanized Trailer, 5-ft x 7-ft
$2,299.99
Best SellerExclusive
Buy Online :
Pick up at Leduc, AB
2 In Stock

Pick up available 08:00 a.m., Jan 04

Quantity updated to 1
New digital payments available on checkout page:
Also Find It in Store:

Only 2 left

at Leduc, AB
Auto Parts Desk
Add to Registry

Quebec residents: For information on maintenance and repair click here.

MotoMaster
MotoMaster

MotoMaster Galvanized Trailer, 5-ft x 7-ft

$2,299.99

Product Details

Transport virtually anything in this sturdy MotoMaster Galvanized Trailer. This single axle multi-utility trailer is one of the most versatile trailers on the market, with a trailer bed that extends to nearly 12-ft and tilt/dump capability that makes it easy to load and unload heavy items. The solid square tube cambered axle of the MotoMaster Trailer supports a large load capacity, while the 100% steel construction resists rust.

  • Features 100% steel corrugated floor with solid side and front panels/rails

  • Assembled – some minor assembly is required

  • Removable corrugated steel side panels with V shape drawbar tongue for added strength and support

  • Features a 2 position dump bed

  • Rear light protectors and protected side markers

  • Pre-wired with quick connect LED lighting, complies with DOT requirements

  • 3 leaf springs provide compliant ride

  • Payload capacity: 1,639 lb (743 kg)

  • GVWR: 2,090 lb (948 kg)

  • Tire Spec: 530 x 12 2 Ply bias tire with a 5 on 4.5" (11.4 cm) bolt pattern

  • Curb weight: 451 lb (205 kg)

  • *Please note that registration is required prior to vehicle leaving the premises. For more information please visit your provincial MOT website.

  • *Additional charges for assembly may be applicable. Please contact your local store for more details.

Part Number 450-0036
Accessories List Marker Light, Trailer Light Kit
Advanced Features Anchor Points, Dumpable, Rust Resistant
Assembled Height (cm) 91.44 cm
Assembled Height (ft) 3.00 ft
Assembled Height (in) 36.00 in
Assembled Length (cm) 449.58 cm
Assembled Length (ft) 14.75 ft
Assembled Length (in) 177.00 in
Assembled Weight (kg) 204.57 kg
Assembled Weight (lb) 451.00 lb
Assembled Width (cm) 165.10 cm
Assembled Width (in) 65.00 in
Assembled Width (mm) 1651.00 mm
Colour Galvanneal
Finish Galvanized
Frame Material Steel
Ground Clearance (cm) 22.86 cm
Ground Clearance (in) 9.00 in
Hitch Receiver Class Compatibility Class II
Hitch Type Ball
Interior Height (cm) 35.56 cm
Interior Height (in) 14.00 in
Interior Length (cm) 220.00 cm
Interior Length (in) 86.61 in
Interior Width (cm) 130.17 cm
Interior Width (in) 51.25 in
Maximum Weight Capacity (g) 743430.00 g
Maximum Weight Capacity (kg) 743.43 kg
Maximum Weight Capacity (lb) 1638.98 lb
Number of Wheels 2
Package Depth (cm) 223.00 cm
Package Depth (in) 87.80 in
Package Height (cm) 54.00 cm
Package Height (in) 21.26 in
Package Weight (kg) 204.57 kg
Package Weight (lb) 451.00 lb
Package Width (cm) 137.00 cm
Package Width (in) 53.94 in
Ramp Length (cm) 60.00 cm
Ramp Length (in) 23.62 in
Ramp Width (cm) 132.08 cm
Ramp Width (in) 52.00 in
Season All-Season
Sidewall Material Steel
Storage Volume (L) 1022.00 l
Storage Volume (gal) 269.98 gal (US)
Tire Diameter (cm) 54.61 cm
Tire Diameter (in) 21.50 in
Tire Material Rubber
Tire Tread All Terrain
Tire Type Pneumatic
Trailer Brakes No Brakes
Trailer Type Utility Trailer
Trailer Wiring Three-Wire System
Trailer Wiring Plug 4-Way Flat
Wheel Width (cm) 12.70 cm
Wheel Width (in) 5.00 in

Our return policy

View full return policy

Warranty

Return Policy exception: Final Sale. No return or exchange.. 1-yr limited warranty from manufacturer.See user manual for details.. Customer Support: Detail K2 888-277-6960; support@detailk2.com

User Manual

View user manuals and additional product information

Compare Similar Products

Only Show Differences
Ratings
Accessories ListMarker Light, Trailer Light Kit
Advanced FeaturesAnchor Points, Dumpable, Rust ResistantAnchor Points, ATV/UTV Compatible, Foldable Ramp, Locking Lever, Ramp Gate, Rust ResistantRust Resistant, Anchor Points, Foldable Ramp, Locking LeverNo Advanced FeaturesAnchor Points, ATV/UTV Compatible, Dumpable, Rust Resistant
Assembled Height (cm)91.44 cm140.00 cm102.00 cm15.24 cm70.00 cm

Review Highlights

List of Pros Highlights
List of Cons Highlights
Suitable Cons could not be generated at this time.

Reviews

Rating Snapshot

Select a row below to filter reviews.
12 reviews with 5 stars.
1 review with 4 stars.
2 reviews with 3 stars.
1 review with 2 stars.
3 reviews with 1 star.

Overall Rating

3.9
1 out of 5 (20%) reviewers recommend this product

Review this product

Select to rate the item with 1 star. This action will open submission form.
Select to rate the item with 2 stars. This action will open submission form.
Select to rate the item with 3 stars. This action will open submission form.
Select to rate the item with 4 stars. This action will open submission form.
Select to rate the item with 5 stars. This action will open submission form.
Adding a review will require a valid email for verification

Customer Images and Videos

Filter Reviews

  • purchase
  • size
  • satisfaction
  • small
  • price
  • width
  • disappointing
  • setup
1 to 5 of 19 Reviews
1 – 5 of 19 Reviews

Not a 5’x7’ trailer!

4 months ago
Although this trailer is listed as a MotoMaster model, it’s actually manufactured by DK2 (model MMT5X7G). You can find the same model at other major retailers, but unlike Canadian Tire, many of them more accurately describe it as a 4.5' x 7.5' trailer. Even that is a bit generous—once assembled, the actual usable interior dimensions are approximately 50.75” x 85” (with both front and rear gates up), which is significantly smaller than the advertised 5' x 7'. Unfortunately, we didn’t realize this at the time of purchase. At our local Canadian Tire, the utility trailers were stored on top of large shipping crates outside, and accessing them required staff assistance and a forklift. We asked the sales associate to confirm that the trailer had a true 5' x 7' interior, and they assured us it did. Because the store was closing soon—and knowing we’d need to register and insure the trailer before taking it—we trusted the associate’s word and paid for it. After getting the insurance sorted and returning to pick up the trailer, we noticed it looked smaller than expected but didn’t have a tape measure on hand. Again, we gave the benefit of the doubt and took it home. Once home, we measured and were surprised (and disappointed) to find the trailer was nowhere near 5 feet wide. We contacted the store the next day and returned to explain the issue, especially noting that another trailer they sell (also advertised as 5' x 7') does have a true 5' x 7' interior. Had we known the MotoMaster trailer was smaller, we would’ve purchased the other one instead. Despite pointing this out, the store staff refused to offer any resolution. Now we’re stuck with a trailer that doesn’t suit our needs. In addition to the misleading sizing, this trailer has a couple of design flaws: - No tie-down points are included, meaning you’ll need to modify it if you plan to secure loads properly. - The license plate mount is poorly placed—it will likely scrape or bend the plate approaching an incline steeper than about 10%.

No, I do not recommend this product.

Helpful?

Nice Trailer! I recommend!

8 months ago
Bought this small utility trailer in April 2025. Very satisfied with it. It was on special for $1899.99. It was already assembled so I didn't have to fuss around with assembly, in a small garage by myself. Make sure to check that all the nuts and bolts, including wheel nuts are all to spec. Torque the wheel nuts to 80 ft/lb. I was initially considering the painted black one sold at Rona, but there was already signs of rust on the edges. It was at the same price as the reduced galvanized. Perfect size for what I want to do. Handles very well on the road as well. Make sure it is level to the ground. Replace the receiver hitch if need be. I recommend!

Yes, I recommend this product.

Helpful?

So Disappointed

a year ago

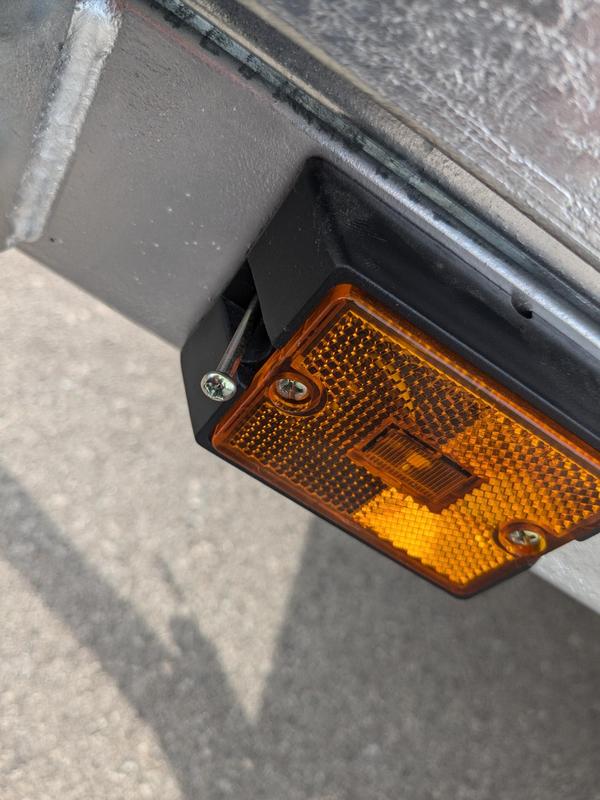

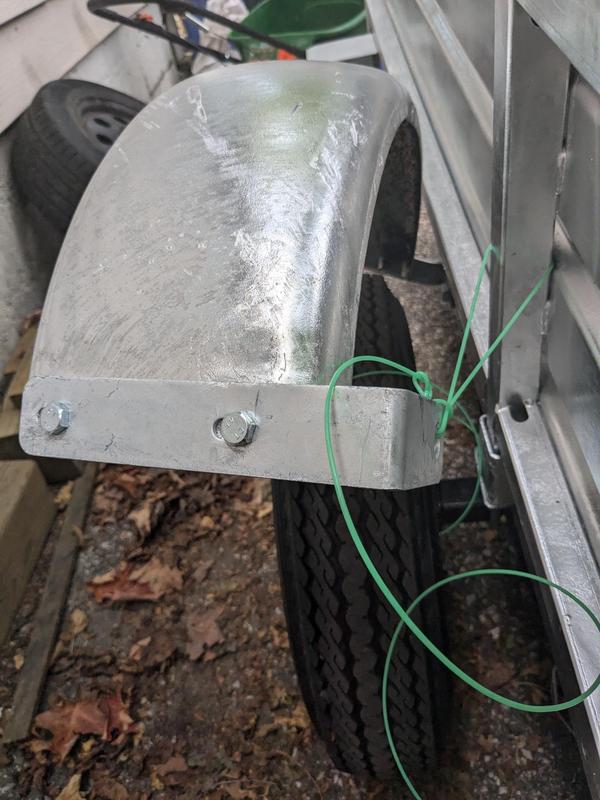

I am so disappointed. I purchased this trailer a few days ago. Today when I was using it I noticed that the left front side marker light screw was ready to fall out. On the trip home I heard a sound. When I looked in the mirror smoke was coming from the right wheel. The fender had come loose and was shreading the tire. When I got home I realized that the bolt that had fallen out for the fender also secured the leaf spring!!! The trailer is unsafe to use.

No, I do not recommend this product.

Helpful?
Response from Detail K2 Team:
a year ago
Detail K2 Team
Thank you for your feedback!

We apologize for the negative experience you have had. This is one of our best trailers loved by many! This is definitely not standard with our trailers. Please reach out to us as soon as possible so we can get this resolved: www.detailk2.com/warranty

If you have any questions, do not hesitate to contact us at support@detailk2.com or call us at 1(888) 277-6960 between the hours 8:00am-4:30pm EST.
Thank you for choosing DK2!

Farzad
DK2 Customer Support detailk2
Response from Canadian Tire:
a year ago
Ask And Answer
Thank you for your review, we will be reaching out to you.

Great Trailer!

a year ago
Great product at a reasonable price!
Helpful?
Response from Detail K2 Team:
a year ago
Detail K2 Team
Thank you for your feedback!

We are glad to hear that you are enjoying the product and performance that comes with a DK2 product.

If you have any questions, do not hesitate to contact us at support@detailk2.com or call us at 1(888) 277-6960 between the hours 8:00am-4:30pm EST.
Thank you for choosing DK2!

Farzad
DK2 Customer Support detailk2

Utility Trailer

a year ago
Awesome product. Highly recommended.
Helpful?
Response from Detail K2 Team:
a year ago
Detail K2 Team
Thank you for your feedback!

We are glad to hear that you are enjoying the product and performance that comes with a DK2 product.

If you have any questions, do not hesitate to contact us at support@detailk2.com or call us at 1(888) 277-6960 between the hours 8:00am-4:30pm EST.
Thank you for choosing DK2!

Farzad
DK2 Customer Support detailk2
1 – 5 of 19 Reviews

Questions

1 - 10 of 17 Questions

Q: Can you drive a mid sized 4 wheel atv up the back ramp?

a year ago
4 Answers
  • A: Thank you for your inquiry! As long as it fits the bed specifications, yes. You would also need to get the drive-up gate for that application. If you have any questions, do not hesitate to contact us at support@detailk2.com or call us at 1(888) 277-6960 between the hours 8:00am-4:30pm EST. Thank you for choosing DK2! Farzad DK2 Customer Support

    a year ago
    Helpful?

Q: Buick Envision - max towing weight 1450 lbs. I want to tow 8x4 plywood sheets. Is this trailer the right size for that?

2 years ago
3 Answers
  • A: Absolutely. The front and back of the trailer folds down giving you ample room.

    2 years ago
    Helpful?

Q: what is the actual inside width and length with both gates up

9 months ago
2 Answers
  • A: 80”x50” inside with both gates up.

    8 months ago
    Helpful?

Q: length of trailer tip of tongue to bed end, back not down

9 months ago
2 Answers
  • A: Approximately 12 feet

    9 months ago
    Helpful?

Q: What is the weight capacity of the front gate when lowered

a year ago
2 Answers
  • A: Not specified,  but probably several hundred pounds. When folded down, it does rest on the A-frame chassis, so is well supported for heavier weights.

    a year ago
    Helpful?

Q: How much is the unassembled version - 0745203? What does the assembly entail?

2 years ago
2 Answers
  • A: The price listed on the website is the assembled price. Prices may very from provinces. I paid 2200.

    2 years ago
    Helpful?

Q: What is included in the trailer kit? Does the trailer come equipped with tires, coupler, jack, and lighting kit? Thank you

2 years ago
2 Answers
  • A: Yes the trailer is complete! just had to add a plate and hook it up to my truck and drive away.

    2 years ago
    Helpful?

Q: What gauge is the wiring?

2 years ago
2 Answers
  • A: I think it is 16 gage wire..

    2 years ago
    Helpful?

Q: What size ball is required?

2 years ago
2 Answers
  • A: Thank you for your inquiry! It requires a 2" ball. If you have future questions or concerns, please contact support@detailk2.com or call us at 1(888) 277-6960 between the hours 8:00am-4:30pm EST. Thank you for choosing DK2! Farzad DK2 Customer Support Team

    2 years ago
    Helpful?

Q: How does this trailer different from #074-5203-2 which is $400 cheaper? They look the same.

3 years ago
2 Answers
  • A: The only differences I noticed were: Color: Black instead of Silver (galvanized); and, Hitch Receiver Class Compatibility: Class III instead of Class II. Good luck on your purchase!

    3 years ago
    Helpful?
1 - 10 of 17 Questions
