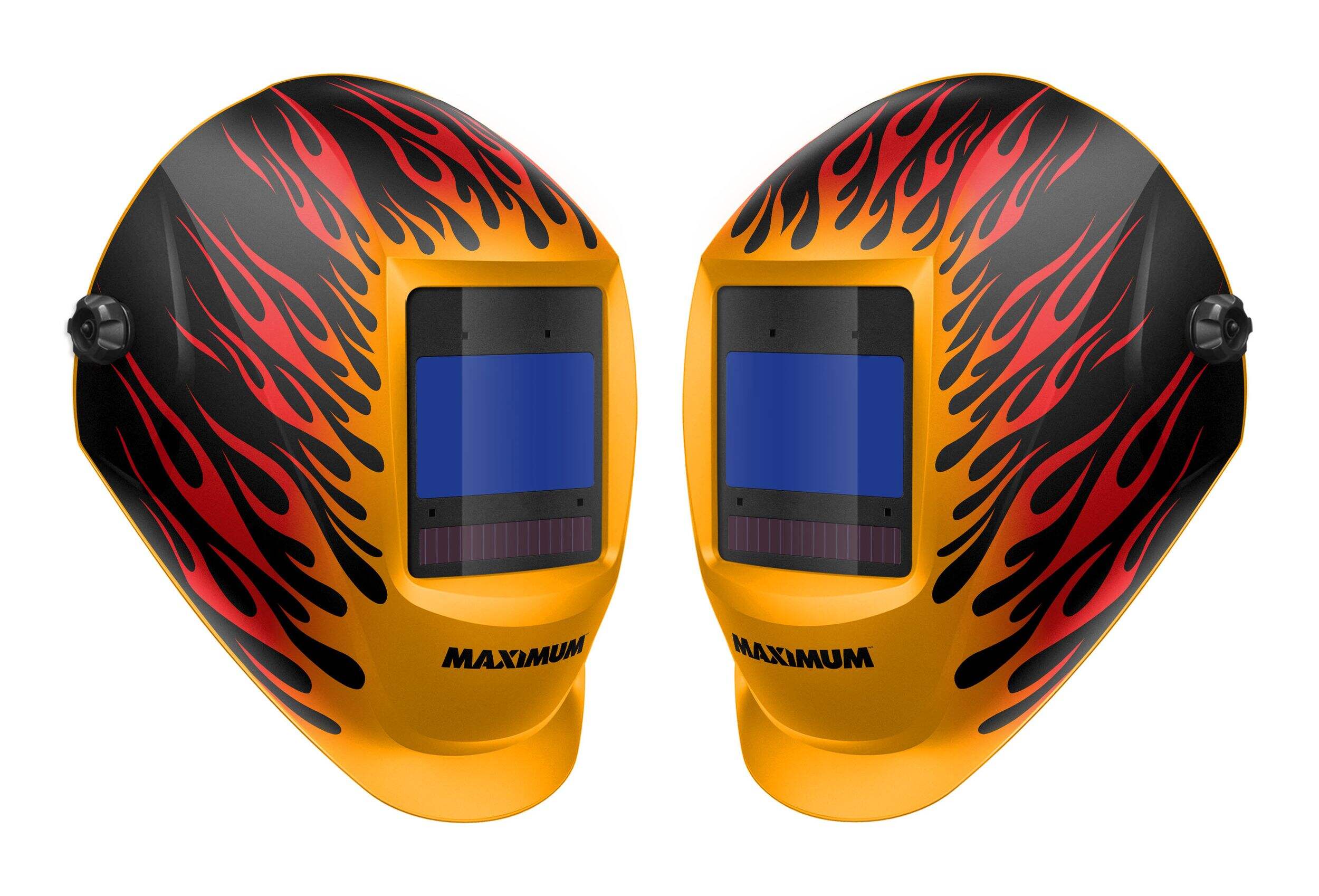

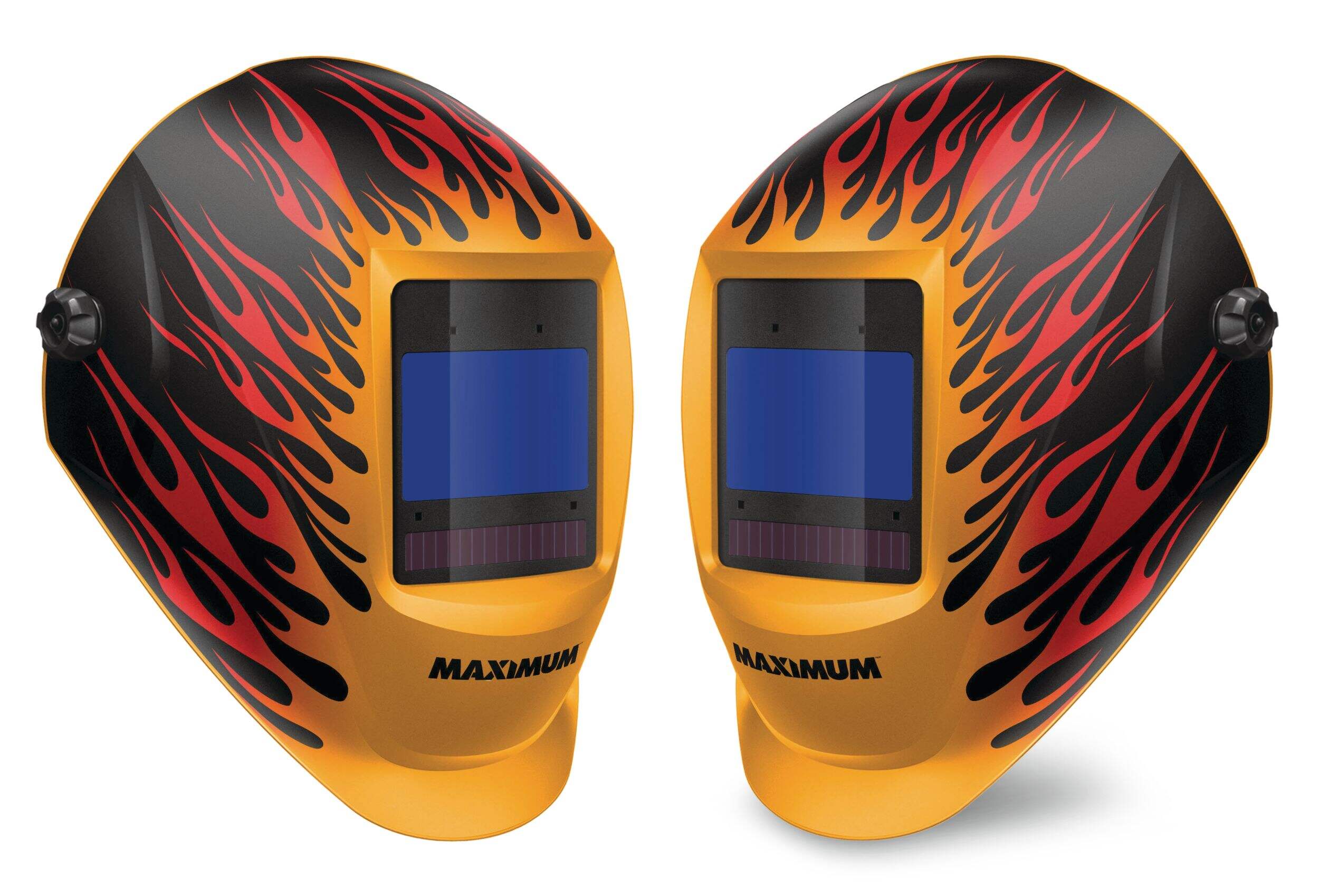

Protect your eyes with the MAXIMUM Premium Variable Shade Welding Helmet. This UV-resistant helmet is designed to protect your eyes from arcing. It also features an internal display control for shade and the ability to switch from high to low sensitivity as needed. The CSA-listed helmet is suitable for a wide range of welding and grinding applications and features a bold flame graphic that helps you to stand out on the job.
Easy to operate—fully automatic
UV/IR protection
Capable of switching speeds from light to dark at 1/25000 of a second
Easy to replace battery for added product life
Application range: Stick Welding (DC & AC), TIG (DC, DC Pulse), TIG AC (Pulse), Excellent low amperage TIG response, MIG/MAG, MIG/MAG Pulse, Plasma Cutting/ Welding, Grinding
Not for laser welding or oxyacetylene welding/cutting
Standards: ANSI Z87.1 and CSA Z94.3
Power Supply: Solar cell and 2 x CR2450 lithium batteries
| Part Number | ADF825STM16 |
|---|---|
| Advanced Features | UV Resistant |
| Advanced Features | UV Resistant |
| Assembled Height (cm) | 25.00 cm |
| Assembled Height (cm) | 25.00 cm |
| Assembled Height (ft) | 0.82 ft |
| Assembled Height (ft) | 0.82 ft |
| Assembled Height (in) | 9.84 in |
| Assembled Height (in) | 9.84 in |
| Assembled Length (cm) | 30.00 cm |
| Assembled Length (cm) | 30.00 cm |
|---|---|
| Assembled Length (ft) | 0.98 ft |
| Assembled Length (ft) | 0.98 ft |
| Assembled Length (in) | 11.81 in |
| Assembled Length (in) | 11.81 in |
| Assembled Weight (kg) | 0.60 kg |
| Assembled Weight (kg) | 0.60 kg |
| Assembled Weight (lb) | 1.32 lb |
| Assembled Weight (lb) | 1.32 lb |
| Assembled Width (cm) | 26.00 cm |
| Assembled Width (cm) | 26.00 cm |
| Assembled Width (in) | 10.24 in |
| Assembled Width (in) | 10.24 in |
| Assembled Width (mm) | 260.00 mm |
| Assembled Width (mm) | 260.00 mm |
| Certifications | CSA Listed |
| Certifications | CSA Listed |
| Colour | Black |
| Colour | Black |
| Maximum Operating Temperature (°C) | 55.00 °C |
| Maximum Operating Temperature (°C) | 55.00 °C |
| Maximum Operating Temperature (°F) | 131.00 °F |
| Maximum Operating Temperature (°F) | 131.00 °F |
| Maximum Run Time (h) | 5000 h |
| Maximum Run Time (h) | 5000 h |
| Minimum Operating Temperature (°C) | -10.00 °C |
| Minimum Operating Temperature (°C) | -10.00 °C |
| Minimum Operating Temperature (°F) | 14.00 °F |
| Minimum Operating Temperature (°F) | 14.00 °F |
| Number of Pieces | 1 |
| Number of Pieces | 1 |
| Number of Sensors | 4 |
| Number of Sensors | 4 |
| Package Depth (cm) | 30.00 cm |
| Package Depth (cm) | 30.00 cm |
| Package Depth (in) | 11.81 in |
| Package Depth (in) | 11.81 in |
| Package Height (cm) | 25.00 cm |
| Package Height (cm) | 25.00 cm |
| Package Height (in) | 9.84 in |
| Package Height (in) | 9.84 in |
| Package Weight (kg) | 0.60 kg |
| Package Weight (kg) | 0.60 kg |
| Package Weight (lb) | 1.32 lb |
| Package Weight (lb) | 1.32 lb |
| Package Width (cm) | 26.00 cm |
| Package Width (cm) | 26.00 cm |
| Package Width (in) | 10.24 in |
| Package Width (in) | 10.24 in |
| Passive/Active | Active |
| Passive/Active | Active |
| Power Source(s) | Battery |
| Power Source(s) | Battery |
| Shade Number | 13 |
| Shade Number | 13 |
| Shelf Life (year) | 5 yr |
| Shelf Life (year) | 5 yr |
| Switching Speed | 1/25,000 second |
| Switching Speed | 1/25,000 second |
| Viewing Area Height (in) | 2.44 in |
| Viewing Area Height (in) | 2.44 in |
| Viewing Area Height (mm) | 62.00 mm |
| Viewing Area Height (mm) | 62.00 mm |
| Viewing Area Width (in) | 3.81 in |
| Viewing Area Width (in) | 3.81 in |
| Viewing Area Width (mm) | 97.00 mm |
| Viewing Area Width (mm) | 97.00 mm |
| Welding Process | Multi-Process |
| Welding Process | Multi-Process |
