MAXIMUM
Maximum Heavy-Duty Steel Rotating Engine Stand, 1000-lb Capacity
#009-0223-2
$129.99
price was $179.99
Save 28% ($50.00)
SaleExclusive
Buy Online :
- FREEAvailable
- Unavailable
- Available
Pick up at Leduc, AB
Get it Today !2 In Stock
Pick up available 01:30 p.m., Jan 03
Quantity updated to 1
Also Find It in Store:Auto Wall
Only 2 left
at Leduc, AB
Add to Registry
Quebec residents: For information on maintenance and repair click here.
Similar Items
Product Details
The Maximum Heavy-Duty Steel Rotating Engine Stand boasts a 1000-lb capacity, making it perfect for handling large engines during repair or maintenance. Constructed from durable steel, it ensures long-lasting strength and stability. The rotating head allows for 360-degree engine rotation, providing easy access to all parts of the engine for more efficient work. With adjustable arms and a sturdy base for added support, this stand is ideal for professional mechanics and DIY enthusiasts who need a reliable solution for engine handling and repair tasks.
- Features
- Specifications
- Resources
Features a tubular steel support bar to provide additional stability for engines of all sizes during automotive service
Heavy-duty tubular steel support bar reclines 8° (20.3 cm) backwards for added stability
360° rotating engine bracket with multi-position lock
Large trapezoid mounting plate with adjustable extended reach mounting brackets easily fit a wide range of engine blocks
Four heavy-duty casters (two swivel, two rigid) for easy maneuverability
Locking function on two front casters
Load capacity: 1,000 lbs (454 kg)
Weight: 54 lbs (24.5 kg)
Intended for use with the MAXIMUM Shop Crane (009-0222) and Engine Leveller (009-0224)
Made to withstand harsh working conditions
| Part Number | DJ-ES-001 |
|---|---|
| Accessories List | Casters |
| Advanced Features | Adjustable Height, Stable Base |
| Assembled Height (cm) | 90.00 cm |
| Assembled Height (ft) | 2.95 ft |
| Assembled Height (in) | 35.43 in |
| Assembled Length (cm) | 85.00 cm |
| Assembled Length (ft) | 2.79 ft |
| Assembled Length (in) | 33.46 in |
| Assembled Weight (kg) | 26.00 kg |
| Assembled Weight (lb) | 57.32 lb |
|---|---|
| Assembled Width (cm) | 80.00 cm |
| Assembled Width (in) | 31.50 in |
| Assembled Width (mm) | 800.00 mm |
| Base Shape | H Base |
| Certifications | ANSI Certified |
| Engine Weight Capacity (g) | 454000.00 g |
| Engine Weight Capacity (kg) | 454.00 kg |
| Engine Weight Capacity (lb) | 1000.90 lb |
| Finish | Powder Coated, Black |
| Handle Length (cm) | 33.00 cm |
| Handle Length (in) | 12.99 in |
| Number of Fixed Wheels | 2 |
| Number of Pieces | 1 |
| Number of Swivel Wheels | 2 |
| Package Depth (cm) | 90.50 cm |
| Package Depth (in) | 35.63 in |
| Package Height (cm) | 19.00 cm |
| Package Height (in) | 7.48 in |
| Package Weight (kg) | 28.30 kg |
| Package Weight (lb) | 62.39 lb |
| Package Width (cm) | 23.50 cm |
| Package Width (in) | 9.25 in |
| Primary Colour | Black |
| Primary Material | Steel |
| Wheel Diameter (cm) | 7.60 cm |
| Wheel Diameter (in) | 2.99 in |
Warranty
This product carries a 1 year exchange warranty redeemable at any Canadian Tire store.
Compare Similar Products
Only Show Differences | ||||||
| Ratings | ||||||
| Accessories List | Casters | No Accessories Included | Casters, Locking Safety Hook | Pressure Gauge | Casters | |
| Advanced Features | Adjustable Height, Stable Base | Easy Adjustments | Adjustable Height, Collapsible/Foldable | Adjustable Height, Easy to Use, Stable Base | Easy Assembly | |
| Assembled Height (cm) | 90.00 cm |
Shop Related Products
- Weekly Deals
- Customers Also Viewed
- Top Trending Products
- More From This Brand
Weekly Deals
Review Highlights
List of Pros Highlights
Pros
List of Cons Highlights
Cons
Reviews
Customer Images and Videos
Filter Reviews
- price
- purchase
- sturdy
- setup
- quality
- small
- weight
- large
Rating
Locale
1 to 5 of 74 Reviews
1 – 5 of 74 Reviews
Most Recent
2 out of 5 stars.
cheap garbage
a month ago
very bad quality , mount holes too long, mount holes don't align with the frame , i returned the item
Helpful?
5 out of 5 stars.
Great stand
a month ago

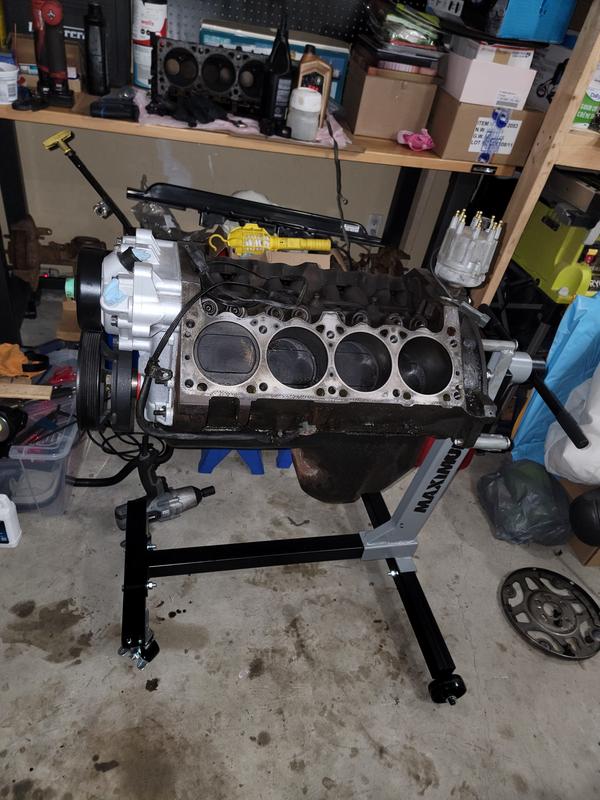

Used this stand to hold my ford flathead engine.
Super strong.
Great product and service. Great stand
Helpful?
5 out of 5 stars.
Best engine stand I've ever used!
a month ago
bought this for a inline 6 bmw engine, fits perfectly, rolls around nicely! I made a video review as well.
https://youtu.be/O0RceX3aK6M?si=PcLTQYGNpGgHNmfh
Yes, I recommend this product.
Helpful?
5 out of 5 stars.
engine stand
2 months ago
Great unit holding a bare big block, the unit rotates 360 degrees and moves easily, unit does slips a bit when rotating block so you need to push the block in to line up holes for pin, likely just because it was new and not broken in to follow proper path on pin track, handle is removable to allow access 360 degrees around motor, mounting arms are great and can be set to any position for different motors and are secure as long as proper bolts, locks and washers are used to secure motor rolls easily around as long as handle is used to move engine and not pushing on motor.
Helpful?
5 out of 5 stars.
Purchased engine stand
6 months ago
Great way to shop for products
Helpful?
1 – 5 of 74 Reviews
Questions
Start typing your question and we'll check if it was already asked and answered.
1 - 8 of 8 Questions
Most helpful answers
Q: What's the length of the 4 bolt holds? mm or
7 years ago2 Answers
A: The Holds are 2.75 inches or 70 mm long
7 years agoHelpful?
Q: how many inches in the tube supporting the engine ? asking for bracket which offeres a 2 3/8" or 2" opition.
10 months ago1 Answer
A: The support tube is 4.5" long. The center tube is 6.5"
10 months agoHelpful?
Q: Will this engine stand work with the 2.0L from a Subaru wrx?
a year ago1 Answer
A: The MAXIMUM Engine Stand, 1000-lbs (0090223) is built with a Trapezoidal structure. The following are measurements for its minimum dimensions and its maximum dimensions. Please note that if your engine is within this range and under the 1000-lb weight capacity, then this product should work well for you. The Minimum Dimensions are: 30 cm x 33 cm x 25 cm x 18 cm. The Maximum Dimensions are: 42.5 cm x 49 cm x 34 cm x 30 cm
a year agoHelpful?
Q: Can this stand be used to store an outboard motor
5 years ago1 Answer
A: This MAXIMUM Engine Stand was not designed for storing an outboard marine motor; the mounting points are designed to be mounted to the engine block of a motor vehicle. However, with some additional hardware we suppose it could be used to store an outboard motor.
5 years agoHelpful?
Q: Could you tell me the diameter of the rotation tube ? I'm intending to use a yoke made for a V W engine which is 2 3/8" OD
6 years ago1 Answer
A: To answer my own question : The rotating tube is 2 3/8" Diameter .
6 years agoHelpful?
Q: Hello, Will this C.T. Maximum Engine Stand work on a 2000-2010 Chevy LS 5.3L engine? I bought a C.T. Motomaster Engine Stand 2 years ago and the attachment arms were not quite long enough to work on that same engine.
6 years ago1 Answer
A: The MAXIMUM Engine Stand, 1000-lbs (0090223) is built with a Trapezoidal structure. The following are measurements for its minimum dimensions and its maximum dimensions. Please note that if your engine is within this range and under the 1000-lb weight capacity, then this product should work well for you. The Minimum Dimensions are: 30 cm x 33 cm x 25 cm x 18 cm. The Maximum Dimensions are: 42.5 cm x 49 cm x 34 cm x 30 cm
6 years agoHelpful?
Q: Est-ce que ca fonctionne avec les moteur V8???
7 years ago1 Answer
- Translate with Google
A: Oui, ce support de moteur MAXIMUM est compatible avec la plupart des moteurs V8. Il comprend des bras de montage réglables et le poids de la plupart des moteurs V8 est généralement inférieur à la capacité maximale de 1 000 lb du support.
7 years agoHelpful?
Q: would this hold a ej engine (flat four)
6 years ago0 Answers
