Maximum Foldable Hydraulic Shop Crane, 2-Ton
#009-0222-4
$369.99
price was $469.99
Save 21% ($100.00)
SaleTop Rated
Buy Online :
- FREEAvailable
- Unavailable
- Available
Pick up at Leduc, AB
Get it Today !3 In Stock
Pick up available 02:30 p.m., Dec 03
Quantity updated to 1
Also Find It in Store:Auto Wall
Only 3 left
at Leduc, AB
Add to Registry
Quebec residents: For information on maintenance and repair click here.
Similar Items
Product Details
When you need help lifting heavy items, count on the MAXIMUM Foldable Hydraulic Shop Crane. This 2-tonne crane is designed to offer faster lift, and a convenient swivel hook assembly offers more control of the load. This durable crane provides a sturdy base for lifting, transporting and controlling heavy loads, and is easy to store, making it ideal for the home workshop.
- Features
- Specifications
- Resources
Dual-pump hydraulics provide faster raising, lowering, and transportation of various heavy loads
Constructed from heavy duty steel for durability
Six heavy duty casters provide easy manoeuvrability (2 swivel and 4 rigid)
Low profile structure with foldable legs allow for easy storage
4 Boom lengths with corresponding weight capacities of 0.5, 1, 1.5 and 2 tons (1,000, 2,000, 3,000, and 4,000 lbs)
Lift range from: 14 ½ to 67-23/32" (37 - 172 cm)
Crane weight: 178 lbs, 9 oz (81 kg)
Use together with the MAXIMUM 1500 lbs Engine Leveller (009-0224) and 1000 Lbs Engine Stand (009-0223)
| Part Number | DJ-SC-001 |
|---|---|
| Accessories List | Casters, Locking Safety Hook |
| Advanced Features | Adjustable Height, Collapsible/Foldable |
| Assembled Height (cm) | 154.50 cm |
| Assembled Height (ft) | 5.07 ft |
| Assembled Height (in) | 60.83 in |
| Assembled Length (cm) | 155.50 cm |
| Assembled Length (ft) | 5.10 ft |
| Assembled Length (in) | 61.22 in |
| Assembled Weight (kg) | 86.00 kg |
| Assembled Weight (lb) | 189.60 lb |
|---|---|
| Assembled Width (cm) | 83.50 cm |
| Assembled Width (in) | 32.87 in |
| Assembled Width (mm) | 835.00 mm |
| Certifications | AMSE/PALD |
| Colour | Black |
| Finish | Powder Coated |
| Lift Capacity (kg) | 1814.00 kg |
| Lift Capacity (lb) | 3999.18 lb |
| Max Boom Length (cm) | 76.00 cm |
| Max Boom Length (in) | 29.92 in |
| Maximum Lift Height (cm) | 172.00 cm |
| Maximum Lift Height (in) | 67.72 in |
| Maximum Weight Capacity (g) | 1814000.00 g |
| Maximum Weight Capacity (kg) | 1814.00 kg |
| Maximum Weight Capacity (lb) | 3999.18 lb |
| Minimum Lift Height (cm) | 37.00 cm |
| Minimum Lift Height (in) | 14.57 in |
| Number of Pieces | 1 |
| Package Depth (cm) | 136.00 cm |
| Package Depth (in) | 53.54 in |
| Package Height (cm) | 15.50 cm |
| Package Height (in) | 6.10 in |
| Package Weight (kg) | 90.60 kg |
| Package Weight (lb) | 199.74 lb |
| Package Width (cm) | 59.00 cm |
| Package Width (in) | 23.23 in |
| Ram Capacity (kg) | 1814.00 kg |
| Ram Capacity (lb) | 3999.18 lb |
| Tool Operation | Hydraulic |
Warranty
This product carries a 1 year exchange warranty redeemable at any Canadian Tire store.
Compare Similar Products
Only Show Differences | Currently Viewing | ||||
| Ratings | |||||
| Accessories List | Pressure Gauge | No Accessories Included | No Accessories Included | Casters | |
| Advanced Features | Adjustable Height, Easy to Use, Stable Base | Collapsible/Foldable, Easy Adjustments | Easy Adjustments | Adjustable Height, Stable Base | |
| Certifications | AMSE/PALD | No Certifications | No Certifications | ANSI Certified |
Shop Related Products
- Weekly Deals
- Customers Also Viewed
- Top Trending Products
- More From This Brand
Weekly Deals
Frequently Bought Together
+++
$574.96$749.96
Review Highlights
List of Pros Highlights
Pros
List of Cons Highlights
Cons
Suitable Cons could not be generated at this time.
Reviews
Customer Images and Videos
Filter Reviews
- setup
- purchase
- price
- quality
- folding
- instructions
- weight
- satisfaction
Rating
Locale
1 to 5 of 45 Reviews
1 – 5 of 45 Reviews
Most Recent
5 out of 5 stars.
Great quality
15 days ago
Very well built, came well packaged with nothing amiss.
Tested it out lifting my tool chest. Worked perfect,
Will be pulling the flathead out of 41 soon for the real test.
Canadian Tire was great to deal with.
Thank you
Helpful?
5 out of 5 stars.
Lifting device
2 months ago
Hoist works good. Followed the instructions to bleed the air. Straightforward.
Helpful?
5 out of 5 stars.
Versatile and Quality Construction
8 months ago
Great build quality. Have used it to move a small car body in the shop. Will use on engines this summer. Was able to get the body up high as when the boom is fully extended it will go almost to 8 feet.
Helpful?
5 out of 5 stars.
Solid and compact.
11 months ago
Folds up to less than 1/2 the floor space when operating - it easily maneuvers when folded using the middle wheels. I didn't get any assembly instructions but easy to assemble just by looking at the picture on the box and using a little common sense. Even though I won't be lifting the maximum rated weight, I'll still be able to lift most of what I work on, around 400-500 lbs, at full reach which is very important to me.
Helpful?
5 out of 5 stars.
Solid unit and does job well. Hook can be smaller or even provide chain . But good enough anyway
a year ago
Excellent product thx
Helpful?
1 – 5 of 45 Reviews
Questions
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 17 Questions
Most helpful answers

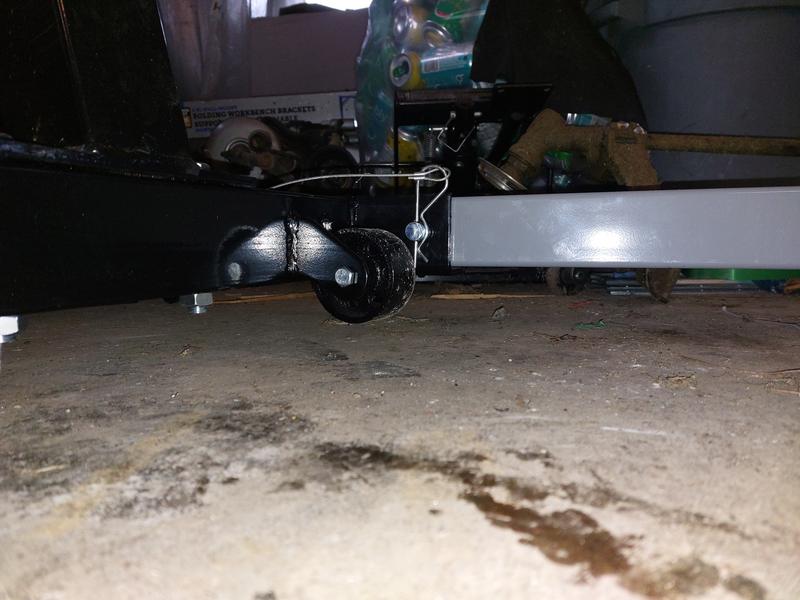

Q: Are the middle base wheels suppose to touch the floor when the fold down extension legs are down and pinned? My middle wheels do not touch the floor when the legs are down and pinned.
4 years ago4 Answers
A: No, the middle wheels stay elevated off the floor, should only be the wheels in back and far front of the legs that touch for maneuverability.
4 years agoHelpful?
Q: What is the top height of the casters and support legs? Minimum leg clearance.
4 years ago3 Answers
A: I can't measure it at the moment because it's stored for the winter, but I would guess max clearance is between 30 and 40 mm. My driveway slopes away from my garage and the legs bottom out slightly when I move the crane in or out. I wouldn't expect it to clear any significant obstacle. I believe clearance at the rear is greater than at the front.
4 years agoHelpful?
Q: How much hydraulic oil does it hold? I have ordered one of these for pickup in store and would like to be sure that I get enough oil.
4 years ago3 Answers
A: Doesn't need oil. Comes with.
11 months agoHelpful?
Q: What are dimensions in the storage poition - inches preferred
3 years ago2 Answers
A: The base is 33 1/8" wide x 21 1/2" deep. The lift arm sticks out past the end of the base so the total depth is 26 3/4".
3 years agoHelpful?
Q: What tools are needed to build it. Wrench and socket sizes etc. Also I see reviews that it does not come with instructions. Can you provide them by email.
6 years ago2 Answers
A: Make sure you have wrenches between 15 to 24 mm and an adjustable wrench for those sizes as well.
11 months agoHelpful?
Q: How large is the shipping package? I see the package weight is shown - will this fit into a small SUV?
7 years ago2 Answers
A: Need 2 good people to onload and offload.
11 months agoHelpful?
Q: What is the longest reach possible of the crane ? For example, once the crane is butted against the bumber of the car, how far can the hook reach?
a year ago1 Answer
A: Butted backwards or facing into the car? Gotta be more specific or you won't get answers as you see now.
11 months agoHelpful?

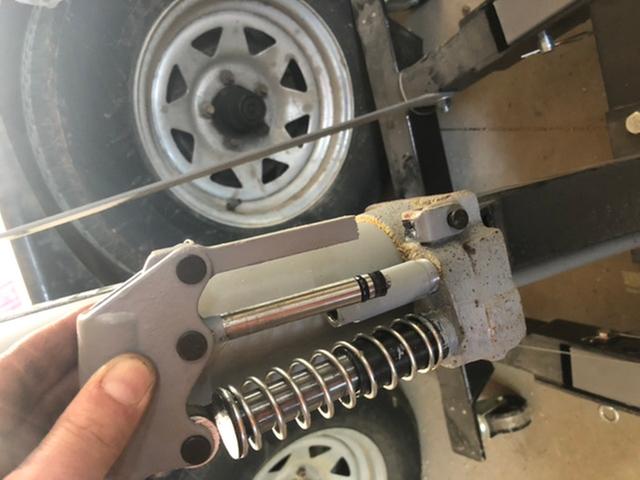

Q: Can you purchase the hydraulic ram separartly? I brooke mine and need a replacement
2 years ago1 Answer
A: Please call the toll free number on the manual for any questions regarding replacement parts 1-888-670-6682.
2 years agoHelpful?
Q: how long is the boom at its longest setting?
5 years ago1 Answer
A: At the longest setting with 0.5-ton capacity, the boom length is 142.3cm on this MAXIMUM shop crane.
5 years agoHelpful?
Q: Comment retirer de façon sécuritaire les pattes pour le rangement puisque les roulettes centrales ne touchent pas le sol? Le poids porte sur les pattes avant, ce qui empêche de retirer les goupilles facilement et ferait basculer la grue vers l'avant.
6 years ago1 Answer
- Translate with Google
A: Les pattes de ce MAXIMUM Shop Crane ne peuvent être pliées que lorsque le mât de la grue a été abaissé dans sa position de rangement. Cela devrait éliminer la majeure partie du poids de l'avant de la grue. Une fois que cela est parti, une main douce sur le montant aidera à atténuer toute pression restante pour retirer la goupille et replier les pattes.
6 years agoHelpful?
