MAXIMUM 6A Orbital Jigsaw
#054-1232-4
$129.99
Exclusive
Unfortunately, this product is discontinued in your selected store and nearby stores.
You may be interested in these similar products shown below.Similar Items
Quebec residents: For information on maintenance and repair click here.
Similar Items
Product Details
The MAXIMUM 6A Orbital Jigsaw features a powerful 6A motor and variable speed range of 800-3,000 SPM for a variety of tasks from scrolling to curved cuts
Features a four-position selection lever, select from straight action (reciprocating), or one of three orbit-action settings for faster cutting of softer materials
Blade can rotate 360° to make scroll cuts for intricate projects requiring more precision
D-handle can be used as a top handle or removed for a barrel grip
Adjustable die-cast aluminum shoe tiles 0-45° left and right for bevel cuts
Tool-free blade change for quick and easy blade changes
Integrated laser line with On/Off switch marks the cutting line for greater accuracy, faster set-up, and increased safety
Aluminum alloy constructed face for superior strength, lighter weight and increased durability
Blade-guide system helps keep blade running straight during vertical or angled cuts
Straight-edge guide ensures straight and accurate cuts
Use dust blower to disperse work dust for a clearer cutting line or attach a dust collection system to the vacuum adaptor
Cutting capacity: 3-11/32" (85 mm) in wood and 1/2" (6 mm) in metal
“Live” tool LED indicator shines green when there is power to the tool
Includes: Hex key, straight edge guide, dust port, and 1 wood cutting blade
Weight: 6 lb 7 oz (2.92 kg)
| Part Number | 3135 |
|---|---|
| Accessories List | Wood Cutting Blade, Hex Key |
| Amperage | 6 A |
| Blade Type | T-Shank |
| Case Type | Not Included |
| Cord Gauge (ga) | 16ga |
| Cord Length (m) | 3.00 m |
| Cord Type | Rubber |
| Maximum Strokes Per Minute (spm) | 3000 spm |
| Motor Type | Brushed |
| No-Load Speed Range (rpm) | 0 - 3000 |
|---|---|
| Number of Accessories | 4 |
| Package Depth (cm) | 32.50 cm |
| Package Depth (in) | 12.80 in |
| Package Height (cm) | 24.50 cm |
| Package Height (in) | 9.65 in |
| Package Weight (kg) | 4.50 kg |
| Package Weight (lb) | 9.92 lb |
| Package Width (cm) | 9.00 cm |
| Package Width (in) | 3.54 in |
| Product Model Number | 3135 |
| Rafter Hook | No |
| Stroke Length (cm) | 2 5/16 cm |
| Variable Speed | Yes |
Warranty
- 5 year limited warranty against defects in workmanship and material.. For customer support, call 1-888-670-6682. 1 yr repair
Online Ordering
- Pick Up is free at most stores (some stores require a minimum order value before tax)
- Shipping fee is based on size and weight of products and distance from address to store
- Same-Day Delivery costs $9.99 per order
- Online Ordering Information
Returns
- Most products can be returned or exchanged at any Canadian Tire store within 90 days of purchase
- Some products are non-refundable and non-exchangeable
- The return policy outlined above may not apply to the product you are currently viewing. For complete details and eligibility, please refer to our Return Policy for exceptions.
Compare Similar Products
Only Show Differences | |||||
| Ratings | |||||
| Accessories List | Wood Cutting Blade, Vacuum Adaptor, Battery Charger Included | Hex Key, Wood Cutting Blade | Wood Cutting Blade, Vacuum Adaptor | Hex Key, Vacuum Adaptor, Wood Cutting Blade | |
| Blade Type | T-Shank | T-Shank | T-Shank | Saw | |
| Case Type | Soft Bag | Not Included | Hard Case | Not Included |
Shop Related Products
- Weekly Deals
- Customers Also Viewed
- Top Trending Products
- More From This Brand
Weekly Deals
Review Highlights
List of Pros Highlights
Pros
List of Cons Highlights
Cons
Reviews
Customer Images and Videos
Filter Reviews
- sawing
- purchase
- cutting
- instructions
- price
- satisfaction
- product features
- straight line
Rating
Locale
1 to 5 of 37 Reviews
1 – 5 of 37 Reviews
Most Recent
1 out of 5 stars.
Cannot lock the base.
2 years ago
Purchased this jigsaw in November 2022 but do not recommend it as you cannot cut a strait line with it due to the inability to lock the base in place. As a result the saw wanders when making a cut. This is shame as the motor is very powerful and the rest of the saw is of vey good quality. To improve teh saw a better base with positive locks is required.
Helpful?
2 out of 5 stars.
The blade wanders
4 years ago
Every time I try to cut something thicker than 1/8th of an inch the blade wanders left or right. The blade will not stay within the guide wheels. The guide wheels move around and then the blade wanders or angles. I'll keep trying but, please don't buy this ( although I see its discontinued)
No, I do not recommend this product.
Helpful?
1 out of 5 stars.
Just don't
6 years ago
This saw does NOT cut straight. In 1/2" plywood, I tried to cut some 3inch by 2 inch notches. It won't even stay straight long enough for such short cuts. I can't take it back, but it will sit in the back of the cupboard while I use a new one from somewhere else.
Helpful?
5 out of 5 stars.

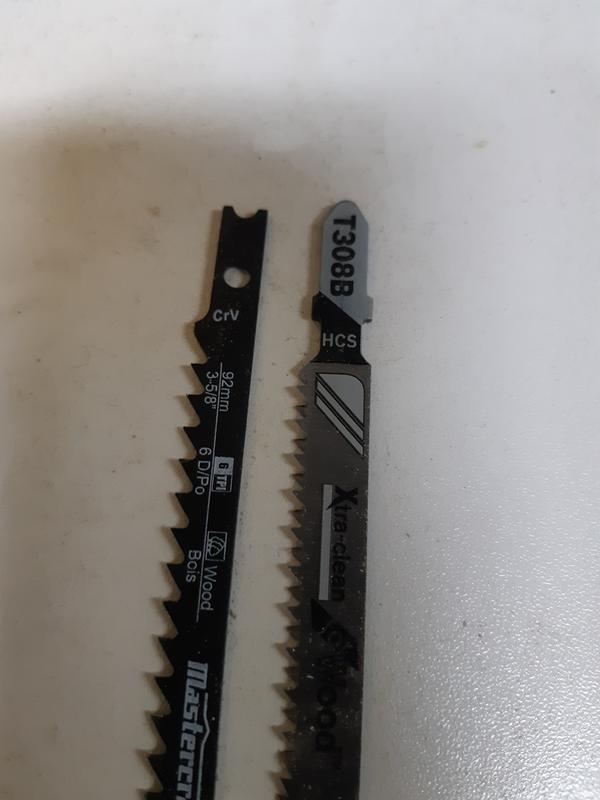

Use T-Shank blades
6 years ago
If you have problems getting the blade to follow your line (it may bend left or right) make sure you're using T-Shank blades. Standard jigsaw blades (U-Shank) do not sit properly in the guide behind the blade. T-Shank blades are an improvement over the older design and a selling point if you're looking for a new jigsaw.
Helpful?
3 out of 5 stars.
It's served me well enough for 4 years
8 years ago
This is an average entry-level saw and price is it's best attribute. I've owned it for 4 years and it was frustrating at times, but I've figured out it's quirks and it now performs well enough. Other reviewers who say the blade doesn't tighten simply have not read the instructions properly. There are some really lousy features which will make you want to replace it eventually even if you are experienced with this type of tool.
The main issue is the pivot on the foot. It is designed to be adjustable, allowing angled cuts, but it does not tighten well and will always loosen during vibration of the saw. In my opinion, this tool would be a better tool if the foot were fixed in place and I'm contemplating using epoxy to achieve that on mine. I almost never use this for angled cuts, as I have better tools for that application. I f this were redesigned, I would manufacture it with a pivot that locks at commonly used angles, maybe 0, 15, 30, 45.

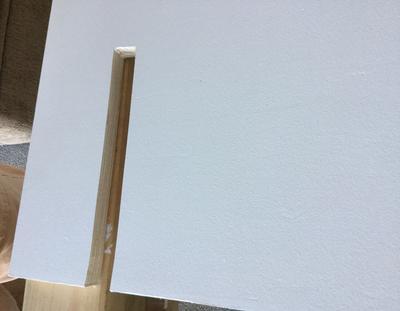

Another issue is the laser guide. It's completely useless for two reasons : it's not bright enough and it is not accurate. I don't use it at all but even without it you can achieve a decently straight freehand cut. Also, very little tearout on the bottom side using a new blade.
No, I do not recommend this product.
Helpful?
1 – 5 of 37 Reviews
Questions
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 10 Questions
Most helpful answers
Q: Cannot remove blade,bought saw yesterday,made a couple cuts about 1 foot long and now can't change the blade, just won't release.What do you suggest?
12 years ago2 Answers
A: Yeah...this happened to me too. It is a defect. You need to get a replacement.
10 years agoHelpful?
Q: Does this saw have an orbital action? It is not stated in the product description whether this saw has an orbital action when cutting.
12 years ago2 Answers
A: There is a lever on the left side of the unit that clicks into indent settings to angle the blade forward for aggressive cutting or vertical for scroll work. As far as being "orbital" I cant tell the blade moves too fast for me to see, but yes with good blades this thing moves wood.
12 years agoHelpful?
Q: How can I lock the base from tilting? It must be possible to achieve a level cut. It can bevel left and right but i cant see how to lock it straight up and down.
5 years ago1 Answer
A: 1. Use the hex key to loosen the hex screw securing the saw base. 2. Align the 0° mark with the edge of the enclosure and pull the base forward/backward to ensure that the 0° quick-adjustment slot on the base engages with the clamping screw. 3. Re-tighten the hex screw.
5 years agoHelpful?
Q: Bonjour depuis que j’ai acheté neuf ce modèle j’arrive pas à faire une coupe droite sur l’épaisseur du bois. Je m’explique en suivant ma ligne tout va bien mais la coupe est en angle, comment résoudre ce problème
6 years ago1 Answer
- Translate with Google
A: Nous vous suggérons de communiquer avec Mastercraft a numéro :1-800-689-9928 pour plus d'information.
6 years agoHelpful?
Q: why do the u shapes blades keep releasing themselves from the chuck? i have on many occasions had the u shaped saw blades come loose from the chuck can someone explain how the locking blade system works?
10 years ago1 Answer
A: It can be used with u shaped saw blade, please try again and below are some detailed instructions copied from the product manual: The tool-less blade-change lever will go back automatically when the blade is held in place. Depress the tool-less blade-change lever. Insert the blade directly into the slot of the tool-less blade change holder. The teeth of the blade should be facing the front and pointing up (when saw is right side up, in cutting position), and the back of the blade must rest in the groove of the blade guide rollers. If you have any further question please call 1-800-689-9928 (free) for further assistance. Thank you.
10 years agoHelpful?
Q: I lost the manual. Is there an on-line version?
12 years ago1 Answer
A: To obtain a manual, please contact Mastercraft at 1-800-689-9928.
12 years agoHelpful?
Q: What kind of blades does this saw accept? It is not stated in the product description what kind of blades this saw works with. Specifically, does it accept Bosch T-shank blades?
12 years ago1 Answer
A: It uses both T and U shanked blades.
12 years agoHelpful?
Q: What makes this one twice the price of the other one? is it just the removable handle and 1amp better motor? i dont see any other differences...
14 years ago1 Answer
A: This one has a removable d handle, 360 degree scroll feature, and 5 years warranty.
14 years agoHelpful?
Q: Will I be able to buy replacement blades for my saw in the store? I would like to be able to buy blades for this saw especilally with the scroll cutting 360 degrees.blade. I do alot of scrool saw cutting. Thank You What are T and U tips means?
14 years ago1 Answer
A: 054-0999, 054-8026, 054-8099, 054-8037, 054-0900, 054-0997, 054-8117, 054-8115, 054-0904 are all the replacement blades for 054-1232. T and U means the blade connection shape.
12 years agoHelpful?
Q: Est normal que l'ajustement à 90, 45 ou autres degré soit imprécie? Est-ce normal qu'une fois clé hexagonale visée au maximum, il est possible de bouger le pied à la main, même quand le pied est entré dans les coches 90 ou 45 degrés?
15 years ago1 Answer
