MAXIMUM

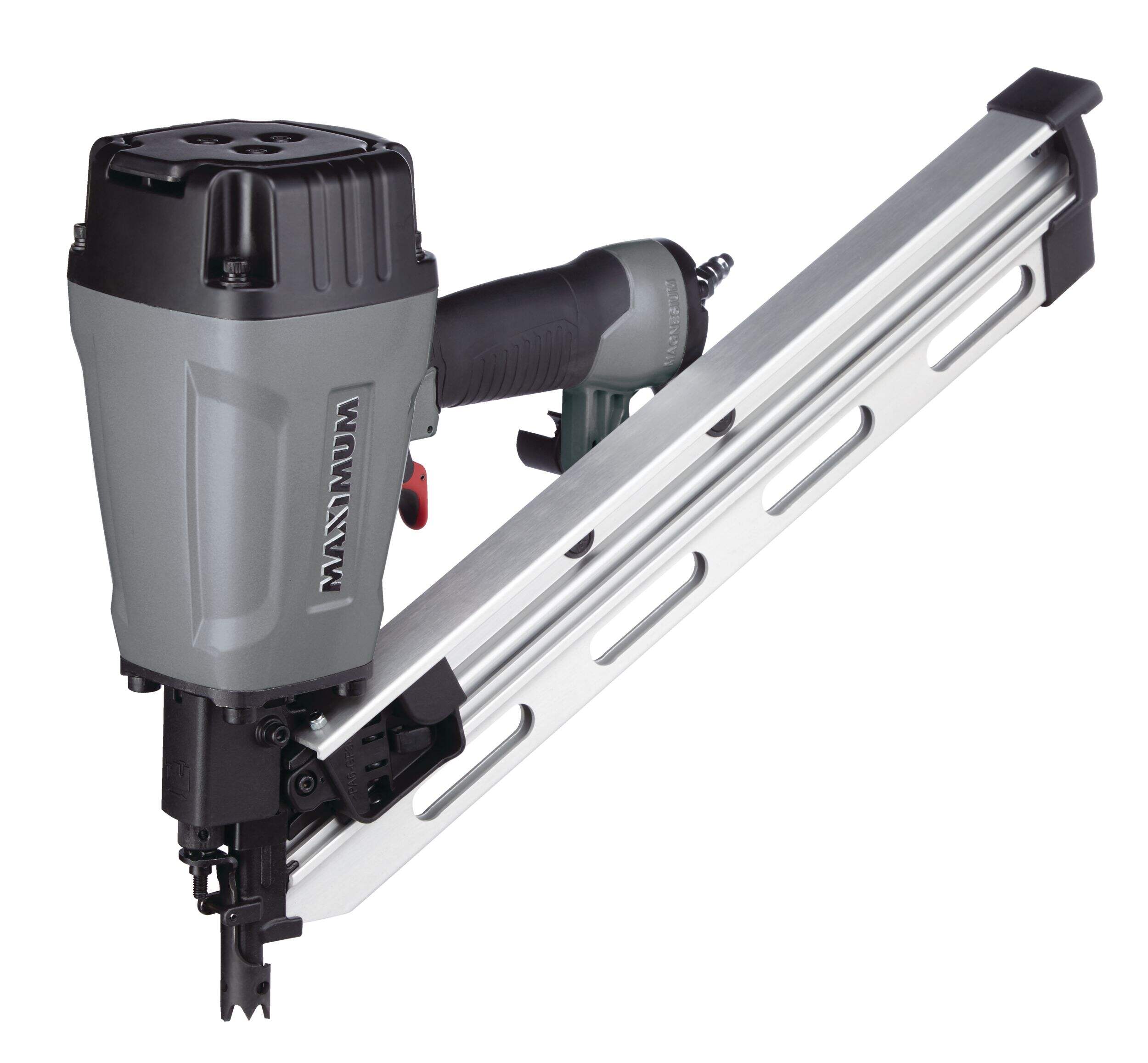

MAXIMUM 34D Lightweight Pneumatic Framing Nailer, 3-1/2-in
#058-9844-2
$239.99
price was $329.99
Save 27% ($90.00)
SaleTop Rated
Buy Online :
- FREEAvailable
- Available
- Available
Pick up at Leduc, AB
5 In Stock
Pick up available 09:00 a.m., Jan 03
Quantity updated to 1
Also Find It in Store:Aisle 24
Only 5 left
at Leduc, AB
Add to Registry
Quebec residents: For information on maintenance and repair click here.
Similar Items
Product Details
The MAXIMUM Pneumatic Framing Nailer is designed for framing, siding, sheathing, and trusses, as well as building fences and decks. Its durable yet lightweight magnesium design ensures long-lasting use, while the ergonomic rubber grip reduces hand fatigue during extended work sessions. The adjustable rafter hook allows easy tool hanging on rafters or joists, providing added convenience and efficiency.
Toggle switch allows for either sequential or contact operation
Tool-free depth-of-drive adjustment
Dry-fire lock out
Maximum pressure: 120 PSI
Pre-installed 1/4" NPT plug for easy air hose hook up
Magazine capacity: 100 nails
Weight: 8 lb 10 oz (3.9 kg)
Removable rubber cap reveals hardened claw tip for a secure grip when toenailing wood
| Part Number | FN3490MX |
|---|---|
| Tool Type | Framing Nailer |
| Gauge | 15 ga |
| Maximum Fastener Length (in) | 3.54 in |
| Minimum Fastener Length (in) | 1.97 in |
| Nail/Staple/Brad Capacity | 100 |
| Strip or Coil | Strip |
| Fastening Angle (degree) | 34 ° |
| Maximum Pressure (psi) | 120 lb/in² |
| CFM @ 90 PSI | 6 lb/in² |
| Required Air Flow (ft³/min) | 5.51 ft³/min |
|---|---|
| Required Air Flow (m³/min) | 0.16 m³/min |
| Air Inlet Size | 1/4" |
| Suggested Air Hose Size | 3/8" |
| Calibre (in) | 0.00 in |
| Noise Level (dB) | 96 dB |
| Primary Material | Aluminum |
| Primary Colour | Black |
| Advanced Features | No Advanced Features |
| Accessories List | Hard Case, Oil, Other |
| Number of Pieces | 1 |
| Certifications | No Certifications |
| Assembled Length (in) | 18.90 in |
| Assembled Width (in) | 4.72 in |
| Assembled Height (in) | 13.62 in |
| Assembled Weight (lb) | 8.60 lb |
Warranty
- This product carries a special warranty. Contact store for details.. This product is partially repairable. For details contact MAXIMUM Customer Support at 1-888-670-6682
Online Ordering
- Pick Up is free at most stores (some stores require a minimum order value before tax)
- Shipping fee is based on size and weight of products and distance from address to store
- Same-Day Delivery costs $9.99 per order
- Online Ordering Information
Returns
- Most products can be returned or exchanged at any Canadian Tire store within 90 days of purchase
- Some products are non-refundable and non-exchangeable
- The return policy outlined above may not apply to the product you are currently viewing. For complete details and eligibility, please refer to our Return Policy for exceptions.
Compare Similar Products
Only Show Differences | ||||||
| Ratings | ||||||
| Tool Type | Framing Nailer | Framing Nailer | Brad Nailer | Framing Nailer | Finish Nailer | |
| Gauge | 15 ga | 15 ga | 18 ga | 16 ga | 16 ga | |
| Maximum Fastener Length (in) | 3.54 in | 3.50 in | 19.69 in | 3.50 in | 2.52 in |
Shop Related Products
- Weekly Deals
- Customers Also Viewed
- Top Trending Products
- More From This Brand
Weekly Deals
Review Highlights
List of Pros Highlights
Pros
List of Cons Highlights
Cons
Suitable Cons could not be generated at this time.
Reviews
Customer Images and Videos
Filter Reviews
- price
- purchase
- quality
- weight
- value
- instructions
- reliable
- parking
Rating
Locale
1 to 5 of 51 Reviews
1 – 5 of 51 Reviews
Most Recent
5 out of 5 stars.
Nailer
20 days ago
Has been a good tool as we build our garage. Almost 10,000 nails - maybe more - 3 1/2 and 2 3/8 - with no problems
Helpful?
5 out of 5 stars.
Review title good gun for the price
a month ago
Only had it for a couple of weeks but working really well. Just a little heavy for the price excellent excellent.
Helpful?
1 out of 5 stars.
Broke after second use.
a month ago
I bought this a couple years ago with my CT points. It stayed in the box basically new until I built my garage. I used it once with no problems; it had plenty of power. I used it a second time and half way through nailing it broke. It will not build pressure and blows the air through the trigger. I will have to see if I can get the seals rebuilt since the manufactures warranty is only 1 year .
No, I do not recommend this product.
Helpful?
Response from Canadian Tire:
a month ago
Customer Service with AI Support
Thank you for sharing your experience with the MAXIMUM 34D Lightweight Pneumatic Framing Nailer, 3-1/2-in. We appreciate your feedback as it helps us strive for continuous improvement.
Given the description of the issue with air escaping through the trigger, it seems like there might be a problem with the internal seals or O-rings. According to the product manual, air leakage from the trigger area can often be resolved by checking and possibly replacing damaged O-rings or other components.
I recommend taking the product to your nearest store for further inspection. They may be able to assist you with rebuilding the seals or provide other solutions. For more detailed assistance, please feel free to contact our call center at 1-888-670-6682.
Thank you, and we hope to resolve this matter promptly.
5 out of 5 stars.
Framing Nailer overview
a month ago
The maximum 34D pneumatic framing nailer is as advertised. It's lightweight makes it easy to use on all day projects. I have already used it on framinv jobs and a large deck build and performs excellent. I would definitely recommend and would buy it again.
Helpful?
4 out of 5 stars.
generally works well, but sometimes it doesn't shoot the nail
a month ago
generally works well, but sometimes is double firing or is not shooting the nail at all
Helpful?
1 – 5 of 51 Reviews
Questions
Start typing your question and we'll check if it was already asked and answered.
1 - 7 of 7 Questions
Most helpful answers
Q: What is the angle of this nailer? 30-34?
4 years ago3 Answers
A: 34
4 years agoHelpful?
Q: Does this nailer except 30 and 34 degree nails?
4 years ago2 Answers
A: Yep! A few others have answered this.
4 years agoHelpful?
Q: How big of a compressor does it need to run this framing nailer
2 years ago1 Answer
A: I use a 8 gallon mastercraft and it has zero issues. Consistent nailing.
2 years agoHelpful?
Q: Does the nailer use round head nails?
3 years ago1 Answer
A: This is a framing nail gun using clipped head nails. This is a construction tool with a variety length of nails available. This is not a Brad nail gun. Brad nails are used for fastening molding etc.
3 years agoHelpful?
Q: What is the Product Model Number? Where is it made? Previous discontinued unit (CHF9034RA) was a piece of S&%T made in Zhejiang, China.
5 years ago1 Answer
A: The model number is FN3490MX, both the appearance and the internal parts are different than the Mastercraft product (model # CHF9034RA). The quality is more premium in the Maximum Framing Nailer. Some features include: Lightweight and well balanced magnesium body; Easy and quick switch between sequential fire and bump fire; Tool-less adjustment of the depth; Over-mold hand grip; a convenient rafter hook and a super durable carry case.
5 years agoHelpful?
Q: What nails can be used in this gun? Please provide a Mastercraft part number. Thanks.
6 years ago1 Answer
A: 58-8922, 58-8970, 58-8906, 58-9421, 58-8969 and 58-9361
6 years agoHelpful?
Q: Will non clipped head nails work in this gun. Pasload. are a predominate brand found in stores or seems
10 months ago0 Answers
