Mastercraft

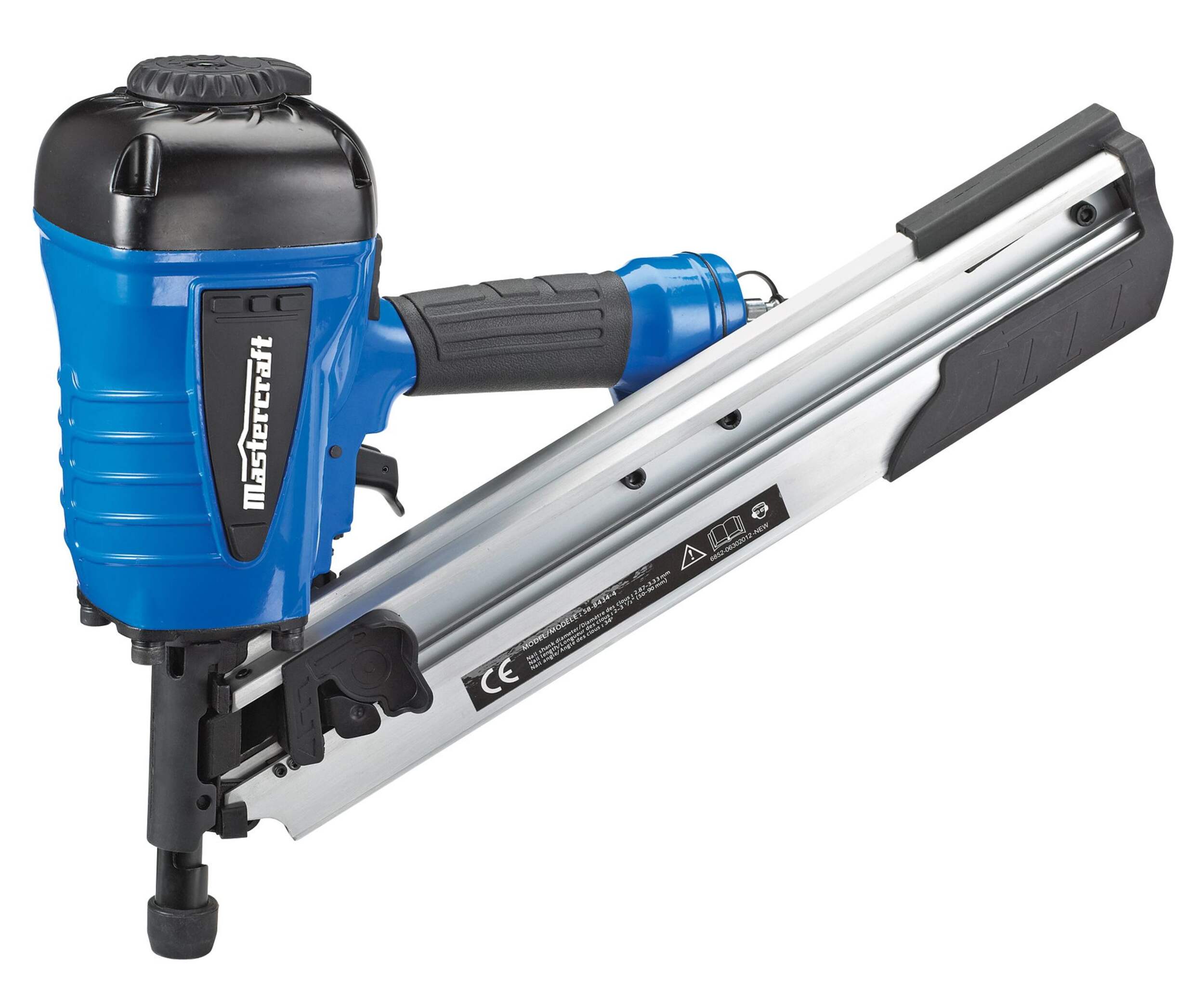

Mastercraft Framing Nailer, 3-1/2-in
#058-8434-4
$319.99
Exclusive
Unfortunately, this product is discontinued in your selected store and nearby stores.
You may be interested in these similar products shown below.Similar Items
Quebec residents: For information on maintenance and repair click here.
Product Details
Mastercraft 3-1/2" Framing Nailer is the ideal tool for heavy duty jobs like crating, decking, fencing, framing, pallets, sheathing, siding, sub-flooring and trusses
Air Consumption: 0.081 CF/Cycle @ 90 PSI
Use with 2” - 3-1/2” 34-degree clipped-head framing nails
Adjustable depth control for easy depth-of-drive adjustments
Selectable trigger allows contact or single sequential actuation
Ideal for use with Mastercraft 2-3/8-in to 3-1/4-in 34° Framing Nail Kit
Housing bumpers to prevent fall bruising
Tool-Free adjustable exhaust with muffler
Includes: 4 hex wrenches, bottle of oil, safety glasses, and nose piece
Operating pressure: 70-110 and max pressure of 120 psi
Nail angle: 34 degree
Nail capacity: 2 strips (up to 80)
Nail diameter: 2.87 mm (0.113”), 3.05 mm (0.120”) ,3.33 mm (0.131”)
Dimensions: 6.4" x 14.4" x 19.4" (16.3 x 36.7 x 49.3 cm)
Weight: 8.15 lbs (3.7 kg)
| Part Number | CHF9034RA |
|---|---|
| Tool Type | Framing Nailer |
| Gauge | 15 ga |
| Maximum Fastener Length (in) | 35.43 in |
| Minimum Fastener Length (in) | 19.69 in |
| Nail/Staple/Brad Capacity | 80 |
| Strip or Coil | Strip |
| Fastening Angle (degree) | 34 ° |
| Maximum Pressure (psi) | 120 lb/in² |
| Required Air Flow (m³/min) | 133.00 m³/min |
| Air Inlet Size | 1/4" |
|---|---|
| Suggested Air Hose Size | 3/8" |
| Calibre (in) | 0.00 in |
| Noise Level (dB) | 93 dB |
| Primary Material | Aluminum |
| Primary Colour | Blue |
| Advanced Features | No Advanced Features |
| Accessories List | Oil, Other, Hard Case |
| Number of Pieces | 1 |
| Certifications | No Certifications |
| Assembled Length (in) | 14.45 in |
| Assembled Width (in) | 19.41 in |
| Assembled Height (in) | 6.42 in |
| Assembled Weight (lb) | 8.60 lb |
Warranty
- 3 yr limited parts exchange
Online Ordering
- Pick Up is free at most stores (some stores require a minimum order value before tax)
- Shipping fee is based on size and weight of products and distance from address to store
- Same-Day Delivery costs $9.99 per order
- Online Ordering Information
Returns
- Most products can be returned or exchanged at any Canadian Tire store within 90 days of purchase
- Some products are non-refundable and non-exchangeable
- The return policy outlined above may not apply to the product you are currently viewing. For complete details and eligibility, please refer to our Return Policy for exceptions.
Compare Similar Products
Only Show Differences | Currently Viewing | |||||
| Ratings | ||||||
| Tool Type | Framing Nailer | |||||
| Gauge | 15 ga | |||||
| Maximum Fastener Length (in) | 35.43 in |
Shop Related Products
- Weekly Deals
- Customers Also Viewed
- Top Trending Products
- More From This Brand
Weekly Deals
Review Highlights
List of Pros Highlights
Pros
List of Cons Highlights
Cons
Reviews
Filter Reviews
- purchase
- price
- satisfaction
- quality
- instructions
- value
- parking
- warranty
Rating
Locale
1 to 5 of 118 Reviews
1 – 5 of 118 Reviews
Most Recent
5 out of 5 stars.
58-8434-4
a year ago
Mon employé est revenu avec et le déclenchement ne se fait plus , on dirait qu’il manque une pièces au niveau de l’interrupteur ou de la barrure de sécurité? Quelqu’un pourrait m’aider merci
Translate with GoogleYes, I recommend this product.
Helpful?
1 out of 5 stars.
Poor quality
2 years ago
While I bought this product some time ago, this weekend was the first time using it. After firing 8 nails, the head gasket blew out, quickly followed by the nose cap falling apart. Not what you would expect in any circumstances.
No, I do not recommend this product.
Helpful?
1 out of 5 stars.
Terrible product
3 years ago
Was a Christmas gift. I used it twice, it is still practically new. It stopped working. Needs a new cylinder seal. I was told by a friend to just return it to the store. I did but they would do nothing without receipt. Apparently you cannot purchase parts(I called Mastercraft). This is an "exchange item" only. So now I have a brand new nailer that I am to throw in the garbage because you can't buy parts and they will not exchange without receipt. Who would buy an expensive tool that is only good for 3 years?
No, I do not recommend this product.
Helpful?
1 out of 5 stars.
Impossible de réparer si brisé
3 years ago
J'ai acheté cette cloueuse il y a 5 ans. Dernièrement l'air c'est mis à fuir et il n'y a plus de pression pour clouer. Je l'ai ouvert et trouver la "bague d'étanchéité du cylindre" brisé. J'ai appelé le service à la clientèle et on m'a dit qu'aucune pièce de remplacement n'est disponible ou vendu par Canadian Tire. A cause de 1 joint; je dois mettre la cloueuse au vidange!
Translate with GoogleNo, I do not recommend this product.
Helpful?
1 out of 5 stars.
Aucunes pièces de rechange!
4 years ago
J’ai acheté cet article et après la période de garantie aucun moyen d’obtenir des pièces de remplacements. Même chose pour un compresseur Mastercraft que j’avais acheté et plus sous garantie. A éviter la marque Mastercraft.
Translate with GoogleNo, I do not recommend this product.
Helpful?
1 – 5 of 118 Reviews
Questions
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 70 Questions
Most helpful answers
Q: Quel marque de clous J'ai eu en cadeau une cloueuse à charpente(58-8434-4) dans différents magasins on retrouve du clous Paslode et Bostitch 28 degré et 30 degré(31/4'') . C'est quoi la marque de clous et le degré que je dois emploiyer....Merci
16 years ago4 Answers
- Translate with Google
A: Il est recommendé d'utiliser des clous entre 31 et 34 degré. Pour ma part, j'ai déjà cloué une boite de 5000 clous 2" 34 degré de marque Paslode et une boite de 4800 clous 3 1/2" 30 degré de marque tomahawk et aucun clous n'a "jammé" dans la cloueuse. Je crois donc que la marque de clous n'a pas d'importance tant que l'angle se situ entre 30 et 34 degré, la longeur entre 2" et 3 1/2" et la tête en "D".
13 years agoHelpful?
Q: Spiral shank galvanized nails but they must be 34°... Part#? In a previous question, the answer included "spiral shank galvanized nails but they must be 34°"... is there a part number for these nails? Looking for 2" - 2.5"... I see smooth shank nails here but not seeing spiral.
8 years ago3 Answers
A: yes I just bought some galvanized at princess they have 3 1/4 and 2 3/8 in both types and you only have to buy them in a 1000 pack I believe CTC has galvanized 4 1/4 but not any shorter
8 years agoHelpful?
Q: What are the 4 hex keys for? The kit comes with 4 hex keys but the manual doesn't seem to say for what they're used.
13 years ago3 Answers
A: The Hex keys are so you can constantly retighten the bolts every couple of minutes, until they fall out and get lost permanently of course. Speaking from my personal experience.
9 years agoHelpful?

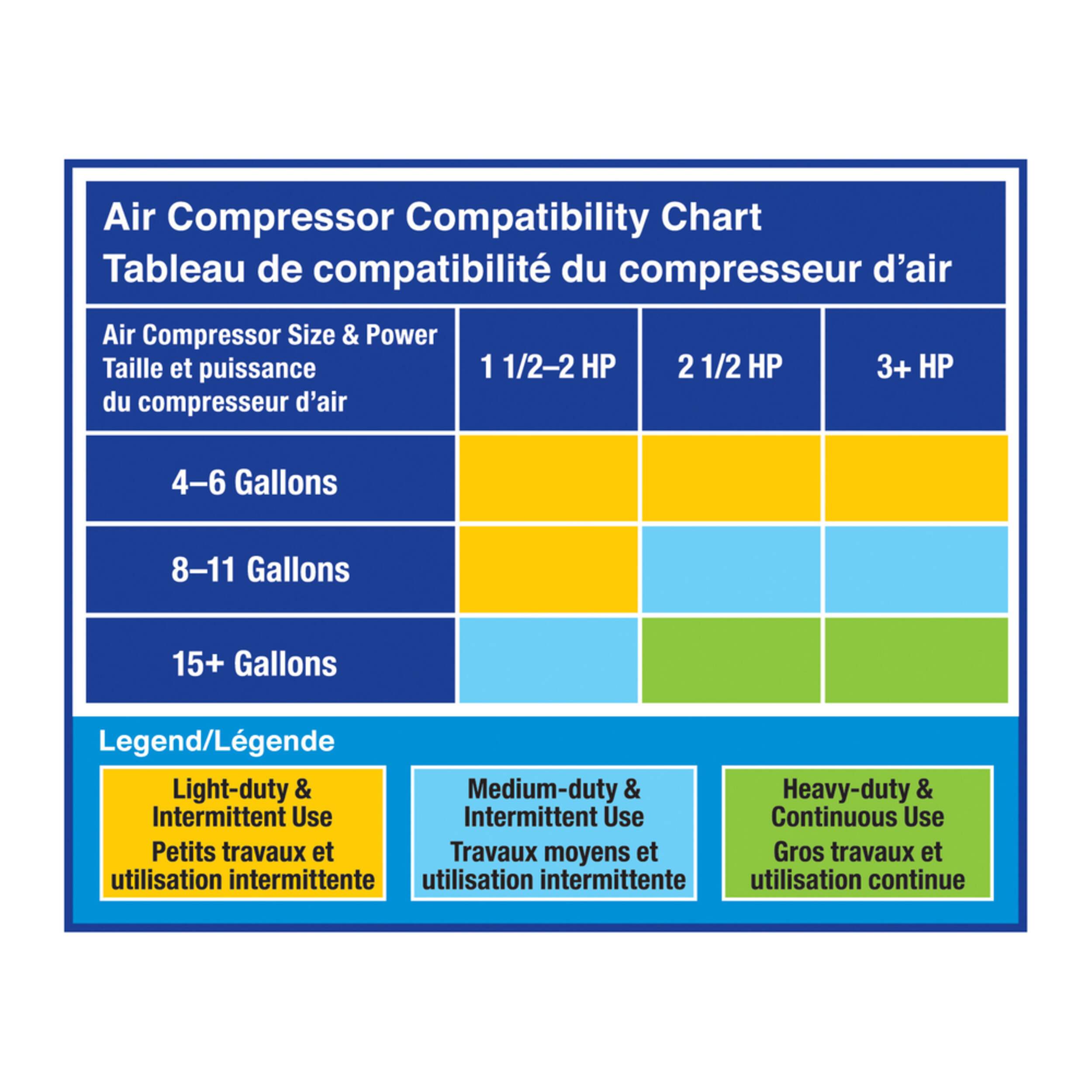

Q: J'ai un compresseur d'une capacité de 6 gallons. Est-ce suffisant pour opérer cette cloueuse?
15 years ago3 Answers
- Translate with Google
A: Je crois qu'un compresseur 6 gallons est insuffisant ... De mon côté, je l'utilise avec un compresseur 8 gallons connecté sur une réserve d'air de 8 gallons (16 gallons total). Mon compresseur démarre 1 fois durant environ 1 minute à chaque 60 clous 3 1/2" utilisé. Je vous conseille donc une réserve d'air supplémentaire et de la patience lorsque votre compresseur recharge.
13 years agoHelpful?
Q: Why does this framing nailer fire two or three nails at a time. I'm having trouble with this framing nailer. It fires two or sometimes three nails at a time. Sometimes it fires only one like it should. Is there any adjustment for this problem.
16 years ago3 Answers
A: I had the same problem (it sounds like) with the first nailer I bought: it would double-fire quite often (maybe about 2 out of 5 times it would double-fire). I tried it in both normal-fire mode (pull the trigger to drive a nail) and bump-fire mode (keep the trigger depressed and bump the nose against the piece you are nailing): in both modes, it would sometimes double-fire. There is no adjustment to fix this: it was a defective unit. I returned the nailer, got a replacement, and it works properly.
Anonymous15 years agoHelpful?
Q: nails I would like to know where I can buy,2 in nails for the framing nailer mastercraft model #58-8434-4 I can't find them anywhere thank you !!!
18 years ago3 Answers
A: you can buy your nails at canadian tire . if they don't have them on hand , they can order some for you .
Anonymous14 years agoHelpful?
Q: Where can I get replacement parts for the framing gun. the O-ring around the piston broke in multiple pieces. it seems to be made of white plastic or Teflon. Also need cylinder cover bumper, part # 8 on owner’s manual. Any help greatly appreciated.
2 years ago2 Answers
A: The vendor is Mastercraft. Let me know how to get in touch with them and Ill do that. Meanwhile, I 3D printed a replacement and it works better than new.
2 years agoHelpful?
Q: nailer stopped fireing nails for no reason . I just get a thump. Can I return to store where I purchates it and get a new one to replace this one . ?
10 years ago2 Answers
A: What size of air hose are you using. If it's under 3/8 hose or a long run this could be your problem. I found out when I tried to run mine on a 50foot 1/4 inch hose. I assume you already checked your compressor output pressure? Probably needs to be close to 100psi. Your nailer Manuel will say exactly what pressure range you need. Good luck
10 years agoHelpful?
Q: Bent nail in the firing "groove" Hit something iron and solid and shallow, maybe a plastered over strike plate on an old door frame. Thought using the bent nail like a handle / rotate would work, nail head broke off. Had this gun two months. Suggestions?
11 years ago2 Answers
A: This happened to me 5 or 6 times. first I unplugged the air hose (haha) then using a hammer and an old chisel I hammered it out.
11 years agoHelpful?
Q: Can spiral shank galvanized nails be used with this nailer?
11 years ago2 Answers
A: yes 2" -31/2" clipped head nails only
11 years agoHelpful?
1 - 10 of 70 Questions
