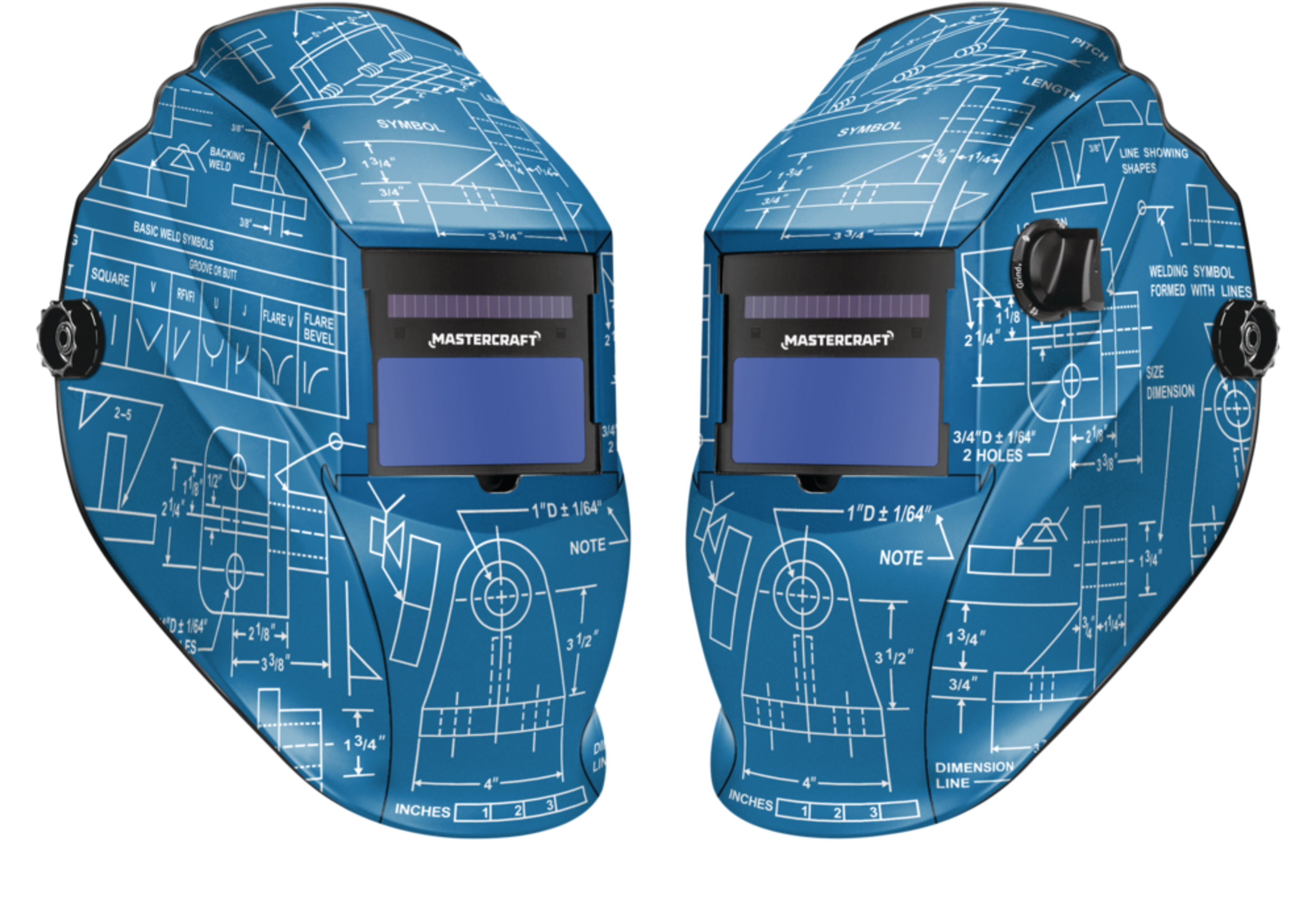

Name: Mastercraft Auto-darkening Welding Helmet, Variable Shade #9-13, Blueprint
Brand: Mastercraft
SKU: 0586891
Price: 149.99 CAD
Availability: InStock

Product Details

This versatile Mastercraft Welding Helmet features a solar-powered auto-darkening lens with convenient battery backup for extended duty. Fabricated for the home workshop welding enthusiast, this 2-sensor welding mask includes a variable shade #9-13 lens for a range of applications, including grinding. The lightweight nylon shell is impact-resistant and meets all required eyewear standards and regulations.

Suitable for Arc, MIG, Stick, TIG applications
Blueprint graphic design
Easy to operate—fully automatic
Lightweight and comfortable with an adjustable headband
ANZI Z87.1 and CSA Z94.3 certified
Viewing Area: 3.86" x 1.73" (9.8 x 4.4 cm)
Low battery indicator for added convenience
This product carries a 1-year exchange warranty redeemable at any Canadian Tire store

Part Number	ADF725STM8B
Advanced Features	Adjustable delay, Adjustable Sensitivity, Adjustable Size, Auto-darkening, Sensor Bar, Spatter Shield
Assembled Height (cm)	32.50 cm
Assembled Height (ft)	1.07 ft
Assembled Height (in)	12.80 in
Assembled Length (cm)	64.00 cm
Assembled Length (ft)	2.10 ft
Assembled Length (in)	25.20 in
Assembled Weight (kg)	0.50 kg
Assembled Weight (lb)	1.09 lb

Assembled Width (cm)	61.00 cm
Assembled Width (in)	24.02 in
Assembled Width (mm)	610.00 mm
Certifications	ANSI Certified, CSA Listed, ISO Certified
Colour	Silver
Maximum Operating Temperature (°C)	55.00 °C
Maximum Operating Temperature (°F)	131.00 °F
Maximum Run Time (h)	5500 h
Minimum Operating Temperature (°C)	-10.00 °C
Minimum Operating Temperature (°F)	14.00 °F
Number of Pieces	4
Number of Sensors	2
Package Depth (cm)	23.00 cm
Package Depth (in)	9.06 in
Package Height (cm)	23.00 cm
Package Height (in)	9.06 in
Package Weight (kg)	1.15 kg
Package Weight (lb)	2.54 lb
Package Width (cm)	33.00 cm
Package Width (in)	12.99 in
Passive/Active	Active
Power Source(s)	Battery, Solar
Shade Number	13
Shelf Life (year)	5 yr
Switching Speed	1/25,000 second
Viewing Area Height (in)	1.73 in
Viewing Area Height (mm)	44.00 mm
Viewing Area Width (in)	3.85 in
Viewing Area Width (mm)	98.00 mm
Welding Process	Arc, MIG, Stick, TIG

Warranty

This product carries a 1 year exchange warranty redeemable at any Canadian Tire store.
