Mastercraft

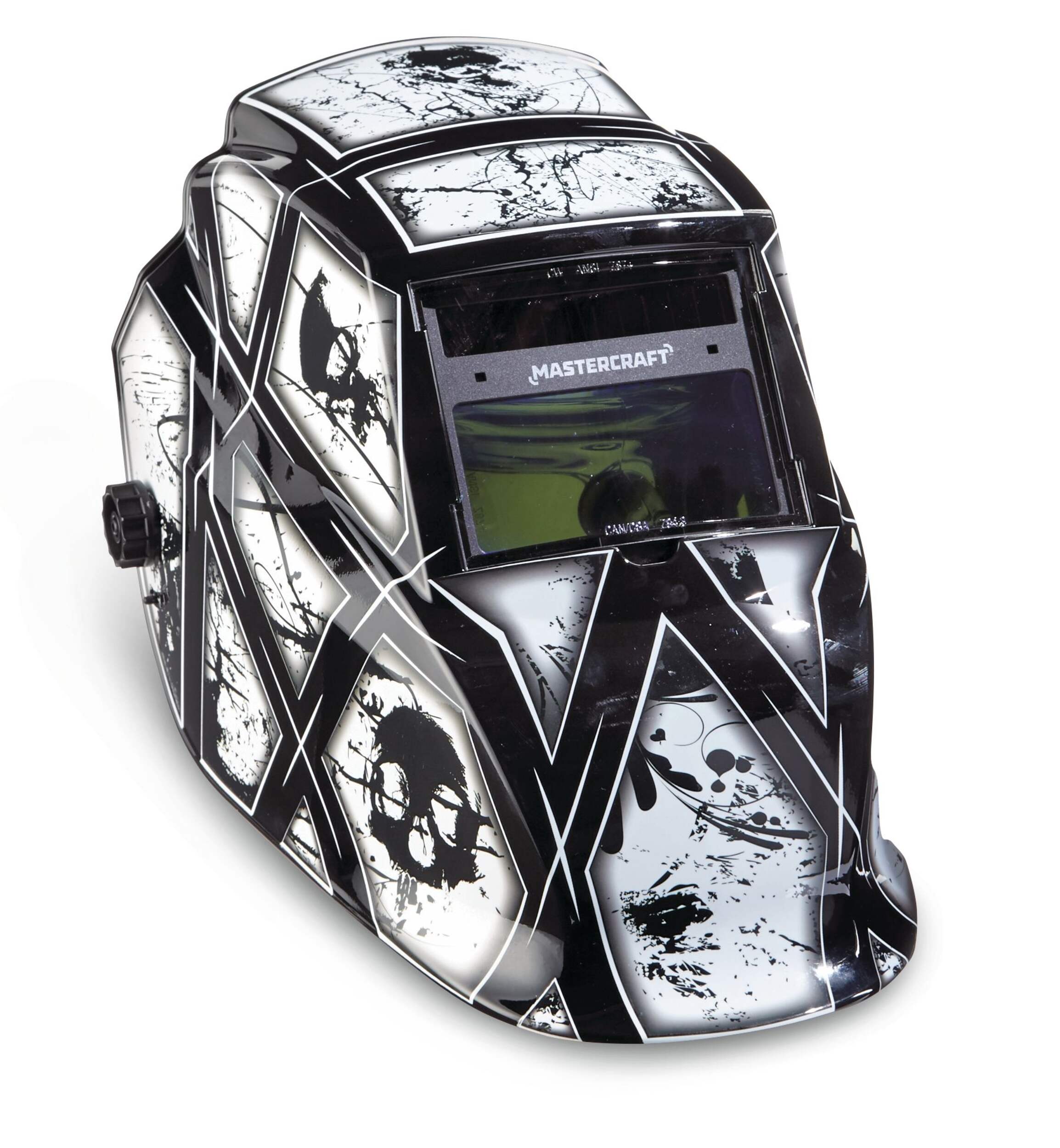

Mastercraft Auto-darkening Welding Helmet, Fixed Shade #10, White Skull
#058-9309-8
$89.99
Best SellerTop Rated
Buy Online :
- FREEAvailable
- Available
- Available
Pick up at Leduc, AB
5 In Stock
Pick up available 09:00 a.m., Jan 03
Quantity updated to 1
Also Find It in Store:Aisle 22
Only 5 left
at Leduc, AB
Add to Registry
Quebec residents: For information on maintenance and repair click here.
Similar Items
Product Details
This Mastercraft Welding Helmet combines essential eye and face protection with a distinctive graphic treatment for the welding enthusiast or home hobbyist. This two-sensor MIG welding helmet is lightweight and comfortable with an adjustable headband/sweatband and a fixed shade #10 lens for common arc-welding applications. The solar cell automatically darkens the lens whenever the arc is struck and requires no batteries.
Features a black and white paint splash design
Easy to operate—fully automatic
Lightweight and comfortable with an adjustable headband
ANZI Z87.1 and CSA Z94.3 certified
Visual field of 3.82 x 1.85 (9.7 x 4.7 cm) for wide angle viewing
Made of high-impact resistant nylon
This product carries a 1-year exchange warranty redeemable at any Canadian Tire store
| Part Number | ADF200F |
|---|---|
| Advanced Features | Adjustable delay, Adjustable Sensitivity, Adjustable Size, Auto-darkening |
| Assembled Height (cm) | 32.50 cm |
| Assembled Height (ft) | 1.07 ft |
| Assembled Height (in) | 12.80 in |
| Assembled Length (cm) | 64.00 cm |
| Assembled Length (ft) | 2.10 ft |
| Assembled Length (in) | 25.20 in |
| Assembled Weight (kg) | 0.47 kg |
| Assembled Weight (lb) | 1.03 lb |
| Assembled Width (cm) | 61.00 cm |
|---|---|
| Assembled Width (in) | 24.02 in |
| Assembled Width (mm) | 610.00 mm |
| Certifications | ANSI Certified, CE Certified, CSA Listed, ISO Certified |
| Colour | Multicolour |
| Maximum Operating Temperature (°C) | 55.00 °C |
| Maximum Operating Temperature (°F) | 131.00 °F |
| Maximum Run Time (h) | 10000 h |
| Minimum Operating Temperature (°C) | -5.00 °C |
| Minimum Operating Temperature (°F) | 23.00 °F |
| Number of Pieces | 1 |
| Number of Sensors | 2 |
| Package Depth (cm) | 23.00 cm |
| Package Depth (in) | 9.06 in |
| Package Height (cm) | 23.00 cm |
| Package Height (in) | 9.06 in |
| Package Weight (kg) | 1.15 kg |
| Package Weight (lb) | 2.54 lb |
| Package Width (cm) | 33.00 cm |
| Package Width (in) | 12.99 in |
| Passive/Active | Passive |
| Power Source(s) | Battery |
| Shade Number | 10 |
| Shelf Life (year) | 3 yr |
| Switching Speed | Not Applicable |
| Viewing Area Height (in) | 1.85 in |
| Viewing Area Height (mm) | 47.00 mm |
| Viewing Area Width (in) | 3.81 in |
| Viewing Area Width (mm) | 97.00 mm |
| Welding Process | Arc, MIG, Multi-Process, Stick, TIG |
Warranty
- This product carries a 1 year exchange warranty redeemable at any Canadian Tire store.
Online Ordering
- Pick Up is free at most stores (some stores require a minimum order value before tax)
- Shipping fee is based on size and weight of products and distance from address to store
- Same-Day Delivery costs $9.99 per order
- Online Ordering Information
Returns
- Most products can be returned or exchanged at any Canadian Tire store within 90 days of purchase
- Some products are non-refundable and non-exchangeable
- The return policy outlined above may not apply to the product you are currently viewing. For complete details and eligibility, please refer to our Return Policy for exceptions.
Compare Similar Products
Only Show Differences | ||||||
| Ratings | ||||||
| Advanced Features | Adjustable delay, Adjustable Sensitivity, Adjustable Size, Auto-darkening | Adjustable delay, Auto-darkening, Spatter Shield, Sensor Bar | Arc Stability, Built- In Stabilizer, Continuous Operation, Versatile welding range | Adjustable delay, Adjustable Sensitivity, Adjustable Size, Auto-darkening, Sensor Bar, Spatter Shield | Adjustable delay, Adjustable Sensitivity, Auto-darkening, Spatter Shield | |
| Assembled Height (cm) | 32.50 cm | |||||
| Assembled Height (ft) | 1.07 ft |
Shop Related Products
- Weekly Deals
- Customers Also Viewed
- Top Trending Products
- More From This Brand
Weekly Deals
Accessories Supplies - Custom algorithm
+
$101.98
Review Highlights
List of Pros Highlights
Pros
List of Cons Highlights
Cons
Suitable Cons could not be generated at this time.
Reviews
Filter Reviews
- price
- purchase
- satisfaction
- quality
- adjustability
- battery
- value
- comfort
Rating
Locale
1 to 5 of 87 Reviews
1 – 5 of 87 Reviews
Most Recent
5 out of 5 stars.
Looks nice fits well does it’s job
27 days ago
Cheap works well, automatic
Helpful?
5 out of 5 stars.
Welding helmet
29 days ago
Helmet is good for mig and tig
Helpful?
5 out of 5 stars.
Does what I need it to do
2 months ago
I've not had an issue with how it works. I'm new to welding . This seems perfect for my needs
Helpful?
5 out of 5 stars.
Auto darkening welding shield
3 months ago
It works great I am not a professional welder but for the small welding tasks I need to do it performs great and at a decent price and no batteries required .
Helpful?
3 out of 5 stars.
welding
a year ago
nice helmet for occasional use but will not last on regular use
No, I do not recommend this product.
Helpful?
1 – 5 of 87 Reviews
Questions
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 25 Questions
Most helpful answers
Q: So, I am going to Welding School and I want to ask if this helmet can do Mig and Tig because the the lens requirement for Mig and Tig is different. I am not sure because this Helmet Lenses say’s “Fixed Shade #10”?
3 years ago2 Answers
A: Buy a Lincoln it’s a little more expensive but you can adjust shading and time between darkening to clear and batteries are replaceable where as this helmet has no replacement parts once battery is done you need to purchase a new one
2 years agoHelpful?
Q: can i buy a new replacement lense i already used the spare that came with the helmet
9 years ago2 Answers
A: Apparently the Lincoln viking 700G has the same size outer lens 4.41 x 3.59, Lincoln part number KP2913-1.
6 years agoHelpful?
Q: Helmet shade rating Description says auto-darkening but details say fixed shade #10...which is it?
10 years ago2 Answers
A: "fixed shade" means that when it goes dark, it only goes to one level of darkness. If it were a "variable shade" like other more expensive helmets, you could adjust the darkness. So it is an auto-darkening helmet WITH a fixed shade. I hope that makes sense.
10 years agoHelpful?
Q: Comment puis-je remplacer la cellule photo électrique car le casque ne noircit plus instantanément lors d’un arc de soudure. Numéro 058-9309-8.
3 years ago1 Answer
- Translate with Google
A: Pour le modèle 0589309, la pile ne peut pas être changée. Une fois la pile épuisée, le produit ne peut plus être utilisé et l'utilisateur doit remplacer le produit par un nouveau.
3 years agoHelpful?
Q: How do I know when the battery is dead in my auto dark helmet? Do I have to just wait until my eyes go blind? How long is the battery expected to last?
3 years ago1 Answer
A: Thanks for reaching out. As of right now, there wouldn't be any low battery indication function, but the expectation is that the battery will last around 5000 to 6000 hours dependent upon it's usage and working environment. A test function can be put into future considerations, and if your battery does end up dying, your eyes would be flashed by a stronger light, but not one that could potentially affect them or be considered harmful.
3 years agoHelpful?
Q: Is the battery replaceable? If yes, what kind of battery does the helmet use? I can't seem to find any information in regards to the battery in the manual.
4 years ago1 Answer
A: Thank you for your question! Unfortunately, the battery can not be replaced.
4 years agoHelpful?
Q: Can this be fitted with quik lok cups to fit a fibre metal hardhat?
5 years ago1 Answer
A: The helmet can be fit with a metal hardhat, usually used with an adapter.
5 years agoHelpful?
Q: Will this helmet be sufficient enough to weld with the Lincoln mig pak 180(#299-8302-4)?
6 years ago1 Answer
A: Mig welding is ok for this helmet.
6 years agoHelpful?
Q: Does the helmet charge from the welding arc or do you h e to let it sit in sunlight to charge it?
6 years ago1 Answer
A: The battery and the solar cells are complimentary. When the voltage of the solar cells exceeded the voltage of battery, the solar cell will supply power. Otherwise the battery will supply power. When you're just starting welding, the arc-light is not strong enough, the battery will supply power. During the welding, the arc will charge the solar cells.
6 years agoHelpful?
Q: What are the optical class ratings: optical class, diffusion class, luminous transmission class, and angle dependence class.
7 years ago1 Answer
A: The optical class ratings: optical class 1, diffusion class 1, luminous transmission class1, and angle dependence class2.
7 years agoHelpful?
1 - 10 of 25 Questions
