Mastercraft

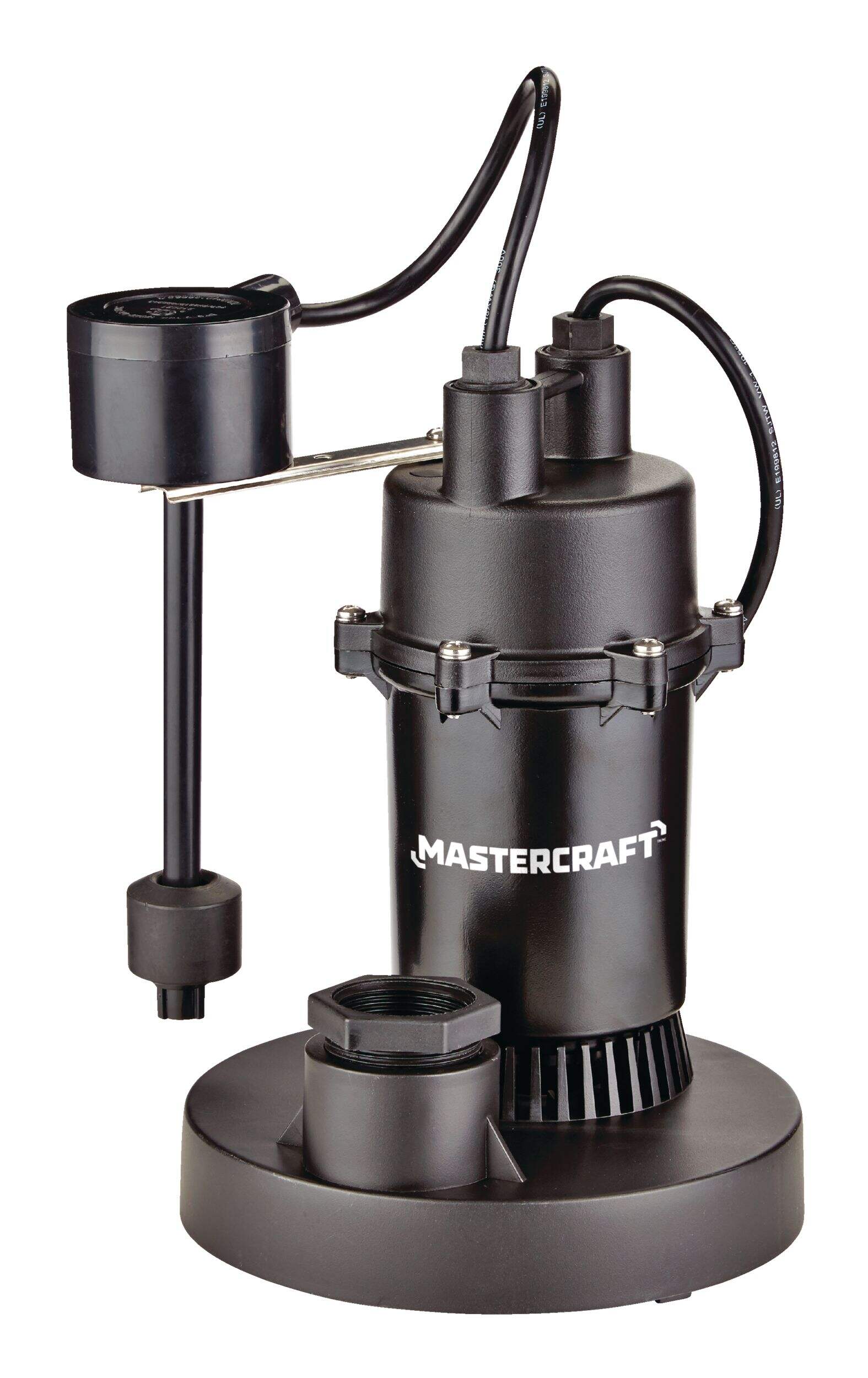

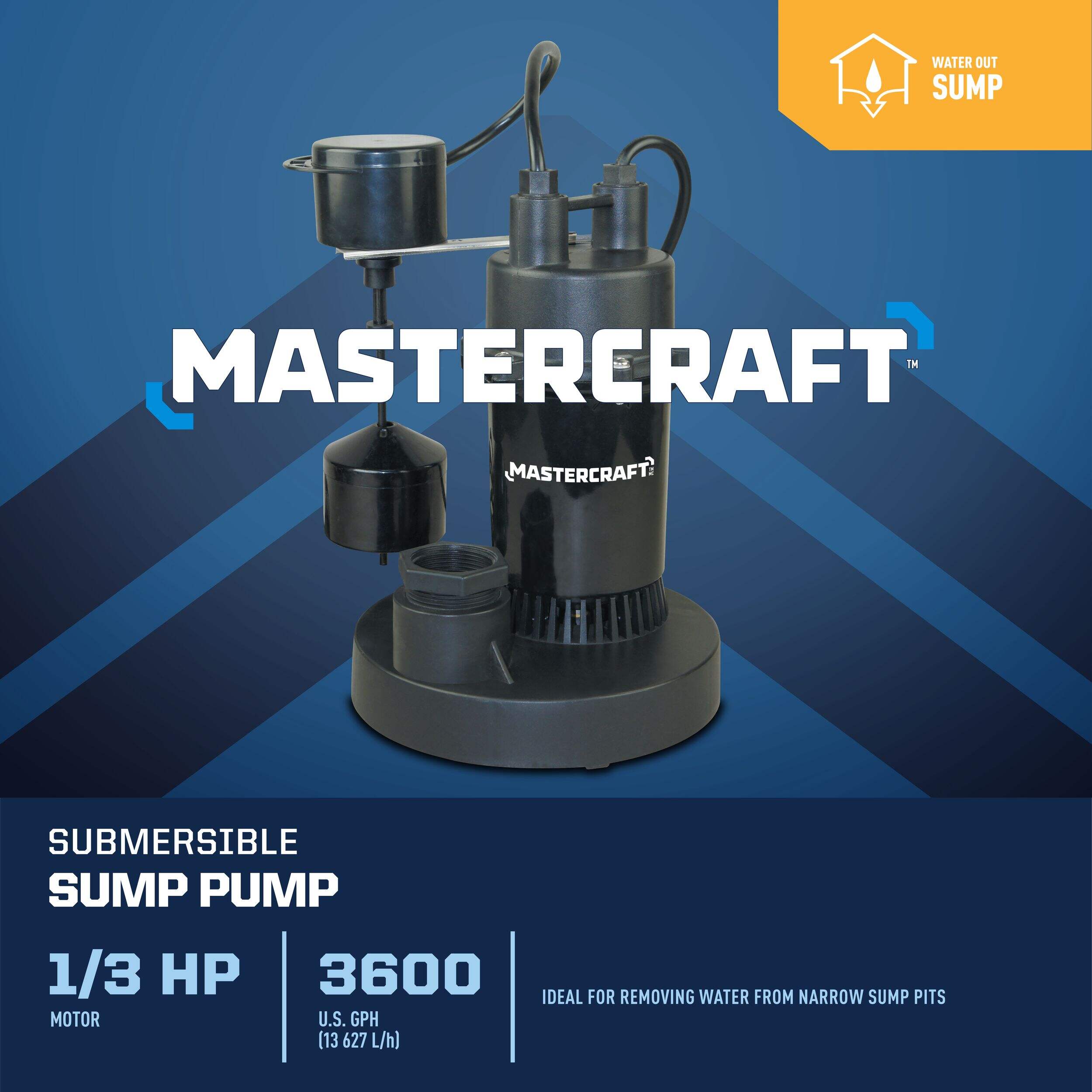

Mastercraft 1/3-HP Thermoplastic Electric Sump Pump
#062-3535-2
$164.99
price was $239.99
Save 31% ($75.00)
SaleTop Rated
Buy Online :
- FREEAvailable
- Available
- Available
Pick up at Leduc, AB
Get it Today !3 In Stock
Pick up available 09:00 a.m., Dec 04
Quantity updated to 1
Also Find It in Store:Hardware Wall
Only 3 left
at Leduc, AB
Add to Registry
Quebec residents: For information on maintenance and repair click here.
Product Details
Banish water fast and effectively with the Mastercraft Thermoplastic Sump Pump. This powerful submersible sump pump is designed to silently handle water in sump pits, with an almost whisper-quiet motor that makes it perfect for basements. To prevent overheating, the pump has built-in protection that shuts it off as needed, while its top suction mechanism cuts down on annoying clogs and damaging air locks.
Ideal for managing water in narrow sump pits
The vertical float switch allows for automatic operation
1-1/4" (3.2cm) or 1-1/2" (3.8cm) discharge
Motor: 1/3 HP
The thermoplastic material resists rust and corrosion
Built-in thermal overload protection prevents the motor from overheating by switching off the pump before damage is caused
For permanent installation
Power cord: 10' (4.9m)
Maximum flow rate: 3600 GPH (13,627 L/h)
Maximum head height: 28' (8.5m)
| Part Number | SBA033V1 |
|---|---|
| Flow Rate (l/min) | 227.00 l/min |
| Maximum Operating Temperature (°C) | 35.00 °C |
| Power Source(s) | Electric |
| Outlet Valve Type | NPT |
| Pump type | Sump Pump |
| Switch Type | Automatic |
| Accessories List | No Accessories Included |
| Advanced Features | Submersible |
| Assembled Height (cm) | 29.00 cm |
| Assembled Height (in) | 11.42 in |
|---|---|
| Assembled Length (cm) | 24.00 cm |
| Assembled Length (in) | 9.45 in |
| Assembled Weight (kg) | 3.8 kg |
| Assembled Weight (lb) | 8.31 lb |
| Assembled Width (cm) | 20.00 cm |
| Assembled Width (in) | 7.87 in |
| Batteries Required Quantity | 0 |
| Certifications | CSA Listed |
| Package Depth (in) | 8.98 in |
| Package Height (in) | 12.80 in |
| Package Weight (lb) | 9.41 lb |
| Package Width (in) | 9.69 in |
| Primary Material | Plastic |
Warranty
- This product carries a 1 year exchange warranty redeemable at any Canadian Tire store.
Online Ordering
- Pick Up is free at most stores (some stores require a minimum order value before tax)
- Shipping fee is based on size and weight of products and distance from address to store
- Same-Day Delivery costs $9.99 per order
- Online Ordering Information
Returns
- Most products can be returned or exchanged at any Canadian Tire store within 90 days of purchase
- Some products are non-refundable and non-exchangeable
- The return policy outlined above may not apply to the product you are currently viewing. For complete details and eligibility, please refer to our Return Policy for exceptions.
Compare Similar Products
Only Show Differences | |||||
| Ratings | |||||
| Flow Rate (l/min) | 174.00 l/min | 174.00 l/min | 189.00 l/min | 265.00 l/min | |
| Maximum Operating Temperature (°C) | 49.00 °C | 48.89 °C | 48.89 °C | 35.00 °C | |
| Power Source(s) | Electric | Electric | Electric | Electric |
Shop Related Products
- Weekly Deals
- Customers Also Viewed
- Top Trending Products
- More From This Brand
Frequently Bought Together
Review Highlights
List of Pros Highlights
Pros
List of Cons Highlights
Cons
Reviews
Customer Images and Videos
Filter Reviews
- purchase
- price
- installation
- noise level
- warranty
- quality
- powerful
- satisfaction
Rating
Locale
1 to 5 of 62 Reviews
1 – 5 of 62 Reviews
Most Recent
5 out of 5 stars.
It pumps
12 days ago
It did what it is supposed to do and it was quiet
Helpful?
5 out of 5 stars.
Great Pump
2 months ago
Great little pump that does the job efficiently.
Helpful?
5 out of 5 stars.
Very good for water level control
2 months ago
Fits in a 5 gallon pail for sump
Helpful?
4 out of 5 stars.
Improve float switch.
3 months ago
I tested it. Flow is strong. But float switch is not sensitive enough. I need pump to start at 2" level
But switch start to float at 4"
Of water. I have to modify the sensitivity of the float switch.
Helpful?
5 out of 5 stars.
Very powerful, did not expect that from 1/3 hp
3 months ago
Very powerful, did not expect that from 1/3 hp
Helpful?
1 – 5 of 62 Reviews
Questions
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 22 Questions
Most helpful answers
Q: Le moteur 1/3 hp de cette pompe consomme combien d'ampères? How many ampers does require this 1/3 hp sumpump?
a year ago2 Answers
- Translate with Google
A: - 7.6 ampères à charge complète à l'utilisation sont requis pour la pompe Mastercraft 1/3HP. - Au démarrage seulement, additionné environ 3-4 ampères de plus. - La mienne est sur un circuit de 15A. non dédié (pas recommandé) et pas de problème. - La manuel d'utilisateur ne dit rien sur les ampères au démarrage. C'est dans le manuel d'un autre fabriquant de pompe (Burcam) que j'ai eu l'information, dans leur tableau sur les ampères au démarrage selon la force de votre pompe (1/10, 1/3, 1/2, 3/4 HP). - C'est ce tableau qui m'a guidé dans l'achat de ma pompe Mastercraft. peu importe le fabricant, un moteur 1/3HP, demeure un moteur 1/3HP. (La pompe Mastercraft fonctionne avec 7.6A alors que la pompe Burcam fonctionne avec 8.4A et à 12A, au démarrage seulement). - 7.6 amps. is needed when running at full load the 1/3HP Mastercraft pump. When the pump start, add 3-4 amps at that specific time. My pump is plug on a 15A. breaker (Not dedicate to the pump, not recommended). No problem at all. - The owner manual doesn't say about how many ampers. is needed when the pump start. It's in the Burcam pump owner manual that I have found a chart on the extra amps needed when the pump start depending the HP your pump have (1/10, 1/3, 1/2, 3/4 HP). - It's that chart that have help me in my purchase of that Mastercraft pump. 1/3Hp whatever the company remain a 1/3HP. (Mastercraft pump need 7.6A to operate and the Burcam pump need 8.4Amps to run, and 12Amps. at starting time only )
a year agoHelpful?
Q: I as an anti-airlock hole required to be drilled, even though this is a top suction design ?
2 years ago1 Answer
A: Hi Jason, Thank you for your question! You don't need to drill an anti-airlock hole. Starting and stopping the pump several times can solve the pump when it may be air locked.
2 years agoHelpful?
Q: What is the length of the electrical cord?
2 years ago1 Answer
A: Hi Cyjl, Thank you for your question! The length of the electrical cord is 10 feet
2 years agoHelpful?
Q: Can the vertical float switch have a way to adjust the height when the float switch turns on the pump? I would like to lower
4 years ago1 Answer
A: It's not recommended that you adjust this yourself. The switch could lose its intended function if adjusted improperly.
4 years agoHelpful?
Q: Can the pump be coupled down to garden hose without damage to pump
9 years ago1 Answer
A: Assuming the pump is coupled down to garden hose as a utility pump application. This is not a typical usage. Also normally the garden hose diameter (mostly is 3/4”) is smaller than the pump discharge ( 1-1/4” or 1 1/2”), so it will affect the flow rate. As a sump pump, it is not designed for continuously running. Using it as a utility pump will shorten the pump life. So we don’t recommend this application.
9 years agoHelpful?

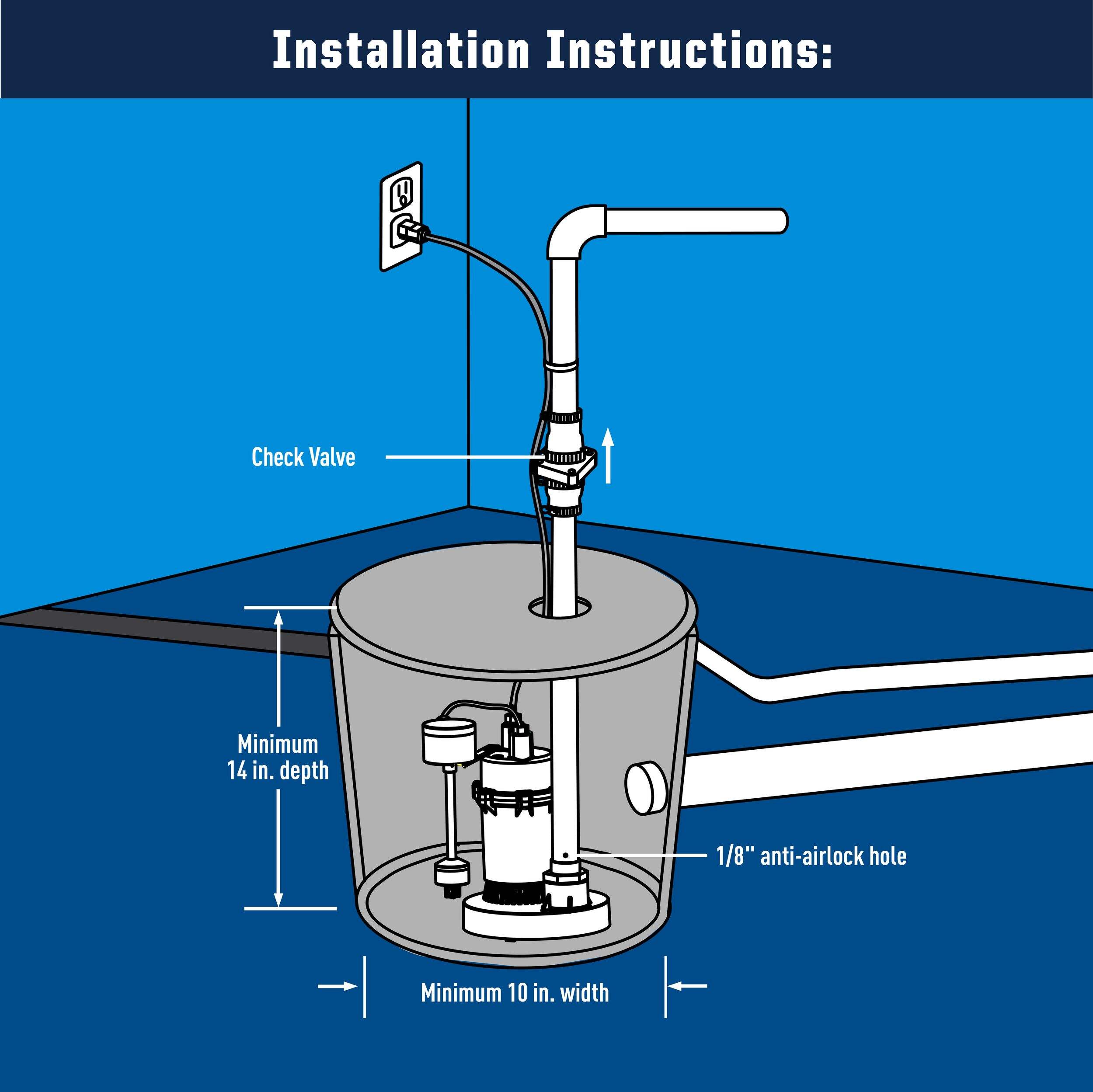

Q: lwould this be good for 10 inch depth and 10 inch width basin ?
9 years ago1 Answer
A: Our pump fits in 10’’ basin diameter but needs a minimum of 12’’ depth basin. The stoppers of the vertical float needs to be adjust accordingly. However, local plumbing code will applies and you need to review and follow your local code.
9 years agoHelpful?
Q: Does it come with a check valve?
9 years ago1 Answer
A: No. Materials Required for Assembly (not included): rubber hose (with stainless steel clamps), check valve, PVC pipe, PVC elbow, thread tape, PVC purple primer, and PVC cement.
9 years agoHelpful?
Q: What size of hole will it hit in?
9 years ago1 Answer
A: The minimum diameter of the sump pit is 10 in. The minimum depth of the pit is 14 in. for this pump.
9 years agoHelpful?

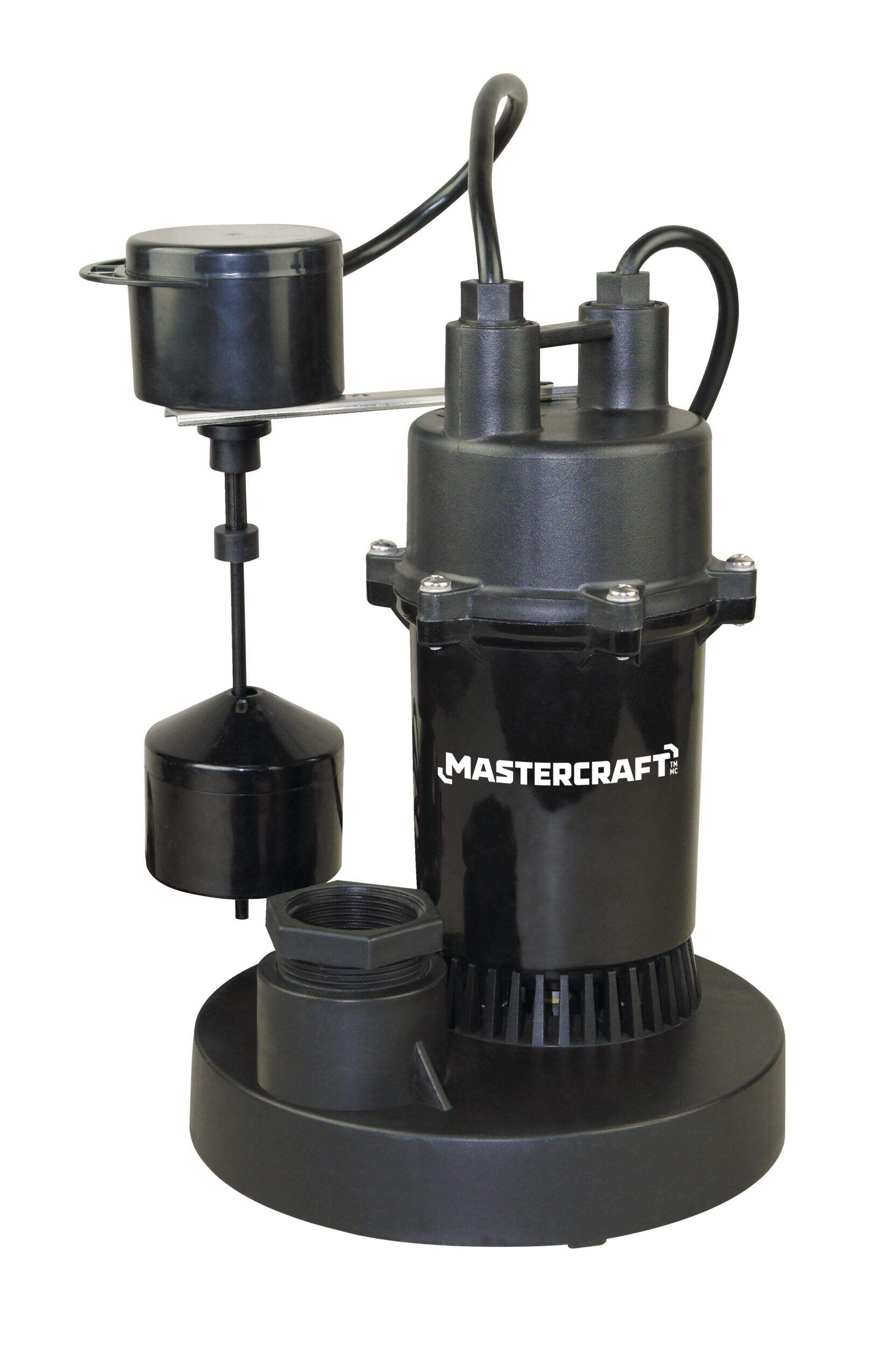

Q: Which pump is the right one? The two views show two completely different pumps. Is the float guide arm an optional thing?
10 years ago1 Answer
A: We are doing a running change on these pumps. Both images are correct however, the pump with the matte finish is the newer version. The glossy one is the older version so depending on which store you go to you might see one or both on the shelf.
10 years agoHelpful?
Q: Is the float solid or hollow?
10 years ago1 Answer
A: The floats are hollow.
10 years agoHelpful?
