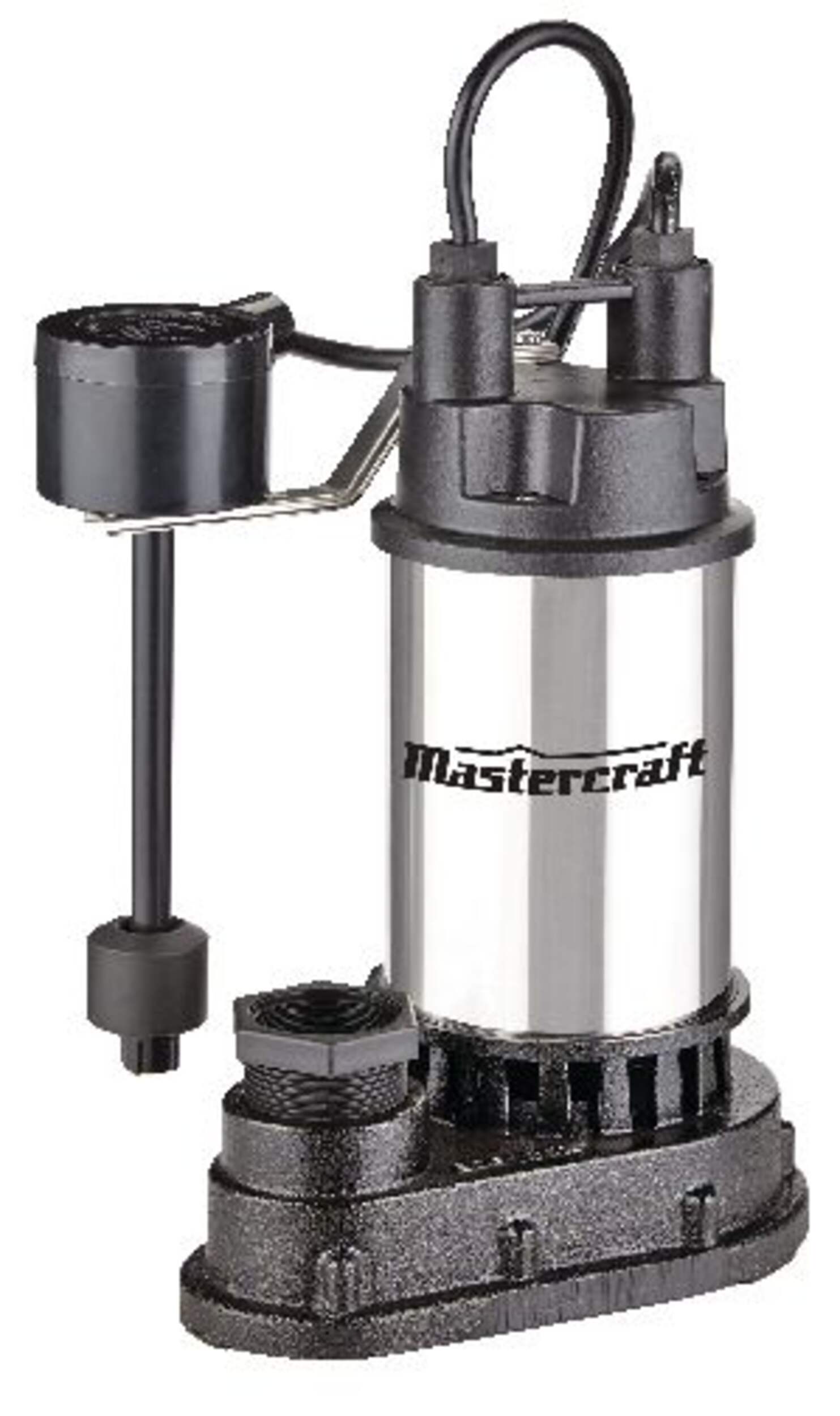

Mastercraft 1/2-HP Vertical Submersible Electric Sump Pump
- FREEAvailable
- Available
- Available
Pick up available 09:30 a.m., Jan 03
Only 7 left
Quebec residents: For information on maintenance and repair click here.
Similar Items
Product Details
Remove water from narrow sump pits with the Mastercraft 1/2 HP Submersible Sump Pump, Vertical. Designed for permanent installation, this submersible sump pump features quiet operation, making it ideal for homes with finished basements that require a quiet pump. Powered by 1/2 HP motor, this electric sump pump has a maximum flow rate of 4200 GPH (15,899 L/h). Built-in thermal overload protection prevents the motor from overheating by switching off the basement pump before damage is caused. This submersible utility pump is built from a mix of stainless steel and cast iron for optimum durability. The volute top suction design eliminates air locks and clogging from debris in the bottom of the sump pit, while the cast iron base lends sturdiness to the sump pump. A vertical switch allows for automatic operation. A screwdriver, hacksaw, tape measure, rigid pipe, tongue and groove pliers, zip ties, cement, and a check valve (sold separately) may be required in order to install the pump. This product includes a 10’ (3m) power cord.
The Mastercraft 1/2 HP Submersible Sump Pump, Vertical features features quiet operation and is ideal for removing water from narrow sump pits
Ideal for average water removal needs
Clog-resistant design
Capable of passing 3/4" diameter solids
Reliable automatic operation for use in basins 11" (28 cm) diameter or greater
Vertical switch for automatic operation
Built from stainless steel and cast iron for lasting strength, durability, corrosion resistance and greater heat dissipation
The volute top suction design eliminates air locks and clogging from debris in the bottom of the sump pit
Cast-iron base
Power cord: 10' (3m)
Maximum flow rate: 4200 GPH (15,899 L/h)
Maximum head height: 29' (8.8m)
Built-in thermal overload protection prevents the motor from overheating by switching off the pump before damage is caused
For permanent installation
| Part Number | SP05002VD |
|---|---|
| Flow Rate (l/min) | 265.00 l/min |
| Maximum Operating Temperature (°C) | 35.00 °C |
| Power Source(s) | Electric |
| Outlet Valve Type | NPT |
| Pump type | Sump Pump |
| Switch Type | Automatic |
| Accessories List | No Accessories Included |
| Advanced Features | Submersible |
| Assembled Height (cm) | 32.10 cm |
| Assembled Height (in) | 12.64 in |
|---|---|
| Assembled Length (cm) | 21.90 cm |
| Assembled Length (in) | 8.62 in |
| Assembled Weight (kg) | 7.8 kg |
| Assembled Weight (lb) | 17.22 lb |
| Assembled Width (cm) | 19.00 cm |
| Assembled Width (in) | 7.48 in |
| Batteries Required Quantity | 0 |
| Certifications | CSA Listed |
| Package Depth (in) | 9.45 in |
| Package Height (in) | 13.39 in |
| Package Weight (lb) | 18.96 lb |
| Package Width (in) | 10.83 in |
| Primary Material | Stainless Steel |
- This product carries a 2 year exchange warranty redeemable at any Canadian Tire store.
- Pick Up is free at most stores (some stores require a minimum order value before tax)
- Shipping fee is based on size and weight of products and distance from address to store
- Same-Day Delivery costs $9.99 per order
- Online Ordering Information
- Most products can be returned or exchanged at any Canadian Tire store within 90 days of purchase
- Some products are non-refundable and non-exchangeable
- The return policy outlined above may not apply to the product you are currently viewing. For complete details and eligibility, please refer to our Return Policy for exceptions.
Compare Similar Products
Only Show Differences | Currently Viewing | |||||
| Ratings | ||||||
| Flow Rate (l/min) | 265.00 l/min | 326.00 l/min | 218.00 l/min | 227.00 l/min | 174.00 l/min | |
| Maximum Operating Temperature (°C) | 35.00 °C | 54.00 °C | 35.00 °C | 48.89 °C | 49.00 °C | |
| Power Source(s) | Electric | Electric | Electric | Electric | Electric |
Shop Related Products
- Weekly Deals
- Customers Also Viewed
- Top Trending Products
- More From This Brand
Weekly Deals
Review Highlights
Pros
Cons
Reviews
Filter Reviews
- purchase
- installation
- warranty
- price
- value
- instructions
- quality
- noise level
This is the best Brand
Strong pump
Works fine, not that quiet.
Sump Pump Shaker
Pump purchase
Questions
Q: Normal? for water to shoot out cast iron housing. When pump is activated it will pump the water out of the well extremely fast, however water will come out of the cast iron housing while running. Is this normal? Thanks in advance
14 years agoA: Yes, this is normal. The small hole is to prevent airlocking the pump. If the pump doesn't have a built-in hole, you have to drill one between the pump outlet and the check valve to prevent airlock. Airlock happens when air is trapped inside the pump housing and water can't get in to prime the pump. This can happen when the pump well is dry then refills with water but can't enter the housing; kind of like pushing an upside down empty glass into water. The water can't rise up into the glass unless there is a hole to let the air out.
8 years agoHelpful?
Q: Where can I find the specifications for this pump? I would like to know the diameter of the discharge pipe for this pump. Is it 1 1/2 or 2 in? Also the lift and gallons per minute.
14 years agoA: it has a 2' fitting with it that screws in the pump discharge then you screw in a 11/2 fitting into it. don't use cheap sump hose with this pump. it fills with pin holes in days. It pumps 5000 gal. or 19000 litres per hour at a 3m lift.
12 years agoHelpful?
Q: Have this pump, just installed a couple weeks ago... it is not quiet as indicated; when it stops it is quite loud and shakes the pipes coming up from it and out of the wall. No idea why?
2 years agoA: I purchased this same pump about 3-4 years ago. It is very quiet. I can only hear it come on when I'm in the basement close enough to hear it. It needs to be on a solid and stable platform and securely attached to the outflow pipe. If it is unbalanced, it would most likely shake the pipe. My pump has to lift the water up about 5.5 feet (about 67 inches) before it turns 90 degrees and heads out of the house. It also has to have a small hole drilled out of the outflow pipe to allow air and some water to be expelled when it is running (a pressure relief hole). I have a backflow valve installed just above that hole to prevent the water in the vertical part of the outflow pipe from coming back down into my sump pit. Hope this helps.
a year agoHelpful?
Q: Can I use this pump if my current PCV is 1 1/2", with the use of an adapter?
13 years agoA: yes, but you have to purchase the necessary coupler
11 years agoHelpful?
Q: I need to know the startup power requirements. In another response Canadian Tire Team said the start amps could be 2-3 times more than the operating amps, but which is it?
4 years agoA: Hello, the operating amp is 6.9A and the start up amps is 20.7A.
4 years agoHelpful?
Q: Quelle est la capacité (litre ou gallon par heure) et la puissance de pousse selon la hauteur entre la pompe et la sortie d’eau (10 pied dans mon cas)? Merci,
5 years ago- Translate with Google
A: La capacité est d'environ 3600 GPH, la puissance de poussée est d'environ 700W.
5 years agoHelpful?
Q: What HP is this pump
5 years agoA: This is a ½ horsepower pump.
5 years agoHelpful?
Q: What is the horse power?
6 years agoA: This is a ½ horsepower pump.
6 years agoHelpful?
Q: What is the height
11 years agoA: it si 13.72 inches tall.
11 years agoHelpful?
Q: power requirements? for back-up generator
11 years agoA: The pump uses a 115V, 60Hz motor and using 8 amps. Therefore the watts required of the pump to operate at 60Hz is 920 watts (115V x 8 amps). Additionally, the start amps would potentially be 3 times the running amps. So the pump would draw roughly 2760 watts at start up.
11 years agoHelpful?
