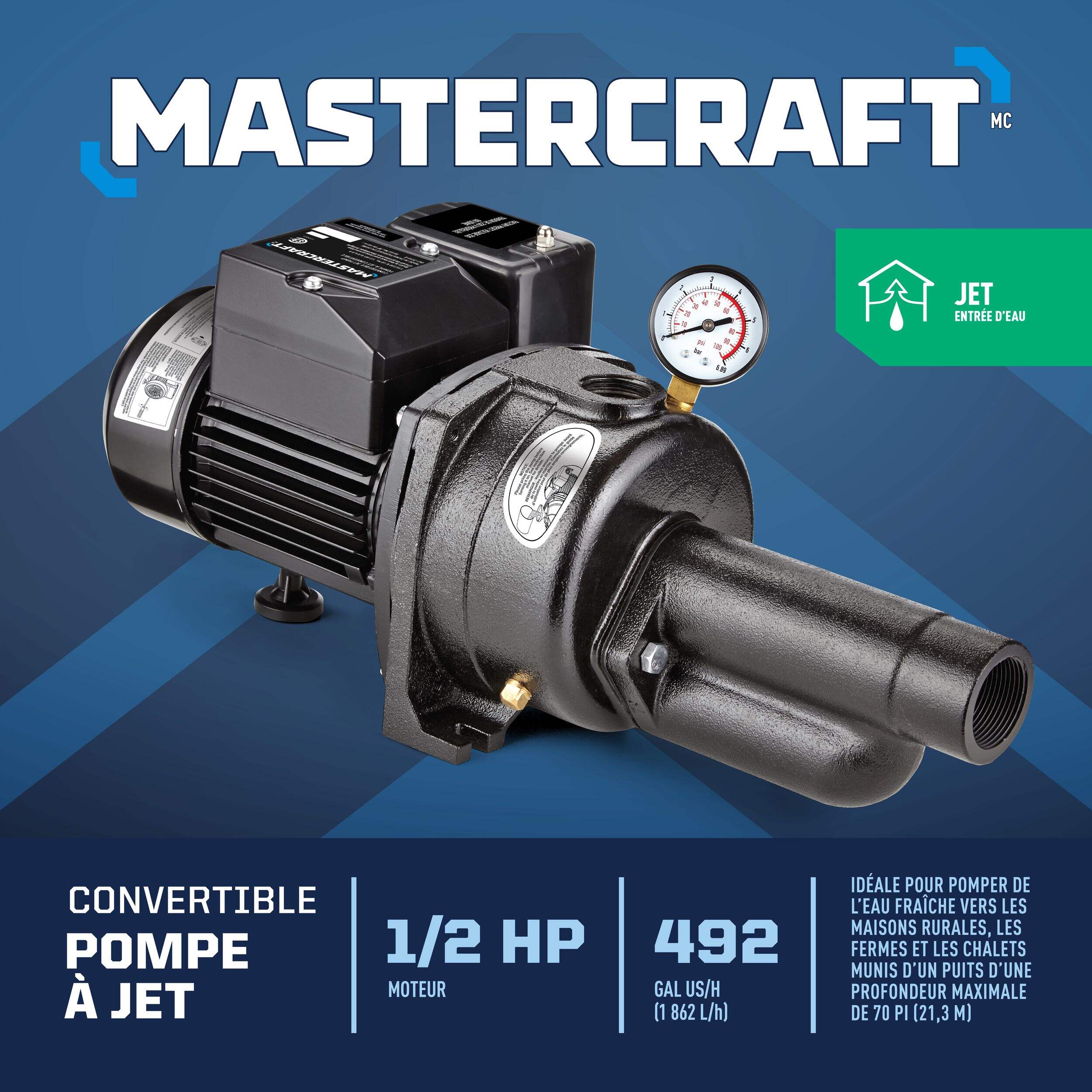

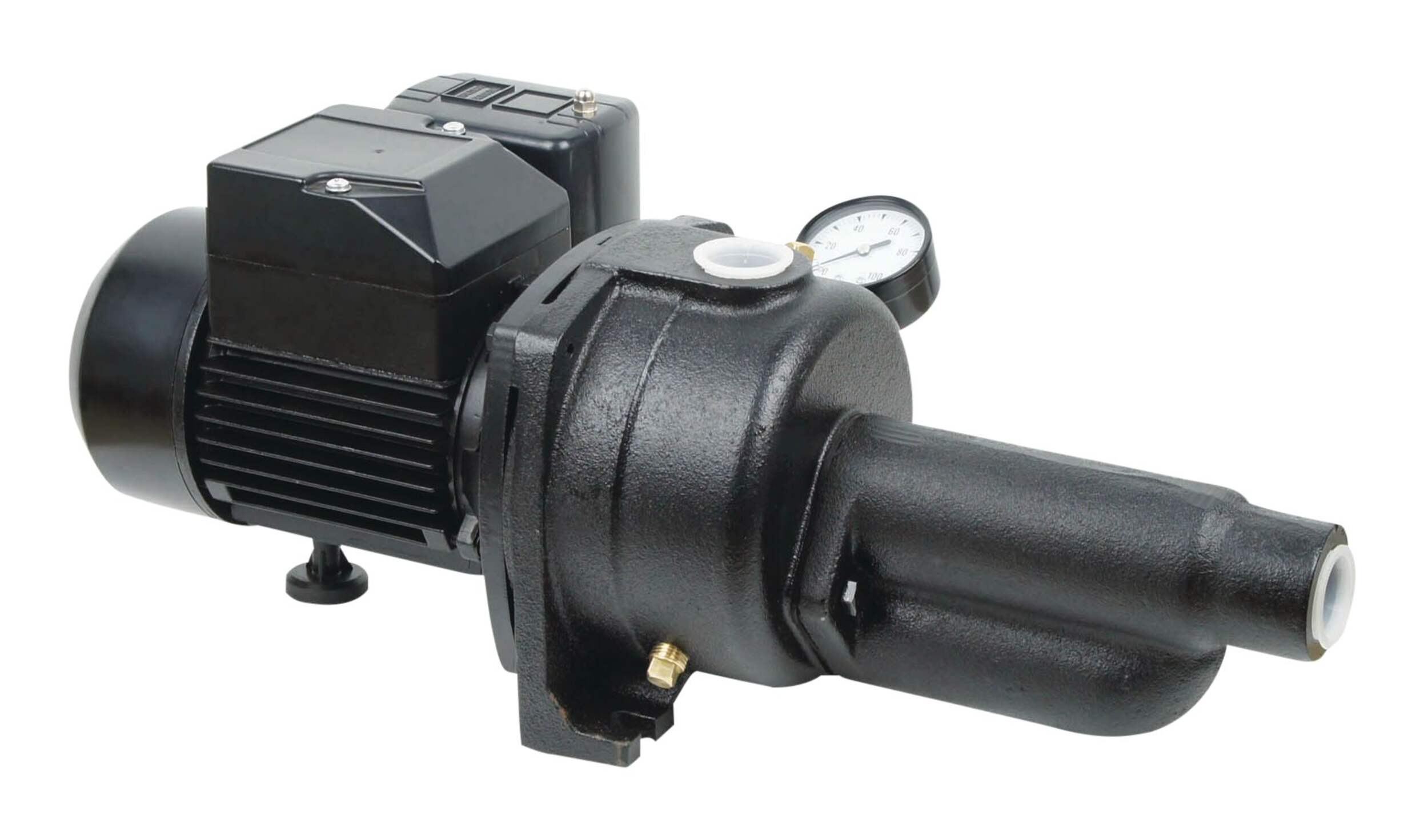

Mastercraft 1/2-HP Convertible Electric Jet Pump

$299.99

Product Details

Efficiently manage well water with the Mastercraft Convertible Jet Pump, 1/2-HP, designed for permanent installation in rural homes, farms, and cottages. This pump is powered by a 1/2-HP motor, ensuring a reliable water supply. This jet pump offers superior durability, corrosion resistance, and effective heat dissipation for long-lasting performance. Tools such as an adjustable pipe wrench, screwdriver, and hacksaw may also be needed.

  • Maximum flow rate: 492 GPH (1,862 L/h)

  • Suitable for wells up to 70 feet (21.3 m) deep

  • Remove the bolt ejector to convert this pump from a shallow well pump to a deep well pump

  • The pre-set pressure switch has an automatic shut-off feature, turning on the pump at 30 PSI and turning it off at 50 PSI

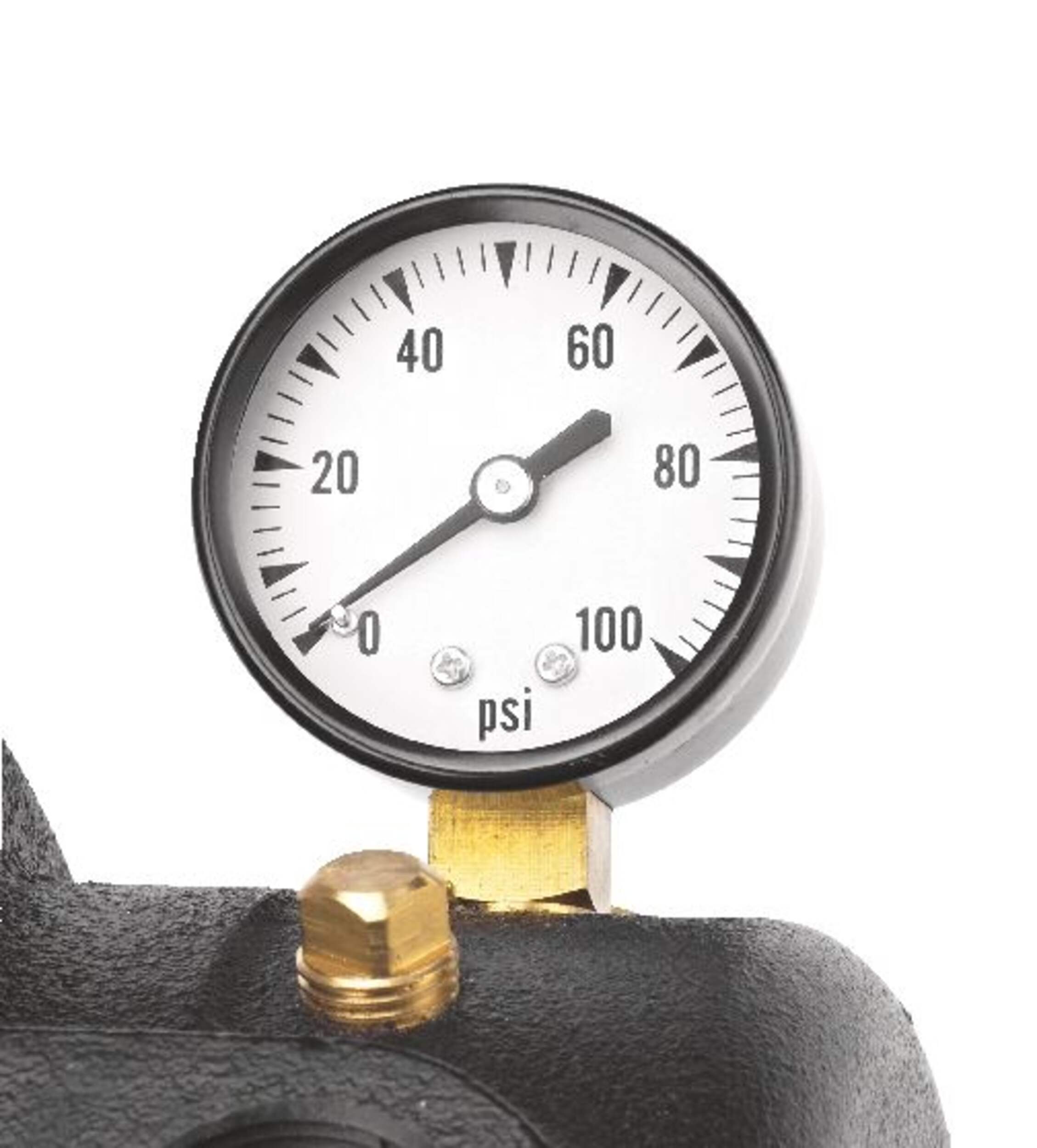

  • Built-in pressure gauge for easy pressure monitoring

  • Cast-iron construction

  • Built-in thermal overload protection prevents the motor from overheating by switching off the pump before damage is caused

  • Maximum head height: 70' (21.3m)

  • Installation requires additional components such as tape, a rigid pipe, cement, a foot valve, a check valve, PVC glue, and a diaphragm/pressure tank (all sold separately)

Part Number DP250
Accessories List Installation Hardware
Assembled Height (cm) 19.00 cm
Assembled Height (cm) 19.00 cm
Assembled Height (ft) 0.62 ft
Assembled Height (in) 7.48 in
Assembled Height (in) 7.48 in
Assembled Length (cm) 47.00 cm
Assembled Length (cm) 47.00 cm
Assembled Length (ft) 1.54 ft
Assembled Length (in) 18.50 in
Assembled Length (in) 18.50 in
Assembled Weight (kg) 12.4 kg
Assembled Weight (kg) 12.4 kg
Assembled Weight (lb) 27.34 lb
Assembled Weight (lb) 27.34 lb
Assembled Width (cm) 21.00 cm
Assembled Width (cm) 21.00 cm
Assembled Width (in) 8.27 in
Assembled Width (in) 8.27 in
Assembled Width (mm) 210.00 mm
Batteries Required Quantity 0
Certifications CSA Listed
Impeller Material Plastic
Maximum Operating Temperature (°C) 35.00 °C
Maximum Operating Temperature (°F) 95.00 °F
Outlet Valve Type NPT
Package Depth (cm) 23.50 cm
Package Depth (in) 9.25 in
Package Height (cm) 22.80 cm
Package Height (in) 8.98 in
Package Weight (kg) 11.32 kg
Package Weight (lb) 24.95 lb
Package Width (cm) 52.00 cm
Package Width (in) 20.47 in
Power Source(s) Electric
Primary Material Cast Iron
Pump type Well Pump
Switch Type Automatic
Warranty:
  • This product carries a 3 year exchange warranty redeemable at any Canadian Tire store.
User Manual :
  • View user manuals and additional product information

Download

Online Ordering
  • Pick Up is free at most stores (some stores require a minimum order value before tax)
  • Shipping fee is based on size and weight of products and distance from address to store
  • Same-Day Delivery costs $9.99 per order
  • Online Ordering Information
Returns
  • Most products can be returned or exchanged at any Canadian Tire store within 90 days of purchase
  • Some products are non-refundable and non-exchangeable
  • The return policy outlined above may not apply to the product you are currently viewing. For complete details and eligibility, please refer to our Return Policy for exceptions.

Compare Similar Products

Only Show Differences
Ratings
Accessories ListInstallation HardwareNo Accessories IncludedNo Accessories IncludedNo Accessories IncludedNo Accessories Included
Assembled Height (cm)19.00 cm52.40 cm23.37 cm21.00 cm13.46 cm
Assembled Height (ft)0.62 ft1.72 ft0.77 ft0.69 ft0.44 ft
When we have product recommendations to show you, they'll appear here!

Reviews

Rating Snapshot

Select a row below to filter reviews.
18 reviews with 5 stars.
6 reviews with 4 stars.
7 reviews with 3 stars.
3 reviews with 2 stars.
13 reviews with 1 star.

Overall Rating

3.3
10 out of 18 (56%) reviewers recommend this product

Review this product

Select to rate the item with 1 star. This action will open submission form.
Select to rate the item with 2 stars. This action will open submission form.
Select to rate the item with 3 stars. This action will open submission form.
Select to rate the item with 4 stars. This action will open submission form.
Select to rate the item with 5 stars. This action will open submission form.
Adding a review will require a valid email for verification

    Filter Reviews

    • purchase
    • installation
    • price
    • instructions
    • application
    • packaging
    • polite
    • exchanges
    1 to 5 of 47 Reviews.
    1 – 5 of 47 Reviews

    Pump Ok No Instock fittings

    9 days ago
    The pump works Ok . Had ordered pump online . Found out I needed new fittings .Drove back to the store and went into the pump isle . Lots of pumps . NO FITTINGS. . Not Impressed .
    Helpful?

    Electric jetpump

    a month ago
    I was looking for a 3/4 hp pump but they seemed to be for shallow well only. All the deep well pumps were 1/2 hp. Installed it and at first seemed weak but just air in all the lines and also my bathroom taps were corroded. Weak stream of water. Replaced taps and expelled all the air. I did turn up the high/low on the pressure gage so now runs at about 35/55. All turned out very good for me. Definitely satisfied after all said and done.
    Helpful?

    Builds pressure

    a month ago
    Works as it should..
    Helpful?

    Great value

    6 months ago
    This pump has proved to be a good buy since the moment it drew its first gallons of water.
    Helpful?

    Patti

    8 months ago
    Easy to install .. works great
    Helpful?
    1 – 5 of 47 Reviews

    Questions

    1 - 10 of 17 Questions

    Q: What size barb is on the pressure switch connecting to the hose? In looking at replacement pressure switches online I found they came with mini, 1/4 inch and other size barbs. Which does this need

    8 months ago
    2 Answers
    • A: I am fairly confident it is 1/4”.
      7 months ago
      Helpful?

    Q: Is there a warranty?

    4 years ago
    2 Answers
    • A: Yes there is a warranty on certain things but mine broke just outside the warranty and nobody, even authorized dealers have parts. I would not buy this pump, Mastercraft is not the reliable company it once was.
      4 years ago
      Helpful?

    Q: what are the inlet and outlet pipe sizes ?

    a year ago
    1 Answer
    • A: 1" inch
      Anonymousa year ago
      Helpful?

    Q: The Instruction Manual says "suction pipe size should not be less than 1 1/4 inch". My suction pipe size is about 3/4 inch. Seems to be working ok so far. How would a smaller size suction pipe affect the pump?

    3 years ago
    1 Answer
    • A: Hi there, Thank you for your question! Using a smaller size suction pipe will caused the pump reduced performance
      2 years ago
      Helpful?

    Q: Will this pump make 60 PSI

    3 years ago
    1 Answer
    • A: Yes
      3 years ago
      Helpful?

    Q: Pièces de rechange disponibles en magasin?

    6 years ago
    Translate with Google
    1 Answer
    • A: Nous ne vendons pas de pièces détachées en magasin, veuillez contacter nos experts Mastercraft au 1-800-689-9928.
      6 years ago
      Helpful?
      Translate with Google

    Q: combien d ampere sur 120 volt merci

    6 years ago
    Translate with Google
    1 Answer
    • A: 8A
      6 years ago
      Helpful?
      Translate with Google

    Q: Does this pump come with the piece to convert it to a deep well?

    6 years ago
    1 Answer
    • A: Yes this pump comes with the piece to convert it to a deep well, thanks.
      6 years ago
      Helpful?

    Q: Does this motor have a built in check value? I installed and primed the pump of a new motor but it's not sucking water. I could try adding a check value, just in case there is a foot value that failed in the dug well.

    7 years ago
    1 Answer
    • A: This pump does not have a built in check valve. Failure for the pump to prime can be caused by a number of factors. Please first check the foot valve and check valve to be sure they’re in working order. Ensure that enough water is used to prime the pump (it often takes more water than customers are expecting to fully fill the pipe). The customer will also need to check to be sure there aren’t any air leaks throughout the piping joints. Could you also advise depth to water? It’s possible the depth to water is more than the pump is capable of pumping. It’s also possible that the pipe is not far enough down to reach the water or that it’s too deep and embedded in mud or dirt.
      7 years ago
      Helpful?

    Q: can I replace my 1/3 hp mastercraft jet pump with this 1/2 hp jet pump

    8 years ago
    1 Answer
    • A: Hard to say without knowing the installation and use, but generally speaking you would be increasing power so you should see improved performance.
      7 years ago
      Helpful?
