Lincoln Electric
Lincoln Electric K2658-12 Welder Kit
#199-8530-8
$1,099.99
Top RatedExclusive
Unfortunately, this product is discontinued in your selected store and nearby stores.
You may be interested in these similar products shown below.Similar Items
Quebec residents: For information on maintenance and repair click here.
Similar Items
Product Details
The MIG-PAK®140 wire feeder welder requires 120 volt input power and can be used for gasless flux cored welding or gas shielded MIG welding.
Lincoln Electric Welder Kit is the ideal set to get you started for welding
Lincoln Electric MIG Pak 140 Wire Feed Welder includes welding gun and cable, ground clamp and cable, spare MIG and Flux core tips, MIG nozzle and Flux-core nozzle
Lincoln Electric Welding Gloves are Kevlar stitched for superior durability, with a reinforced palm and thumb for added protection
Lincoln Electric S-6 0.025-in Solid MIG Wire is 0.025" 2lb spool with copper coating that provides superior arc starting characteristics
Lincoln Electric NR®-211-MP Flux-Cored Innershield® Welding Wire is 0.030" 1lb spool with flux-cored wire that is self-shielded and can be used on a wire-feed welder without gas
Lincoln Electric Medium Welding Magnet provides a strong hold, and frees hands for the welder while holding up to 45 lbs
Lincoln Electric Flat Soap Stone Holder marks steel for cutting and welding, and locks in place for easier use
Lincoln Electric Flat Soap Stones includes 6 pieces
Lincoln Electric Straight Head Chipping Hammer has a ergonomic handle and spring grip that reduces shock and fatigue

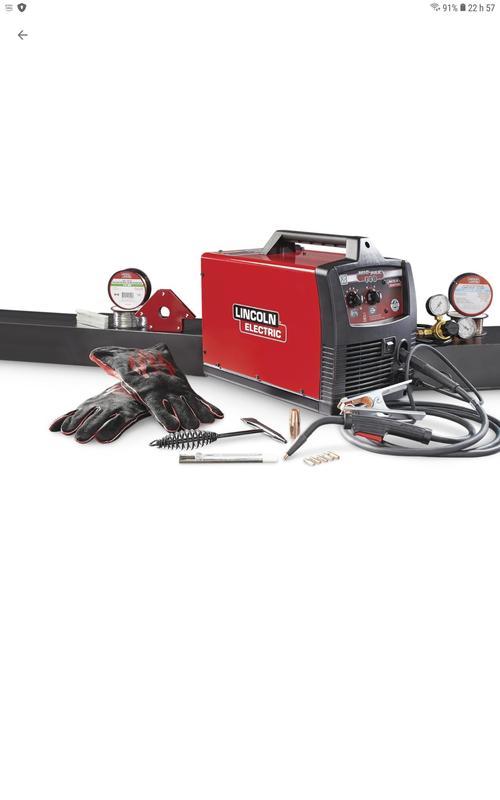

Includes: MIG 140 welder, gloves, MIG wire, flux core wire, magnet, soapstone holder, soapstone refill, and welding chip hammer
| Part Number | K2658-12 |
|---|---|
| Minimum Weldable Thickness (in) | 0.02 in |
| Maximum Weldable Thickness (in) | 0.31 in |
| Minimum Weldable Thickness (mm) | 0.51 mm |
| Maximum Weldable Thickness (mm) | 7.94 mm |
| Input Voltage (V) | 120 V |
| Output Amperage (amps) | 90 A |
| Duty Cycle | 20 |
| Welding Process | Flux-cored, MIG, Wire Feed |
| Output Voltage (V) | 20 V |
| Certifications | UL Listed |
|---|---|
| Assembled Height (in) | 19.00 in |
| Assembled Weight (lb) | 83.00 lb |
| Primary Material | Metal |
| Primary Colour | Red |
| Polarity | DC |
| Accessories List | Other |
| Number of Pieces | 1 |
| Power Source | Hardwired/Plug In |
| Display Type | No Display |
| Advanced Features | No Advanced Features |
| Input Hertz (Hz) | 60 Hz |
| Assembled Width (in) | 20.00 in |
| Assembled Length (in) | 15.00 in |
Warranty
- This product carries a special warranty. Please see your local Canadian Tire store for details.
Online Ordering
- Pick Up is free at most stores (some stores require a minimum order value before tax)
- Shipping fee is based on size and weight of products and distance from address to store
- Same-Day Delivery costs $9.99 per order
- Online Ordering Information
Returns
- Most products can be returned or exchanged at any Canadian Tire store within 90 days of purchase
- Some products are non-refundable and non-exchangeable
- The return policy outlined above may not apply to the product you are currently viewing. For complete details and eligibility, please refer to our Return Policy for exceptions.
Compare Similar Products
Only Show Differences | Currently Viewing | |||||
| Ratings | ||||||
| Minimum Weldable Thickness (in) | 0.02 in | |||||
| Maximum Weldable Thickness (in) | 0.31 in | |||||
| Minimum Weldable Thickness (mm) | 0.51 mm |
Shop Related Products
- Weekly Deals
- Customers Also Viewed
- Top Trending Products
- More From This Brand
Review Highlights
Reviews
Customer Images and Videos
Filter Reviews
- purchase
- price
- heavy-duty
- registration
- results
- value
- exchanges
- warranty
Rating
Locale
1 to 5 of 16 Reviews
1 – 5 of 16 Reviews
Most Recent
5 out of 5 stars.
Just right
a year ago
Great welder just what I needed
Helpful?
5 out of 5 stars.
Mig Pak 140
2 years ago
Picked this promo up when it went on sale. Great value with the items included.
Helpful?
3 out of 5 stars.
Meh
3 years ago
Definitely not a heavy duty item. Will shut down within 5 minutes if use on high. Have to wait for 10 minutes to cool down then go again.
No, I do not recommend this product.
Helpful?
5 out of 5 stars.
Good welder for the cost.
3 years ago
The welder worked fine but it was really had to register with the company for warranty. The welder is great though!
Helpful?
4 out of 5 stars.
Welder purchase
3 years ago
Original kit was missing one connector on main power line. Exchange was quick and easy. Welding right away, as package stated, was a little misleading due to assembly requirements.
Helpful?
1 – 5 of 16 Reviews
Questions
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 15 Questions
Most helpful answers
Q: What is the difference between this Mig Pak 140 WELDER KIT Special Buy (#199-8350-8) and the Mig Pak 140 (#058-8040-0) ?? I am assuming it is the exact same Lincoln Mig 140 welder. Thank You
4 years ago3 Answers
A: It is the exact same welder. ‘Welder Kit’ includes extra welding wire (2 sizes) hammer, gloves, magnet and I believe some extra tips.
4 years agoHelpful?
Q: What is the difference between this Mig Pak 140 WELDER KIT Special Buy (#199-8350-8) and the Mig Pak 140 (#058-8040-0) ?? I am assuming it is the exact same Lincoln Mig 140 welder. Canadian Tire Team can you answer this?
3 years ago2 Answers
A: I believe they are the same welder. Different item # because of the special buy and a few more bonus pieces.
3 years agoHelpful?
Q: does it weld without gas
9 years ago2 Answers
A: yes with flux core wire
9 years agoHelpful?
Q: What is the welding thickness
3 years ago1 Answer
A: Thanks for reaching out. The maximum weldable thickness is 7.94mm and the minimum weldable thickness is 0.51mm.
3 years agoHelpful?
Q: Did the welder included in this kit is the same than this one ? https://www.canadiantire.ca/fr/pdp/soudeuse-a-fil-electrode-lincoln-electric-mig-pak-140-0588040p.html#srp
4 years ago1 Answer
- Translate with Google
A: Yes the welder is the same
4 years agoHelpful?
Q: quel est la grosseur de fil en flux core a utiliser avec cette machine mig 140
5 years ago1 Answer
- Translate with Google
A: Je vous remercie de votre question ! Pour la soudeuse MIG Pak 140, nous vous recommandons d’utiliser le fil fourré (flux core) NR211 de 0,030 po de diamètre, bien que le fil de 0,035 po peut aussi fonctionner avec des réglages élevés. Vous pouvez acheter les bobines de fil fourré NR211 mentionnés ci-dessus en allant aux liens ci-dessous : https://www.canadiantire.ca/fr/pdp/fil-fourre-nr-211-mp-flux-cored-innershield-0588039p.html https://www.canadiantire.ca/fr/pdp/fil-a-souder-fourre-lincoln-electric-10-lb-0589300p.html
4 years agoHelpful?
Q: soude t-elle l'aluminium.
5 years ago1 Answer
- Translate with Google
A: No the welder in this kit is not equipped to run aluminum wire. You must purchase the Lincoln Electric Magnum 100SG Spool Gun (sku 58-6500) to run aluminum wire.
5 years agoHelpful?
Q: Does this kit havdbthe adapter for ghe larger rolls
6 years ago1 Answer
A: Yes, our Mig Pak 140 and 180 machines includes adapters for the larger diameter wire we sell (10lb spools)
6 years agoHelpful?
Q: What are the dimensions of the welder its self?
7 years ago1 Answer
A: The dimensions are: (H X W X D) = 13.7 in x 10.15 in x 17.9 in (357 mm x 258 mm x 472 mm).
7 years agoHelpful?
Q: I just purchased this welder and I put it on its own 20amp breaker with 12/2 wire from my panel running to a 20amp output plug,then I was going to use a 50 foot 10/3 wire extension cord,will this work,thanks.
7 years ago1 Answer
A: The wiring would depend on the municipal building codes, but running a 10/3 extension cord on a dedicated line is not an issue. However, please note some 12/2 wires are OK for low amperage applications, and hence do not have a ground. For use with a 120V high amperage welder, an appropriate 3 wire ground is recommended. Again, we would recommend checking with local building codes and have a qualified electrician complete the installation. Lastly, we would strongly recommend upgrading to a dedicated ~30amp lag fuse, as the welder has a tendency to spike amperage loads when welding. This would reduce the tendency of resetting the fuse every time it is tripped.
7 years agoHelpful?
1 - 10 of 15 Questions
