Irwin

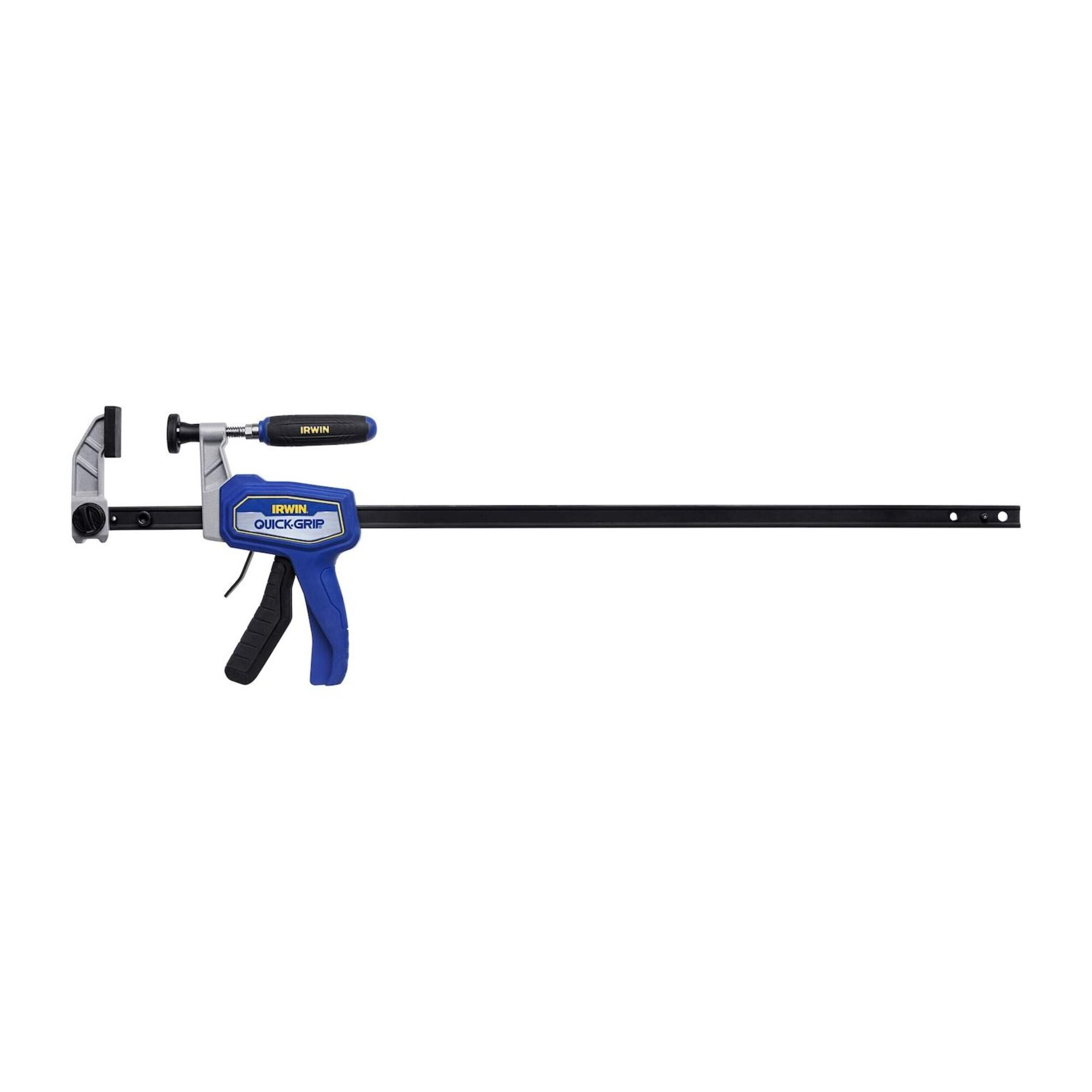

IRWIN Hybrid Trigger Bar Clamp, 24-in

#057-0281-6
$64.99
Top Rated
Buy Online :
Pick up at Leduc, AB
8 In Stock
Free Pick Up over $25 (before taxes)
Get it Today !

Pick up available 03:00 p.m., Oct 28

Quantity updated to 1
Also Find It in Store:
8 In Stock at Leduc, AB
Aisle 21
‌
Add to Registry

Quebec residents: For information on maintenance, repair, and warranty, click here.

Irwin
Irwin

IRWIN Hybrid Trigger Bar Clamp, 24-in

$64.99

Product Details

The IRWIN Hybrid Trigger Bar Clamp has a versatile design that can be used as either a trigger or F clamp. When you need more reach, this hybrid clamp can be combined with a second hybrid clamp via the provided fasteners at two threaded locations on the bar. The hex bolt on the screwhandle can also double as a wrench when you need more torque. Featuring a quick-release trigger system, this hybrid trigger clamp is a practical choice when you're looking for a convenient and efficient heavy-duty clamp.

  • Combines the speed of trigger clamps with the force of F clamps for versatility

  • Delivers up to 300 lbs of holding force while screwdriver handle increases clamping force to 825 lbs

  • Easy release trigger for one-handed use

  • Comfortable grip design

  • Steel I-beam bar helps reduce flexing and bowing

  • Flat metal jaws for stability and a strong hold

  • Can switch between clamp and spreader for added versatility

Part Number IRHT83501
Advanced Features Converts to Spreader, Removable Jaw Pads, Soft Grip, Glue Resistant
Assembled Height (cm) 3.56 cm
Assembled Height (ft) 0.12 ft
Assembled Height (in) 1.40 in
Assembled Length (cm) 49.53 cm
Assembled Length (ft) 1.63 ft
Assembled Length (in) 19.50 in
Assembled Weight (kg) 1.50 kg
Assembled Weight (lb) 3.31 lb
Assembled Width (cm) 22.86 cm
Assembled Width (in) 9.00 in
Assembled Width (mm) 228.60 mm
Clamp Strength (kg) 272.00 kg
Clamp Strength (lb) 599.66 lb
Clamp Type Quick Action
Colour Blue
Consumer Pack Size 1
Grade Rating Contractor
Jaw Face Length (in) 0.79 in
Jaw Face Length (mm) 20.00 mm
Jaw Face Width (in) 0.79 in
Jaw Face Width (mm) 20.00 mm
Maximum Opening Width (in) 23.96 in
Maximum Opening Width (mm) 609.60 mm
Minimum Opening Width (in) 0.00 in
Minimum Opening Width (mm) 0.00 mm
Package Depth (cm) 60.96 cm
Package Depth (in) 24.00 in
Package Height (cm) 11.99 cm
Package Height (in) 4.72 in
Package Weight (kg) 1.50 kg
Package Weight (lb) 3.31 lb
Package Width (cm) 22.99 cm
Package Width (in) 9.05 in
Primary Material Steel
Throat Depth (cm) 609.60 cm
Throat Depth (in) 240.00 in
Warranty:
  • This product carries a lifetime exchange warranty redeemable at any Canadian Tire store.
