Broan EC60KIT NuTone Bathroom Fan Upgrade Kit, 60 CFM Composite_or_Mixed

Toggle Image Magnification

Broan

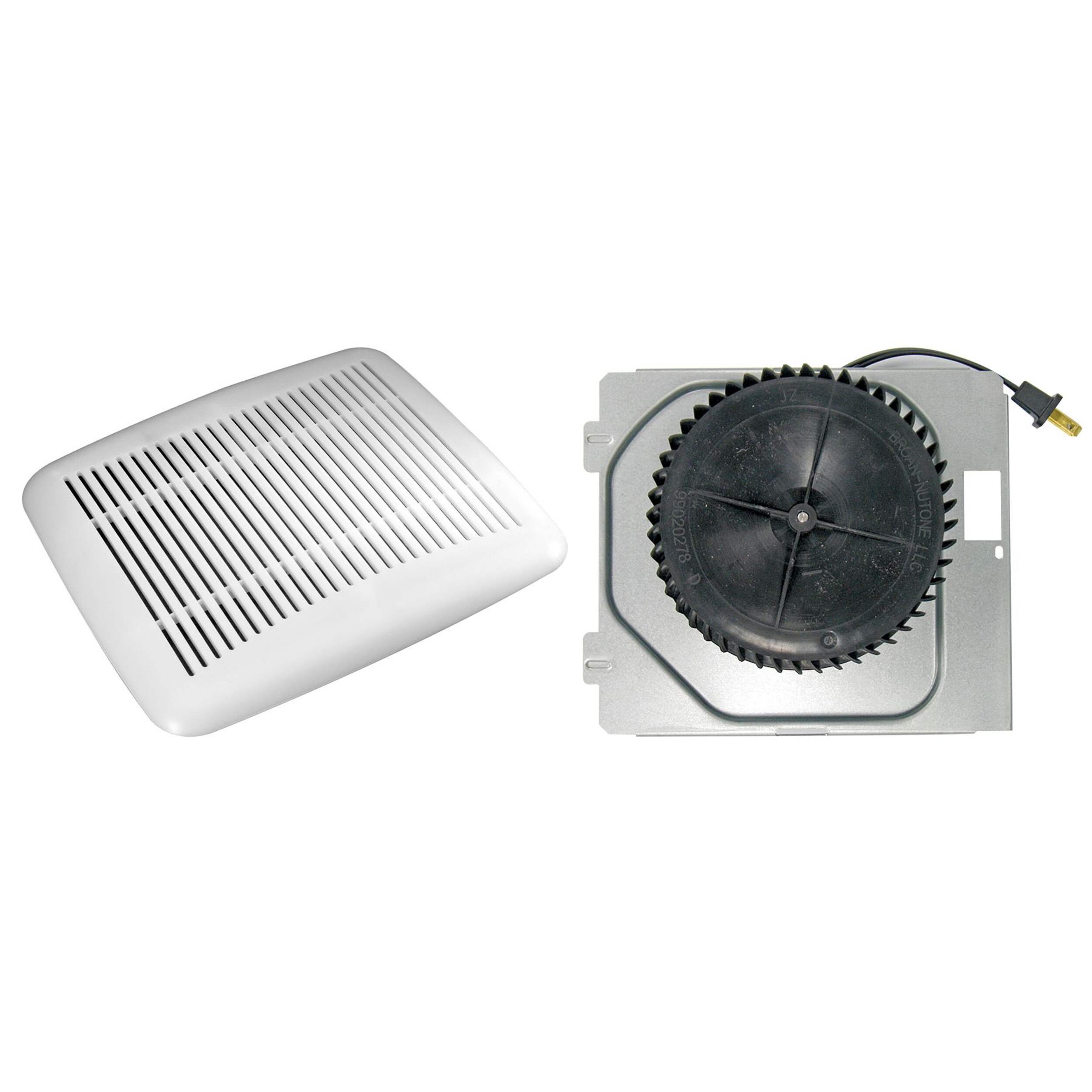

Broan EC60KIT NuTone Bathroom Fan Upgrade Kit, 60 CFM

Name: Broan EC60KIT NuTone Bathroom Fan Upgrade Kit, 60 CFM
Brand: Broan
SKU: 0522539
Price: 54.99 CAD
Availability: InStock

#052-2539-4

View Product Details

View Similar Items

$54.99

Top Rated

Buy Online :

FREE
Pick Up
Available
Same-Day Delivery
Available
Ship to Home
Available

Pick up at Leduc, AB

15 In Stock

Get it Today !

Pick up available 09:00 a.m., Feb 04

Also Find It in Store:

15 In Stock at Leduc, AB

Aisle 55

Quebec residents: For information on maintenance and repair click here.

Broan

Broan EC60KIT NuTone Bathroom Fan Upgrade Kit, 60 CFM

$54.99

Product Details

The Broan® bath fan upgrade kit allows you to convert your old bathroom fan to a new one without the need to purchase a completely new fan. This upgrade kit will improve the operation, reduce the sound level and enhance the appearance of your economy fan in minutes. The kit has everything you need including a new motor assembly, grille and complete step-by-step instructions. It offers a major performance upgrade with no changes to your existing ductwork and wiring.

No rewiring, no new duct work, no hassles. and no special tools required — all in just 10 minutes
Sufficient ventilation to remove odours and pollutants from your smaller powder room or bathroom
New motor (60 CFM and 3.0 Sones) reduces sound up to 45% (versus 695C or EC70)
Brighter white grilles blend in to match most common ceiling paint
Replaces the following NuTone® models 695C, 695CB, 696NC, 696NCB, 690AC
Replaces the Following Broan® models EC50, ECF50, EC70, ECF70, ECH600
Note: Fan housing and duct connector not included
This product carries a 1 year exchange warranty redeemable at any Canadian Tire store

Part Number	EC60KIT
Fan Type	Bathroom Exhaust
Area Coverage (sq ft)	64.58 ft²
Number of Speeds	1
Assembled Height (in)	0.50 in
Assembled Length (in)	10.75 in
Assembled Width (in)	9.38 in
Assembled Weight (lb)	14.57 lb
Colour	White
Noise Level (dB)	55 dB

Certifications	UL Listed
Maximum Run Time (h)	0 h
Wireless Standard Compatibility	No Wireless Connectivity
Smart System Compatibility	No Smart Technology
Advanced Features	Mountable, Removes Mold, Removes Odour
Accessories List	Mounting Hardware
Filter Type	No Filter
Indicator Light Type	Not Applicable
Maximum Air Flow Capacity (CFM)	60 ft³/min
Voltage (V)	120 V
Wattage Rating (w)	0 W
Control Type	Mechanical
Cord Length (in)	0.79 in
Batteries Required Quantity	0
Enclosure Material	Plastic
Product Use(s)	Indoor

Warranty

This product carries a 1 year exchange warranty redeemable at any Canadian Tire store.

Online Ordering

Pick Up is free at most stores (some stores require a minimum order value before tax)
Shipping fee is based on size and weight of products and distance from address to store
Same-Day Delivery costs $9.99 per order
Online Ordering Information

Returns

Most products can be returned or exchanged at any Canadian Tire store within 90 days of purchase
Some products are non-refundable and non-exchangeable
The return policy outlined above may not apply to the product you are currently viewing. For complete details and eligibility, please refer to our Return Policy for exceptions.

Shop Related Products

Weekly Deals
Customers Also Viewed
Top Trending Products
More From This Brand

Weekly Deals

Danze London Series Dorian Decorative Bathroom Hardware Accessories Kit, Brushed Gold, 3-pc

$59.99

Save 40% ($40.00)

1 In Stock

Accuweight Mechanical Bathroom Scale, Black, 330-lb

$31.99

Save 36%

1 In Stock

Danze Montreal Series Vinto Modern Bathroom Hardware Accessories Kit, Matte Black, 3-pc

$59.99

Save 40% ($40.00)

1 In Stock

Accuweight Digital Bathroom Scale, Wood/Tempered Glass, 400-lb, Battery Operated

$22.79

Save 40%

5 In Stock

Accuweight Glass Digital Bathroom Scale, 400-lb, Battery Operated

$22.49

Save 44%

3 In Stock

Current Item

Broan EC60KIT NuTone Bathroom Fan Upgrade Kit, 60 CFM

$54.99

Danze ADA Compliance Commodity+ Grab Bar, 18-in, Polished Stainless Steel

$16.99

Save 39%

PlumbShop Brasscraft Speedy Plumb Plus Lavatory, 3/8 Comp x 1/2 FIP x 30-in

$10.99

3M Body Scuff Pad

$5.99

Subtotal for 4 items$88.96~~$99.96~~

Reviews

Rating Snapshot

Select a row below to filter reviews.

72 reviews with 5 stars.

22 reviews with 4 stars.

14 reviews with 3 stars.

0 reviews with 2 stars.

10 reviews with 1 star.

Overall Rating

4.2

46 out of 53 (87%) reviewers recommend this product

Review this product

Select to rate the item with 1 star. This action will open submission form.

Select to rate the item with 2 stars. This action will open submission form.

Select to rate the item with 3 stars. This action will open submission form.

Select to rate the item with 4 stars. This action will open submission form.

Select to rate the item with 5 stars. This action will open submission form.

Adding a review will require a valid email for verification

Customer Images and Videos

Filter Reviews

noise level
replacement
fit
installation
purchase
price
motor
satisfaction

1 to 5 of 118 Reviews

1 – 5 of 118 Reviews

5 out of 5 stars.

Bathroom fan

2 days ago

Got it quickly and easy to install.

Helpful?

3 out of 5 stars.

Easy to install but not as quiet as I’d hoped for

24 days ago

It fits as a replacement and was super easy to install BUT it’s not quieter that the model it replaced which I was under the impression it would be. Not a deal breaker but it sucks that it gave that impression.

Helpful?

4 out of 5 stars.

Works great - air is moving now!

29 days ago

the product was exactly right to repair the model of my existing fan - easy to install - works great

Yes, I recommend this product.

Originally posted on broan-nutone.com

Response from broan-nutone.com:

29 days ago

Customer Care

Hi amartin Thank you for the 4-star review regarding model EC60KIT! We are happy your installation went smoothly, and you are pleased with the result. Thank you for sharing your experience with us!

3 out of 5 stars.

It works but...

a month ago

Needed to trim tabs in order to make it fit an older Broan fan housing. Also needed to use duct tape to fill gaps. Noisier than older fan.

Helpful?

4 out of 5 stars.

Blowey, very blowey.

2 months ago

Blowey, very blowey.

Helpful?

1 – 5 of 118 Reviews

Next Reviews

Questions

1 - 6 of 6 Questions

Q: My 20 yr old Nutone Model 663 LND stopped (size 9 x 9") is not a match for Broan EC60KIT 8 1/16 x 7 3/8". Is full replacement needed?

2 years ago

2 Answers

A: Hello Grampa5, please contact us at 1-800-567-3855 if you require further assistance. Thank you for choosing us again!
2 years ago
Helpful?

Q: Hi im confused by this item. is it an upgrade for the actual EXTRACTOR FAN or just the front grill?

3 years ago

2 Answers

A: This is a replacement fan that can fit inside existing housing. If you are not interested in replacing the entire fan. Check out this product.
3 years ago
Helpful?

Q: Do you have to go in the attic if you have a house that's 25 years old! Would love to know if this would work without going in attic?

9 months ago

1 Answer

A: Hello Dallas, thank you for your inquiry! This fan upgrade kit is only compatible with certain models/housings and does not require attic access to install into an existing housing. Please contact us at 1-800-567-3855 should you require further assistance.
9 months ago
Helpful?

Q: Will this replace a F650 model with a H600 housing?

2 years ago

1 Answer

A: Hello 2putts, thank you for your inquiry! Unfortunately, this model is not compatible with the H600 housing. Please contact us at 1-800-567-3855 so we may try to assist.
2 years ago
Helpful?

Q: Have old broan bathroom exhaust fan with opening of approx. 8.5 x 8.5. Will this replacement exhaust fan replacement kit fit?

6 years ago

1 Answer

A: The customer can check the model number on the motor plate of their existing fan to see if it matches the compatible models for EC60 (models found on packaging):
6 years ago
Helpful?

Q: what are the dimensions?

7 years ago

1 Answer

A: Please see the attached photo.
7 years ago
