Diamond Back
Diamond Back Passenger Square Link Tire Chain
#030-1240-0
$153.99
1525Q
- 1525Q
- 1530Q
- 1535Q
- 1540Q
- 1545Q
- 1547Q
- 1550Q
- 1553Q
- 1555Q
Buy Online :
- FREEAvailable
- Available
- Available
Pick up at Leduc, AB
1 In Stock
Pick up available 08:00 a.m., Jan 03
Quantity updated to 1
Also Find It in Store:Aisle 10
Only 1 left
at Leduc, AB
Add to Registry
Quebec residents: For information on maintenance and repair click here.
Product Details
Stay safer on the road this winter with a Diamond Back Passenger Square Link Tire Chain. Featuring a square link alloy construction, these tire chains offer durability for lasting use, season after season. The diamond pattern provides excellent traction and a smooth ride, so you can drive more effectively on snow or ice-covered highways. Strong, functional and made for easy use, these tire chains are a great addition to almost any passenger vehicle.
- Features
- Specifications
- Resources
SAE class S clearance
For passenger vehicles
Easy installation

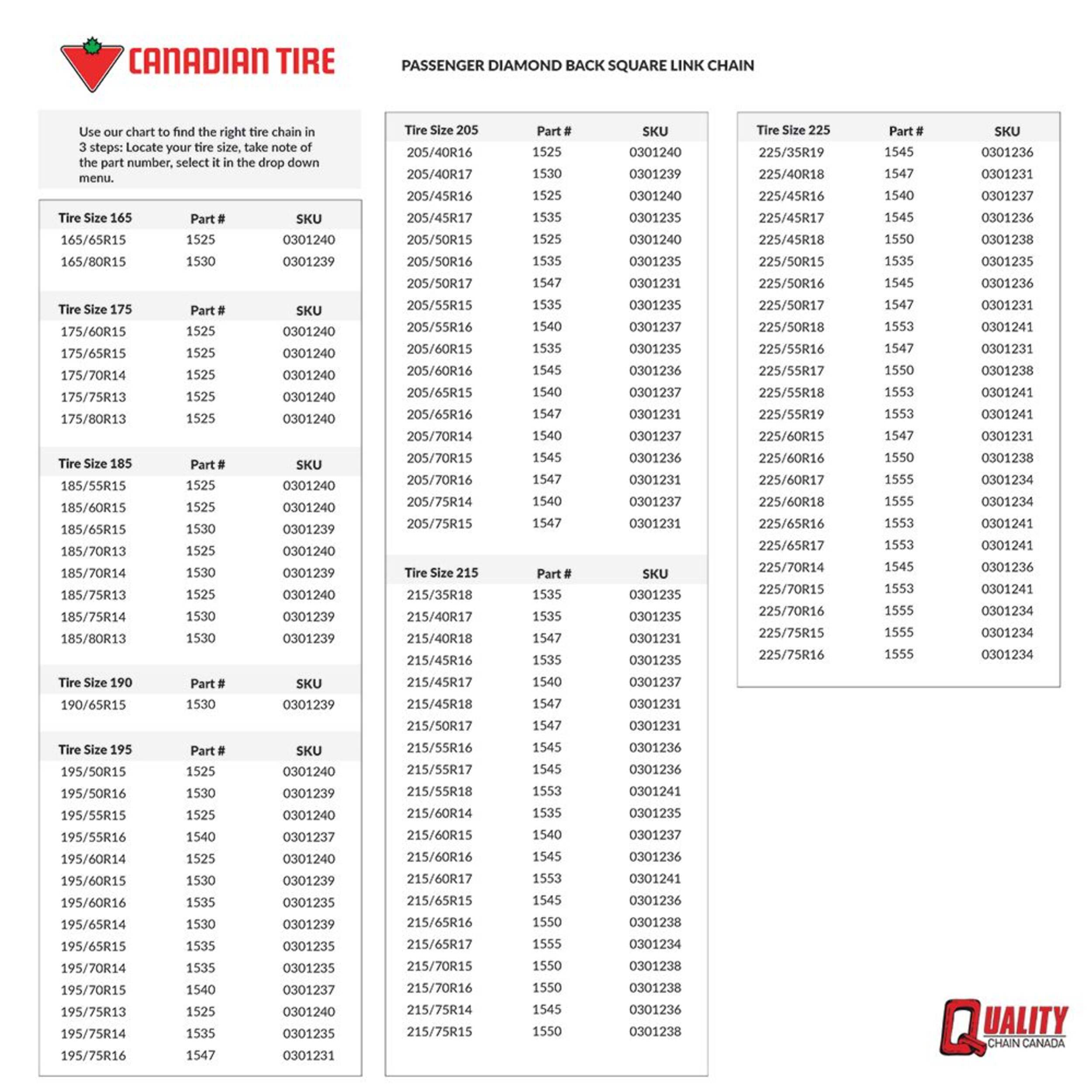

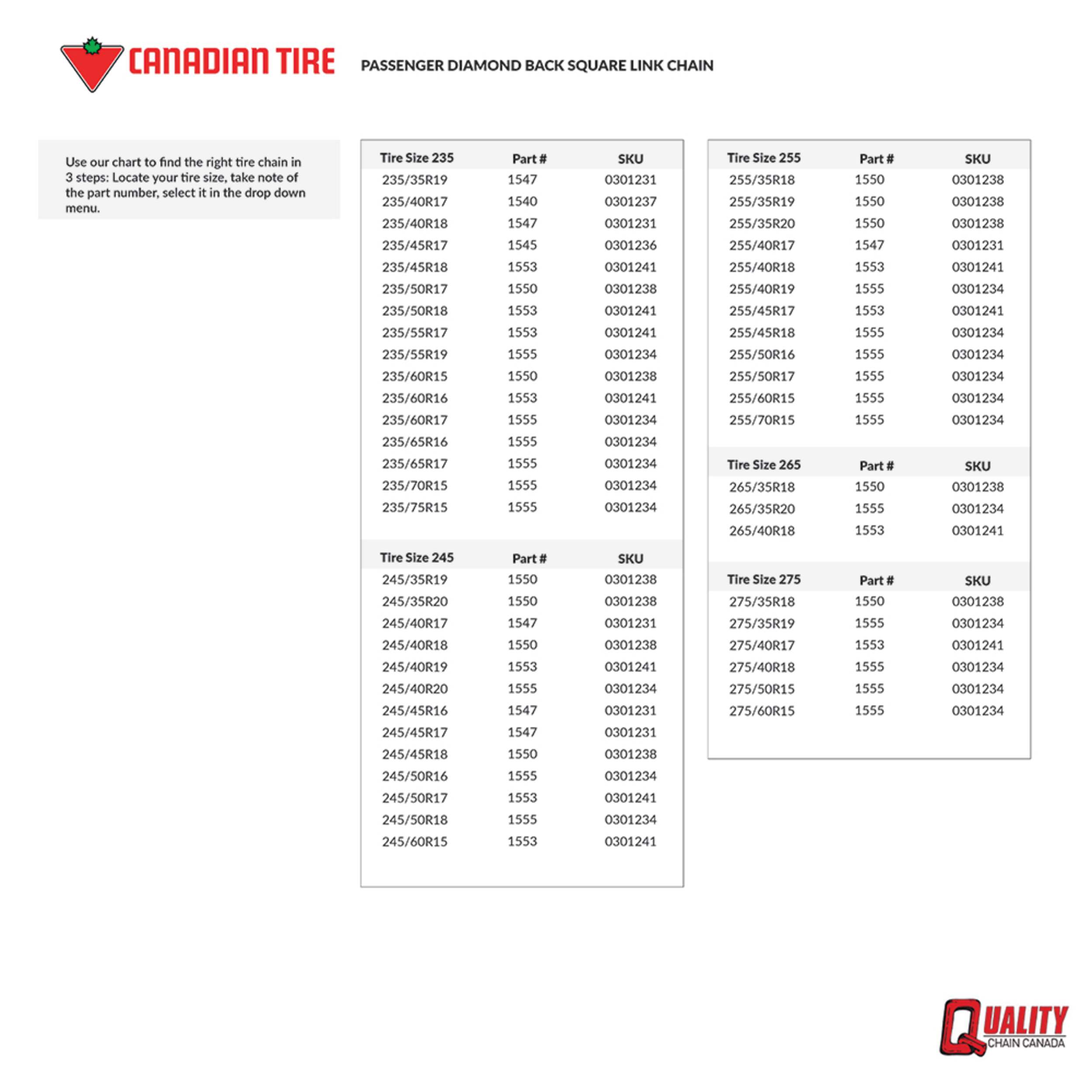

NOTE: Please refer to the sizing chart located below in the Additional Info section to find the perfect fit for your tire size
Not intended for use on trailers
| Part Number | 1525Q |
|---|---|
| Advanced Features | No Advanced Features |
| Chain Link Type | Square |
| Chain Pattern | Diamond |
| Consumer Pack Size | 2 |
| Cross Chain Width (cm) | 34.00 cm |
| Cross Chain Width (in) | 13.39 in |
| Cross Chain Width (mm) | 340.00 mm |
| Manufacturer Part Number | 1525Q |
| Maximum Speed (km/h) | 50.00 km/h |
| Maximum Speed (mi/h) | 31.07 mile/h |
|---|---|
| Package Depth (cm) | 31.00 cm |
| Package Depth (in) | 12.20 in |
| Package Height (cm) | 9.00 cm |
| Package Height (in) | 3.54 in |
| Package Weight (kg) | 4.42 kg |
| Package Weight (lb) | 9.74 lb |
| Package Width (cm) | 31.00 cm |
| Package Width (in) | 12.20 in |
| Primary Material | Alloy |
| Product Height (cm) | 0.90 cm |
| Product Height (in) | 0.35 in |
| Product Length (cm) | 147.32 cm |
| Product Length (ft) | 4.83 ft |
| Product Weight (g) | 4430.00 g |
| Product Weight (kg) | 4.43 kg |
| Product Weight (lb) | 9.77 lb |
| Product Width (cm) | 34.93 cm |
| Product Width (in) | 13.75 in |
| SAE Traction Device Class | Class S |
| Side Chain Width (cm) | 2.00 cm |
| Side Chain Width (in) | 0.79 mm |
| Side Chain Width (mm) | 20.00 mm |
| Tire Size Compatibility Code | 165/65R15, 175/60R15, 175/65R15, 175/70R14, 175/80D13, 175/80R13, 185/55R15, 185/60R15, 185/70R13, 195/50R15, 195/55R15, 195/60R14, 205/40R16, 205/45R16, 205/50R15 |
| Vehicle Type Compatibility | Automobile |
Warranty
This product carries a special warranty. Please see your local Canadian Tire store for details.
Compare Similar Products
Only Show Differences | Currently Viewing | ||||
| Ratings | |||||
| Advanced Features | No Advanced Features | No Advanced Features | No Advanced Features | No Advanced Features | |
| Chain Link Type | Square | Square | Square | Square | |
| Chain Pattern | Diamond | Diamond | Diamond | Ladder |
Shop Related Products
- Weekly Deals
- Customers Also Viewed
- Top Trending Products
- More From This Brand
Weekly Deals
Review Highlights
List of Pros Highlights
Pros
List of Cons Highlights
Cons
Reviews
Customer Images and Videos
Filter Reviews
- purchase
- size
- small
- quality
- instructions
- installation
- exchanges
- staff
Rating
Locale
1 to 5 of 30 Reviews
1 – 5 of 30 Reviews
Most Recent
1 out of 5 stars.
Sold me broken chains
5 days ago
I purchased tire chains for my vehicle and was sold a set that was clearly used and already broken. Not slightly worn — obviously damaged. When I returned to the store, they told me they don’t sell used chains and that chains are final sale, so according to them the damage must have been my fault.
That makes no sense. If they don’t sell used items and I received broken ones, then there was obviously a mistake on their end. Instead of taking responsibility, they accused me of breaking them and completely refused a return or exchange.
Terrible service, zero accountability, and incredibly frustrating to deal with. I’m beyond disappointed and will never trust this store again.
No, I do not recommend this product.
Helpful?
5 out of 5 stars.
Excellent product
9 months ago
Excellent product, extremely easy to use and good quality
Helpful?
5 out of 5 stars.
Good Chains - Fit not always as in picture
a year ago
I already have a pair for my truck and they are good. Super easy to put on.
I just bought a second set of these for a car, and they fit a lot tighter (225/65/R17). The red chain does not double back like they show in the instructions; there is just enough chain to reach the other side. I called the distributor (qccanada) and they said that the fit was good.
Yes, I recommend this product.
Helpful?
5 out of 5 stars.
Very impressed by this product!
a year ago
Really easy to put on and to remove!
Did the job going up a steep hill to reach a cottage in the Laurentians. Has a carrying bag and a plastic matt to kneel on. The matt has pictures with instructions of how to put the chains. Highly recommend buying those!👍😄
Helpful?
3 out of 5 stars.
Too snug
2 years ago
Its too snug and i wanted to exchange it but their return policy isnt reasonable
Helpful?
1 – 5 of 30 Reviews
Questions
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 26 Questions
Most helpful answers
Q: What snow chains can be used on a Subaru 2018 Outback given the tire clearance.
4 years ago3 Answers
A: I haven't seen smaller clearance cross link chains than this. Our Suzuki sx4 has minimum clearance and it is a non issue on potholed forest service roads. I imagine an outback would have more clearance than our car, given it is designed to go off road.
4 years agoHelpful?
Q: I need snow chains for 225/R17 tires. Which will fit please?
3 years ago2 Answers
A: I have the same size tire and bought the Passenger Diamond Back Square Link Chain. They did great. I'd recommend putting them on before your 3ft in snow though. First time putting them on needed practice.
3 years agoHelpful?
Q: I have a 2018 Subaru Outback with tires 225/60R18. What tire snow chains fit that car given the tire clearance limitations
4 years ago2 Answers
A: Hello there! I did not have those tires, but a kind Canadian Tire representative was very knowledgeable and directed me to the right chains set when I called. I would recommend you call. If you don’t get an answer you are looking for right away, just call another store location. All the best
4 years agoHelpful?
Q: It drives me CRAZY! you can find almost NO info on products. Why will you NOT post the sizing guide?
6 years ago2 Answers
A: You can download the sizing guide by going to "Product Details" > "Resources" and then downloading the "User Manual". It's not actually a user manual, as much as it is a sizing guide based on tire sizes.
a year agoHelpful?
Q: What size fits 195/65R15 tires passenger car Maybe you should publish a chart somewhere
10 years ago2 Answers
A: Go to https://www.qualitychaincorp.com. On the right side of the page, enter your tire size without punctuation (in your example "1956515"). Under Vehicle Type, pick "Passenger Car". Click the arrow button. In the resulting list, select the "Diamond Pattern" in the Subcategory list. The list of results will show the one that fits your tire. Note the SKU number - the first part of the product name in the form of "15XXX". Now the annoying part: actually go to your local Canadian Tire and ask if they have that model in stock as it is impossible to get that info on this site.
8 years agoHelpful?
Q: how many come in the package 205/65/15, which chains will fit. thanks
11 years ago2 Answers
A: 2
10 years agoHelpful?
Q: What code number for 215 65 r16(2005sienna) and 2013 gcaravan withsame tires)
10 months ago1 Answer
A: Hi, for 215/65R16 the code number would be Part # 1550 (SKU # 030-1238)
10 months agoHelpful?
Q: is this a set of two or individual chains?
2 years ago1 Answer
A: One set of two chains.
2 years agoHelpful?
Q: My car's tire size is 255/45R19, I don't see the size on the list, which chains should I get? Do I need one for each tire, or 2 is enough? Thanks
3 years ago1 Answer
A: Hi, thank you for your question. For your tire size, the one with SKU# 0301270 (3.7mm material) would work based off of the dimensions. Here is the link for the product: https://www.canadiantire.ca/en/pdp/light-truck-lightweight-diamond-back-square-link-tire-chain-0301270p.0301270.html#gs The product would be sold as a pair of two, which would do up one axle.
3 years agoHelpful?
Q: Hi, which size fit my tires. My size is 255/70 16R 102T. Thank you
4 years ago1 Answer
A: You need the light truck version, not the passenger version, part number 2519Q.
4 years agoHelpful?
