MotoMaster Eliminator

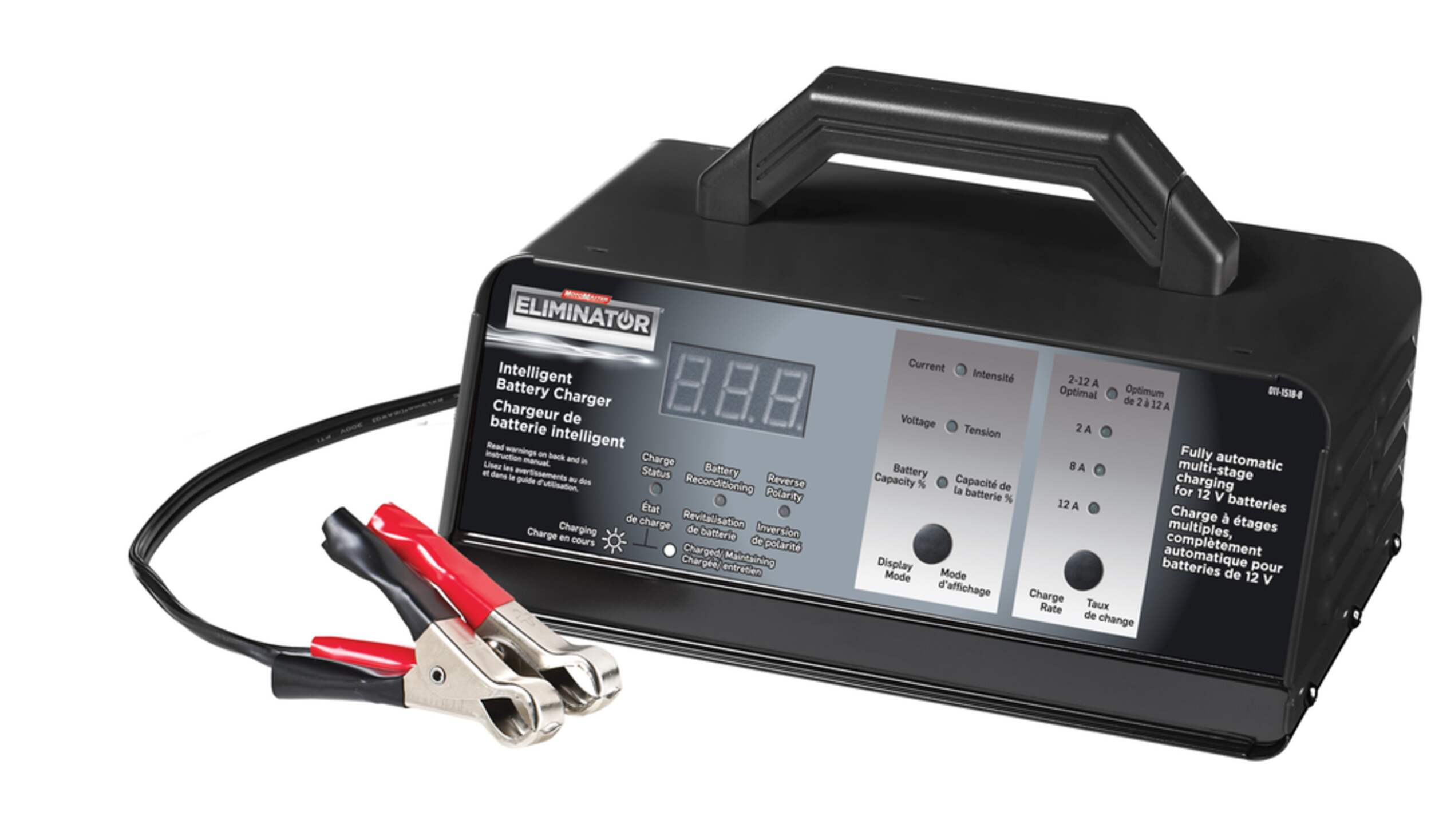

MotoMaster Eliminator Intelligent Battery Charger, 12/8/2A
Unfortunately, this product is discontinued in your selected store and nearby stores.
You may be interested in these similar products shown below.Similar Items
Quebec residents: For information on maintenance and repair click here.
Similar Items
Product Details
MotoMaster Eliminator Intelligent Battery Charger is a fully automatic, multi-stage charging for 12V batteries
Built-in intelligent microprocessor makes charging faster, easier and safer
Ten minute charge to start and 3 hour fast charge
Select 12A fast charge or 8A medium charge for charging large batteries, or select 2A trickle charge for charging small batteries
Optimal charge mode automatically selects the ideal charge rate for your battery to protect against damage and reduced battery life caused by overheating
Automatically switches from full charge to maintenance mode to maintain batteries during prolonged periods of storage without overcharging or damaging the battery
Battery reconditioning feature reverses sulphate build-up on battery plates and helps restore battery capacity
Battery voltage diagnostics continuously monitor battery voltage to detect potential defects
Features reverse polarity, short circuit and overheat protection to prevent damage to battery or charger
Suitable for all types of 12V lead acid batteries including AGM, deep cycle and gel cell.
6' power cord and output cables for up to 12' of reach
| Part Number | 6864C |
|---|---|
| Accessories List | No Accessories Included |
| Advanced Features | High Frequency Charge |
| Assembled Height (cm) | 13.00 cm |
| Assembled Height (ft) | 0.43 ft |
| Assembled Height (in) | 5.12 in |
| Assembled Length (cm) | 23.00 cm |
| Assembled Length (ft) | 0.75 ft |
| Assembled Length (in) | 9.06 in |
| Assembled Weight (kg) | 1.80 kg |
| Assembled Weight (lb) | 3.97 lb |
|---|---|
| Assembled Width (cm) | 19.50 cm |
| Assembled Width (in) | 7.68 in |
| Assembled Width (mm) | 195.00 mm |
| Battery Voltage Compatibility | 12V |
| Certifications | ETL Listed |
| Charge Control | 3 Stage |
| Charge Time (Hr) | 5 h |
| Charging Rate Modes | 12A |
| Cord Length (cm) | 180.00 cm |
| Cord Length (ft) | 5.91 ft |
| Cord Length (in) | 70.87 in |
| Crank Assist Amperage (a) | 0 A |
| Display Type | Digital |
| Input Voltage (V) | 115 V |
| Maximum Temperature (°C) | 40.00 °C |
| Maximum Temperature (°F) | 104.00 °F |
| Minimum Temperature (°C) | 0.00 °C |
| Minimum Temperature (°F) | 32.00 °F |
| Output Amperage (amps) | 12 A |
| Package Depth (cm) | 13.00 cm |
| Package Depth (in) | 5.12 in |
| Package Height (cm) | 19.50 cm |
| Package Height (in) | 7.68 in |
| Package Weight (kg) | 1.80 kg |
| Package Weight (lb) | 3.97 lb |
| Package Width (cm) | 23.00 cm |
| Package Width (in) | 9.06 in |
| Primary Colour | Black |
| Primary Material | Metal |
| Vehicle Type Compatibility | ATV |
This product carries a manufacturer warranty. Please visit or contact your local Canadian Tire store for details. This product carries a manufacturer warranty. Please visit or contact your local Canadian Tire store for details.
View user manuals and additional product information
Pick Up is free at most stores (some stores require a minimum order value before tax)
Shipping fee is based on size and weight of products and distance from address to store
Same-Day Delivery costs $9.99 per order
Same-Day Delivery and Ship to Home are unavailable for tires and wheels
Most products can be returned or exchanged at any Canadian Tire store within 90 days of purchase
Some products are non-refundable and non-exchangeable
Special order hard parts and specific application automotive parts must be returned to original store of purchase
The return info outlined above may not apply to the product you are currently viewing. For complete details and exceptions, please refer to our Return Policy.
Shop Related Products
- Weekly Deals
- Customers Also Viewed
- Top Trending Products
- More From This Brand
Weekly Deals
Review Highlights
Reviews
Filter Reviews
- charging
- purchase
- for the car
- price
- function
- functional
- satisfaction
- product features
Was great for a long time and then …
No, I do not recommend this product.
Super
Too bad they dont sell this anymore!!
Yes, I recommend this product.
Dont listen to the bad reviews
Yes, I recommend this product.
Right tool for the job
Yes, I recommend this product.
Questions
Q: Error F05 All the time? I bought two of these units and hooked them up to the motor cycles for winter storage. After about 1 day they both go to F05
15 years agoA: I have the exact same problem!! On my 3rd charger since Dec. 09. I just exchanged again this fall, and always F05. I have tried every setting, and always F05 after about 24 hrs. I believe these units don't do what they say. Has anyone had luck with maintenance mode on these units??
14 years agoHelpful?
Q: Est-ce qu'il est possible de charger une batterie vide depuis 2 mois?
13 years ago- Translate with Google
A: J'ai oublié une lumière allumée dans mon auto pendant 4 jours et la batterie s'est complètement déchargée (mon voltmètre indique 150 mV). Dans ce cas ce chargeur est inutile car il veut tester la batterie avant de la charger et pour faire cela il a besoin que la batterie donne au moins 1.5 volts... C'est stupide! Je vais donc devoir aller au garage à pied avec ma batterie dans les bras pour la recharger.----------------Voici la solution que le guide donne: Vérifiez la tension de la batterie à l’aide d’un voltmètre. Si elle est INFÉRIEURE à 1,5 V, remplacez la batterie. (Une batterie dont la tension est inférieure 1,5 V est souvent irrécupérable en raison d’une sulfatation extrême ou d’une autre défaillance interne.) Vous pouvez tenter de recharger la batterie à l’aide de câbles de démarrage raccordés à la batterie d’un autre véhicule. Il se peut alors que la tension dépasse 1,5 V, soit la tension à laquelle le chargeur fonctionne.
4 years agoHelpful?
Q: How long will my Battery take to get out of reconditioning mode?
14 years agoA: as stated in one of the other answers, it might have been that a poor connection (wiggle clamps a lot) fooled your charger into thinking the voltage of your battery was low and that it needed reconditioning for longer then actually needed. this has happened to me also reconditioning seems to be very high voltage (17 volts) and very high frequency pulses to loosen the sulfation on the lead plates and convert the sulfation back into usable battery material i monitor re-conditioning mode VERY closely
12 years agoHelpful?
Q: Hooked up to a yr old lawn trator battery, display reads scrolling 8's, what is the problem
14 years agoA: there are tooo amny variables to give a good answer, but i can guess at a few possible ones. if the battery was frozen, it is broken (batteries for lawn tractors here in canada need to be taken out during the winter and stored inside the house) if the vehicle had a power drain the battery is too low for the charger to sense it and it will not start charging without at least 3 volts at the terminals the terminals are dirty or there is poor contact between the charger clamps and the battery terminals the charger is malfunctioning good luck
12 years agoHelpful?
Q: Can I use with an inverter? I don't have an outlet near my car... can I plug the charger into an inverter that is connected to my cigarette lighter plug?
14 years agoA: For example, plug the invertor to a "battery booster" is fine. BUT with some battery boosters like the Motormaster 500A, make sure you don't drain the booster's battery or it may have problem charging itself. I ended up taking apart my Motormaster 500A battery booster and used "this" charger to charge it !
13 years agoHelpful?
Q: Can I use it in an unheated garage in maintenance mode?
15 years agoA: Yes, that is what the maintenance mode if for! Batteries freeze if drained, that's why you keep a maintenance charger on them through the winter.
12 years agoHelpful?
Q: Cooling fan not operating? Some other of these types of chargers have the cooling fan running all the time, but this one didn't come on at all during a light charging session. Is this normal for this charger? Thanks!
15 years agoA: This item we designed with current control fan, if the current is lower than 3.5A, the fan won't work. if the current is lower than 3.5A, the fan will work.
Anonymous15 years agoHelpful?
Q: Can I use this product to maintain a battery charge for up to 4 weeks?
6 years agoA: Yes. Place the charger on the 2A setting and it will go into the maintenance mode that keeps your battery full. Ensure the battery is a good battery first, the charger is out of the weather and the cord can’t be tripped on and the connections either pulled off the battery or out of the AC outlet.
6 years agoHelpful?
Q: Ce chargeur intelligent eliminator peut il aussi charger les batteries de 8 et 6 volts pour voiturette de golf? Merci
7 years ago- Translate with Google
A: Ce chargeur peut être utilisé pour charger deux batteries de 6 volts connectées en série. Il fonctionnera exactement comme s'il était connecté à une seule batterie de 12 volts. Nous vous déconseillons d'utiliser ce chargeur pour charger des batteries de 8 volts, car il est très facile de surcharger la batterie avec cette méthode. Vous pouvez vous procurer des chargeurs spéciaux 6V ou 8V si vous souhaitez charger les batteries individuellement, mais vous pouvez également connecter des batteries en série et les charger sous la forme d'un groupe de batteries. Par exemple, vous pouvez câbler trois batteries de 8 volts en série pour un total de 24 volts, de sorte que vous puissiez utiliser un chargeur de 24 volts pour charger vos piles système que vous pouvez charger via un chargeur de batterie 12V. Assurez-vous que les piles que vous avez connectées dans la série ont la même tension, le même âge, le même type, le même fabricant et qu’elles sont dans le même état.
7 years agoHelpful?
Q: I lost my users guide for my Motomaster Eliminator Intelligent battery charger 11-1515-1. Is it possible to access it on-line?
10 years agoA: request one be emailed to you from customer service, I just received mine.
10 years agoHelpful?
