SecureLatch makes hooking up your trailer as easy as Strike. Drop. Auto-lock! Integrated into this SecureLatch pintle hook is an automatic locking mechanism that secures the primary latch without any manual coupling required. Simply back your vehicle up to the lunette ring -- the built-in striker plate helps stop and center the lunette ring. Drop the ring down onto the hook and let the auto-locking latch do the rest! Just install the secondary safety pin. This SecureLatch pintle hook is also unique from other pintle hitches with its cupped design. Instead of letting the ring slop with every acceleration, brake and bump, the cupped hook holds the ring tighter fore and aft. This results in smoother, quieter heavy-duty towing. SecureLatch pintle hitches are fast and easy to adjust, featuring a unique slotted plate mount (pintle mount and bolts sold separately). Simply loosen two bolt plates and adjust the height of the hook as needed. This ensures level towing of your trailer with only one tool needed. This SecureLatch pintle hook is rated for 30,000 pounds gross trailer weight and couples to lunette rings with a 2-1/2-inch or 3-inch inside diameter. It is constructed from cast iron that is austempered for superior strength and resistance to wear. To protect this hook from the elements, it is covered in a durable, dark grey teridium powder coat finish.

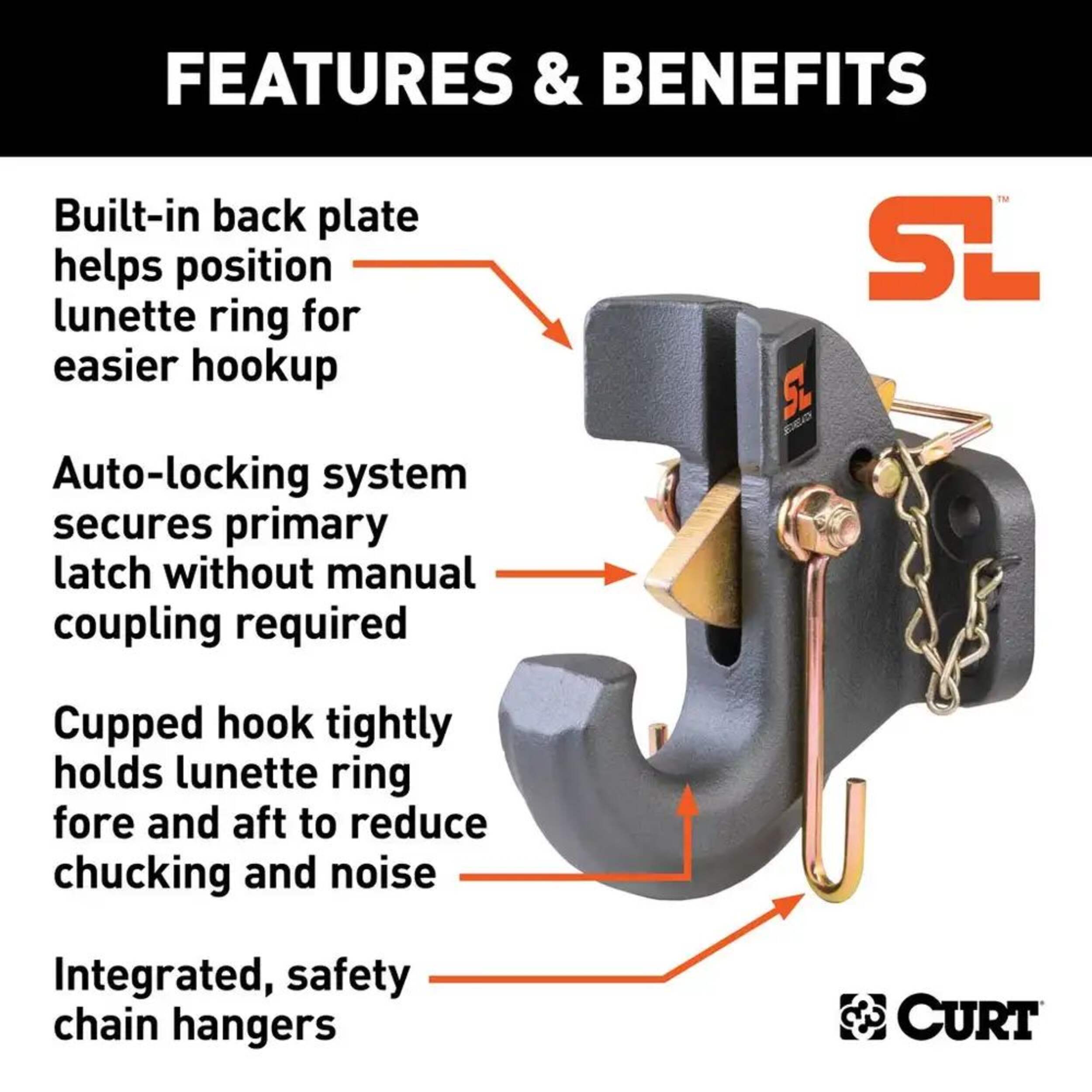

Auto-locking system secures primary latch without manual coupling required
Cupped hook tightly holds lunette ring fore and aft to reduce chucking and noise
Built-in back plate helps position lunette ring for easier hookup
Fits SecureLatch pintle mounts with slotted plate (sold separately)

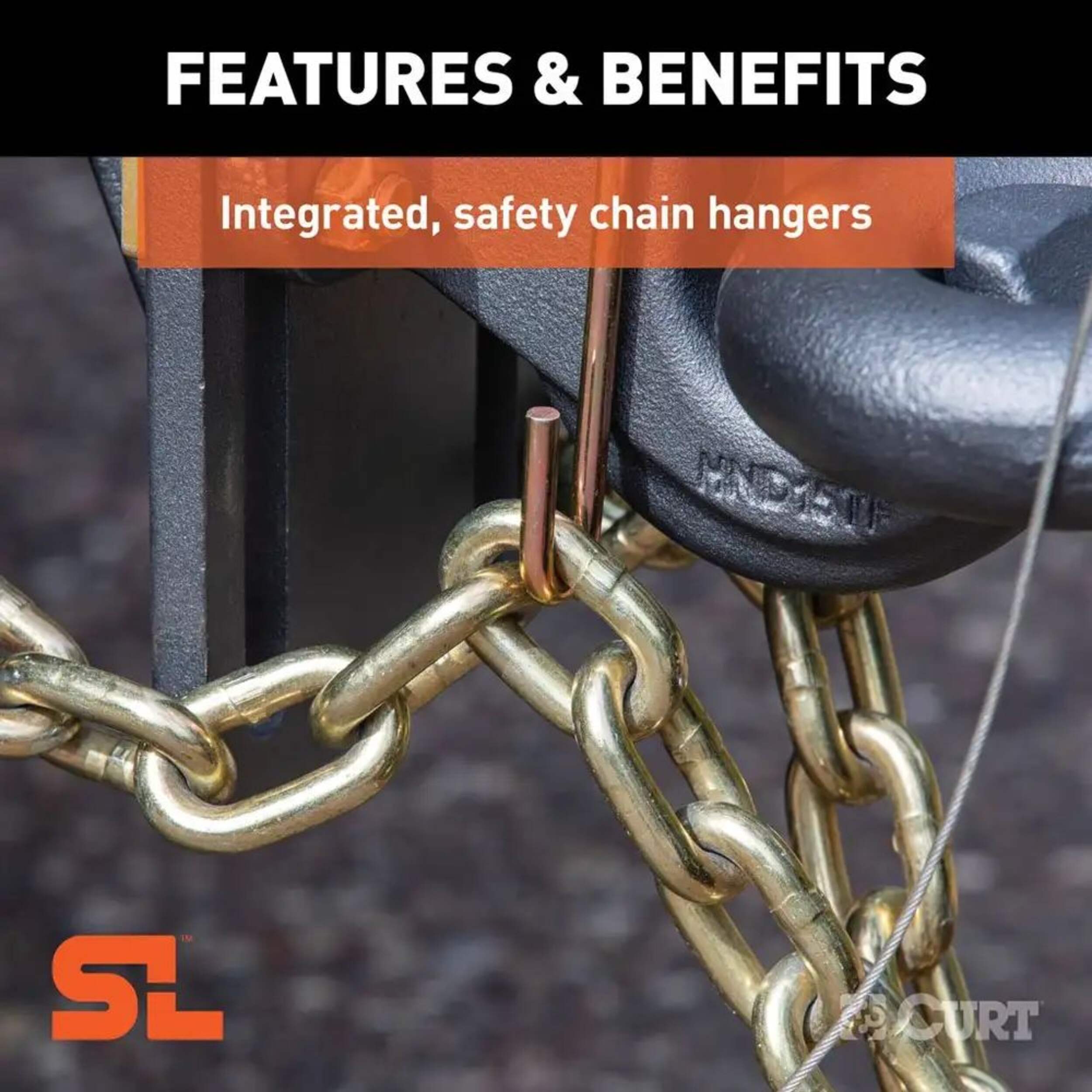

Integrated, intermediate safety chain hangers keep chains off the ground
Rated for 30,000 lbs. gross trailer weight and 6,000 lbs. vertical load
Couples to lunette rings with a 2-1/2" or 3" inside diameter
Bright zinc-plated hardware for corrosion resistance (mount bolts not included)
Bright zinc-plated hardware for corrosion resistance (mount bolts not included)
SecureLatch pintle mount and bolts required for installation (sold separately)
Safety pin must be installed before towing
| Part Number | 48505 |
|---|---|
| Accessories List | No Accessories Included |
| Advanced Features | No Advanced Features |
| Certifications | No Certifications |
| Gross Trailer Weight Rating Capacity (kg) | 0.00 kg |
| Gross Trailer Weight Rating Capacity (lb) | 0.00 lb |
| Hitch Class | Not Applicable |
| Package Depth (cm) | 18.62 cm |
| Package Depth (in) | 7.33 in |
| Package Height (cm) | 13.21 cm |
| Package Height (in) | 5.20 in |
|---|---|
| Package Weight (kg) | 5.17 kg |
| Package Weight (lb) | 11.40 lb |
| Package Width (cm) | 15.66 cm |
| Package Width (in) | 6.17 in |
| Primary Material | Steel |
| Receiver Type | 2" Square |
| Tongue Weight Rating Capacity (kg) | 0.00 kg |
| Tongue Weight Rating Capacity (lb) | 0.00 lb |
| Trailer Hitch Type | Rear Mount Hitch |
