CURT 45936 Deep-Drop Adjustable Trailer Hitch Ball Mount with Dual Ball, 2-in Shank, Up to 15,000 lbs
- FREEAvailable
- Out of stock
- Available
Out of stock at Leduc, AB
Quebec residents: For information on maintenance and repair click here.
Similar Items
Product Details

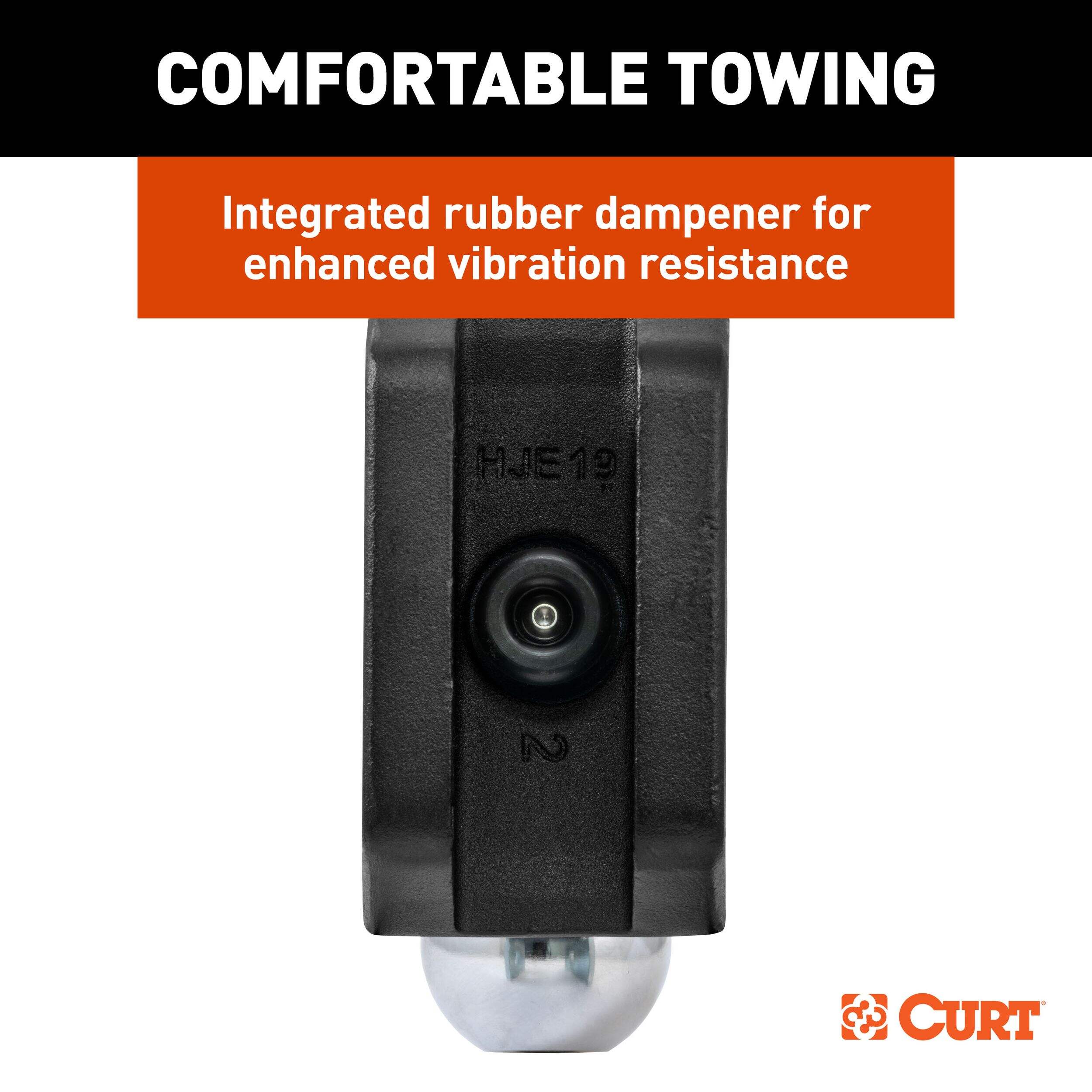

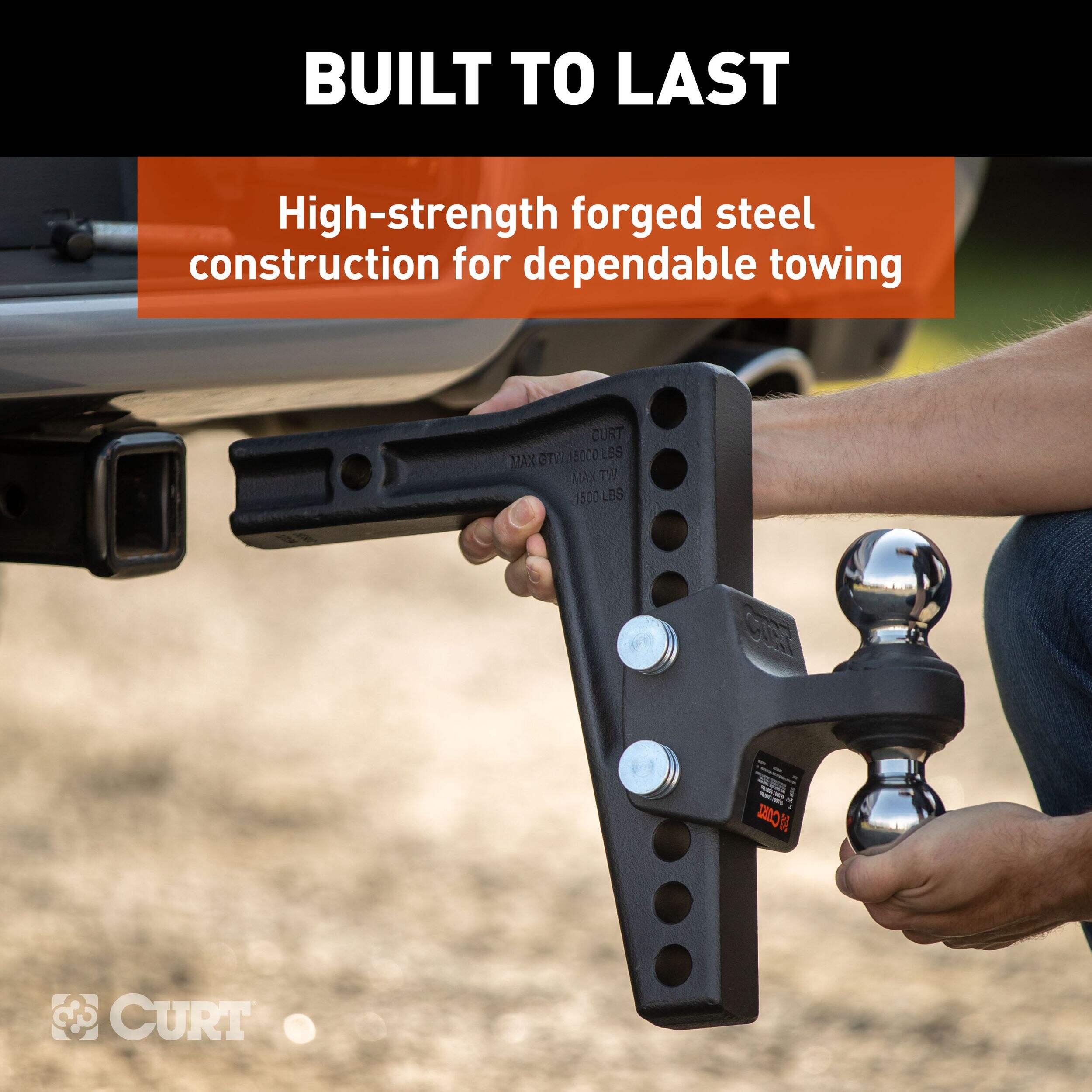

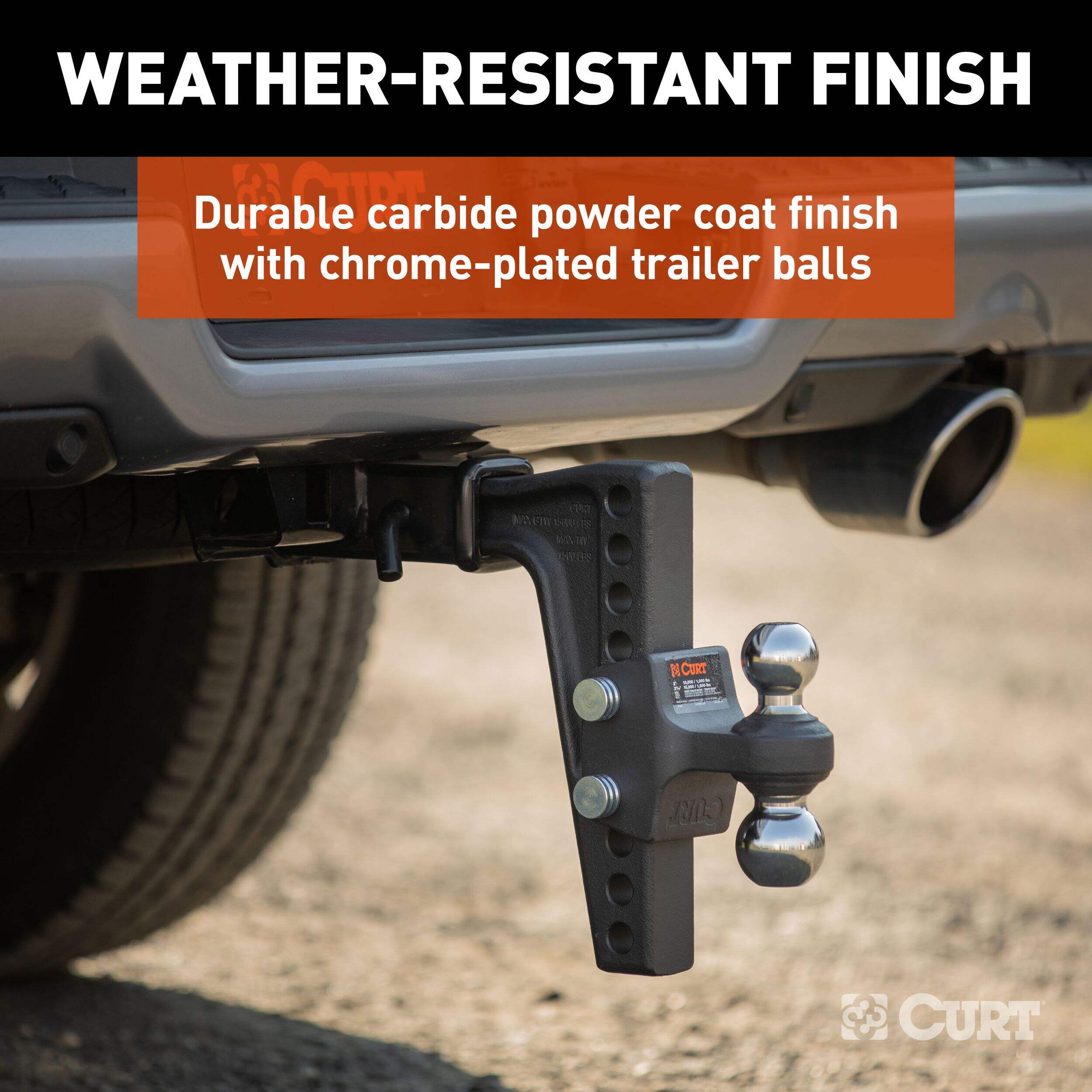

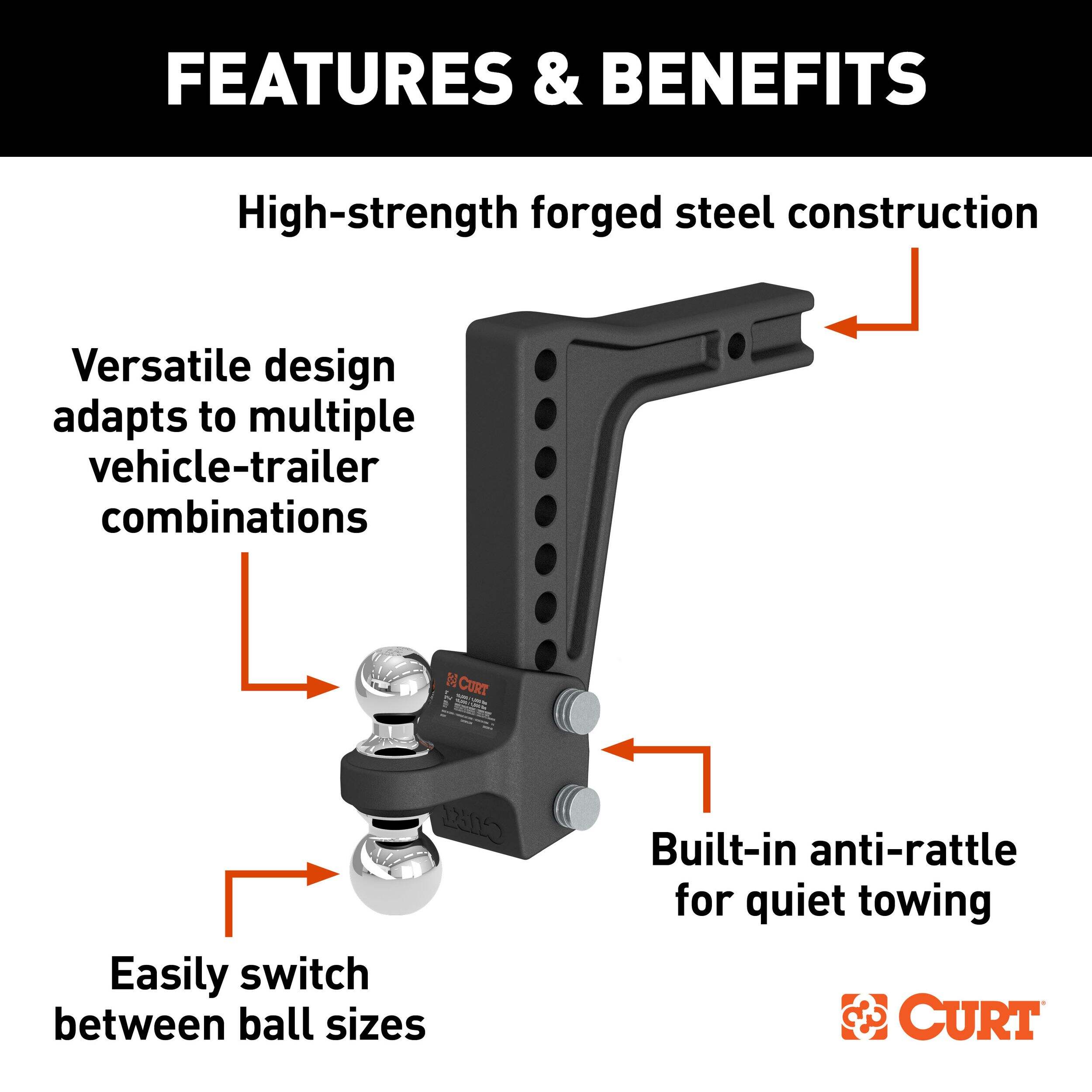

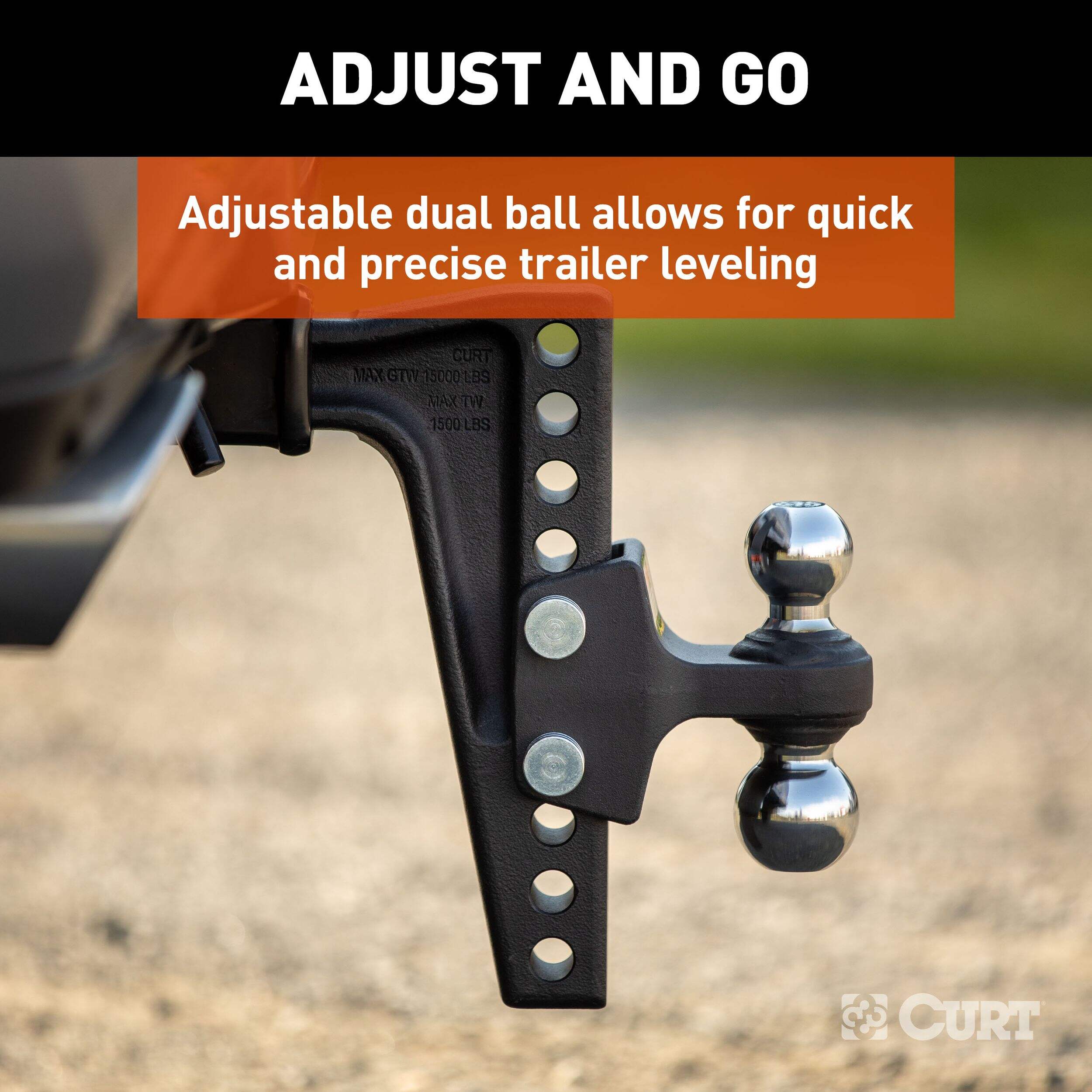

The CURT 45936 Deep-Drop Adjustable Trailer Hitch Ball Mount is a versatile towing solution for large or lifted trucks and SUVs. The adjustable dual ball system enables quick trailer leveling, adapting to various towing needs. The shank can be flipped to provide a deep drop or rise, for compatibility with different vehicle-trailer combos. Built from high-strength forged steel, this hitch is designed for durability, with a carbide powder coat finish and chrome-plated trailer balls for added protection. The integrated anti-rattle system reduces noise during towing, while the unique clip design ensures a secure and vibration-resistant fit.
- Features
- Specifications
- Resources
Dual ball can be used on other 2" (5 cm) WD shanks (holes spaced 2-1/2"/6.3 cm on-center)
Shank can be flipped for a max drop of 10" (25.4 cm) or rise of 9" (22.8 cm)
2" (5 cm) ball rated for 10,000 lbs (4,536 kg) and 2-5/16" (5.3 cm) ball rated for 15,000 lbs (6,803.8 kg)
Compatible with 2" x 2" (5 x 5 cm) receiver tube opening
Limited lifetime warranty (one-year finish, one-year parts)
Includes dual ball attachment, pins, clip and WD shank #17123
| Part Number | 45936 |
|---|---|
| Accessories List | Installation Hardware |
| Advanced Features | No Advanced Features |
| Assembled Height (cm) | 11.98 cm |
| Assembled Height (ft) | 0.39 ft |
| Assembled Height (in) | 4.72 in |
| Assembled Length (cm) | 37.99 cm |
| Assembled Length (ft) | 1.25 ft |
| Assembled Length (in) | 14.96 in |
| Assembled Weight (kg) | 40.19 kg |
| Assembled Weight (lb) | 88.60 lb |
|---|---|
| Assembled Width (cm) | 31.97 cm |
| Assembled Width (in) | 12.59 in |
| Assembled Width (mm) | 319.70 mm |
| Certifications | No Certifications |
| Finish | Black |
| Gross Trailer Weight Capacity (lb) | 14999.97 lb |
| Gross Trailer Weight Rating Capacity (kg) | 6803.88 kg |
| Hitch Class | Class V |
| Package Depth (cm) | 38.00 cm |
| Package Depth (in) | 14.96 in |
| Package Height (cm) | 11.99 cm |
| Package Height (in) | 4.72 in |
| Package Weight (kg) | 18.23 kg |
| Package Weight (lb) | 40.19 lb |
| Package Width (cm) | 31.98 cm |
| Package Width (in) | 12.59 in |
| Primary Material | Steel |
| Receiver Type | 2" Square |
| Tongue Weight Rating Capacity (kg) | 0.00 kg |
| Tongue Weight Rating Capacity (lb) | 0.00 lb |
Warranty
This product carries a 1 year exchange warranty redeemable at any Canadian Tire store.
