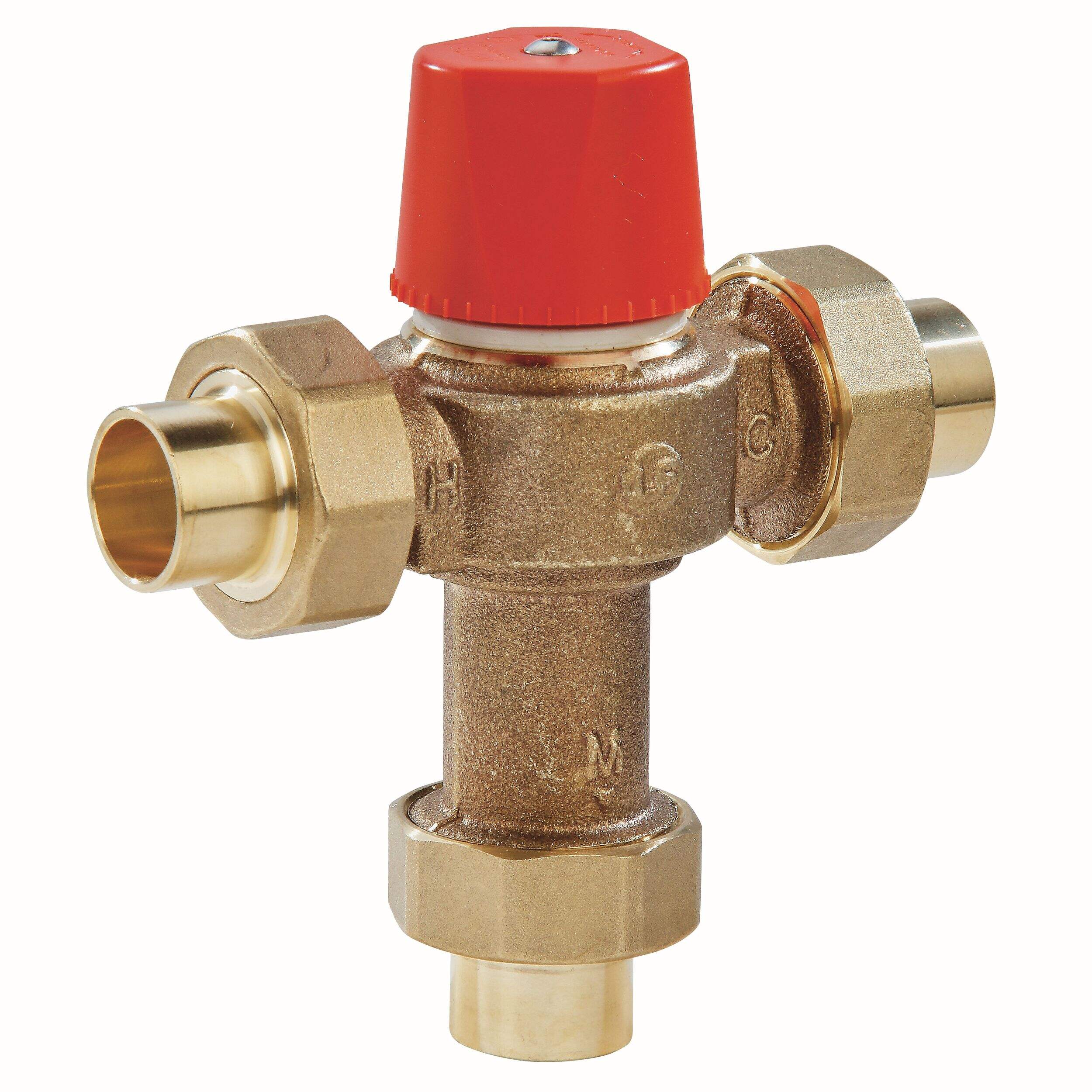

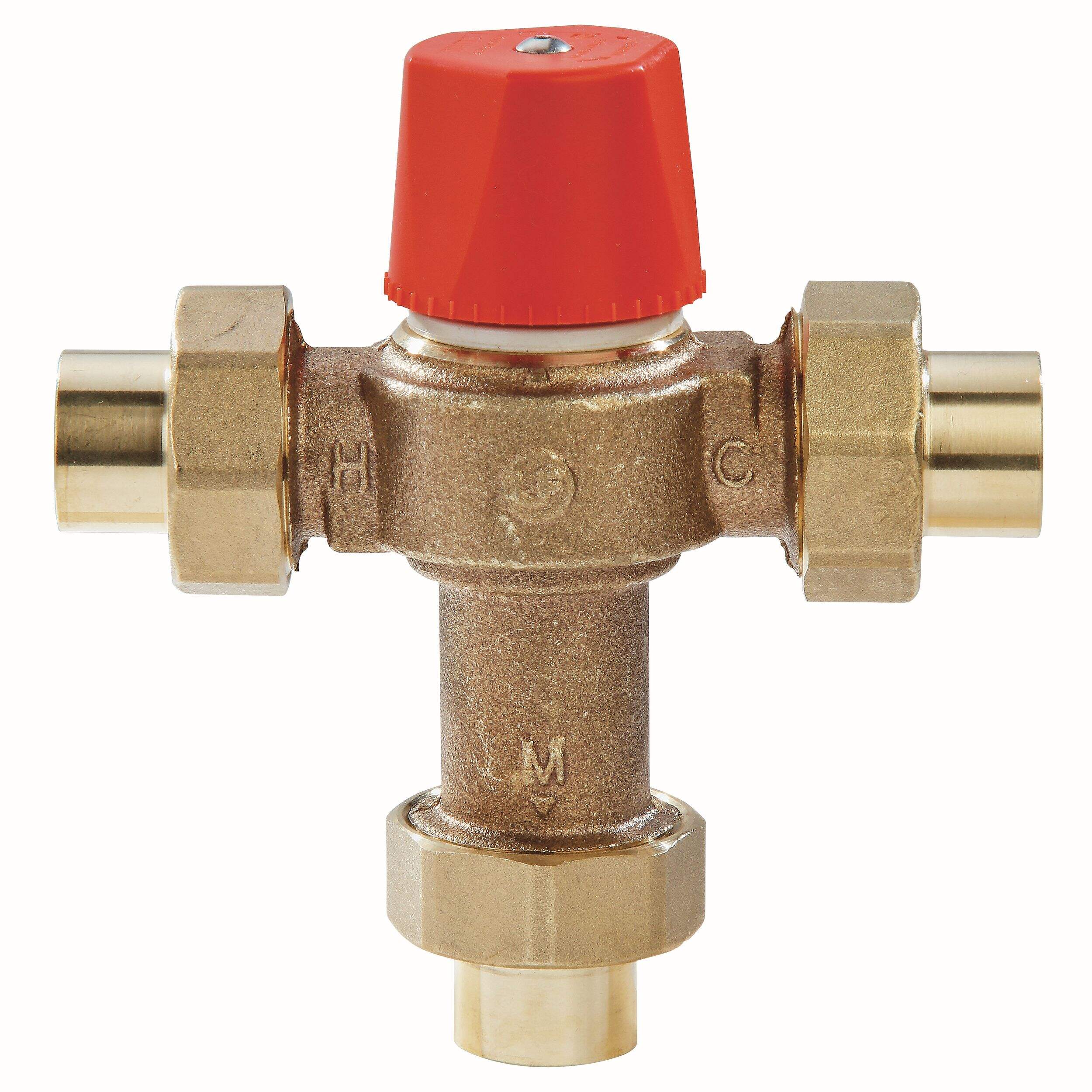

Watts Thermostatic Hot Water Mixing Valve, 3/4-in connection, Copper
- FREEAvailable
- Available
- Available
Pick up available 09:00 a.m., Jan 04
Only 2 left
Quebec residents: For information on maintenance and repair click here.
Similar Items
Product Details
The Watts Thermostatic Hot Water Mixing Valve is designed for installation on water heating equipment to provide tempered water to point-of-use fixtures and is ideal for radiant heat applications. The double throttling design combines hot and cold water control for a sensitive response to water temperature changes in the mixing chamber. It consists of a lead free brass body, solder union connections, solid wax hydraulic principle thermostat, integral filter washers and check valves, virtual shutoff upon loss of cold water supply, and a locking mechanism for the temperature setting.
Provides additional safety by restricting water flow to a trickle upon loss of cold water flow
Solder union connection - 3/4" (1.9 cm)
Lead-free brass construction
Factory set at 120 degrees F (48.8 degree C)
Maximum pressure differential - 25%
| Part Number | 0559109 |
|---|---|
| Valve Type | Mixing |
| Connection Type | Sweat |
| Primary Material | Copper |
| Primary Colour | Gold |
| Pipe Type Compatibility | Copper |
| Maximum Pressure (psi) | 150 lb/in² |
| Number of Pieces | 1 |
| Advanced Features | No Advanced Features |
| Certifications | ASSE Certified, UL Listed, UPC Certified, NSF Certified |
| Assembled Height (cm) | 16.03 cm |
|---|---|
| Assembled Height (in) | 6.31 in |
| Assembled Length (cm) | 11.43 cm |
| Assembled Length (in) | 4.50 in |
| Assembled Weight (kg) | 1.27 kg |
| Assembled Weight (lb) | 2.80 lb |
| Assembled Width (cm) | 6.65 cm |
| Assembled Width (in) | 2.62 in |
| Inlet Size (in) | 0.75 in |
| Inlet Size (mm) | 19.05 mm |
| Outlet Size (in) | 0.75 in |
| Outlet Size (mm) | 19.05 mm |
- This product carries a 1 year exchange warranty redeemable at any Canadian Tire store.
- Pick Up is free at most stores (some stores require a minimum order value before tax)
- Shipping fee is based on size and weight of products and distance from address to store
- Same-Day Delivery costs $9.99 per order
- Online Ordering Information
- Most products can be returned or exchanged at any Canadian Tire store within 90 days of purchase
- Some products are non-refundable and non-exchangeable
- The return policy outlined above may not apply to the product you are currently viewing. For complete details and eligibility, please refer to our Return Policy for exceptions.
Compare Similar Products
Only Show Differences | ||||||
| Ratings | ||||||
| Valve Type | Mixing | Pressure Regulating | Mixing | Mixing | Air Admittance | |
| Connection Type | Sweat | Male Thread | Threaded | Threaded | Male Thread | |
| Primary Material | Copper | Copper | Brass | Brass | Copper |
Shop Related Products
- Weekly Deals
- Customers Also Viewed
- Top Trending Products
- More From This Brand
Weekly Deals
Review Highlights
Reviews
Filter Reviews
Works great.
Not for hot water tanks
Mixer
Questions
Q: Can this valve be set to a higher temperature than the factory setting?
2 years agoA: The 3/4 LFL1170-US-M2 is factory set at 120 degrees F. It can be set at any temperature between 60 degrees F. and 120 degrees F., but no higher.
