Watts

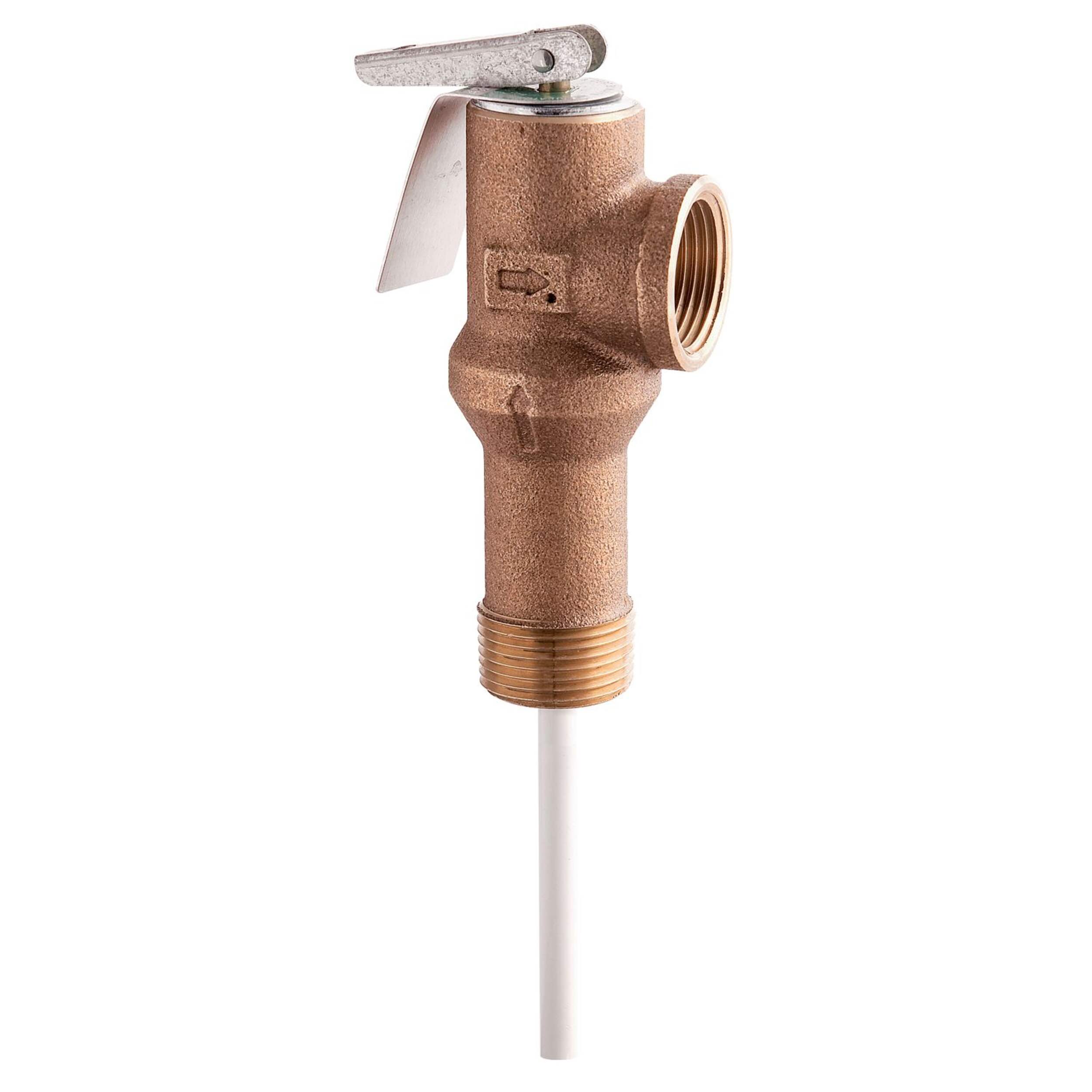

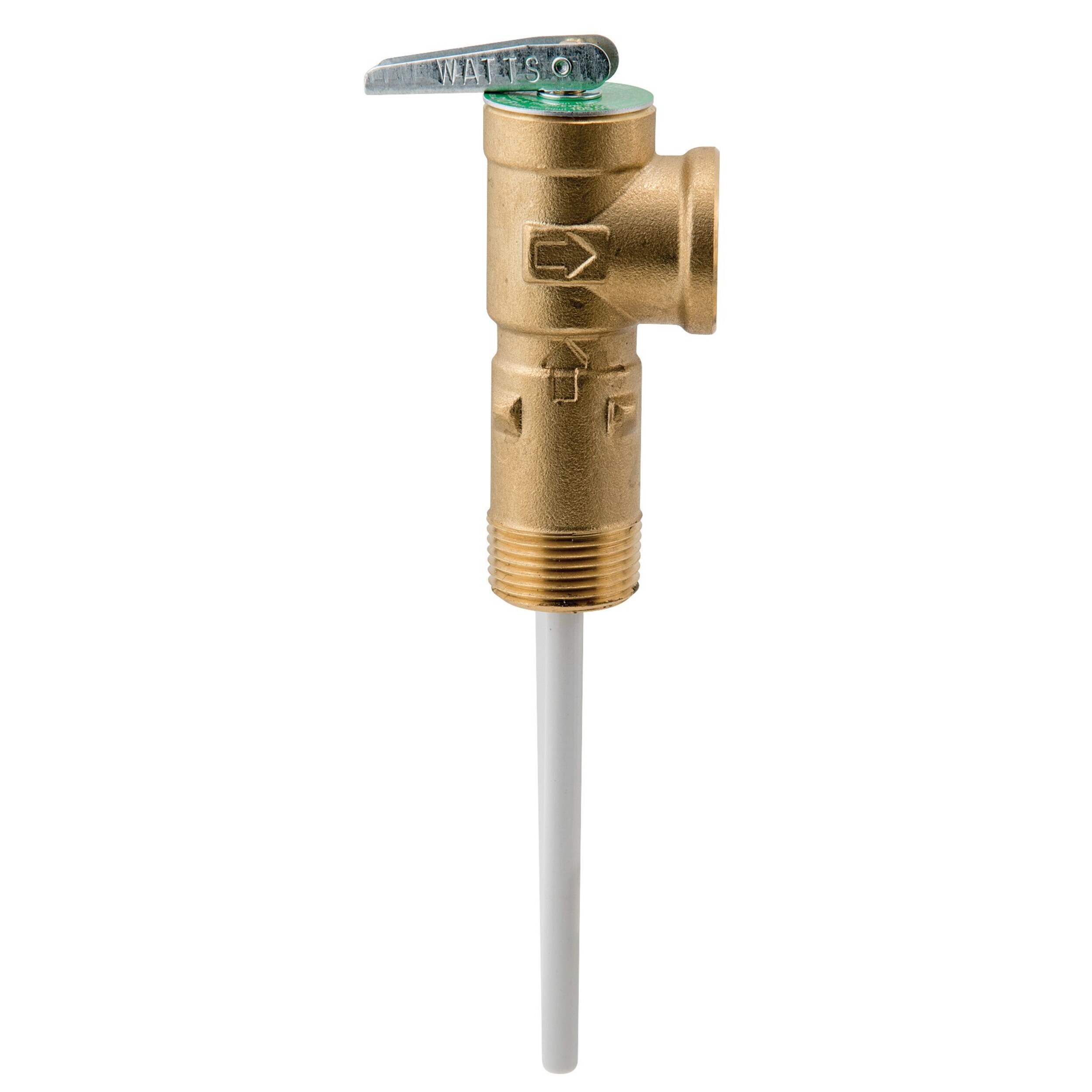

Watts L100XL3-150210 Brass Temperature & Pressure Relief Valve, 3/4-in, Brown

#063-0172-0
$25.99
Top Rated
Buy Online :
Pick up at Leduc, AB
11 In Stock
Free Pick Up over $25 (before taxes)
Get it Today !

Pick up available 07:30 p.m., Sep 08

Quantity updated to 1
New digital payments available on checkout page:
Also Find It in Store:
11 In Stock at Leduc, AB
Aisle 51
Add to Registry

Quebec residents: For information on maintenance and repair click here.

Watts
Watts

Watts L100XL3-150210 Brass Temperature & Pressure Relief Valve, 3/4-in, Brown

$25.99

Product Details

The Watts Brass Temperature and Pressure Relief Valve protects hot water tanks and heaters up to 105,000 BTUs. The valve’s extended bronze shank fits onto water heaters with thick insulation while the male inlet and female outlet connections simplify installation. The thermostat contains a special coated element that senses when rising pressure or temperature threatens the system, automatically releasing excess fluid to prevent damage. The valve provides a pressure relief range of 75 to 150 PSI (5.2 to 10.3 bars) and features standard pressure settings of 75, 100, 125, or 150 PSI (5.27, 7.03, 8.79, or 10.55 bars). Tested at the factory, a built-in lever allows you to check the valve’s performance after installation. Meeting both ASME and CSA standards, this valve provides essential safety for water heating systems. The valve is compatible with Series SL100XL, L100XL, LL100XL, and LLL100XL water heaters.

  • Watts Temperature and Pressure Relief Valve provides fully automatic temperature and pressure relief protection for hot water storage tanks and heaters up to 105,000 BTU/HR

  • Extended inlet model for installations with thick insulation

  • Suitable for water heaters with up to 50.8 mm (2") of insulation

  • Bronze body construction

  • Soft seated and spring loaded

  • Automatic reseating

  • Model: 3/4" L100XL3-150210

Part Number 0066133
Advanced Features No Advanced Features
Assembled Height (cm) 7.75 cm
Assembled Height (cm) 7.75 cm
Assembled Height (ft) 0.25 ft
Assembled Height (in) 3.05 in
Assembled Height (in) 3.05 in
Assembled Length (cm) 2.49 cm
Assembled Length (cm) 2.49 cm
Assembled Length (ft) 0.08 ft
Assembled Length (in) 0.98 in
Assembled Length (in) 0.98 in
Assembled Weight (kg) 0.67 kg
Assembled Weight (kg) 0.67 kg
Assembled Weight (lb) 1.48 lb
Assembled Weight (lb) 1.48 lb
Assembled Width (cm) 1.40 cm
Assembled Width (cm) 1.40 cm
Assembled Width (in) 0.55 in
Assembled Width (in) 0.55 in
Assembled Width (mm) 13.97 mm
Certifications No Certifications
Connection Type Threaded
Inlet Size (in) 0.83 in
Inlet Size (in) 0.83 in
Inlet Size (mm) 21.08 mm
Inlet Size (mm) 21.08 mm
Maximum Pressure (psi) 150 lb/in²
Number of Pieces 1
Outlet Size (in) 0.83 in
Outlet Size (in) 0.83 in
Outlet Size (mm) 21.08 mm
Outlet Size (mm) 21.08 mm
Pipe Type Compatibility Polyethylene
Primary Colour Brown
Primary Material Brass
Valve Type Mixing
Warranty:
  • This product carries a 1 year exchange warranty redeemable at any Canadian Tire store.
