MAXIMUM

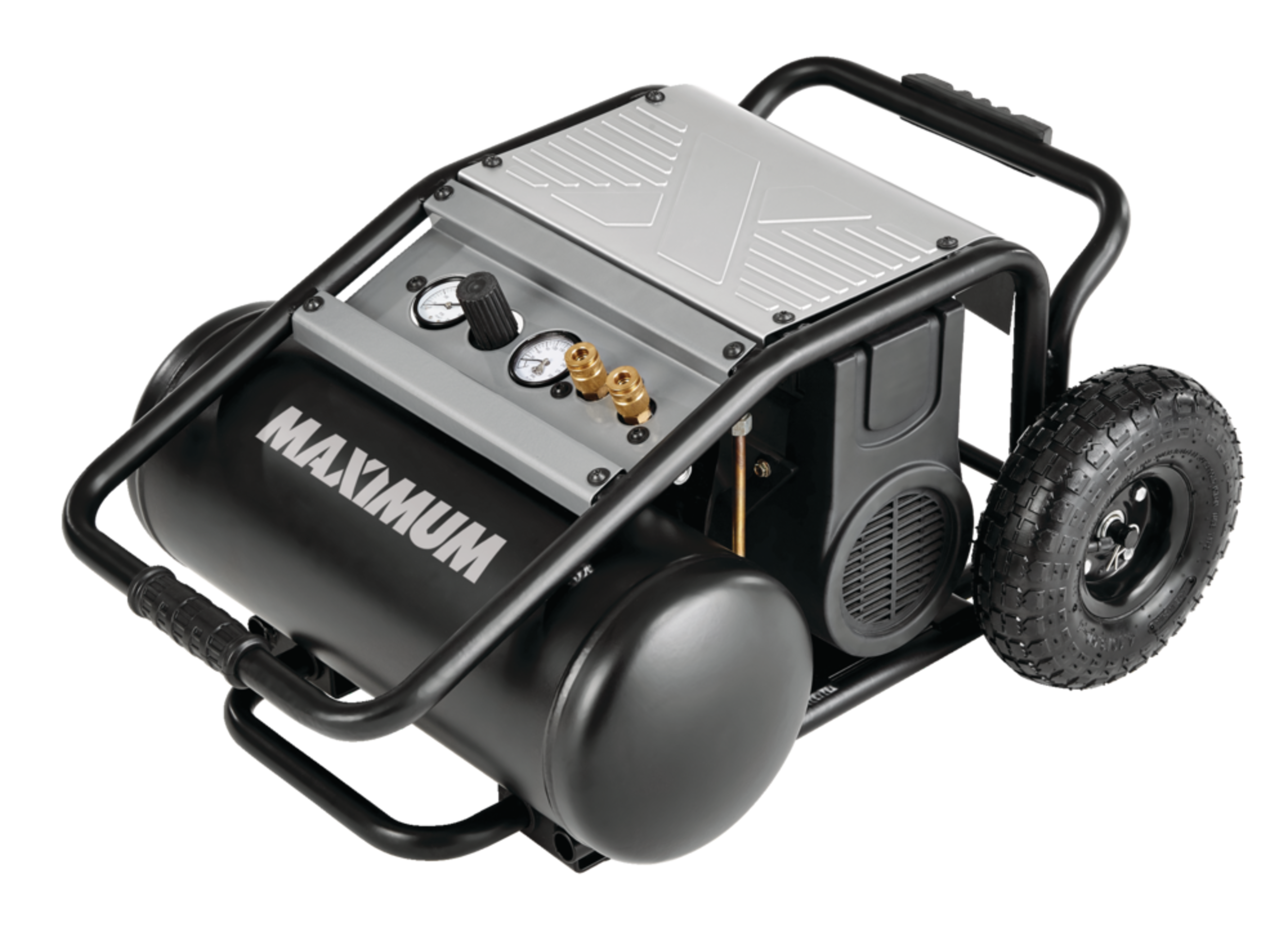

MAXIMUM 5-Gallon Oil-Free Portable Jobsite Dolly Air Compressor, 200 PSI
#058-1293-0
$399.99
Exclusive
Unfortunately, this product is discontinued in your selected store and nearby stores.
You may be interested in these similar products shown below.Similar Items
Quebec residents: For information on maintenance and repair click here.
Product Details
MAXIMUM 5 Gallon Jobsite Dolly Air Compressor provides more usable air for optimum tool performance
Heavy-duty 10" (25.4 cm) wheels and telescoping handle for easy transport
Roll cage design protects all vital components
Oil-free direct drive pump for maintenance-free use
Conveniently located control panel
Heavy duty induction motor
Capacity: 18.9 L (5 gal)
Maximum psi: 200
Compressor dimensions: 25 x 30.91 x 17.3" (63.5 x 78.5 x 43.9 cm)
Compressor weight: 80.5 lbs (36.5 kg)
| Part Number | F25HMCC |
|---|---|
| Compressor Style | Wheelbarrow |
| Tank Capacity (gal) | 4.76 gal (US) |
| Tank Capacity (l) | 18.02 l |
| Maximum Pressure (psi) | 200 lb/in² |
| CFM @ 90 PSI | 4 lb/in² |
| CFM @ 40 PSI | 5 lb/in² |
| Maximum Air Flow Capacity (ft³/min) | 4.00 ft³/min |
| Maximum Air Flow Capacity (m³/min) | 0.11 m³/min |
| Horsepower (HP) | 0 HP |
| Pump Lubrication | Oil Free |
|---|---|
| Cord Type | All Weather |
| Cord Gauge (ga) | 14ga |
| Motor Type | Induction |
| Number of Motors | 1 |
| Noise Level (dB) | 85 dB |
| Number of Stages in Compressor | Single Stage |
| Air Outlet Size (in) | 0.25 in |
| Accessories List | No Accessories Included |
| Advanced Features | Handle, Regulator, Gauge Indicator, Wheels |
| Batteries Required Quantity | 0 |
| Product Use(s) | Inflation, Portable, Residential |
| Primary Colour | Black |
| Primary Material | Steel & Aluminum |
| Certifications | ETL Listed |
| Assembled Length (in) | 29.25 in |
| Assembled Width (in) | 22.99 in |
| Assembled Height (in) | 14.76 in |
| Assembled Weight (lb) | 80.25 lb |
| Amperage | 15 A |
| Number of Accessories | 0 |
| Product Model Number | F25HCC |
Warranty
- 3 yr repair
Online Ordering
- Pick Up is free at most stores (some stores require a minimum order value before tax)
- Shipping fee is based on size and weight of products and distance from address to store
- Same-Day Delivery costs $9.99 per order
- Online Ordering Information
Returns
- Most products can be returned or exchanged at any Canadian Tire store within 90 days of purchase
- Some products are non-refundable and non-exchangeable
- The return policy outlined above may not apply to the product you are currently viewing. For complete details and eligibility, please refer to our Return Policy for exceptions.
Compare Similar Products
Only Show Differences | ||||||
| Ratings | ||||||
| Compressor Style | Wheelbarrow | Vertical | Horizontal | Vertical | Vertical | |
| Tank Capacity (gal) | 4.76 gal (US) | 20.00 gal (US) | 1.00 gal (US) | 10.00 gal (US) | 20.00 gal (US) | |
| Tank Capacity (l) | 18.02 l | 75.71 l | 3.79 l | 37.85 l | 75.71 l |
Shop Related Products
- Weekly Deals
- Customers Also Viewed
- Top Trending Products
- More From This Brand
Weekly Deals
Review Highlights
List of Pros Highlights
Pros
List of Cons Highlights
Cons
Suitable Cons could not be generated at this time.
Reviews
Filter Reviews
- purchase
- holding
- price
- satisfaction
- portable
- quality
- responsiveness
- customer service
Rating
Locale
1 to 5 of 16 Reviews
1 – 5 of 16 Reviews
Most Recent
2 out of 5 stars.
Needed to exchange. But still worth it.
3 years ago
Good quality BUT the one I got didn’t hold the PSI when set below 50. I exchanged it for the Maximum 4 Gallon 1Hp whisper compressor.
Yes, I recommend this product.
Helpful?
1 out of 5 stars.
Non performant
4 years ago
Trop bruyant et monte pas son air assez vite. Decu mais bon....
Translate with GoogleNo, I do not recommend this product.
Helpful?
5 out of 5 stars.
2 years and still going strong
5 years ago
So far the compressor has been great. I have used it to build a 38 x 44 x 12 shop with two air nailers. Runs my impact to take off 140 ft/lb torqued wheel nuts with no problem (does need to build pressure after two-three nuts). Air sprayer and many tire fill ups. Drain the water from the tank after using for a day with heavy use or every month with light use. A great deal when its on sale.
Yes, I recommend this product.
Helpful?
1 out of 5 stars.
OK, but won't last
5 years ago
I decided to wait a year to really see if this unit stood the test of time before commenting as I have had bad experiences with CT compressors before that just don't last. Glad I did, because as suspected, it failed just after a year. The pressure adjustment mechanism is very flimsy on this unit and it will not hold up. The good news, it's covered by a three year warranty, the bad news, just try and find where to get it serviced. The store i bought it from gave me a number to call which was useless. After a lot of my own searching on the internet, I finally found what to do, but seriously, finding a warranty centre shouldn't be that difficult. The funniest part was emailing Canadian Tire for help and receiving 42 automated email responses "we got your inquiry".
Helpful?
4 out of 5 stars.
Works well for Roofing
7 years ago
I was looking for a oiless higher end compressor for roofing that could handle two guns. This does the trick nicely and works well on cold days. It's relatively easy to move around on wheels but not to heavy if you have to manhandle it either. (bit heavier than your standard 2hp dual tank Hitachi/Emglo etc. Happy with the purchase and a great deal when on sale.
Helpful?
1 – 5 of 16 Reviews
Questions
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 14 Questions
Most helpful answers
Q: What hp is this compressor and does it have "capacitor assisted start"?
7 years ago2 Answers
A: It is 1.5HP and it does have capacitor assisted start.
7 years agoHelpful?
Q: Hi looking for the control bank for your maximum 058-1293-0 air compressor
Anonymous2 years ago1 Answer
A: Have you checked with your local Canadian Tire Store?
2 years agoHelpful?
Q: Hi how do I get parts for model number air compressure 058-1293-0
2 years ago1 Answer
A: Thanks for reaching out! Please call MAXIMUM'S toll free number at 1-888-670-6682 in order to inquire about potential spare parts for this product.
2 years agoHelpful?
Q: Combien de décibels?
4 years ago1 Answer
- Translate with Google
A: Cette unité est de 85 dB.
4 years agoHelpful?
Q: I agree with Horseonaboat, should it be necessary to ask for CFM? I was looking at this compressor today and no CFM numbers. Took a chance someone may have asked in Questions and 3 years ago it was asked: still not fixed (on your top tier MAXIMUM brand)
5 years ago1 Answer
A: The CFM at 40 PSI is 5.0 and the CFM at 90 PSI is 4.0. We will work with Canadian Tire to determine how this can be added to the product page.
5 years agoHelpful?
Q: Can you use this compressor standing up on its wheels or do you have to lay it down horizontal after you move it to where you want to use it?
6 years ago1 Answer
A: The Maximum 5 Gallon Dolly Air Compressor has been constructed so it can be used while standing upright on its wheels.
6 years agoHelpful?
Q: what is the decibel rating on this compressor
6 years ago1 Answer
A: This compressor has a decibel rating of 83
6 years agoHelpful?
Q: Bonjour, Le nombre de décibels du moteur? Merci
7 years ago1 Answer
- Translate with Google
A: Le chariot de 5 gallons a un niveau de décibel de 83 dB. Vous pouvez avoir une conversation pendant le fonctionnement du compresseur.
7 years agoHelpful?
Q: Est-ce que ce compresseur peut gonfler des pneus de vélos de course demandant 125 PSI? Est-il possible d’ajuster la sortie pour une pression maximum de 125 PSI? Est-ce que ce compresseur est très silencieux (60db approximativement)?
7 years ago1 Answer
- Translate with Google
A: Le 125PSI sur un pneu est la capacité, pas CFM, qui est ce que vous ajustez. Donc, si vous réglez le PSI à 90 sur le régulateur, il va pomper de l'air dans le pneu à 4 SCFM uniformément dans le pneu. Cela va remplir le pneu à 125PSI. Vous devriez mesurer la pression des pneus avant de commencer le travail et mesurer par intermittence pendant le remplissage afin de ne pas trop remplir. Le niveau de décibels de ce compresseur est de 78.
7 years agoHelpful?
Q: Est-ce que la pression d’air à la sortie est ajustable?
7 years ago1 Answer
- Translate with Google
A: Oui, ce compresseur est livré avec un régulateur et il est réglable pour répondre aux besoins de l'outil pour le projet.
7 years agoHelpful?
1 - 10 of 14 Questions
