Mastercraft

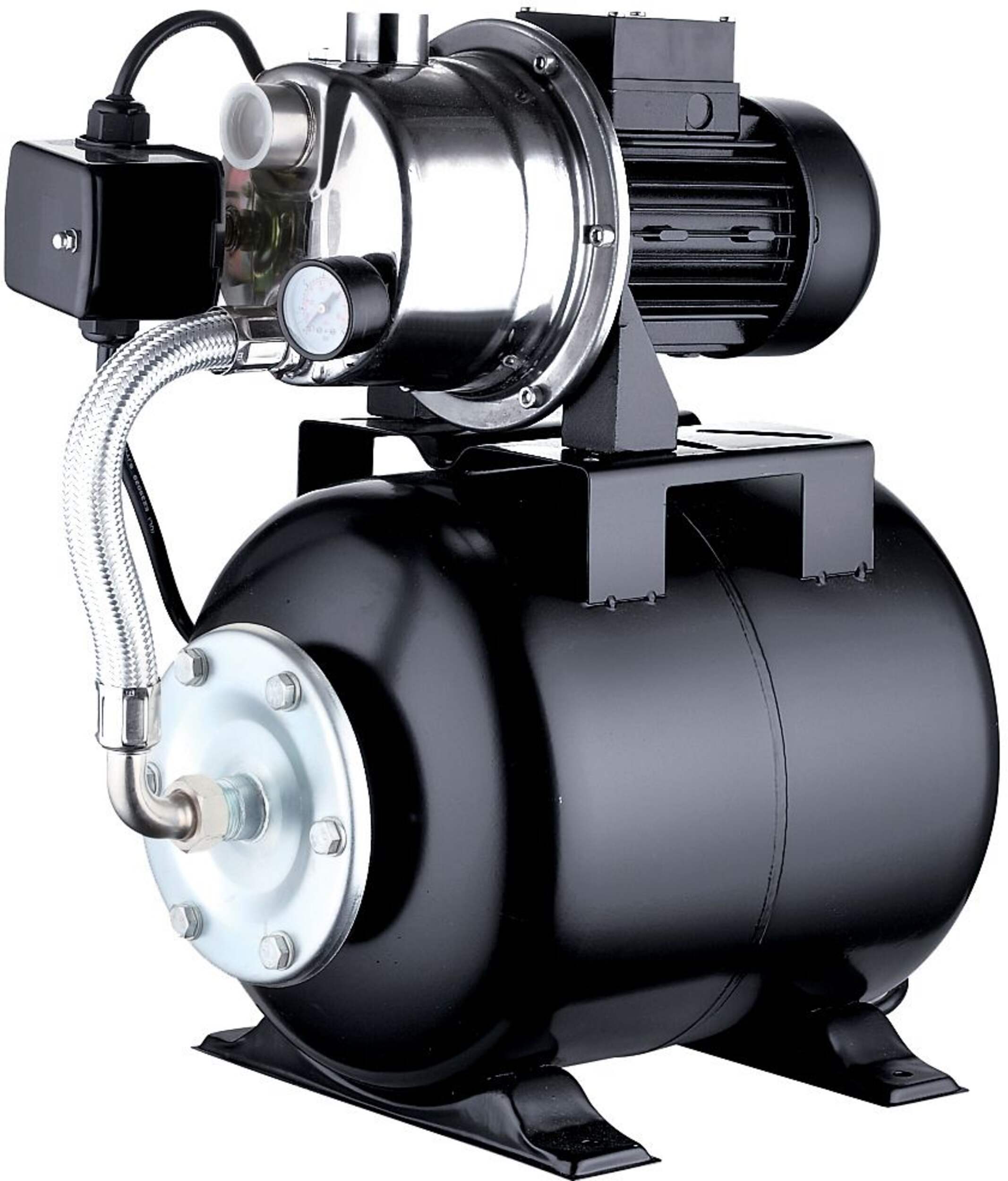

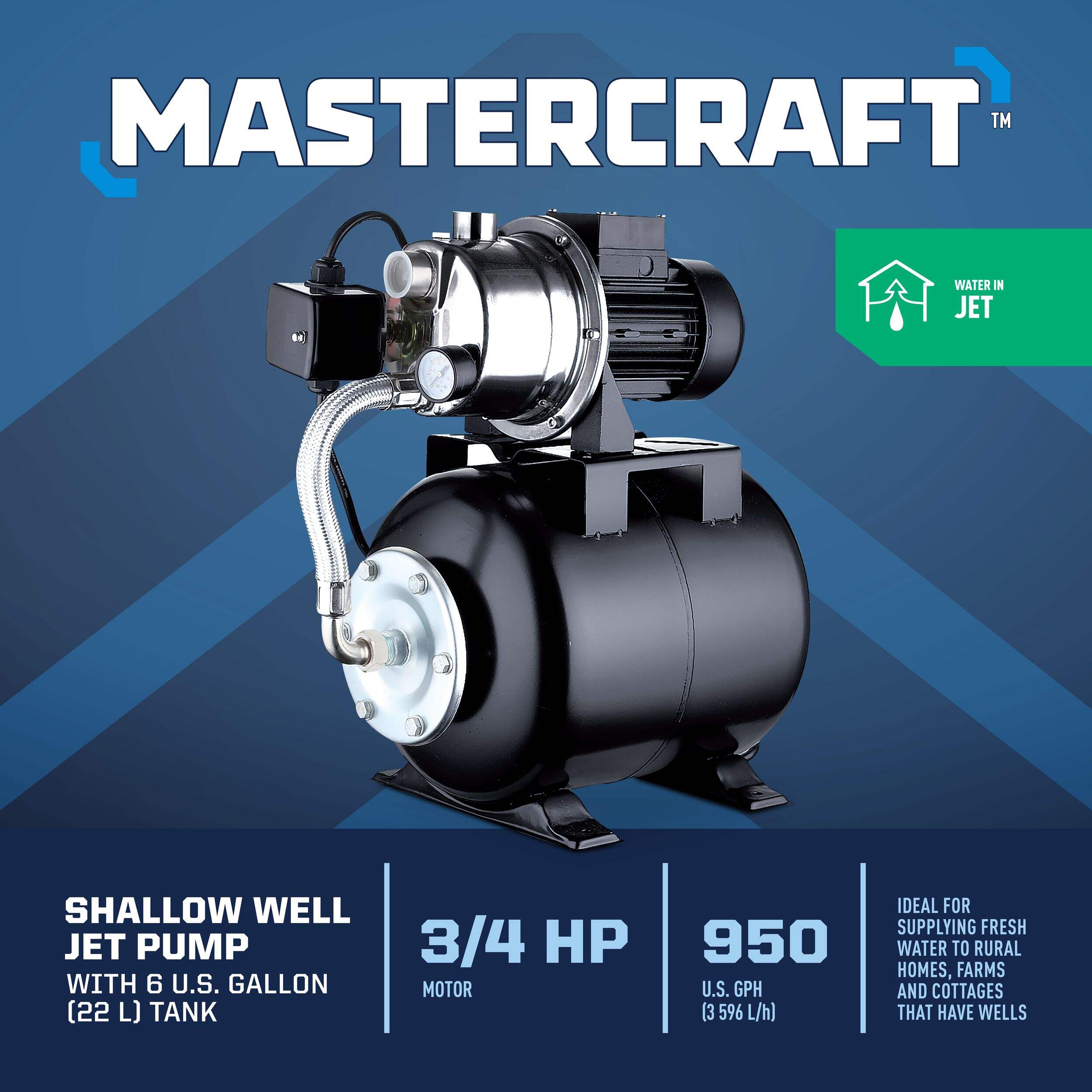

Mastercraft 3/4 HP Stainless Steel Shallow Well Jet Pump with 5-Gallon Tank
#062-3428-8
$339.99
Exclusive
Buy Online :
- FREEAvailable
- Available
- Available
Pick up at Leduc, AB
7 In Stock
Pick up available 08:00 a.m., Dec 04
Quantity updated to 1
Also Find It in Store:Hardware Wall
Only 7 left
at Leduc, AB
Add to Registry
Quebec residents: For information on maintenance and repair click here.
Similar Items
Product Details

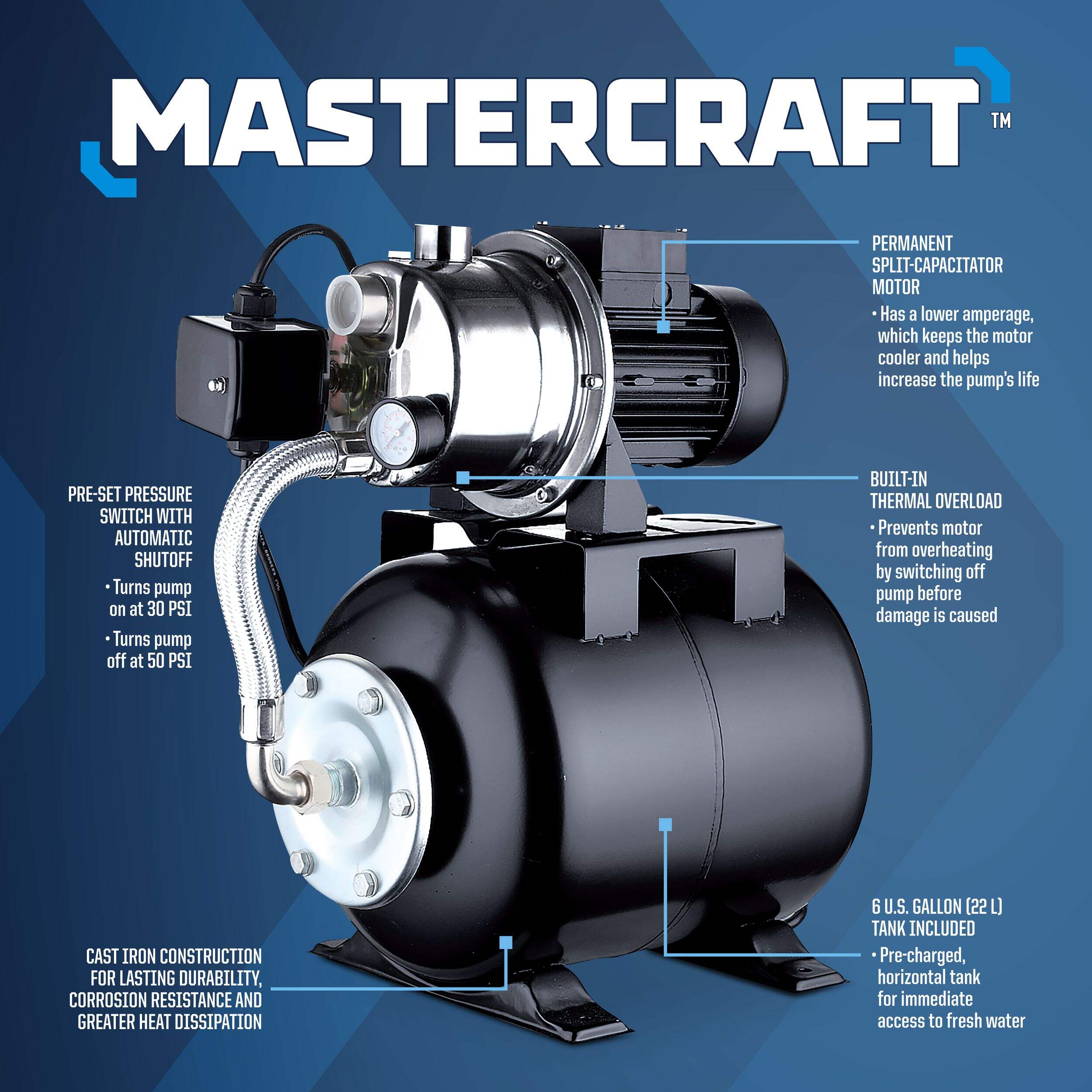

The Mastercraft 3/4 HP Stainless Steel Shallow Well Jet Pump is the perfect solution for providing fresh water to rural homes, farms, and cottages with wells. Powered by a 3/4 HP motor, this high-performance jet pump ensures reliable water supply for your needs. The pump is highly durable and corrosion-resistant, offering years of dependable use. This jet pump includes a pre-charged horizontal tank, providing immediate access to fresh water when needed.
Durable stainless steel volute
Reinforced thermoplastic impeller and diffuser
Built-in thermal overload protection prevents the motor from overheating by switching off the pump before damage is caused
Carbon/ceramic mechanical seal
The permanent split-capacitator motor has a lower amperage, keeping the motor cool while increasing the pump's life
1" (2.5cm) NPT discharge
System comes complete with pressure pump switch, pressure gauge, and a pressure tank
Tank capacity: 5 gallon (19L)
Cast-iron construction
The pre-set pressure switch has an automatic shut-off feature, turning on the pump at 20 PSI and turning it off at 35 PSI
Maximum flow rate: 950 GPH (3596 L/h)
Maximum head height: 100' (30.5m)
For permanent installation
| Part Number | XKJ-605SA |
|---|---|
| Flow Rate (l/min) | 59.93 l/min |
| Maximum Operating Temperature (°C) | 35.00 °C |
| Power Source(s) | Electric |
| Outlet Valve Type | NPT |
| Pump type | Well Pump |
| Switch Type | Electric |
| Accessories List | No Accessories Included |
| Advanced Features | No Advanced Features |
| Assembled Height (cm) | 51.05 cm |
| Assembled Height (in) | 20.10 in |
|---|---|
| Assembled Length (cm) | 45.47 cm |
| Assembled Length (in) | 17.90 in |
| Assembled Weight (kg) | 12.5 kg |
| Assembled Weight (lb) | 27.50 lb |
| Assembled Width (cm) | 29.46 cm |
| Assembled Width (in) | 11.60 in |
| Batteries Required Quantity | 0 |
| Certifications | CSA Listed |
| Package Depth (in) | 9.50 in |
| Package Height (in) | 6.00 in |
| Package Weight (lb) | 5.73 lb |
| Package Width (in) | 9.50 in |
| Primary Material | Stainless Steel |
Warranty
- This product carries a 3 year exchange warranty redeemable at any Canadian Tire store.
Online Ordering
- Pick Up is free at most stores (some stores require a minimum order value before tax)
- Shipping fee is based on size and weight of products and distance from address to store
- Same-Day Delivery costs $9.99 per order
- Online Ordering Information
Returns
- Most products can be returned or exchanged at any Canadian Tire store within 90 days of purchase
- Some products are non-refundable and non-exchangeable
- The return policy outlined above may not apply to the product you are currently viewing. For complete details and eligibility, please refer to our Return Policy for exceptions.
Compare Similar Products
Only Show Differences | Currently Viewing | ||||
| Ratings | |||||
| Flow Rate (l/min) | 59.93 l/min | 390.00 l/min | 50.47 l/min | 82.00 l/min | |
| Maximum Operating Temperature (°C) | 35.00 °C | 40.00 °C | 35.00 °C | 25.00 °C | |
| Power Source(s) | Electric | Electric | Electric | Electric |
Shop Related Products
- Weekly Deals
- Customers Also Viewed
- Top Trending Products
- More From This Brand
Weekly Deals
Frequently Bought Together
+++
$569.96
Review Highlights
List of Pros Highlights
Pros
List of Cons Highlights
Cons
Reviews
Filter Reviews
- purchase
- instructions
- price
- quality
- warranty
- value
- noise level
- returns
Rating
Locale
1 to 5 of 41 Reviews
1 – 5 of 41 Reviews
Most Recent
5 out of 5 stars.
Tres bon produit
a month ago
Facile a installer tres bon pour mon chalet bon prix bonne presion eau et service a la clientele conpetant pour repondre a tout sur le produit mercis
Translate with GoogleYes, I recommend this product.
Helpful?
2 out of 5 stars.
Trash
a month ago
Purchased this and right out the gate I had to replace the plastic fittings with metal as the plastic are junk, and the tank losses pressure all the time at least 3 times an hour it has to kick in and pressure up. I will be returning it
No, I do not recommend this product.
Helpful?
Response from Canadian Tire:
a month ago
Customer Service with AI Support
I apologize for the poor experience you've had with the Mastercraft 3/4 HP Stainless Steel Shallow Well Jet Pump with 5-Gallon Tank. We appreciate your feedback as it helps us improve our products. If you haven't already, please visit your nearest store where they can assist you with your concerns. For further information, feel free to contact our call center at 1-800-689-9928. Thank you for bringing this to our attention.
1 out of 5 stars.
Bought one it failed in 5 months so exchanged for another it broke. Do not buy. Go with a Burcam
3 months ago
I bought this then it failed after 5 months and then exchanged for a new one since it was well under warranty. Then it failed 10 months later. So got a refund and bought a pressure tank to hook up to my Burcam.
Helpful?
Response from Canadian Tire:
3 months ago
Customer Service with AI Support
I apologize for the poor experience you have had with the Mastercraft 3/4 HP Stainless Steel Shallow Well Jet Pump with 5-Gallon Tank. If you have not already done so, please take the product to the nearest store for further assistance. For more information, you can contact our call center at 1-800-689-9928.
5 out of 5 stars.
Buy it right the first time!!!
3 months ago
We should have gone with this item the first time. We would not have wasted any money if we had.
Helpful?
5 out of 5 stars.
Very happy with this pump
3 months ago
Bought this for the cottage as we draw our water from the river. Good draw and very quiet
Helpful?
1 – 5 of 41 Reviews
Questions
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 13 Questions
Most helpful answers
Q: will this pump work with a ibc totoe to suplly water to a remote cottage , and operate when taps turn on
3 years ago3 Answers
A: Yes, the pump will work for for this application. The water container must not be allowed to empty completely will the pump is in operation as it will result in the pump overheating.
3 years agoHelpful?
Q: Is this pump already pressurized with air or do I need to put air in it?
a year ago2 Answers
A: air is in the tank but these pumps are junk.....i went to home hard ware to buy one there way better its was called red lion
a year agoHelpful?
Q: The discharge of the pump is 1" NPT. Can we connect a 1" pipe to the discharge, and then reduce the 1" discharge pipe down to half an inch? Because that is the size of the house plumbing.
a year ago2 Answers
A: I have reduced mine down from the pump to 3/4" to a common header that distributes to 1/2" lines through out the house. The 3/4" line goes to my hot water as well, then to a header that reduces down to 1/2". I haven't had any issues.
a year agoHelpful?
Q: When the pump activates/starts up,it makes a grinding noise. This noise goes away after a while….is this normal operation?
2 years ago2 Answers
A: NO!!! I would take it back.
2 years agoHelpful?
Q: In the description it refers to Cast Iron Construction but the name says a stainless steel pump. Is it actually cast iron?
2 years ago2 Answers
A: No its not
2 years agoHelpful?
Q: Are you able to increase the water pressure on the pump,or is it set at 30,turning off at 50 psi?
2 years ago2 Answers
A: I am not aware of any way to adjust the pressure. I am ok with the pressure as is.
2 years agoHelpful?
Q: Bonjour Dans le manuel il est inscris à deux endroits de gonfler la gaine à 23 psi et sur le boîtier électrique de la pompe il y’a un collant indiquant de gonfler la gaine à 28 psi.. j’aimerais savoir lequel indique la bonne valeur? Merci
3 years ago2 Answers
- Translate with Google
A: Ça ne fait pas une grosse différence entre 23 et 28 psi, normalement on pressurise le ballon à environ 50 % de la pression d'opération.
3 years agoHelpful?
Q: What is the amperage draw of this pump (running and start-up)?
3 years ago2 Answers
A: max 10 amp plug into a 120 outlet.
3 years agoHelpful?
Q: Pump is 35 feet from the nearest faucet. Using 3/4" PEX right from pump. Will changing first 30 feet of pipe out of pump from 3/4" to 1" increase pressure/volume at the faucet?
a year ago1 Answer
A: The pump's outlet size is 1 in, please keep using 1" pipe. If you use 3/4" pipe, the volume will be smaller than original one.
a year agoHelpful?
Q: Manual says remove screw to power heater? Does it have a heater? I was gonna build an insulated box but wondering if necessary if it has a built in heater?
2 years ago1 Answer
A: 062-3428 don't have power heater
2 years agoHelpful?
