Emporia 40A Wi-Fi Level 2 NEMA 14-50 J1772 EV Charger
Black
- Black
- White
- FREEAvailable
- Unavailable
- Available
Out of stock at Leduc, AB
Quebec residents: For information on maintenance and repair click here.
Similar Items
Product Details
Meet the powerful game changer in electric vehicle charging. The Emporia Level 2 electric vehicle charger is consistently voted one of the best EV Chargers on the market. With its 24 cable, a CCS / J1772 connector, it can easily reach and charge any EV up to 48 amps with hardwired configuration or up to 40 Amps with NEMA 14-50 configuration. UL AND ENERGY STAR CERTIFIED LEVEL 2 EV CHARGER. DEFAULT CHARGE RATE is 40A for NEMA 14-50 and 48A for Hardwired. WiFi Internet connection is required to raise or lower charge rate. Pair with an Emporia Vue Smart Home Energy Monitor to automatically charge only with excess solar power and curb charging during peak demand. NEMA 14-50 - 11.5kW (240V/48A) / 9.6kW (240V/40A) / 10kW (208V/48A) / 8.3kW (208V/40A) (Preconfigured for NEMA Type 14-50P with 22" cable compliant with 2017 NEC Section 625.17(A)(3) for up to 40A or convert to Hardwired for up to 48A). Requires a dual-pole, dedicated breaker at 60A+ for a 48A charge or 50A+ for a 40A charge. A professional electrician is recommended for hardwiring or installing a NEMA Plug.(adapter required for Tesla EVs). UL LISTED WITH YOUR SAFETY IN MIND. Manufactured to meet the safety criteria defined by these industry standards: NEC 625, SAE J1772, UL 817, UL 991, UL 2231, UL 2251, and UL 2594. INSTALL INDOORS & OUTDOORS. Your charger will be safe from the elements with a watertight NEMA Type 4 enclosure. Check with your local company to see if there are incentives & rebates in your area. REAL-TIME ENERGY DATA: REQUIRES 2.4 GHz WIFI WITH AN INTERNET CONNECTION to monitor energy use and charging sessions with iPhone / Android / Web Browser app. Schedule charging with the app. Protected by a 3-Year warranty.
- Features
- Specifications
- Resources
Level 2 electric vehicle charger
Smart Charger
24’ cable

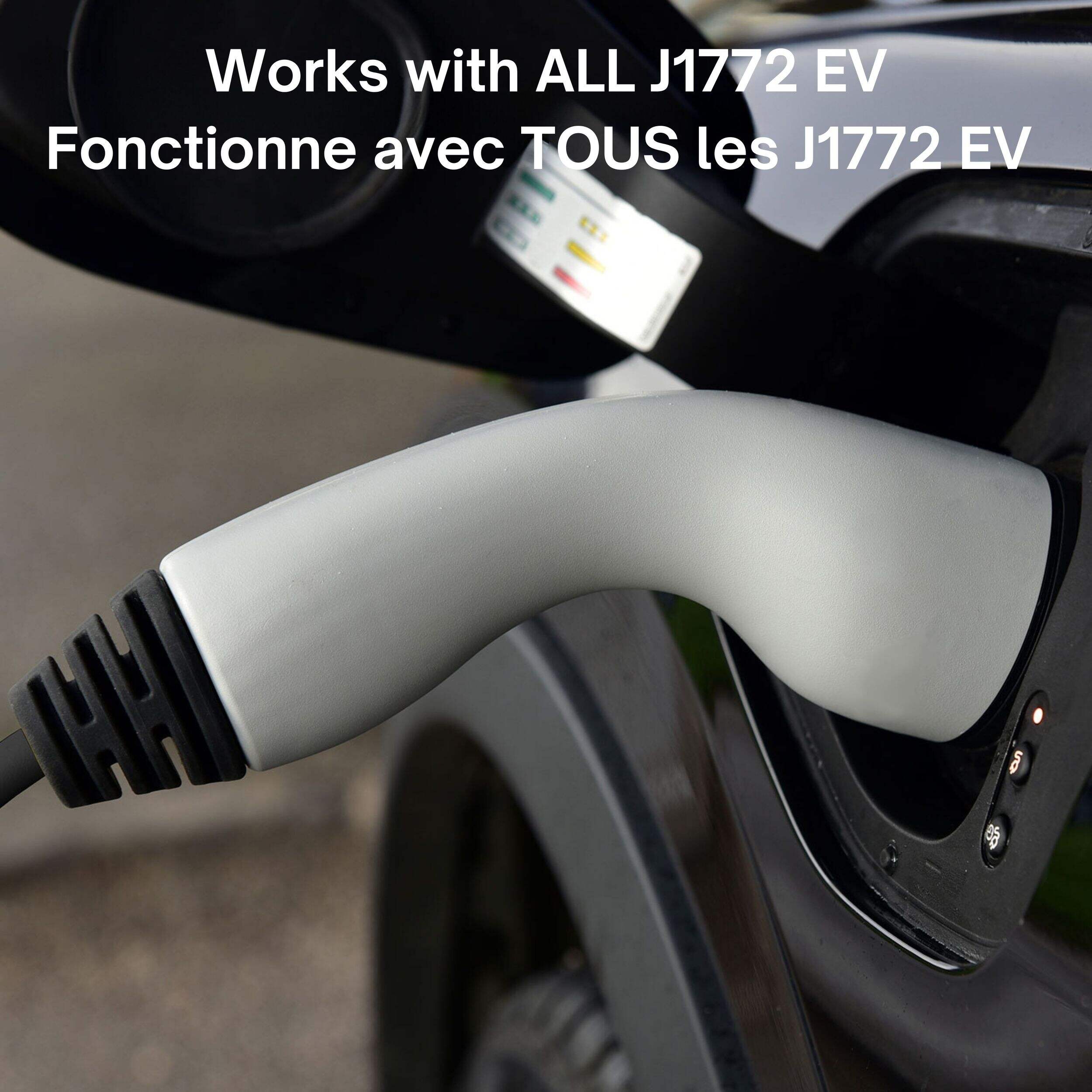

J1772 connector
NEMA Plug power connection
40 Amps with NEMA plug
Can charge any EV with J1772 connector up to 48 amps with hardwired configuration
Watertight NEMA 4 enclosure
UL listed with your safety in mind
Installs indoors and outdoors
3-Year warranty
Smartphone App
Bluetooth
Wifi
Energy management
| Part Number | EMEVSE1-BNJ |
|---|---|
| Advanced Features | Smart Charger, App Controllable, Automatic Restart After Power Failure |
| Cable Management | Integrated |
| Certifications | UL991, UL2231-2, UL2231-1, UL2251, UL2594 |
| Charge Connector Holster | Integrated |
| Charger Level | Level 2 |
| Charging Connector Type | SAE J1772 |
| Colour | Black |
| Connectivity | WiFi |
| Enclosure Rating | NEMA 4 |
| Indoor/Outdoor | Indoor & Outdoor |
|---|---|
| Input Connection Type | NEMA 5-50 |
| Input Voltage | 240VAC |
| Installation Type | Wall Mount |
| Maximum Charging Amperage | 48A |
| Maximum Charging Power(kW) | 11.5 kW |
| Maximum Operating Temperature (°C) | 50 °C |
| Maximum Storage Temperature (°C) | 50 °C |
| Minimum Circuit/Breaker Required | 40 |
| Minimum Operating Temperature (°C) | -30 °C |
| Minimum Storage Temperature (°C) | -30 °C |
| Output Cable Length (ft) | 24 ft |
| Package Depth (cm) | 45.00 cm |
| Package Depth (in) | 17.72 in |
| Package Height (cm) | 20.00 cm |
| Package Height (in) | 7.87 in |
| Package Weight (kg) | 9.20 kg |
| Package Weight (lb) | 20.28 lb |
| Package Width (cm) | 36.00 cm |
| Package Width (in) | 14.17 in |
| Product Depth (in) | 17.7 in |
| Product Depth (mm) | 450 mm |
| Product Depth Excluding Cable (mm) | 95 mm |
| Product Height (in) | 8.6 in |
| Product Height (mm) | 220 mm |
| Product Height Excluding Cable (mm) | 330 mm |
| Product Weight (kg) | 9.2 kg |
| Product Weight (lb) | 20.25 lb |
| Product Width (in) | 13.8 in |
| Product Width (mm) | 350 mm |
| Product Width Excluding Cable (mm) | 240 mm |
| Selectable Charging Amperage | 48A |
| Sustainability | Energy Star Certified |
Warranty
This product carries a 3-year limited exchange warranty. For details contact EMPORIA Customer Support at 1-844-376-8326
