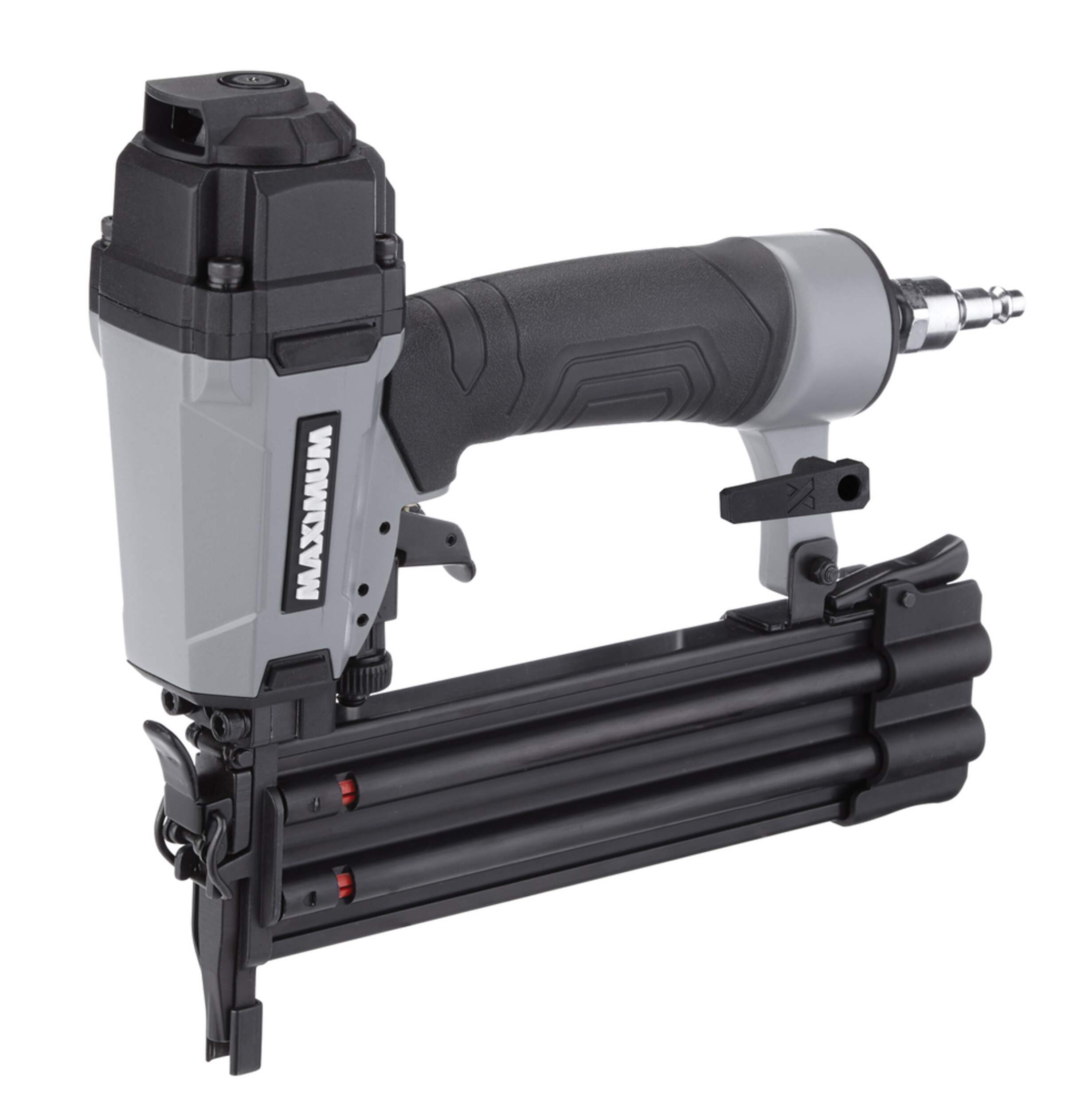

MAXIMUM 18-Gauge Brad Nailer, 2-in

#058-9340-0
MAXIMUM 18-Gauge Brad Nailer, 2-in
$149.99
Exclusive

Unfortunately, this product is discontinued in your selected store and nearby stores.

You may be interested in these similar products shown below.

Quebec residents: For information on maintenance and repair click here.

MAXIMUM
MAXIMUM

MAXIMUM 18-Gauge Brad Nailer, 2-in

$149.99

Product Details

  • MAXIMUM 18-Gauge Brad Nailer features an improved design and durability for small interior projects such as trim, cabinetry and hobby work

  • 360° exhaust allows for flexible orientation

  • Adjustable depth control

  • Quick-release function for added convenience

  • Slender, long-nose design reaches tight spots and precisely places nail

  • Air consumption: 0.03 CF/Cycle @ 90 PSI

  • Acceptable Nail Size Range: 5/8”- 2”(18-Gauge)

  • Nail Capacity: 100 pieces

  • Operating Pressure: 70-110 PSI

  • Product Weight: 3.41 lbs (1.55 kg)

  • Product Size: 11.25" x 10" x 2.75" (28.5 x 25.4 x 6.98 cm)

  • Includes blow moulded case and belt hook for convenient carrying while not in use

Part Number F50M
Tool Type Brad Nailer
Gauge 18 ga
Maximum Fastener Length (in) 19.69 in
Minimum Fastener Length (in) 5.91 in
Nail/Staple/Brad Capacity 100
Strip or Coil Strip
Fastening Angle (degree) 0 °
Maximum Pressure (psi) 120 lb/in²
Required Air Flow (m³/min) 58.00 m³/min
Air Inlet Size 1/4"
Suggested Air Hose Size 3/8"
Calibre (in) 0.00 in
Noise Level (dB) 82 dB
Primary Material Aluminum
Primary Colour Black
Advanced Features No Advanced Features
Accessories List Oil, Other, Hard Case
Number of Pieces 1
Certifications No Certifications
Assembled Length (in) 11.26 in
Assembled Width (in) 2.76 in
Assembled Height (in) 10.08 in
Assembled Weight (lb) 3.48 lb
Warranty
  • 5 year limited warranty against defects in workmanship and material.. For customer support, call 1-888-670-6682. 1 yr repair
User Manual
  • View user manuals and additional product information

Download

Online Ordering
  • Pick Up is free at most stores (some stores require a minimum order value before tax)
  • Shipping fee is based on size and weight of products and distance from address to store
  • Same-Day Delivery costs $9.99 per order
  • Online Ordering Information
Returns
  • Most products can be returned or exchanged at any Canadian Tire store within 90 days of purchase
  • Some products are non-refundable and non-exchangeable
  • The return policy outlined above may not apply to the product you are currently viewing. For complete details and eligibility, please refer to our Return Policy for exceptions.

Compare Similar Products

Only Show Differences
Ratings
Tool TypeBrad NailerBrad NailerBrad NailerBrad NailerFinish Nailer
Gauge18 ga18 ga18 ga18 ga16 ga
Maximum Fastener Length (in)19.69 in1.97 in2.13 in19.69 in2.52 in

Weekly Deals

Reviews

Rating Snapshot

Select a row below to filter reviews.
1 review with 5 stars.
2 reviews with 4 stars.
0 reviews with 3 stars.
3 reviews with 2 stars.
1 review with 1 star.

Overall Rating

2.9
3 out of 6 (50%) reviewers recommend this product

Review this product

Select to rate the item with 1 star. This action will open submission form.
Select to rate the item with 2 stars. This action will open submission form.
Select to rate the item with 3 stars. This action will open submission form.
Select to rate the item with 4 stars. This action will open submission form.
Select to rate the item with 5 stars. This action will open submission form.
Adding a review will require a valid email for verification

Customer Images and Videos

Filter Reviews

  • purchase
  • returns
  • installation
  • wood
  • cleaning
  • price
  • finish
  • professionalism
1 to 5 of 7 Reviews
1 – 5 of 7 Reviews

It can do the job, but better options out there for same price

7 years ago
Full disclosure, I am not a professional. I have just finished the inside of my cottage and sauna almost entirely with wood products of various thicknesses with another nailer, so have a bit of experience. My original brad nailer began failing on a Saturday evening just before the stores here close for the weekend. I went out, checked out and bought the Maximum nailer as it was on sale. I went home and tried to finish the wood ceiling in our kitchen before the kitchen cabinet installers arrived Monday am, and had quite a bit to do yet. I was installing 5/16" thick pine T&G 3" wide boards and managed to do 2 8 ft boards before stopping and going back out to buy a Bostitch brad nailer and eventually returning the Maximum later when I had time. The Maximum is far too (unnecessarily) heavy as well as awkward to be working upside down for any length of time. The safety tip which must be fully seated (of course, this isn't Die Hard) in order for the nailer to operate has too heavy of a spring tension to overcome. I was trying to hold the boards in place while nailing and the nailer would crack/break the wood from the pressure necessary. The ceiling in our kitchen is not dead flat so I had to compensate for that a bit. The nails also were not fully seating to top it off. This was not because of low air pressure but due to the heavy spring action from the safety tip as I had already adjusted the depth to its maximum setting. I had to go back out and buy a Bostitch 18 guage nailer and we were good to go from that point. It was far lighter, it was more user friendly and able to seat the nails nicely even with me holding the board so that it was fairly flat and the next board would engage properly. It is my thought that as long as you are working on something that is going against a flat surface where excessive pressure is ok, this overly heavy-built sledge hammer of a nailer will work just fine. The size of the safety tip should ensure that no marring of the materiel you are nailing occurs, as noted in other reviews. BUT, if you will be working at odd angles or upside-down or with lighter wood or wood products for any length of time, you might be better served checking out another tool. Same cost when both at regular price, give or take. Sorry for the long review, but I believe it was needed to be fair and accurate.
Helpful?

Clean Install Everytime

7 years ago
Owned for over a year...No Jams. I operate at 100psi to 75psi and the nails go all the way in. Other users probably did not have enough psi. Swivel and hip clip are great. Easy to reload. I have fired over 2,000 nails with this problem free. It does not mar or damage wood surface. Use good quality nails.and you will be happy.

Yes, I recommend this product.

Helpful?

Depth adjustment issues

7 years ago
I bought this for doing updates to the baseboards window and door casings in my home. No jams to speak of but the depth adjustment was a serious issue in that unless you were targeting a high point on the trim and able to put considerable pressure on the gun while triggering you were left with an exposed head. Very frustrating.....returned it and opted for the Bostich which so fat has worked far better!

No, I do not recommend this product.

Helpful?

Stopped working

8 years ago
I purchased this unit after reading the reviews but my nailer failed to work after few rounds of use. The repair center that was recommended in Port Coquitlam is even worse, they were rude and told me it will take them a month to look at it. So my project is on hold until they decide to look at it. By rigid or Bostitch

No, I do not recommend this product.

Helpful?

Nail depth a problem

9 years ago
Even with the nail depth adjustment set all the way and the plastic tip protector removed, the nails were barely deep enough and about 20% of the time, the nails would be sticking out and had to be punched in. Unhappy with this product and I will be returning it.

No, I do not recommend this product.

Helpful?
1 – 5 of 7 Reviews

Questions

1 - 3 of 3 Questions

Q: Are the internals of this gun plastic or metal?

8 years ago
1 Answer
  • A: The internals of the gun is metal.

    8 years ago
    Helpful?

Q: Inventory Sylvan Lake Can I have this shipped to Sylvan Lake, AB.? Do I rain check it? How do I buy it?

9 years ago
1 Answer
  • A: Please contact the Sylvan Lake store directly at (403) 887-0581 for raincheck information and availability.

    9 years ago
    Helpful?

Q: what size of staples does it use and where can they be purchased?

10 years ago
1 Answer
  • A: The tool in question, #058-9340, is only an 18 Gauge brad nailer. It does not use staples. The CTC sku#’s for the brad nails that are used in this tool are as follows: 058-8468 – 5/8” 1M PACK 18G BRAD NAIL 058-8469 – 1” 1M PACK 18G BRAD NAIL 058-8470 – 1 ¼” 1M PACK 18G BRAD NAIL 058-8471 – 1 ½” 1M PACK 18G BRAD NAIL 058-8472 – 2” 1M PACK 18G BRAD NAIL 058-9418 – 1 ½” 5M BOX 18G BRAD NAIL 058-9419 – 1 ¼” 5M BOX 18G BRAD NAIL 058-9420 – 2” 5M BOX 18G BRAD NAIL Also, there is great value in SKU# 058-8485 which is a variety pack of brad nails that includes 4 different sizes with 500 of each size. All of the above item #’s are for premium Mastercraft galvanized 18G brad nails.

    10 years ago
    Helpful?
