Mastercraft
Mastercraft 4.1Amp Metal Drill Press with LED
#055-5530-8
$269.99
Exclusive
Unfortunately, this product is discontinued in your selected store and nearby stores.
You may be interested in these similar products shown below.Quebec residents: For information on maintenance and repair click here.
Product Details

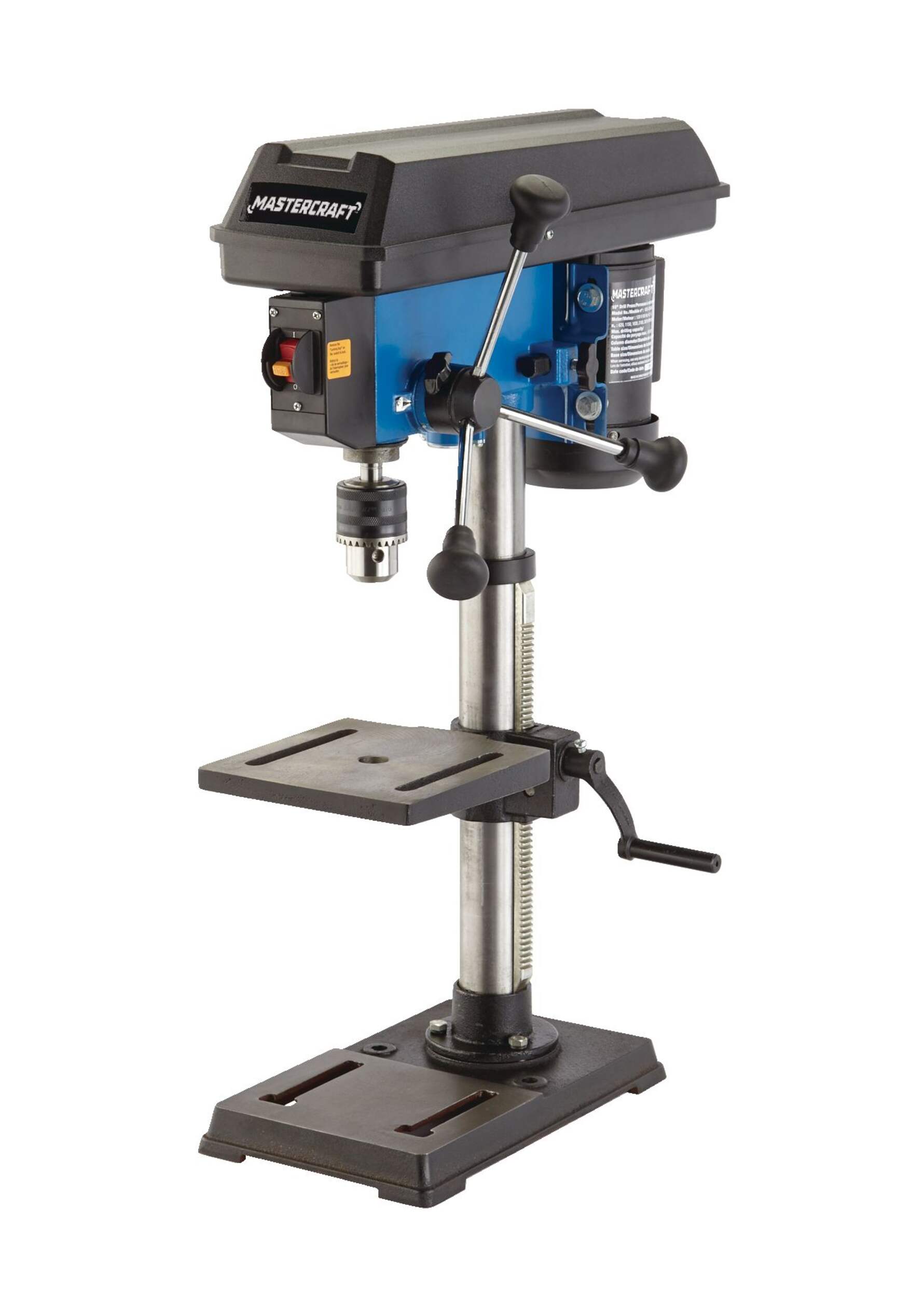

The versatile Mastercraft Drill Press with LED is designed to adjust to the needs of your home projects. With a table that tilts 0-45° left and right for angled drilling, this 9-inch drill press has a 4.1 Amp motor, with five speeds and 620-3,070 RPM. The handy LED light makes point drilling a breeze, while its rack and pinion table offers convenient height adjustment. The depth stop can also be adjusted for quick and easy repeat drilling.
The Mastercraft Drill Press with LED offers a 4.1 Amp motor, 5 speeds and 620-3,070 RPM
Table tilts 0-45° left and right for angle drilling
LED light convenient for drilling point visually
Rack and pinion table adjustment for easy and accurate height adjustment
Adjustable depth stop for quick and easy repeat drilling
Maximum chuck capacity: 5/8" diameter
Capacity (chuck to column): 5"
Capacity (chuck to table): 12-3/16"
Capacity (chuck to base): 17-1/4"
| Part Number | ZJ4116IVQb |
|---|---|
| Amperage | 4 A |
| Case Type | Hard Case |
| Chuck Material | Metal |
| Chuck Size (in) | 5/8" |
| Chuck Type | Keyed |
| Cord Gauge (ga) | 16ga |
| Cord Length (ft) | 6.00 ft |
| Cord Length (m) | 1.83 m |
| Cord Type | All Weather |
| Laser Alignment | Not Included |
|---|---|
| Maximum Impact Rate (bpm) | 0 bpm |
| Maximum Torque (ftlb) | 1 ft-lb |
| Maximum Torque (inlb) | 15 in-lb |
| Maximum Torque (nm) | 2 Nm |
| Motor Type | Brushless |
| No-Load Speed Range (rpm) | 620 - 3070 |
| Number of Accessories | 2 |
| Package Depth (cm) | 59.00 cm |
| Package Depth (in) | 23.23 in |
| Package Height (cm) | 26.20 cm |
| Package Height (in) | 10.31 in |
| Package Weight (kg) | 22.00 kg |
| Package Weight (lb) | 48.50 lb |
| Package Width (cm) | 43.00 cm |
| Package Width (in) | 16.93 in |
| Product Model Number | ZJ4116IVQb |
| Table Length (cm) | 18 3/8 cm |
| Table Length (in) | 7 1/4 in |
| Table Width (cm) | 18 3/8 cm |
| Table Width (in) | 7 1/4 in |
Warranty
- This product carries a 3 year repair only warranty redeemable at any Canadian Tire store.
Online Ordering
- Pick Up is free at most stores (some stores require a minimum order value before tax)
- Shipping fee is based on size and weight of products and distance from address to store
- Same-Day Delivery costs $9.99 per order
- Online Ordering Information
Returns
- Most products can be returned or exchanged at any Canadian Tire store within 90 days of purchase
- Some products are non-refundable and non-exchangeable
- The return policy outlined above may not apply to the product you are currently viewing. For complete details and eligibility, please refer to our Return Policy for exceptions.
Compare Similar Products
Only Show Differences | Currently Viewing | |||||
| Ratings | ||||||
| Amperage | 4 A | |||||
| Case Type | Hard Case | |||||
| Chuck Material | Metal |
Shop Related Products
- Weekly Deals
- Customers Also Viewed
- Top Trending Products
- More From This Brand
Weekly Deals
Review Highlights
List of Pros Highlights
Pros
List of Cons Highlights
Cons
Reviews
Customer Images and Videos
Filter Reviews
- drilling
- price
- purchase
- quality
- light
- small
- setup
- instructions
Rating
Locale
1 to 5 of 151 Reviews
1 – 5 of 151 Reviews
Most Recent
1 out of 5 stars.
runs backwards
a year ago
bought a year ago and never set it up. Set it up today and it's running backwards!!!!!
No, I do not recommend this product.
Helpful?
4 out of 5 stars.
Backyard mechanic
a year ago
Excellent little press , I didn’t give it 5 just because it’s not heavy duty
Helpful?
1 out of 5 stars.
Belt skips
2 years ago
I bought this drill press 2 years ago. No matter what I drill the belt always loses tension and the chuck stops turning. I've adjusted the belt for what I'm drilling, I've replaced the belt and still nothing helps. I called CT but they said I waited too long and there's nothing they can do. Will never buy a Mastercraft drill press again.
Helpful?
1 out of 5 stars.
Multiple Defects. Not Recommended.
2 years ago
Bought it on sale. For the features, it was a good deal. Like any power tool, I started making adjustments to get it running correctly.
First I find that the motor axis was not parallel to the spindle. I rotated it but the bracket was not true so I needed to shim it with washers.
The wires in the housing for the light switch and the battery terminal were touching so the light wouldn't turn off. A little electrical tape fixed this.
When I got the speed set and the belt tensioned correctly I fired it up and it was vibrating a lot and was noisy. I checked the pulleys for runout and the motor pulley was way off, vibrating the system.
Also, the spindle was not perpendicular to the table fore/aft which was not adjustable.
I returned the unit and received a refund no questions asked. I can't fault CT on their customer service but I think my review speaks for itself on the product.
No, I do not recommend this product.
Helpful?
3 out of 5 stars.
Mastercraft 4.1 amp drill press
3 years ago
I had to replace my old Mastercraft drill press after 37 years. I know that things change but all changes are to the good. This new drill press is not the quality of my old one. The work light is a flimsy and touchy item -- sometimes it works and sometime the batteries fall out of their case. It's not to say it's a bad item because it does the job it was intended to do
No, I do not recommend this product.
Helpful?
1 – 5 of 151 Reviews
Questions
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 45 Questions
Most helpful answers
Q: What is the quiz diameter? I need to use a mortising attachment which requires a quill of 55mm or 60mm.
4 years ago4 Answers
A: Do you mean 2" depth? Which is quill travel, the chuck max diameter opening is 5/8" I am having a hard time finding the actual dimension and specs of this drill, which is needed to assess the value as a "deal".
3 years agoHelpful?
Q: Regarding the Mastercraft drill press, model 055-5530-8; How do you square the table front to back. Instructions show how to adust side to side, but not fron to back. Mine is out of square.
5 years ago3 Answers
A: Shim all you want, its still not going to drill straight.
3 years agoHelpful?
Q: What is the weight of this drill press?
9 years ago3 Answers
A: 22 KG shipping weight
5 years agoHelpful?
Q: Can this drill through steel?
9 years ago3 Answers
A: In general the answer is yes, but it has to be qualified based on your task. Minimum speed is 620 RPM, which is high for boring large holes. It would be fine for diameters less than 3/8 or so. Of course, you would need to use a bit designed for drilling steel.
9 years agoHelpful?
Q: Why is the maximum diameter 5/8"? Simply because of the hole in the plate or is there another reason. I would like to use a hole saw for a project.
11 years ago3 Answers
A: 5/8 is the maximum shank size. I have a 4" hole saw with a 3/8 shank, so you should be good. To prevent damage to your hole saw, mount a wooden work surface on the table.
9 years agoHelpful?
Q: Le moteur démarre mais il ne semble pas assez fort pour tourner les deux poulies. J'ai bien vérifier si la courroie était sur les bonnes poulies. Aucunes combinaisons fonction.
3 years ago2 Answers
- Translate with Google
A: Fort probable que c’est le statter capacitor qui est grillé
3 years agoHelpful?
Q: what is the maximum depth of cut
4 years ago2 Answers
A: The maximum I ever did was 6 inch.
4 years agoHelpful?
Q: Need a new v-belt for CT drill press K710 can't seem to find one anywhere any ideas?
7 years ago2 Answers
A: Just take your old belt to Lordco auto parts or any auto parts dealer and they should be able to measure it with a belt gauge. Mine uses a standard v belt, very common.
7 years agoHelpful?
Q: how can i change the speed on this drill
9 years ago2 Answers
A: Inside the housing on top there are 2 sets of pulleys connected by a belt much like in a car. One set of pulleys is attached to the assembly holding your drill bit and the other is attached to the motor. By adjusting the belt on both pulleys, you can adjust the speed of the drill from 620 to 3070 rpm. It's similar to the one in the picture.
9 years agoHelpful?
Q: What is a motor no load rpm?
9 years ago2 Answers
A: The "No Load RPM" is how fast it turns when it is not drilling into something. A "Load" on the motor will cause it to slow down.
9 years agoHelpful?
