Coleman
Coleman 40 Watt, 12V Portable Folding Solar Panel with Stand includes 7A Charge Controller
#011-2043-0
$199.99
Top RatedExclusive
Unfortunately, this product is discontinued in your selected store and nearby stores.
You may be interested in these similar products shown below.Similar Items
Quebec residents: For information on maintenance and repair click here.
Similar Items
Product Details

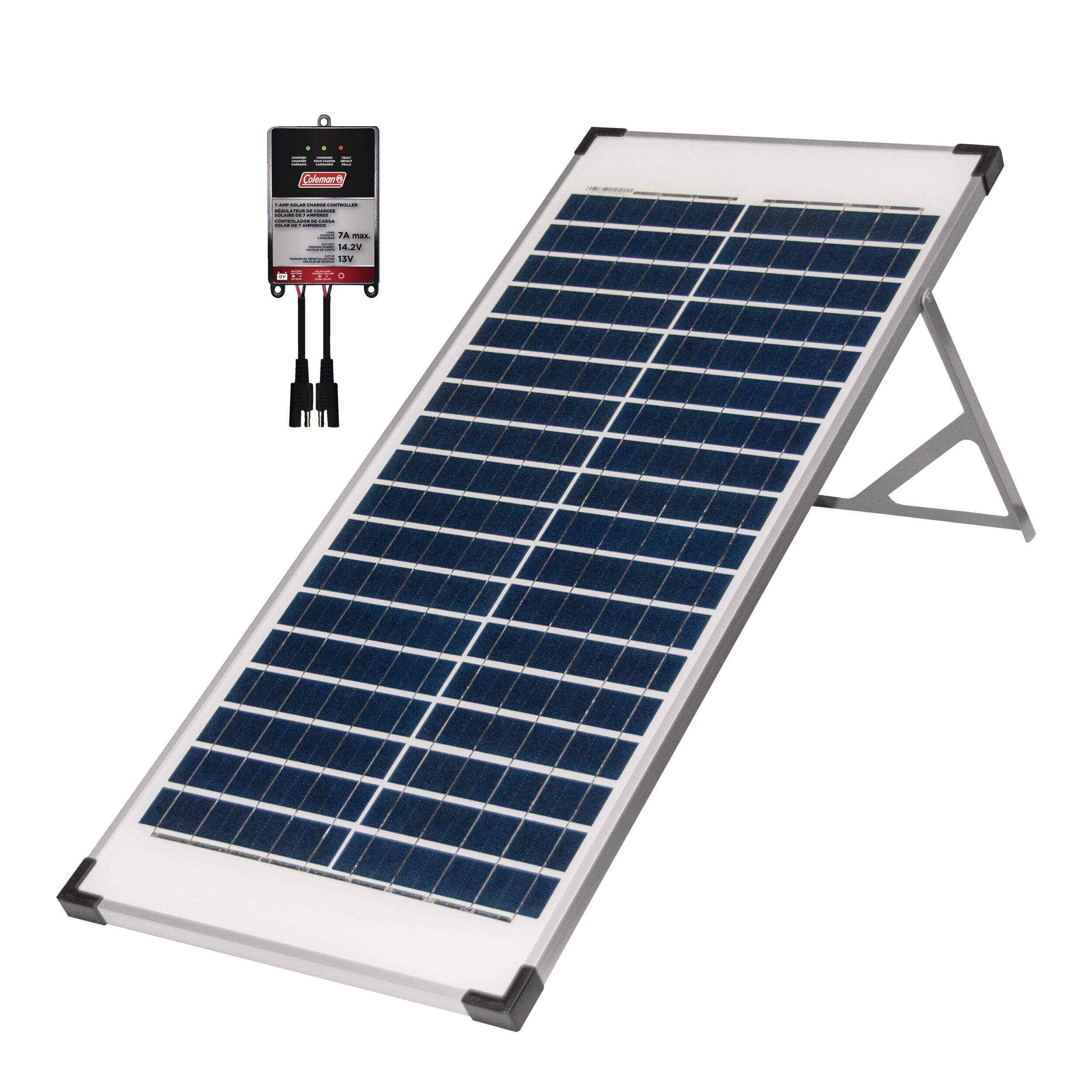

Harness the power of the sun with the Coleman 40 Watt, 12V Portable Folding Solar Panel. This convenient Coleman solar panel easily sets up anywhere with its built-in kickstand and plugs into your RV, cabin, or any 12V battery system to generate electricity. Durable tempered glass and a weatherproof casing withstand outdoor use while the included 7 Amp charge controller prevents overcharging. With 40W of power output from high-efficiency solar cells, this portable Coleman 40w solar panel solar panel keeps batteries charged and essentials powered using free solar energy.
Coleman 40 Watt Solar Panel is ideal for use with RVs, homes, cabins, remote and back-up power, 12V battery charging and more
Panel features high-efficiency crystalline solar cells and a durable metal frame for extended outdoor use
Includes fold-out stand for easy installation
Fully weatherproof design with shatterproof tempered glass for superior durability
Includes 7 Amp charge controller to protect the 12 Volt battery from overcharging
Built-in blocking diode prevents reverse discharge in battery
Maximum power output: 40 Watts and 2.3 Amps under ideal conditions
Dimensions: 31 x 13.8 x 0.70" (79 x 35.1 x 1.8 cm)
Accessories: 12' (3.65 m) extension cable (0745056)
| Part Number | 51840 |
|---|---|
| Assembled Width (in) | 0.71 in |
| Assembled Depth (in) | 31 1/8 in |
| Assembled Height (in) | 13.82 in |
| Assembled Weight (lb) | 7.9 lb |
| Solar Technology | Crystalline |
| Frame Material | Aluminum |
| Output Amperage (amps) | 2 A |
| Output Voltage (V) | 17 V |
| Package Weight (lb) | 9.96 lb |
| Package Depth (in) | 14.49 in |
|---|---|
| Package Height (in) | 37.76 in |
| Package Width (in) | 2.32 in |
Warranty
- 5 yr exchange
Online Ordering
- Pick Up is free at most stores (some stores require a minimum order value before tax)
- Shipping fee is based on size and weight of products and distance from address to store
- Same-Day Delivery costs $9.99 per order
- Online Ordering Information
Returns
- Most products can be returned or exchanged at any Canadian Tire store within 90 days of purchase
- Some products are non-refundable and non-exchangeable
- The return policy outlined above may not apply to the product you are currently viewing. For complete details and eligibility, please refer to our Return Policy for exceptions.
Compare Similar Products
Only Show Differences | |||||
| Ratings | |||||
| Assembled Width (in) | 27.44 in | 0.98 in | 24.09 in | 53.39 in | |
| Assembled Depth (in) | 22 1/4 in | 17 3/4 in | 45 3/8 in | 12 1/8 in | |
| Assembled Height (in) | 1.97 in | 10.91 in | 0.87 in | 0.98 in |
Shop Related Products
- Weekly Deals
- Customers Also Viewed
- Top Trending Products
- More From This Brand
Weekly Deals
Review Highlights
List of Pros Highlights
Pros
List of Cons Highlights
Cons
Reviews
Customer Images and Videos
Filter Reviews
- purchase
- price
- installation
- satisfaction
- quality
- setup
- value
- small
Rating
Locale
1 to 5 of 142 Reviews
1 – 5 of 142 Reviews
Most Recent
4 out of 5 stars.
Good unit for the price
10 months ago
Not bad for the price
Helpful?
1 out of 5 stars.
Not Even Close To 40Watts!
a year ago
Worst panels ever. Been buying over the last three years when on sale. I finally hooked 8 of them up to my travel trailer(320 watts) and only get 110 watts in direct sun light. I thought it was my Victron charge controller limiting output, but I hooked up a watt meter and same result. Way over priced even when on sale. Garbage!!!
No, I do not recommend this product.
Helpful?
4 out of 5 stars.
Solar Panel Good Value
a year ago
This 40w panel is a good value. I used it on my sailboat to charge 2 12v AGM batteries which ran my electric cooler. It generated enough power to keep my batteries with enough of a charge to run my cooler at 2C for a week during 25+ C daytime temps.
Helpful?
5 out of 5 stars.
Solar.pannel for RV
a year ago
Great product easy to use !
Helpful?
5 out of 5 stars.
Solar Panel and Controller has lived up to expectations
a year ago
Purchased to keep deep cycle RV battery charged. After one month the unit has performed flawlessly.
Helpful?
1 – 5 of 142 Reviews
Questions
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 215 Questions
Most helpful answers
Q: Could you please double-check the claimed amperage output? 40 watts at 12 volts should be 3.33 Amps, but it claims only 2.3 Amps maximum. Thank you. 12Volts x 3.333Amps = 40 Watts Product #: 11-2043-0
12 years ago5 Answers
A: I own one these panels. The operating voltage is 17 volts (measured in full sun), so 2.35 amps is correct. In the real world with a better quality PWM type controller, which typically operates at 75% efficiency, 1.8 amps is peak output (observed), so I would say the panel works as advertised. A more expensive MPPT controller might deliver 2.2+ amps, but the cost of the controller goes from about $30 to $100 or more. Not worth it with a small 40 watt panel - you'd be farther ahead buying another panel, or a bigger one.
3 years agoHelpful?
Q: does this solar panel need a battery to go with it or can I simply use to charge little things like a cell phone while camping?
2 years ago4 Answers
A: This solar panel only charges 12v batteries. You would need an inverter hooked up to the battery to charge cell phones or other devices.
2 years agoHelpful?
Q: I just bought this to use as a trickle charger on a Honda Fit that just isn’t being driven as much due to working from home.will this work for keeping the battery charged? Any tips?
4 years ago3 Answers
A: Fill it with gasoline.
3 years agoHelpful?
Q: Why is the charging light continuously flashing ?
4 years ago3 Answers
A: I am fairly certain this means you are not securely connected. Check the battery contacts and that the cords are snugly plugged together. I had that same issue at first and was able to solve that way.
4 years agoHelpful?
Q: Can I charge my cell phone with this or do I need something else to be able to do that?
4 years ago3 Answers
A: They are typically used to charge a 12V battery. A solar panel charges a rechargeable battery, that in turn charges your mobile.
4 years agoHelpful?
Q: Will this charge a lithium ion phosphate 12V battery?
4 years ago3 Answers
A: Yes this is what I use it for when camping. I use the panel to charge a 12v battery for my sleep apnea device.
4 years agoHelpful?
Q: I just bought this solar panel on sale. Happy about that... but I see that the controller is "indoor use only". What? Where do you put the controller when your panel obviously has to be outside?
5 years ago3 Answers
A: I was shocked to read this info also on the back of the controller right under the ‘Made In China’. Would have been nice if it was written on the outside of the box the panel came in. I will do what someone answered to you an hopefully find a spot in the battery box. Not sure if there is enough room though. : /
4 years agoHelpful?
Q: de quelle façon peut-on raccorder plusieurs pannaux ? J'ai déjà un panneau comme celui-ci mais il n'y a pas de connecteur pour brancher en série plusieurs panneaux ... faut-il acheter un connecteur à part ?
12 years ago3 Answers
- Translate with Google
A: avec ce hub il est possible d'installer jusqu'a 8 panneaux http://www.canadiantire.ca/fr/pdp/sunforce-8-in-1-solar-panel-hub-0740216p.html#srp
9 years agoHelpful?
Q: can i be install permanetly to the roof of my rv?
a year ago2 Answers
A: While it is not ideal for mounting. And unlike other answers, it doesn't have screw holes. You could get special brackets for them. But unless it's for a shed roof it would be next to useless.
a year agoHelpful?
Q: Can this be hooked to the battery of a truck to maintain it while camping, the main question is do I have to disconnect the battery cables from the battery to charge it, or can the charging clamps just go the the post cables. Thank you
2 years ago2 Answers
A: When I hooked up to the truck I didn’t ( did not ) disconnect the battery cables
2 years agoHelpful?
1 - 10 of 215 Questions
